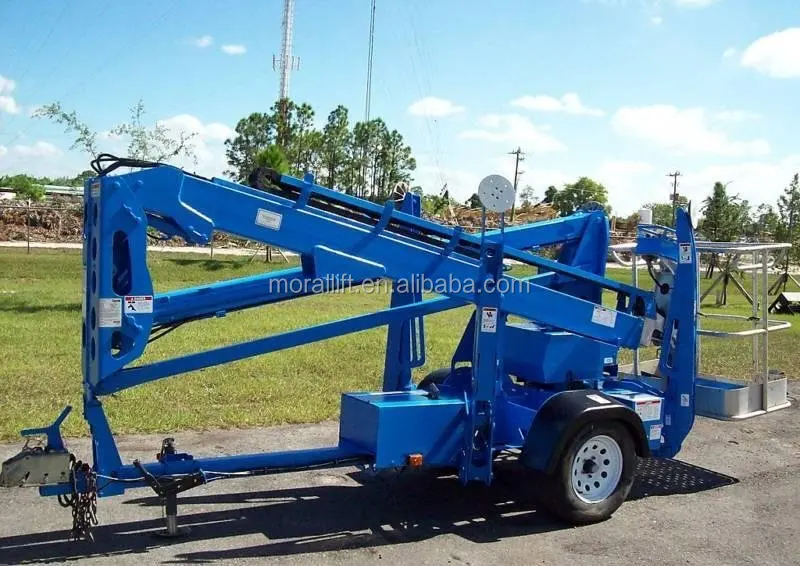

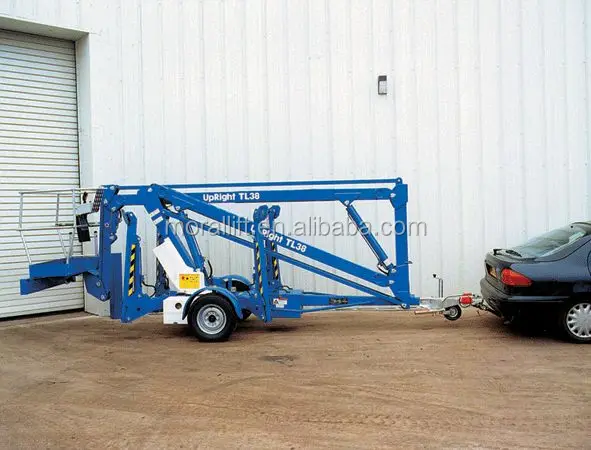

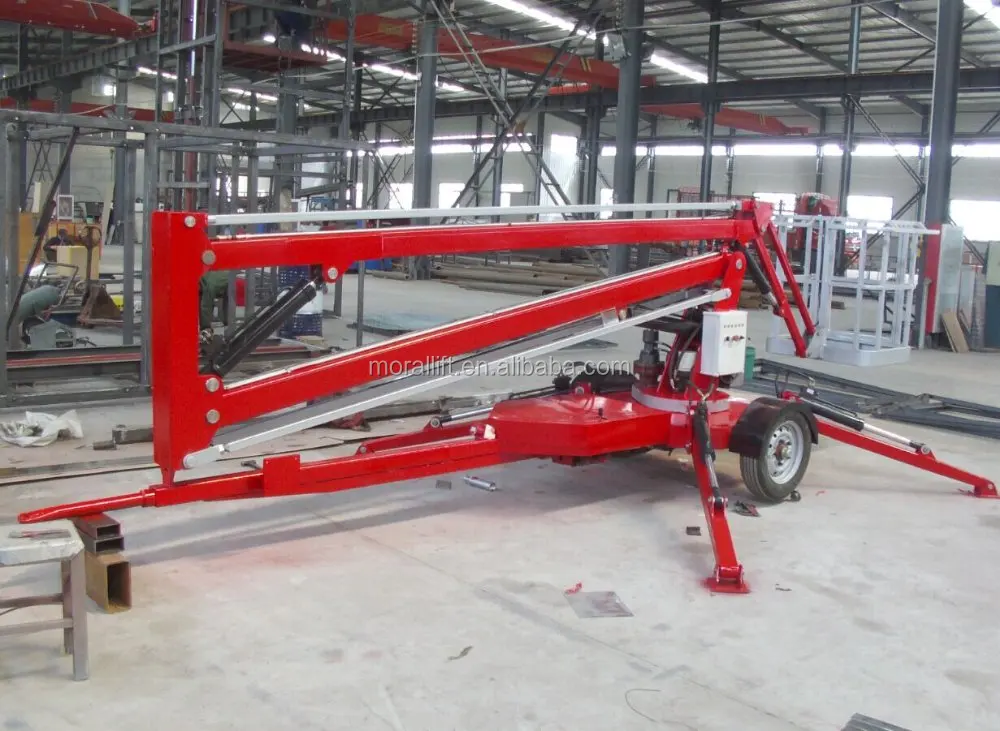

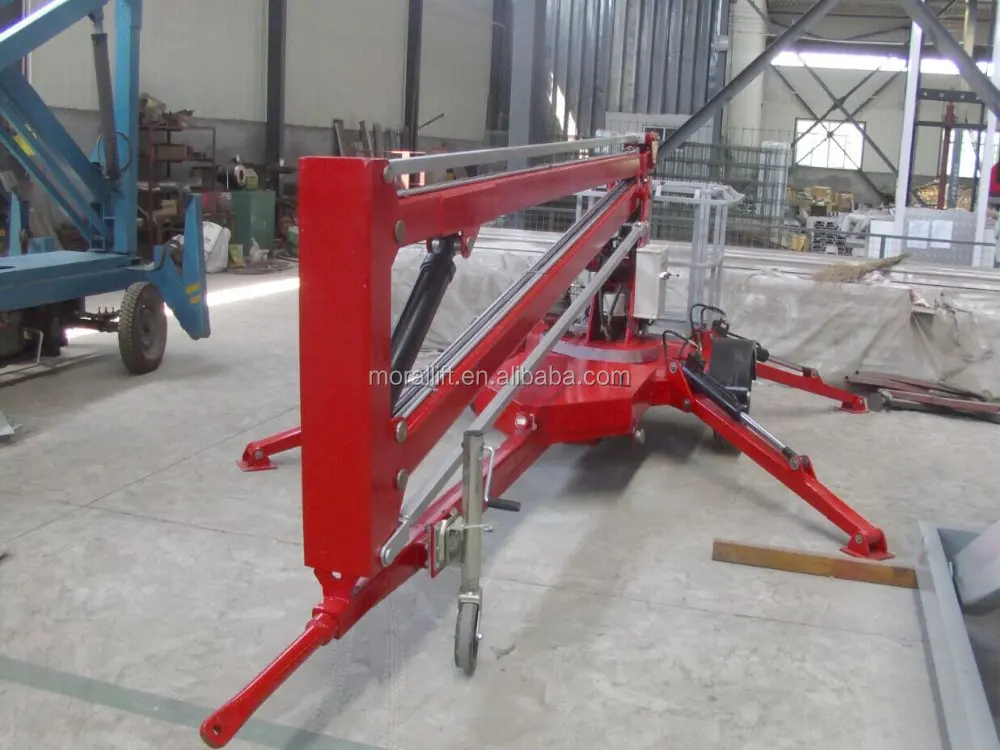

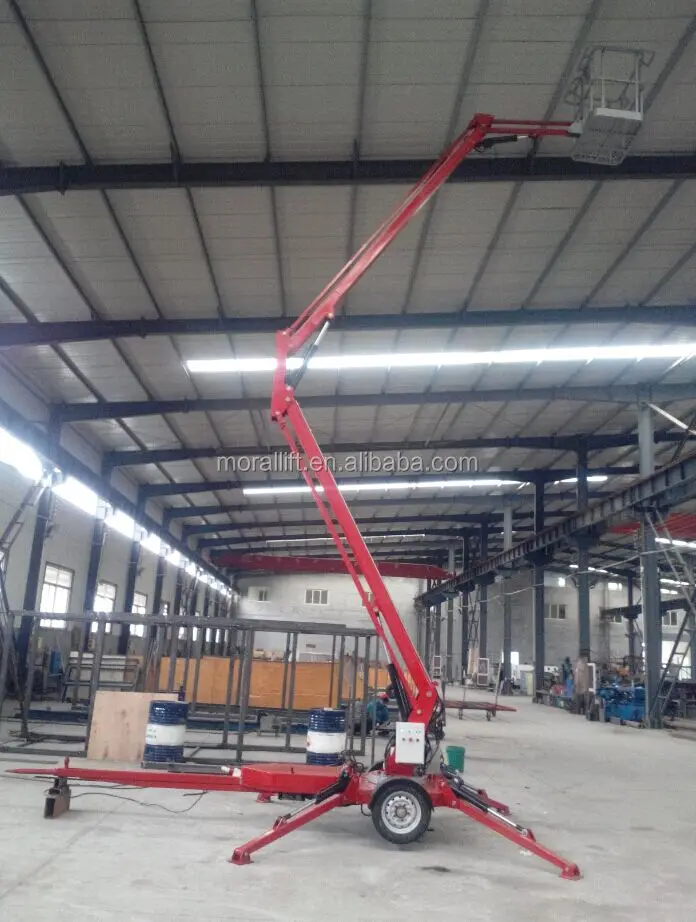

Small telescopic trailer articulating boom lift

Product Overview

Description

1. Platform
Its platform can lift up , extend horizontally, or turnaround 360° to stride across certain obstacles for work . So it can realize multipoint work in wide scope.

2. Legs
With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.





Model	ZBPT-10	ZBPT-12	ZBPT-14	ZBPT-16
Platform height(m)	10	12	14	16
Max. work height(m)	12	14	16	18
Max. horizontal extent(m)	4m	4.5m	7m	7m
Rotation	360°	360°	360°	360°
Platform capacity(kg)	200	200	200	200
Platform Size (mm)	1100*700	1300*700	1300*700	1300*700
Lifting speed(m/s)	0.05-0.09	0.05-0.09	0.05-0.09	0.05-0.09
Wind-proof	≤5	≤5	≤5	≤5







3.Advantages of truck tow behind trailer lift
It can be diesel or storage battery according to customer's requirements.

4. Material
Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,

5. Hydraulic cylinder:
Original import or domestic joint venture hydraulic cylinder, with high quality, improving the reliability and prolonging the work time,



6.  Safety

1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency.
