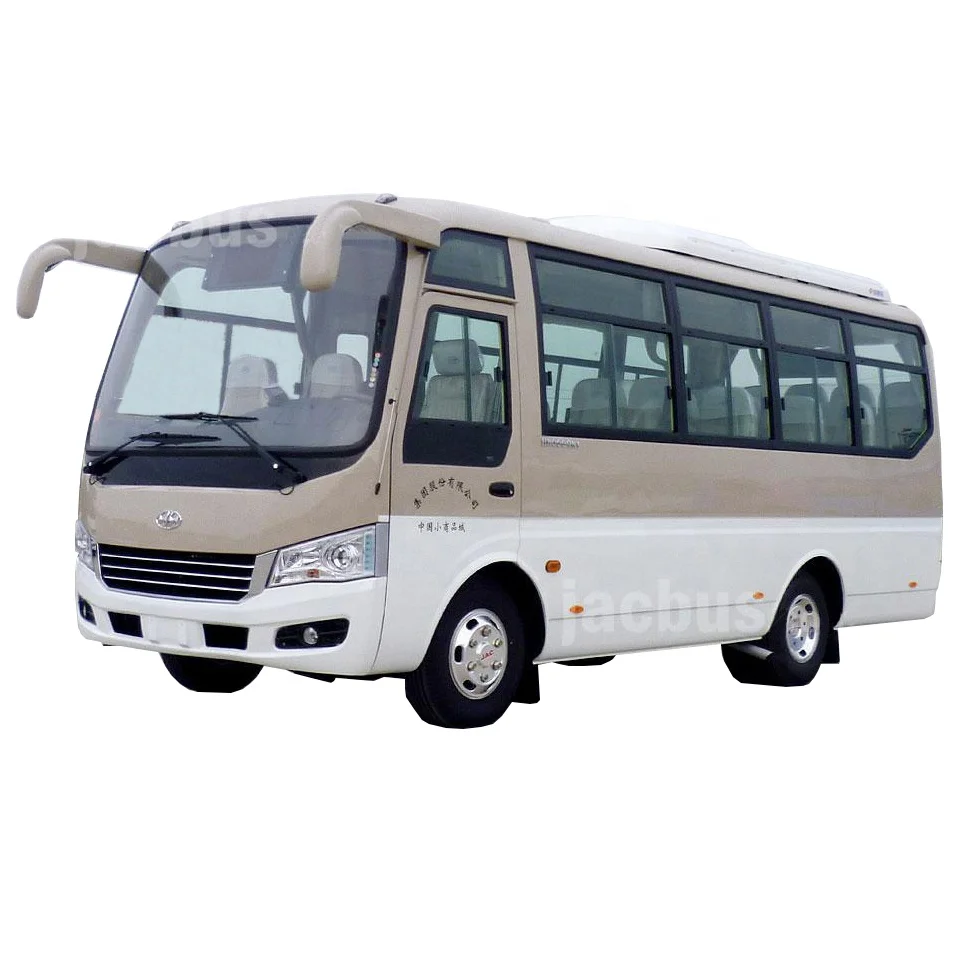

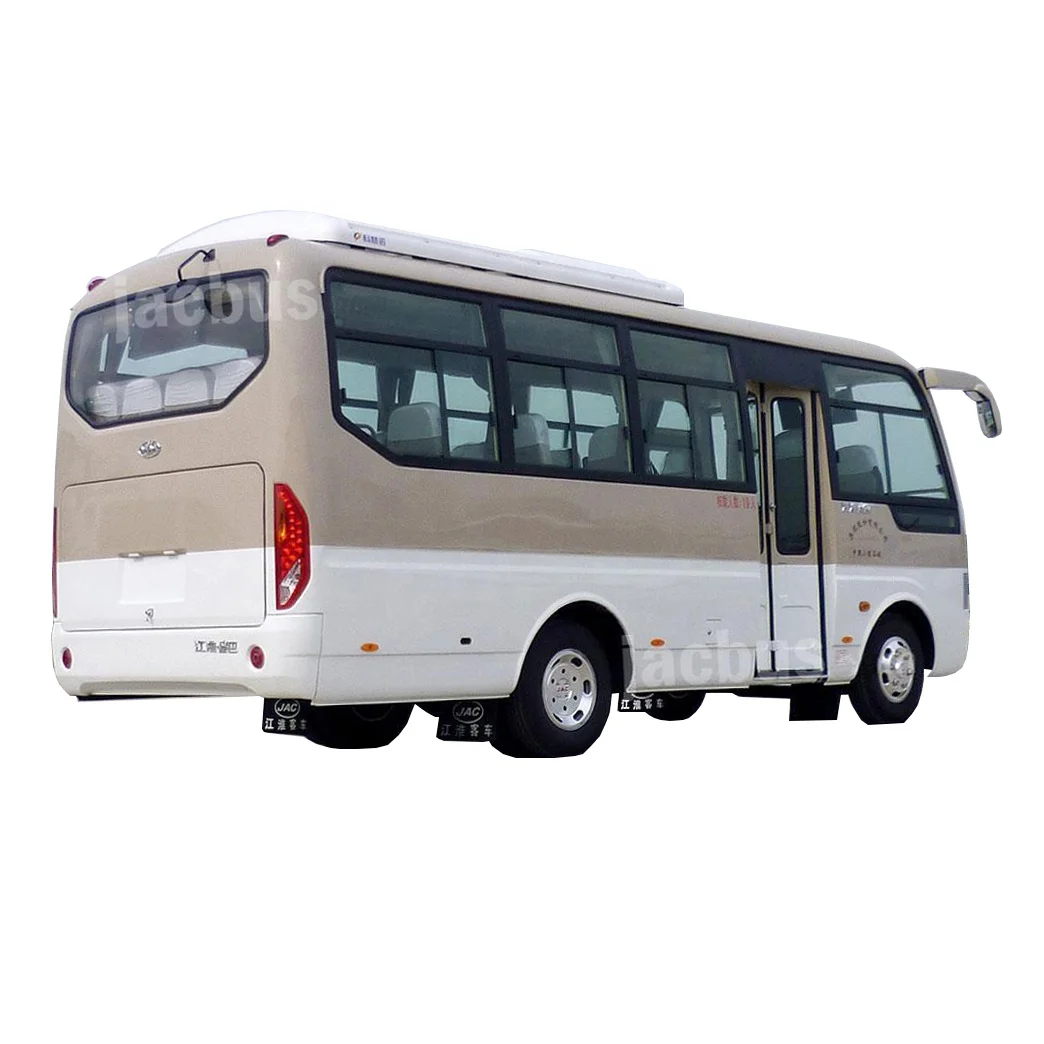

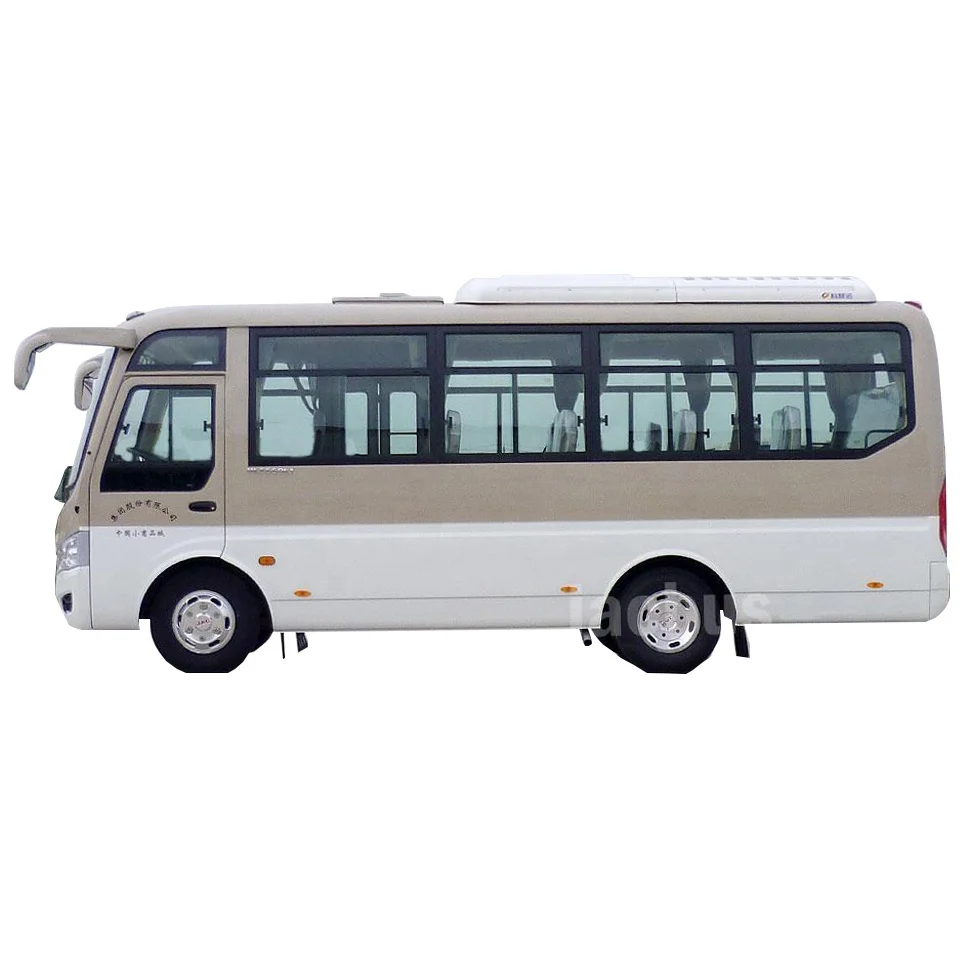

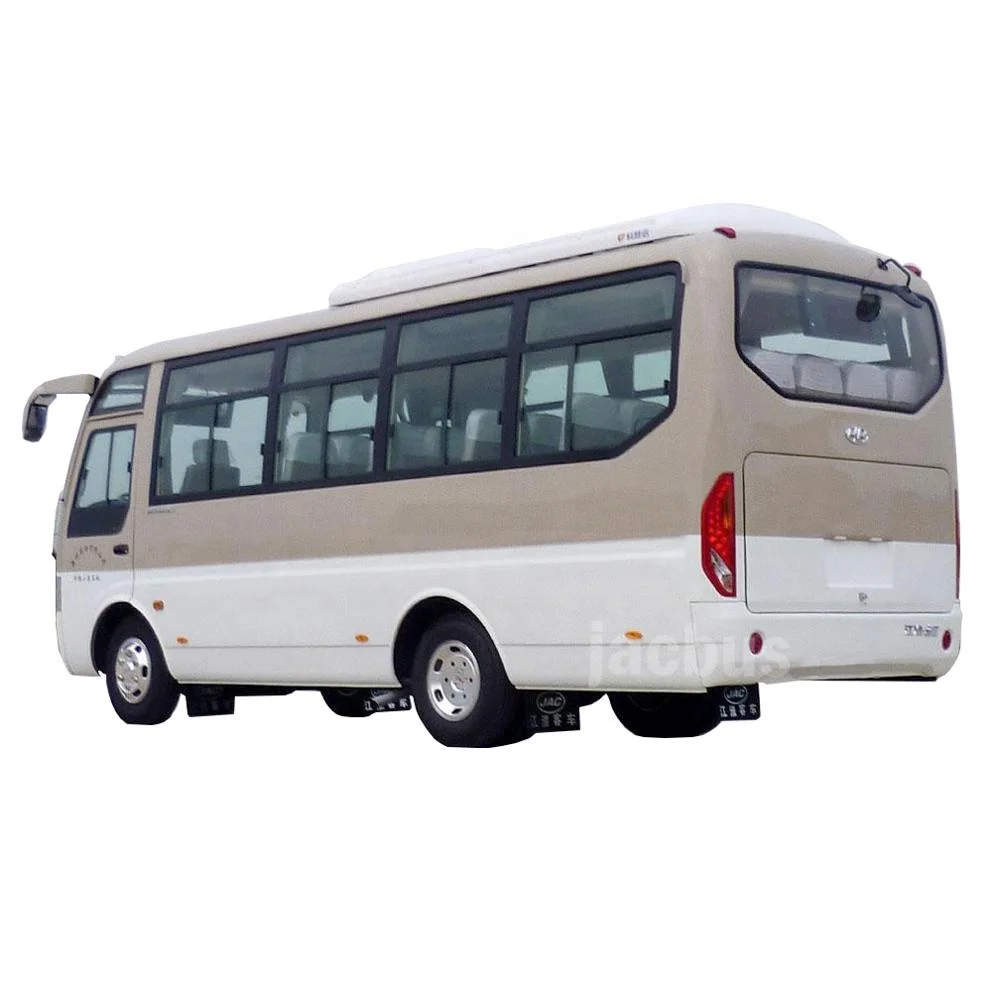

30 Seater JAC Diesel Star Bus with Free Parts for Sale
| Specification and Configuration | ||
| Performance | ||
| 1.2 | dimension (L×W×H)(mm) | 7450×2050×2650 |
| 1.3 | wheel base (mm) | 3935 |
| 1.4 | track(front/rear)(mm) | 1665/1525 |
| 1.5 | Unladen weight | 4080 |
| 1.6 | Max. Laden weight | 6500 |

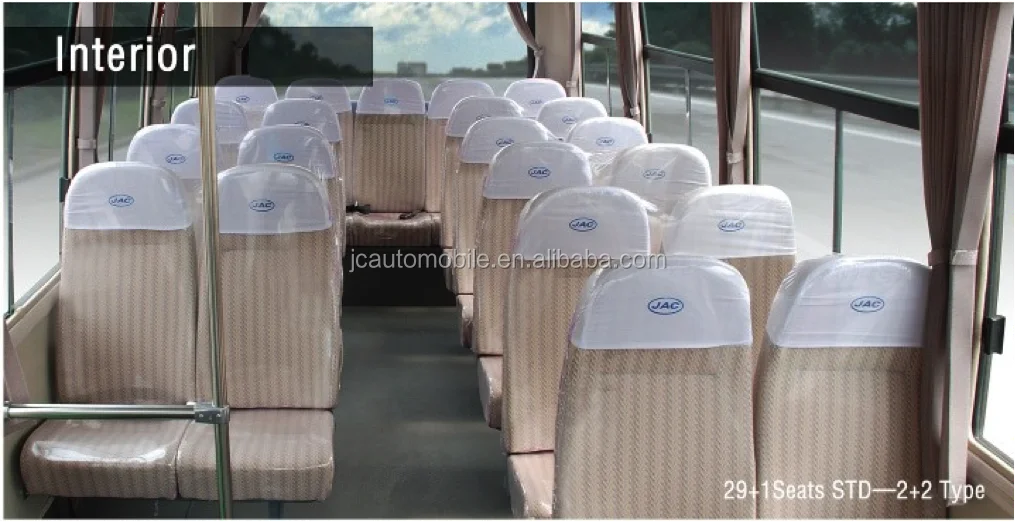

| 1.7 | seat capability | 29+1 |
| Engine | ||
| 2.1 | model | CY4102BZLQ |
| 2.2 | position | Front |
| 2.3 | type | Diesel,4 cylinders in line,4 strokes,inter cooling |
| 2.4 | emission | Euro II |
| 2.5 | displacement(cc) | 3856 |
| 2.6 | rated power(kw/rpm) | 88/2800 |
| 2.7 | max.torque(N.m/rpm) | 356/1800 |
| Chassis | ||
| 3.1 | model | HFC6700KY6C |
| 3.2 | clutch | single, dry type |
| 3.3 | transmission | LC6T46 |
| 3.4 | axle | JAC axle ( front axle 3.5Ton, rear Axle 5 ton) |
| 3.5 | suspension | leaf spring (front 3/rear 4) |
| 3.6 | steering | power steering |
| 3.7 | brake system | air brake, spring energy brake |
| 3.8 | capacity of fuel tank (L) | 90L |
| 3.9 | tyre | 7.00R16 |
| 3.10 | others | stainless steel drum cover |
| Body&trim | ||
| 4.1 | passenger door | electrical folding door |
| 4.2 | windows | whole sealed side windows |

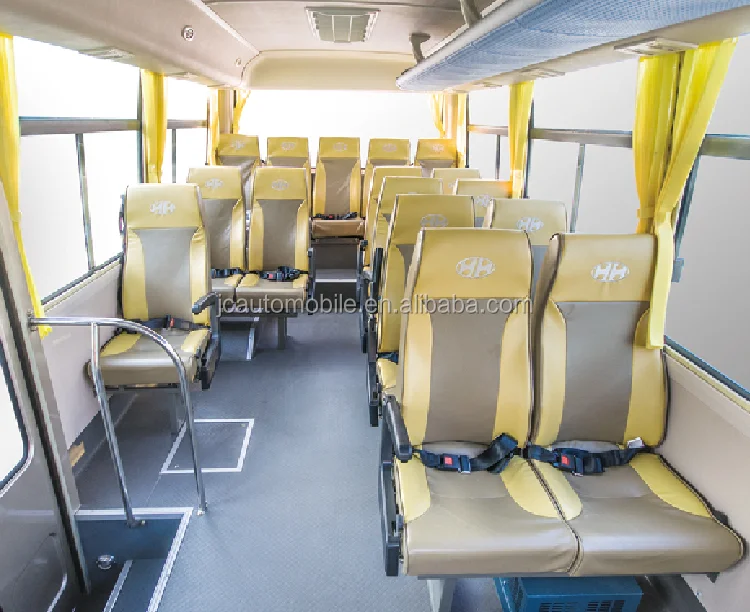

| 4.3 | seat | Fabric seats with adjustable high back rest,with safety belts |
| 4.4 | floor | Chinese anti-attrition floor leatheroid(mat) |
| 4.5 | rear-view | rod type |
| 4.6 | air conditioner | built in type, 12000W |
| 4.7 | paint | plain lacquer |
| 4.8 | others | a vent, radio,defroster, digital clock,interior mirror,sunvisor,curtain |
