Product Overview
Description
Product Description

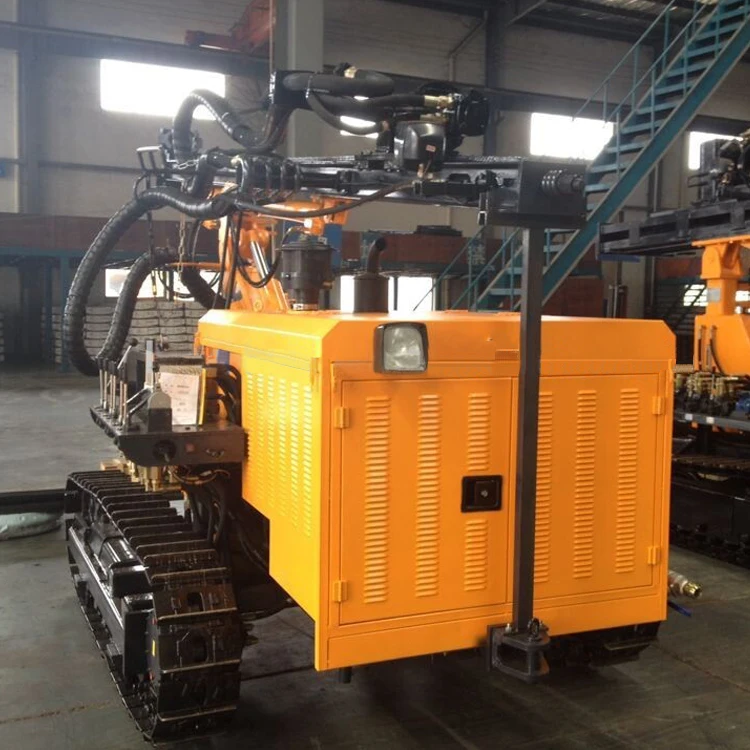

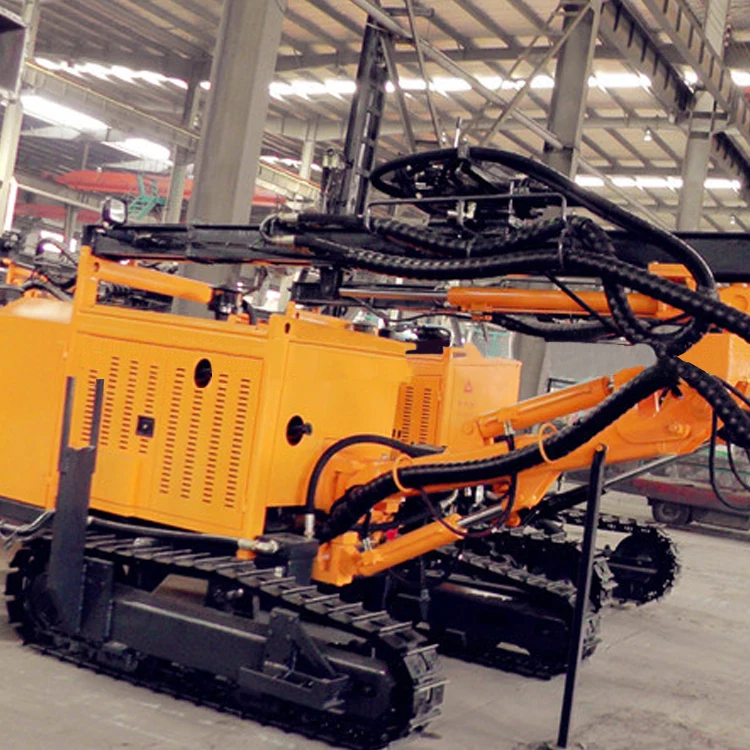

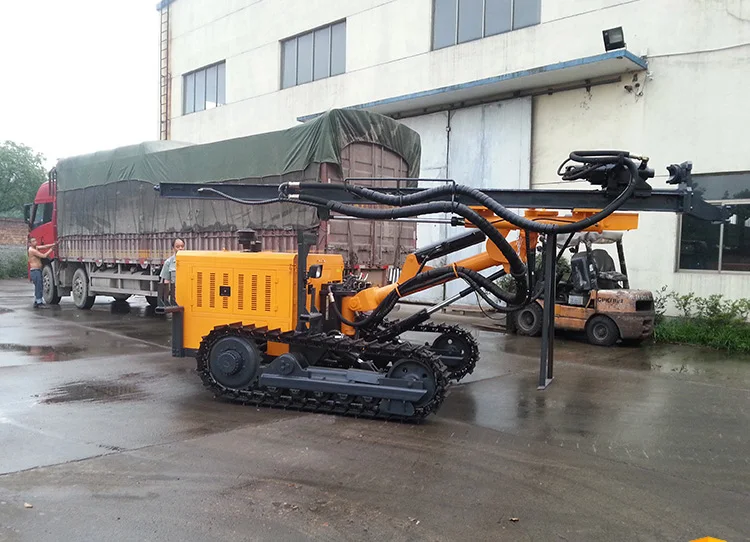

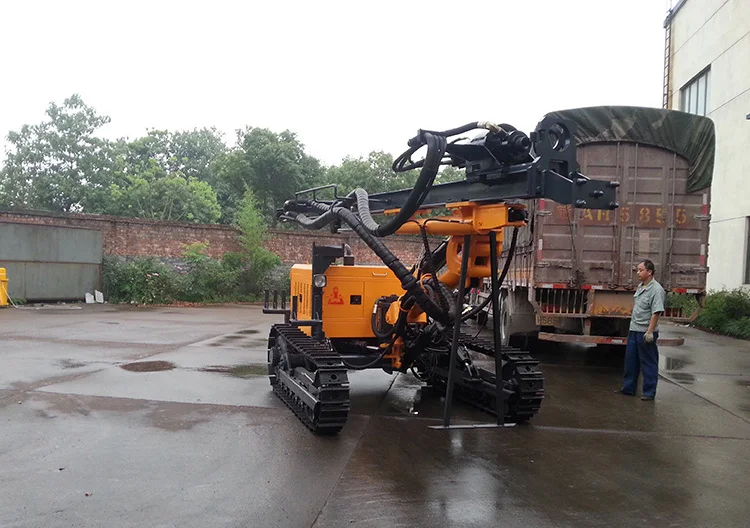

water well drilling and rig machine from KAISHAN AND SHIDASHI core sample drilling rig
| KH5 drilling rig | |
| Model | KH5 |
| Rock rigidity | f=6-20 |
| Diameter of hole | Φ105-140mm |
| Optium drilling depth | 25m |
| Rotation speed | 0-70r/min |
| rotation torque | 1900N·m |
| Lift power | 15000N |
| Feed way | oil cylinder-chain |
| Feed distance | 3000mm |
| Walk speed | 0-2.0Km/h |
| Gradeability | 30° |
| Ground clearance | 254mm |
| Weight | 6800kg |
| Size of drill machine | 5400x2330x2020 |
| Sliding carriage pitch angle | 180° |
| Sliding carriage swing angle | ±50° |
| Drill boom lifting angle | Blow25°,Elevation45° |
| Drill boom pitch swing angle | ±45° |
| Sliding carriage suppling length | 1200mm |
| Power | YC4D80(58KW 2200R/min) |
| Drill pipe | Φ76x3000mm |
| Working air pressure | 1.0-2.4 MPa |
| Air consumption | ≥15m³/min |
1.ISO9001;2000 Quality Certificate
2.CCC Certificate
3.The biggest manufacture in mainland
4.National inspection-free with reliable quality and perfect after-sale service.
Advantage:
*Use two-cylinder diesel engine as power, traction power is big, strong climbing ability; The whole machine vibration is small, work smoothly
*Using diesel engine intake adjusting device for patent (patent no. : 2008820087606.3) plus desert air filter and oil filter triple filter perfect combination, to enhance the jumbo adaptability to bad environment, prolong the service life of diesel engine
*Strong and reliable motor, the flexible drill arm and reliable hydraulic system
Company Information
Our Company:
1. Chengdu Shidashi Mechanical Equipment Co., Ltd. is located in a Beautiful ancient City - Chengdu. our company has accumulated much experience in the business of air compressors and drilling rig machines.
2. National Free-inspection Product,Have passed ISO9001 certification.
3. Good Service, competitive price, high quality, fast shipping and perfect after sale service.

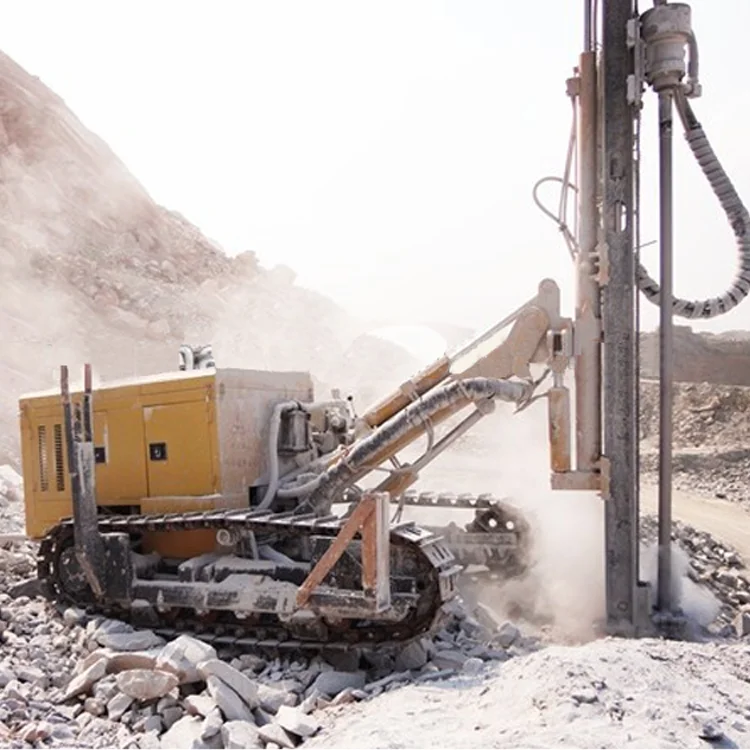

Product Application pictures :
Our company has established the good coopration with a lot of enterprises and individuals ,And the company's high quality products, excellent service which won the praise of customers in china.
