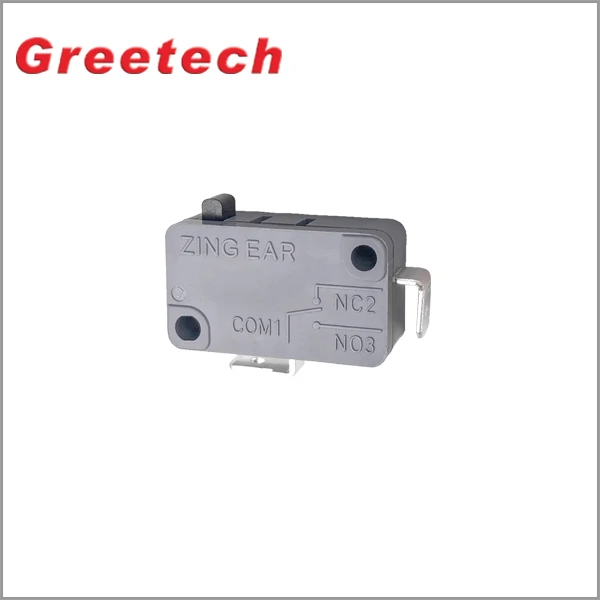

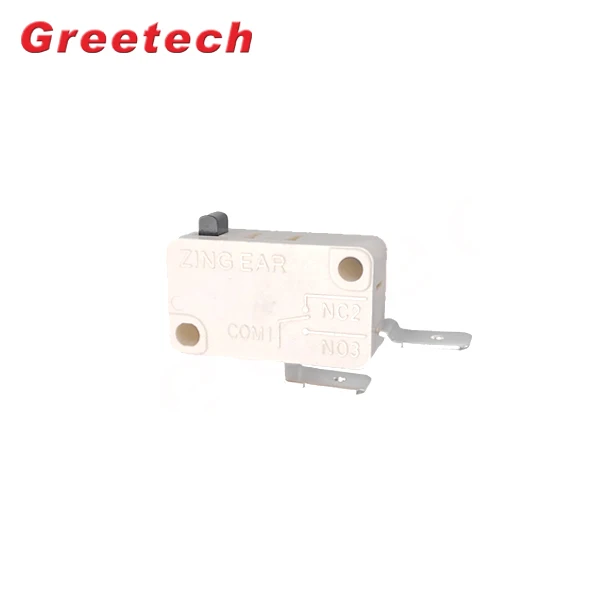

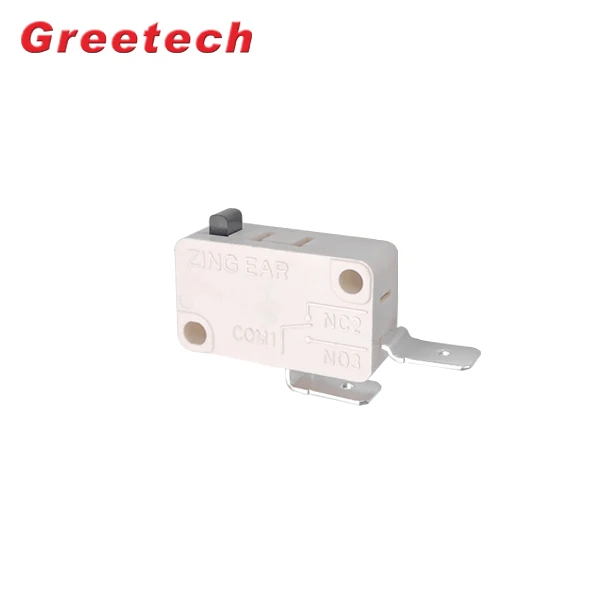

Micro switch 5a 250v t85 0.1A 48VDC, 0.1 A 125/250VAC, 5(2.5)A 125/250VAC 5e4 u
- Category: >>>
- Supplier: Huizhou Greetech Electronics Co. Ltd.
Share on (60361574925):
Product Overview
Description
Micro switch 5a 250v t85 0.1A 48VDC, 0.1 A 125/250VAC, 5(2.5)A 125/250VAC 5e4 u
Product Description
Feature
- Tight configuration , Small Contact Gap, Snap Action,High Small Operating Travel
- Long Life , High Reliability
- Global Safety Approvals
- Variety of Terminals
- Wide Range Operating Force (7gf-600gf)
- Wide Range Temperature Grade( -40℃~150℃ ), 200 ℃ Optional
- With Optional PTI Grade (175v,250v,600v)
- Variety of Levers
- Widley Used in Home Appliances, Electronic Equipments
- Auto Electronics, Apparatus and Instrument ,Power Tool ect
Drawing
Images
Operating characteristic
Parameteres
| Rating | G5S05 | ENEC/CQC: 0.1A 48VDC 0.1A 125/250V 5(2.5)A 125/250V, 5E4,u 0.1A 48VDC 0.1A 125/250VAC 5A 1/10HP 125/250VAC
|

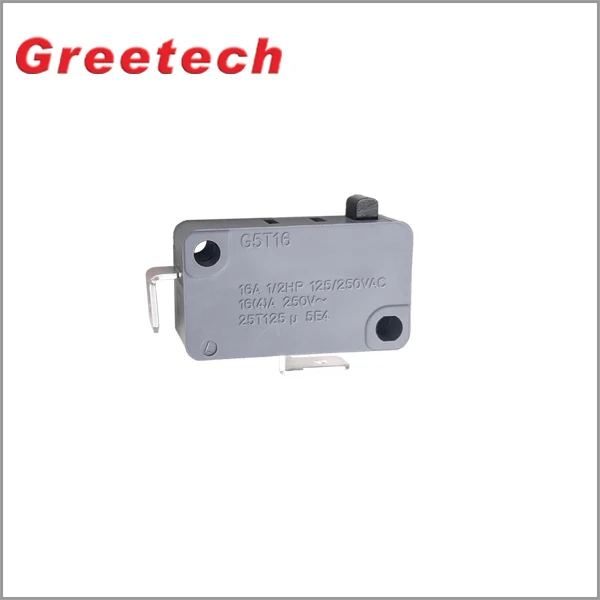

| G5S16 | ENEC/CQC: 16(4) 250VAC u 5E4 :5A 16A 1/2HP 125/250VAC | |
| G5S22 | ENEC: 16(13)A 250VAC u 5E4 22(8)A 250VAC u 1E4 CQC: 22(8)A 250VAC u 1E4 22A 1HP 125/250 VAC | |
| Operating Frequency | Electrical | 15 cycles/minute |
| Mechanical | 60 cycles/minute | |
| Contact Resitance | <=100MΩ Max(Initial Value) | |
| Insulation Resistance | >=100MΩ Min (500VDC) | |
Voltage Resistance | AC1000V,50/60HZ,1min(Bteween each terminals of the same polarity) AC 1500V 50/60HZ,1min(Between current-carriying metal partandground.and between each terminaland non-current-carrying metal parts) | |
| Storage Temperature | (-40°C~ +125°C/85°C) | |
| Service Life | Electrical | >=50000 cycles or 100000 cycles (Depend on part number) |
| Mechanical | >=10000000 cycles or 1000000 cycles or 50000 | |
Application
| Car | Electric Tooth Brush |
| Air-Conditioner | Toys |
| Communication | Home Appliace , Motor Control |
Related products
Distributors Wanted
Packaging & Shipping
Packing List
| o. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping
Company Information
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
Certification
Business Partner
Exhibition and Customer Visiting
FAQ
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A:Yes, free samples could be provided within 2-5 days.
Q5.What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series.
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
