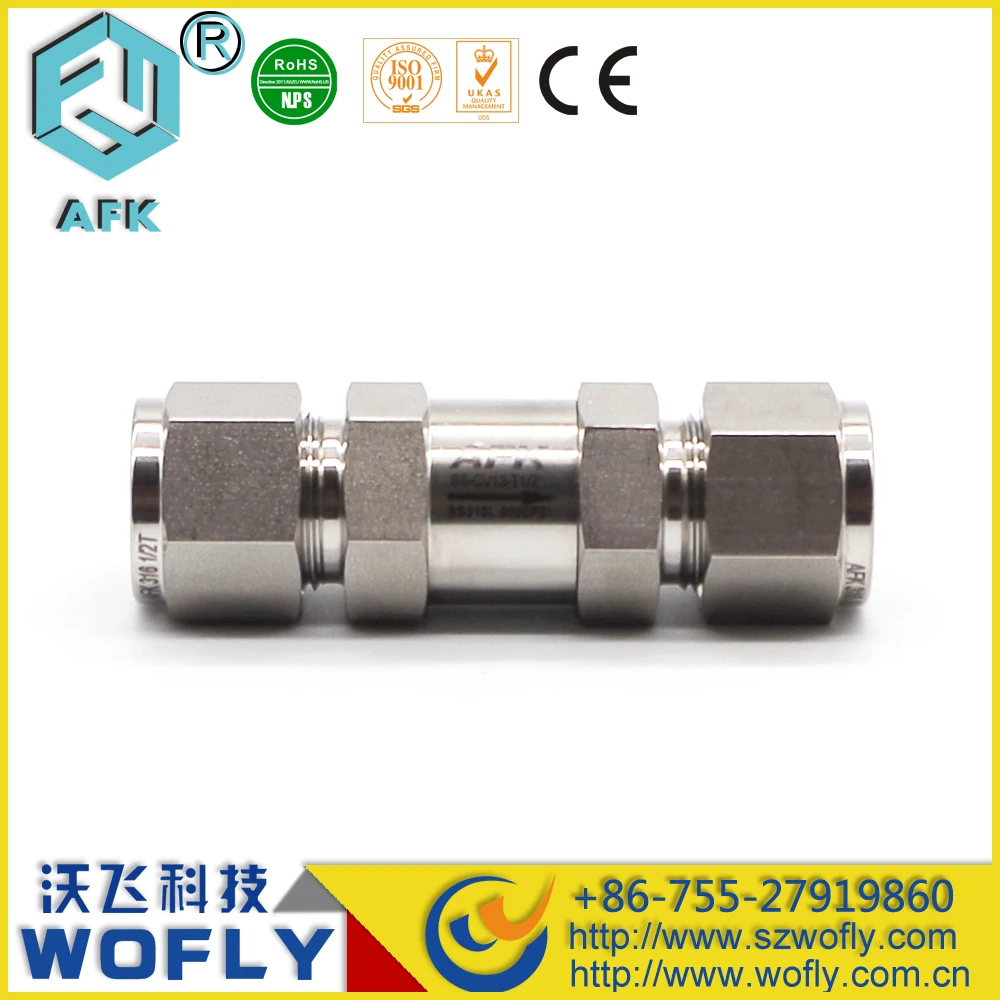

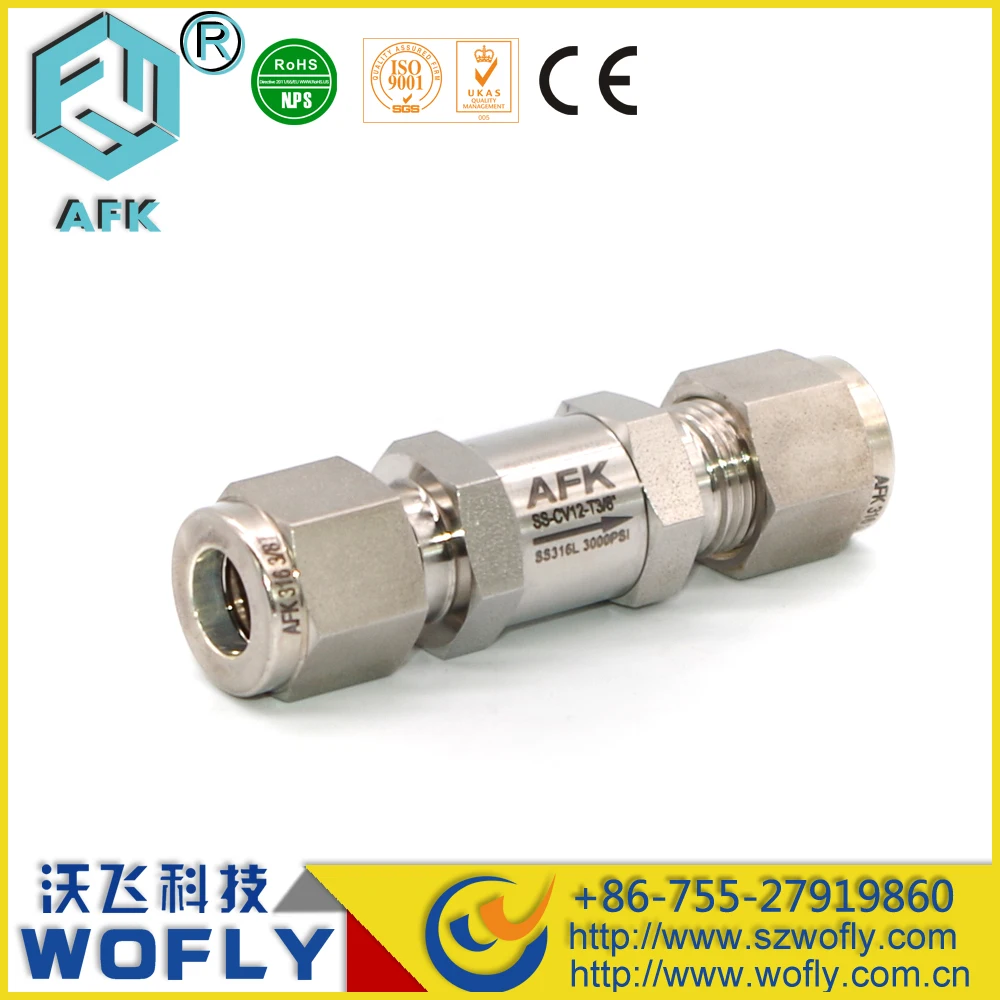

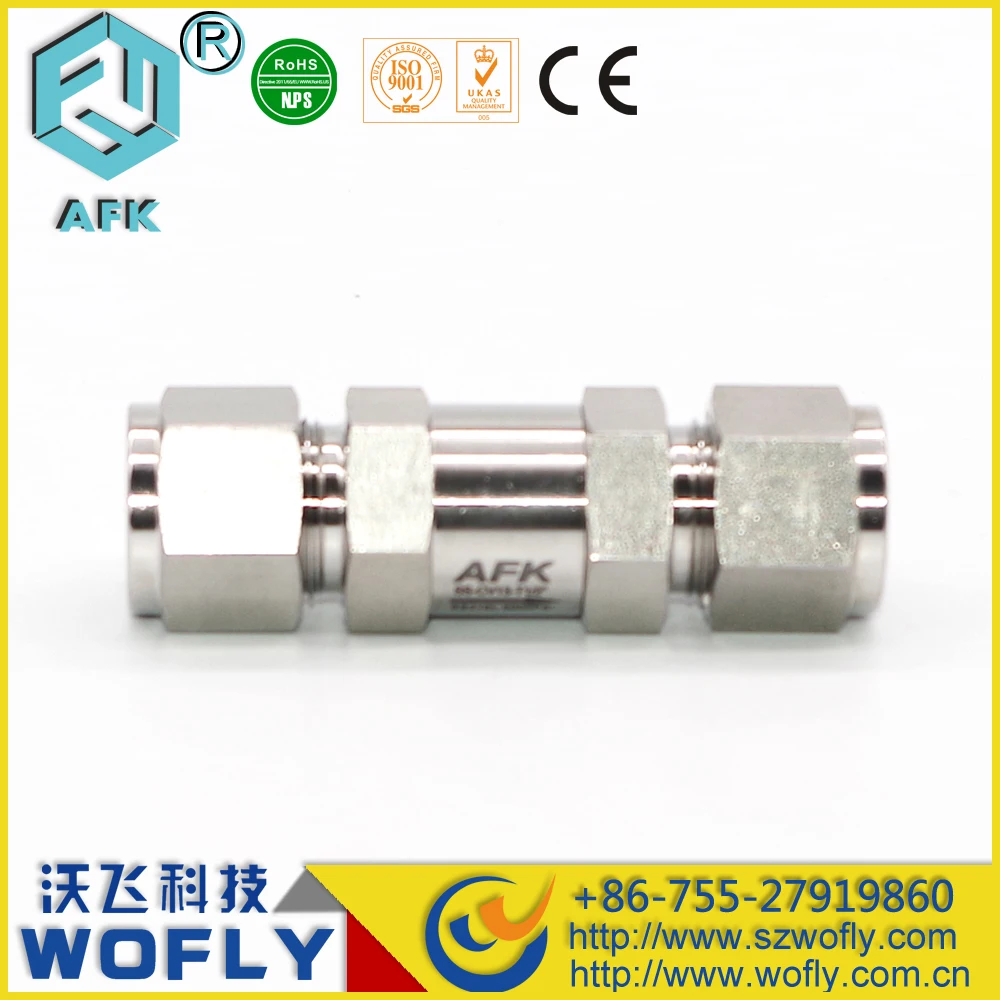

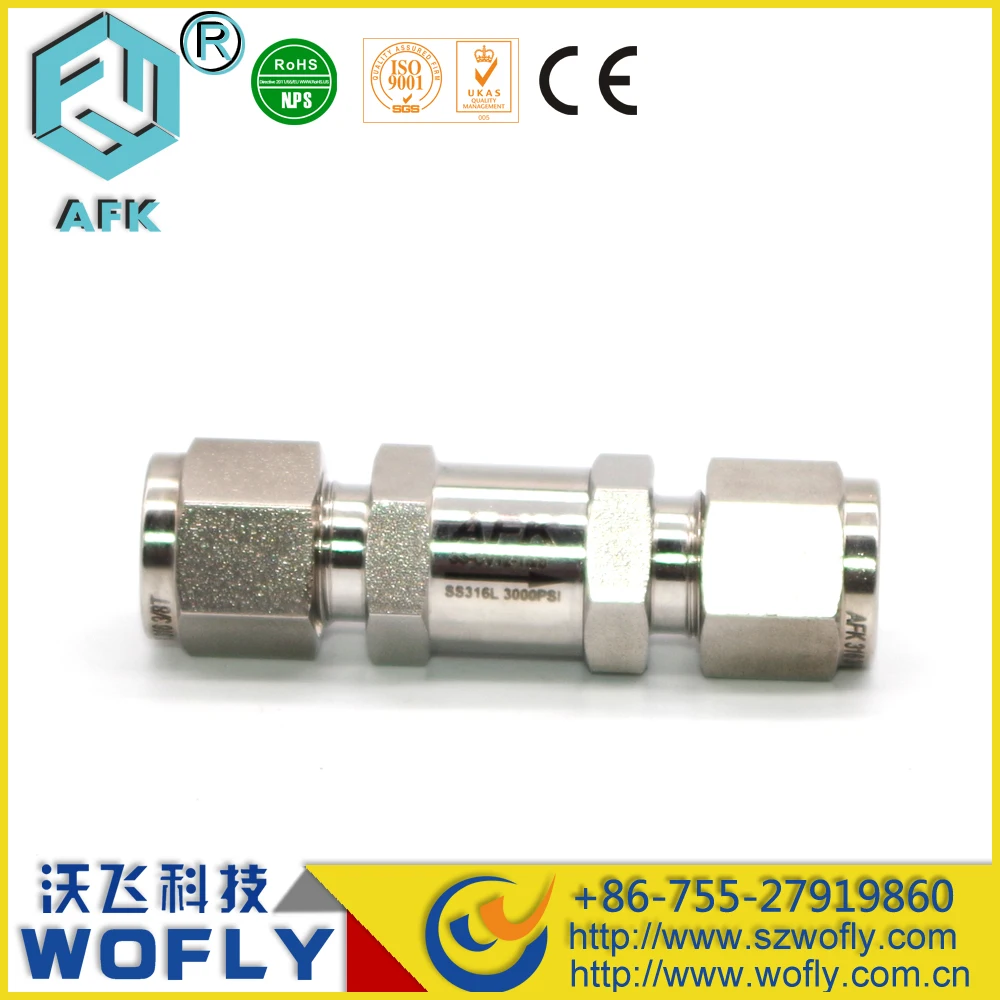

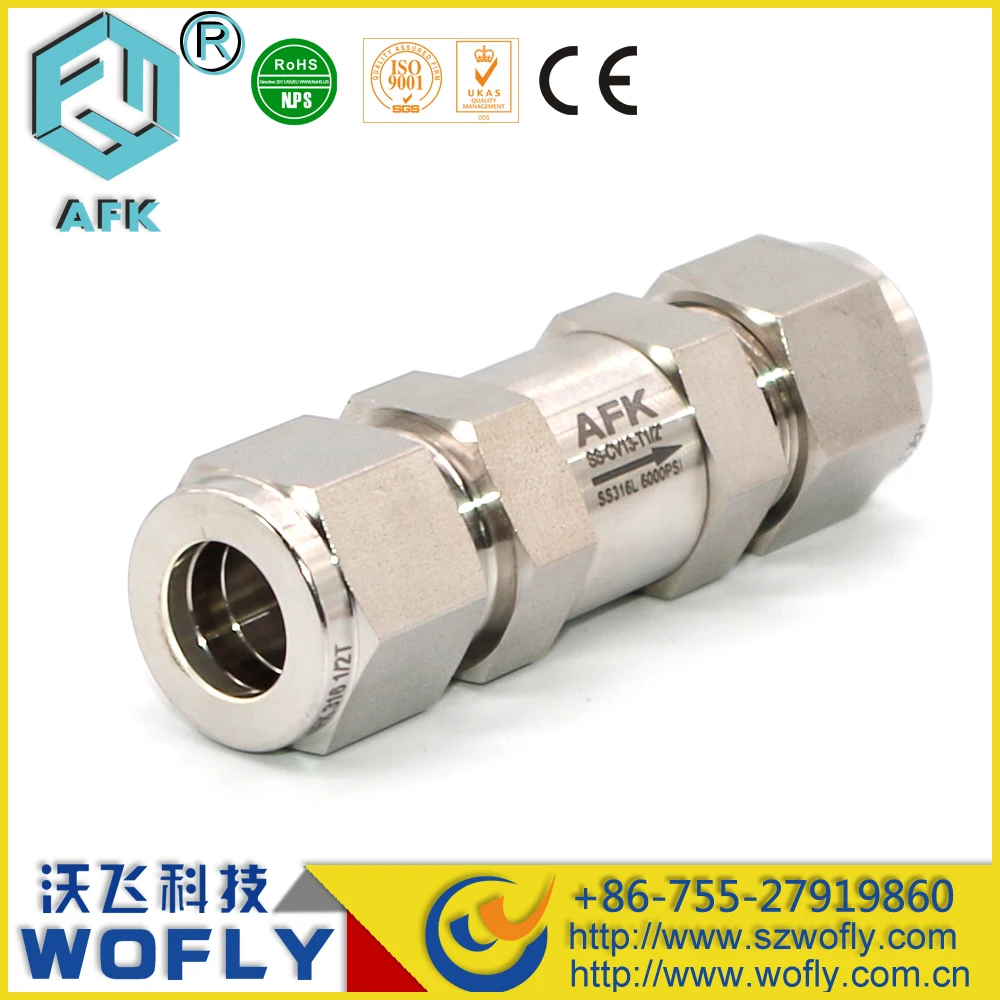

Пружинный газовый мини обратный клапан высокого давления
- Category: Check Valves >>>
- Supplier: Shenzhen Wofly Technology Co. Ltd.
Share on (60361670536):
Product Overview
Description
Product Description
Features:
1. Flow resistance is small.
2. simple construction.
3. small volume, light weight.
4. easy to operate, open and close quickly, to facilitate remote control.
5. easy maintanence.
6. Sealing ring are generally activities, remove replacement is comvenient.
7.Wide application.
8. Reliably sealing.
1. Flow resistance is small.
2. simple construction.
3. small volume, light weight.
4. easy to operate, open and close quickly, to facilitate remote control.
5. easy maintanence.
6. Sealing ring are generally activities, remove replacement is comvenient.
7.Wide application.
8. Reliably sealing.
Specification
Terminal connection size | 1/8'',1/4'',6mm,8mm 3/8'',1/2'',10mm,12mm 3/4'',14mm,16mm,18mm.20mm,22mm | ||||
Maximum working pressure | 3000PSI(20, 6000kpa) | Brass:1500PSI(10, 300kpa) | |||
Stainless steel:316 2000PSI(13,700kpa) | |||||
Tempreature range | fluororubber:-23 °C~191°C(-10°F~375°F) | ||||
NBR: -23 °C~121°C(-10°F~250°F | |||||
Non-returen valve | 1,10,25PSI(2,6,66,170kpa) | ||||
choice:Spring with cracking pressure up to 100psi | |||||
fluid coefficient | 1/8''-0.16 | 3/8''-1.47 | 4.48 | ||
1/4'',6mm,8mm-0.47 | 1/2'',10mm,12mm-1.68 | ||||
Model
CV-01(N) | CV-02F(N) | CV-04M(N) | CV-06OD |
CV-01F(F) | CV-03M(N) | CV-04OD | CV-14OD |
CV-01OD | CV-03OD | CV-12OD | CV-16OD |
CV-02M(N) | CV-8MOD | CV-04F(N) | CV-18OD |
CV-02OD | CV-10OD | CV-06M(N) | CV-22OD |
CV-6OD | CV-03F(N) | CV-06F(N) | CV-22OD |
Related Products
Packing & Delivery
Packing
Export packing
Delivery
Within 7 days in stock
Our Company
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we not offer the sample for free charge and also not pay the cost of freight.
Q: What is your payment ?
A: T/T , PayPal , Western Union
