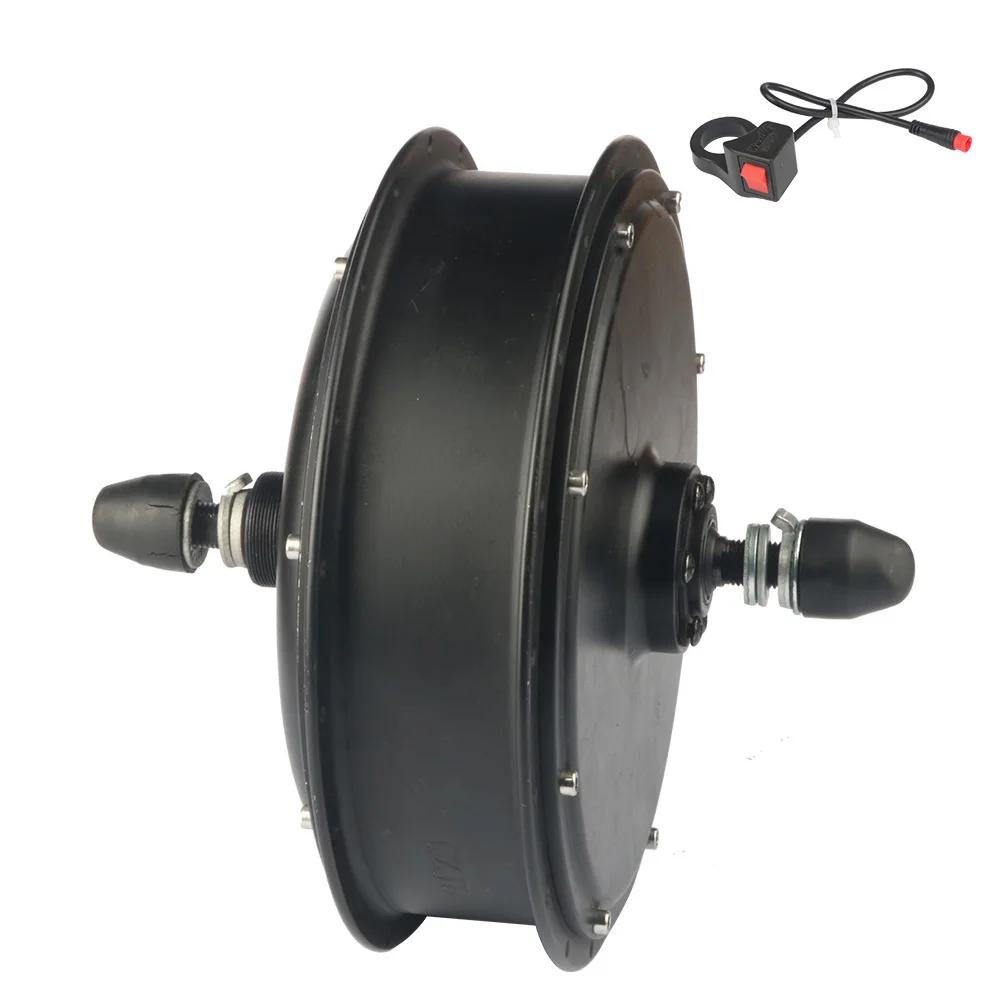

CZJB 205 55 48v 1.5kw electric bicycle magnetic dc hub motor
- Category: >>>
- Supplier: Changzhou Jiabo Machinery Manufacturing Co. Ltd.
Share on (60361945628):
Product Overview
Description
Product Description
Model:205-55
36v 350w
48v 1000w
MAIN TECHNICAL PARAMETER | ||||||||
MOTOR CODE | CZJB-205-55 | |||||||
RATED VOLTAGE | 36/48/60/72 | |||||||
RATED POWER | 350-3000W | |||||||
RATED SPEED | 25-55KM/H | |||||||
SPOKE SPECIFICATION | 36*12G/13G | |||||||
DROPOUT | 175MM | |||||||
CABLE LOCATION | SHAFT CENTER RIGHT/LEFT | |||||||
DRIVE AND FREEWHEEL | 6-7S | |||||||
WATERPROOF GRADE | IP65 | |||||||
MORE DETAILS PLS CONTACT US ON TRADEMAMAGER OR SEND INQUIRY! | ||||||||
Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w)
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.
motor male connector:200mm female: rear :800mm front :1300mm
If you need longer cables,customize is possible.We also can provide motor extension cables.

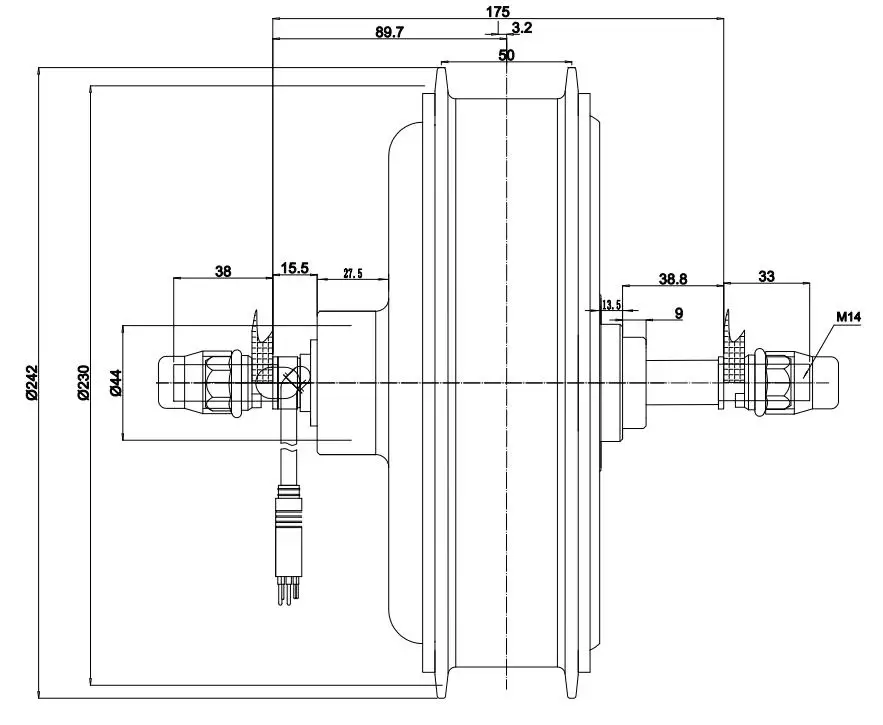

Installation specifications:
Our Advantages
Why we use dbouble helical tooth instead of straight tooth ?
1.Use Helical tooth which can effective for reduce the gear friction
2.When we are climbing,riding motivation is better than useing straight tooth
Product Application
Company Profile
Recommend Products
HUB MOTOR
FOR ALL SPOKE EBIKE
ONE WHEEL MOTOR
WHEEL SIZE INCLDUING: 8/8.5/10/12/14/16/20/26''
MID MOTOR IS COMING SOONLY
Product packaging
