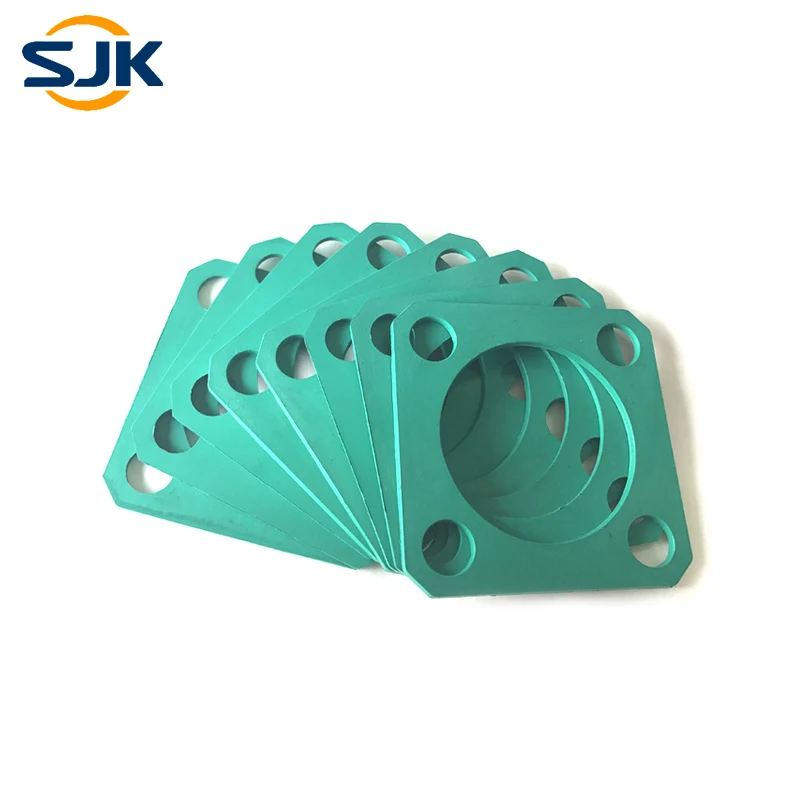

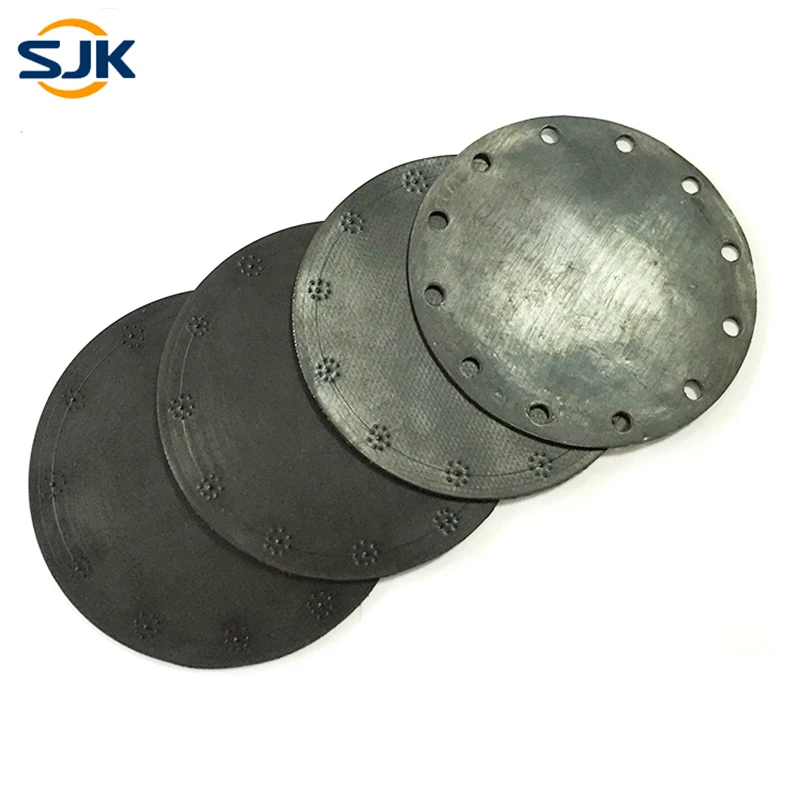

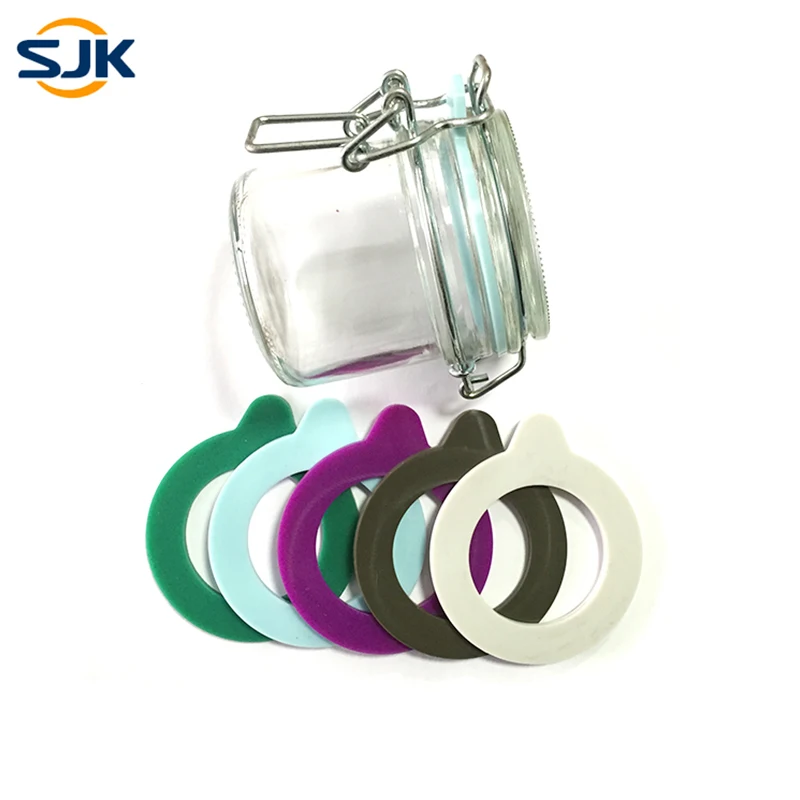

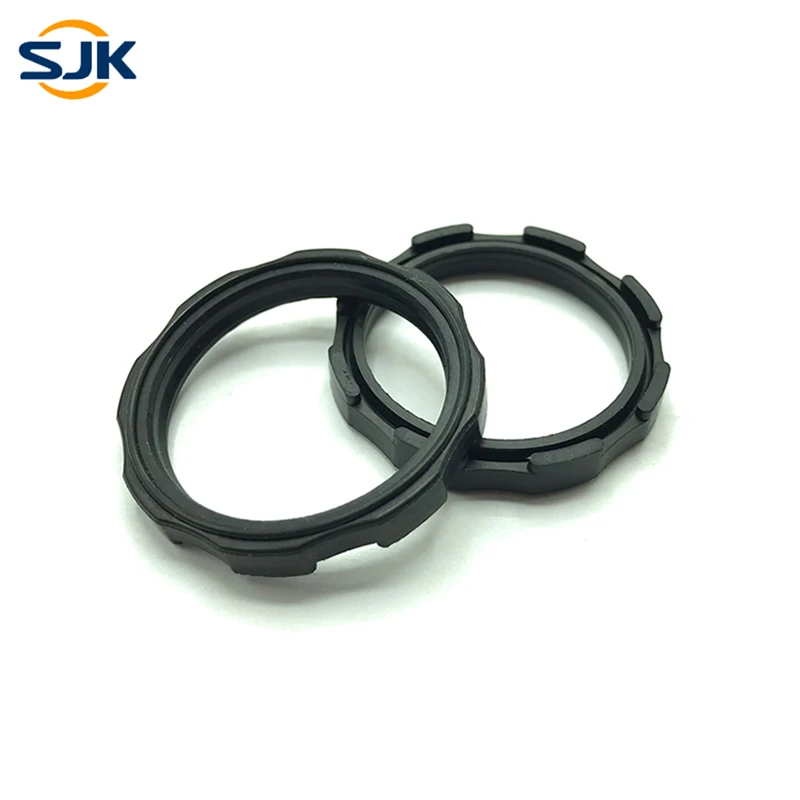

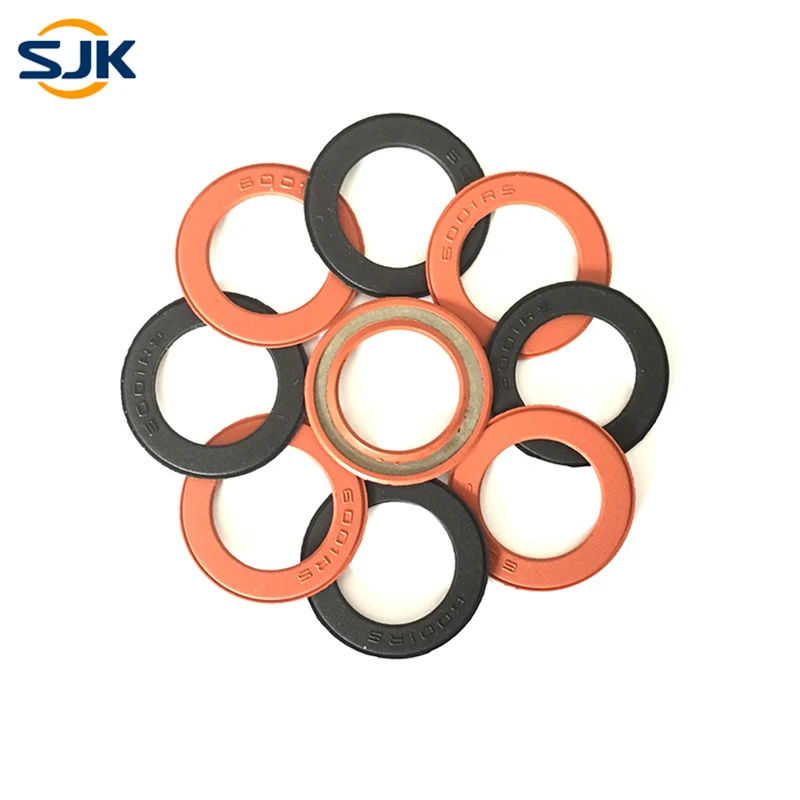

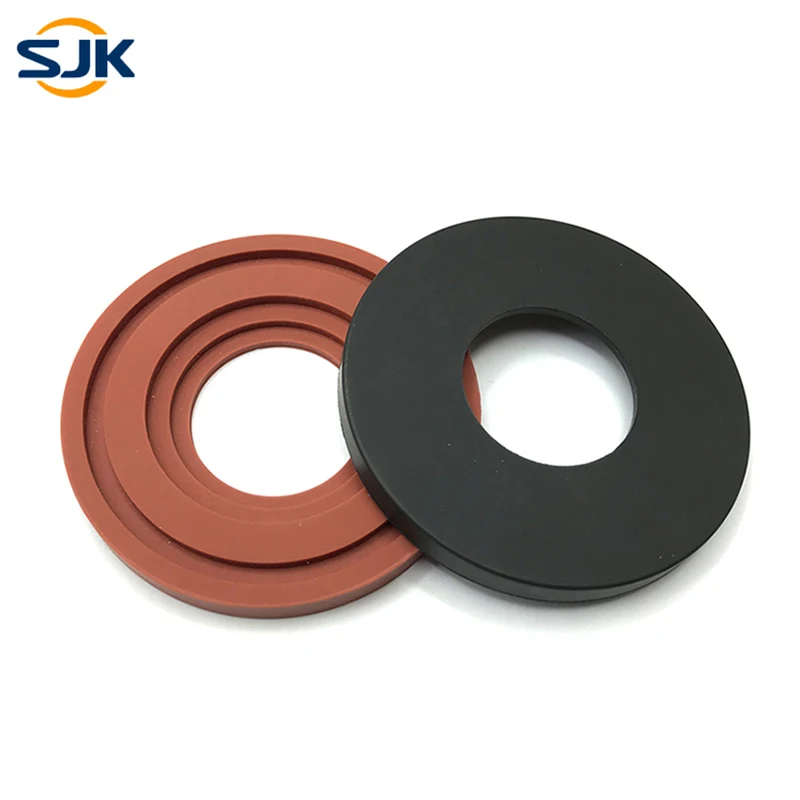

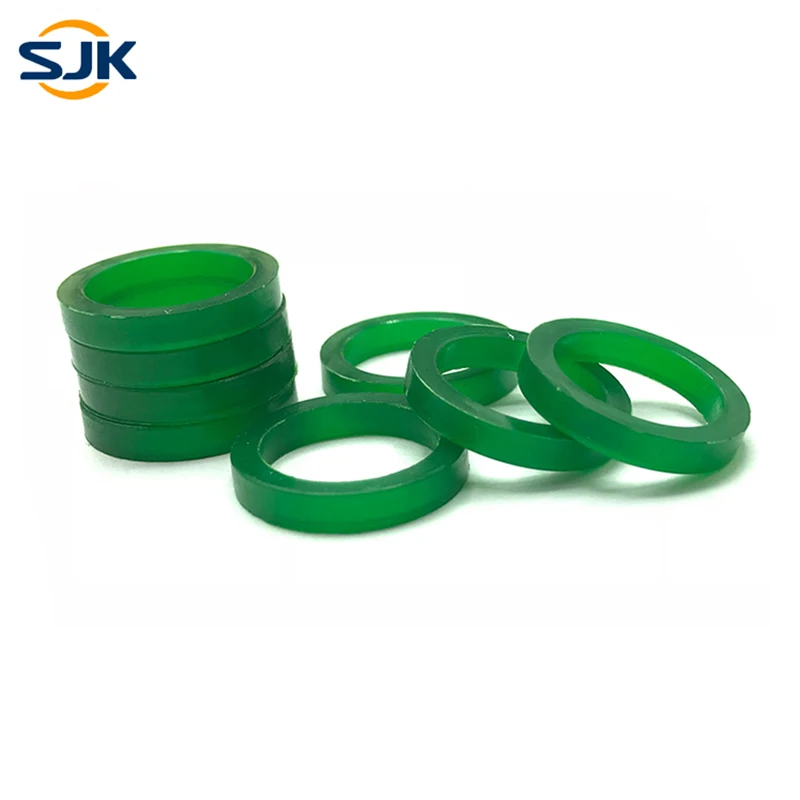

Direct factory FKM, EPDM, NBR, FVMQ, silicone rubber gasket

| Material | PU | EPDM |
| Features | PU is in widely used daily life, industrial and agricultural production, medicine and other fields.In the automotive industry used in the manufacture of damping products, in the mechanical industry used to manufacture seals, belt; In the medicine field is used to manufacture of artificial hearts etc. | EPDM rubber Widely used in auto parts,building waterproof materials, wire and cable sheath, heatresistant rubber hose, autom-otive seals, and other products. |
| Advantages | Outstanding abrasion resistance | Excellent aging, ozone and light stability |
| Easy to hydrolysis | Good resistance to ketones | |
| Good resistance to oils and pressure | Excellent resistance to steam | |
| Extremely high wear resistance | ||
Temperature range from | –40 °C to +90 °C(-40F to 194F) | –40 °C to +150 °C(-40F to +302F) |
| Hardness: | 60-95 Shore A | 30-90 Shore A |
| Material | FKM/FPM/Viton | MVQ silicone | NBR/Nitrile |
| Features | Fluorocarbon seal is commonly considered to usein mechanical devices requiring maximum resistance to elevated temperatures, to many special medium,and to high vacuum applications, such as automobile, vacuum equipment and other | MVQ silicone is a non-toxic material. Silicone rubber is widely used in Cookware (Cookware),toys, small appliances and filter, etc.Since MVQ silicone has low tensile strength and abrasion resistance,it cannot be used in extremely demanding applications. | Nitrile rubber has good oil resistance, often used in the manufacture of all kinds of oil resistant gaskets, seals, and rubber hose etc. |
| Advantages | High chemical stability. It has excellent resistance in mineral oils and fats.Special ones having improved exceptional properties | Good resistant to fungal decay Has very good cold flexibility High resistance to dry heat, ultraviolet light and ozone | Excellent resistance to oils Good abrasion resistance |
Temperature range from | -15℃ to 230℃ (5℉ to 446℉) | –70 °C to +220 °C(-94F to 428F) | –40 °C to +120 °C(-4F to 248F) |
| Hardness: | 52-92 Shore A | 25-90 Shore A | 40-90 Shore A |








| Pressure | Suggest Hardness |
| 0-8Mpa | 40-70 Shore A |
| 8-10Mpa | 75 Shore A |
| 10-15Mpa | 80 Shore A |
| 15-20Mpa | 85 Shore A |
| 20-30Mpa | 90 Shore A |
| Over 30Mpa | Use with back up ring or change a material |


What is your MOQ?
No request of MOQ, but it may influence the price
What is your lead time?
If there is in stock, the lead time will be 2 work-days, if out of stock, it will be about 10 work-days.
Is OEM&ODM accept?
Yes, of course. Please provide sample or drawing
What type of molding process does your company uses?
Compression Molding, Vacuum Compression Molding, Transfer Molding, and Injection Molding
What is your payment?
We accept PayPal, T/T, Western Union, bank transfer.
What is your shipping way?
By express, by sea
