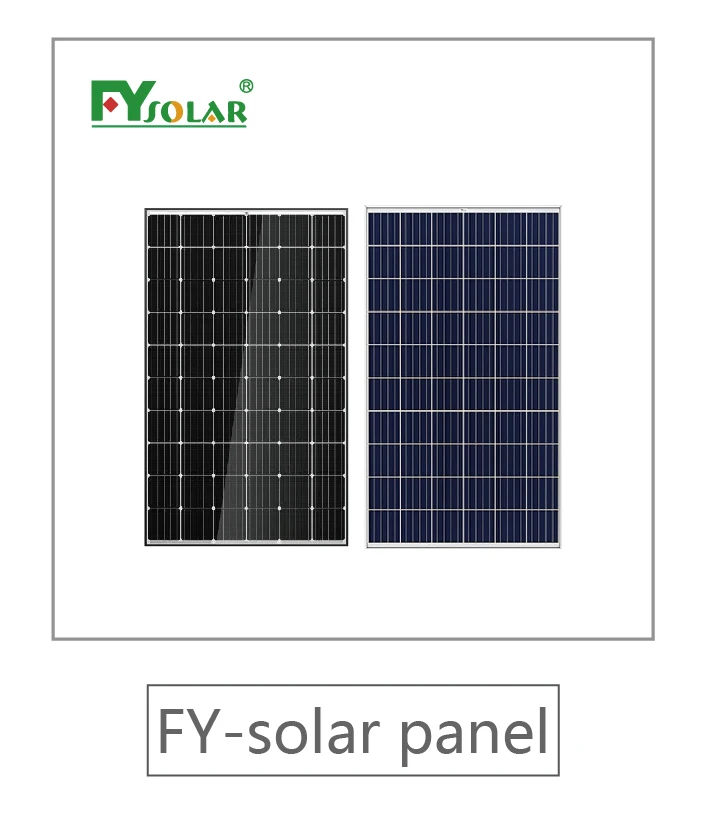

Bipv Glass Solar Panel Building Construction Integrated Photovoltaic Panels
- Category: >>>
- Supplier: Jiaxing Botao Trading Co. Ltd.
Share on (60362006367):
Product Overview
Description
| MODULE | MODULE Size |
| Glass+PVB and cell layer+pvb+glass | Min.300*300, Max 2300*3600 |
| POWER OF STANDARD CRYSTALLINE MODULE | GLASS TYPE |
| 150W/m²(5%transmittance) 130W/m²(5%transmittance) | Tempered glass/Heat strength glass |
| 140W/m²(5%transmittance) 120W/m²(5%transmittance) | Chemically tempered glass |
| 110W/m²(5%transmittance) 90W/m²(5%transmittance) | TYPICAL MODULE TYPES |
| 100W/m²(5%transmittance) 80W/m²(5%transmittance) | 3.2mm glass+2.28mm PVB+3.2mm glass |
| Module type | 6mm glass+2.28mm PVB+8mm glas |
| Flat PV module,Curve PV module, | 8mm glass+2.28mm PVB+8mm glas |
| Insulated PV module(U value:1.2w/m) | 8mm glass+2.28mm PVB+10mm glas |
| CELL TYPE | 10mm glass+2.28mm PVB+10mm glas |
| Monocrystalline,Polycrystalline,Amorphous | TYPICAL-VALUE: |
| SYSTEM VOLTAGE | 26% |
| Max.1000w | Supporing and fixing method |
| EXECUTION STANDARD | Point fixing,Hidden frame,Seimi-exposed frame |
| IEC 61215,GB/T 9536-1998 | CELL DEMENSION(mm) |
| CELL COLOR | Crystalline:125*125(semi-transparent) |
| Blue,Bronze,Grey,Black,Brown,Red,and other colors on request | 156*156(chamferable) |
| OTHER FUNCTIONS | Amorphous:1400*1100 2500*2240(Max) |
| Safe protection; Noise insulation; | CELL EFFICIENCY |
| Customized panels; Anti-glare protection; | Monocrystalline:15-21% |
| Sun shading; 1400,Max, | Polycrystalline:14-17% |
| Whether protection; | Amorphous:6-9% |
| GLASS TRANSMITTANCE(front panel) | FRONT GLASS TYPE |
| >91% | Low iron solar glass |
| PRODUCT GUARRANTEE | PERFORMANCE GUARANTEE |
| 5 years | 10 yesrs at 90% power performance |
| (1)Glazing load calculations and certificate for individual | 25 years at 80% power performance |
| (2)On request | |
| (3)Approval required for individual project; | |
| (4)With limitation |
 |  |  |  |
