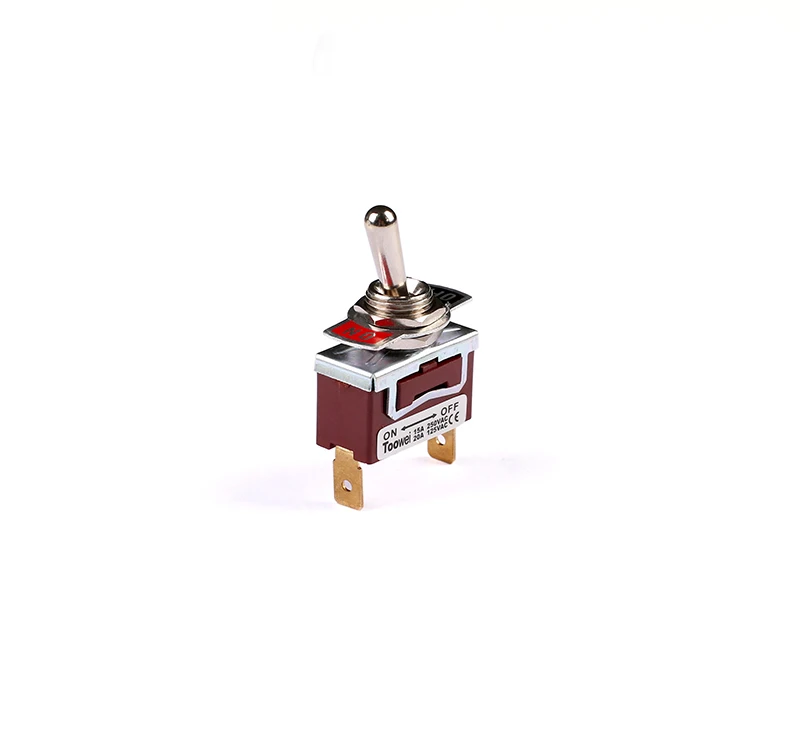

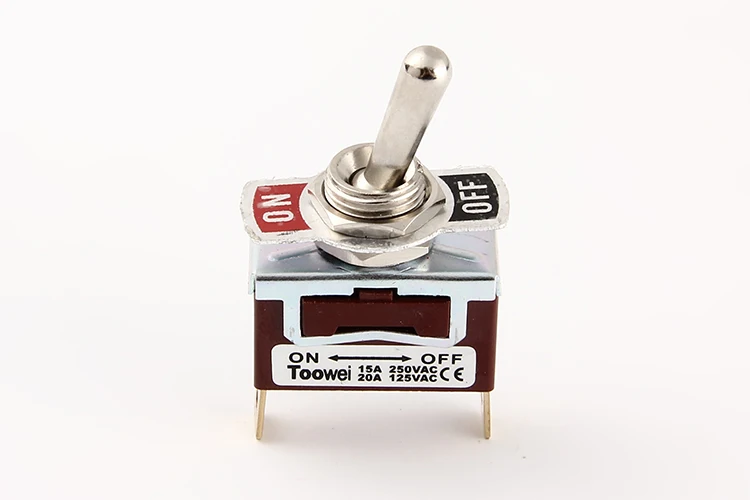

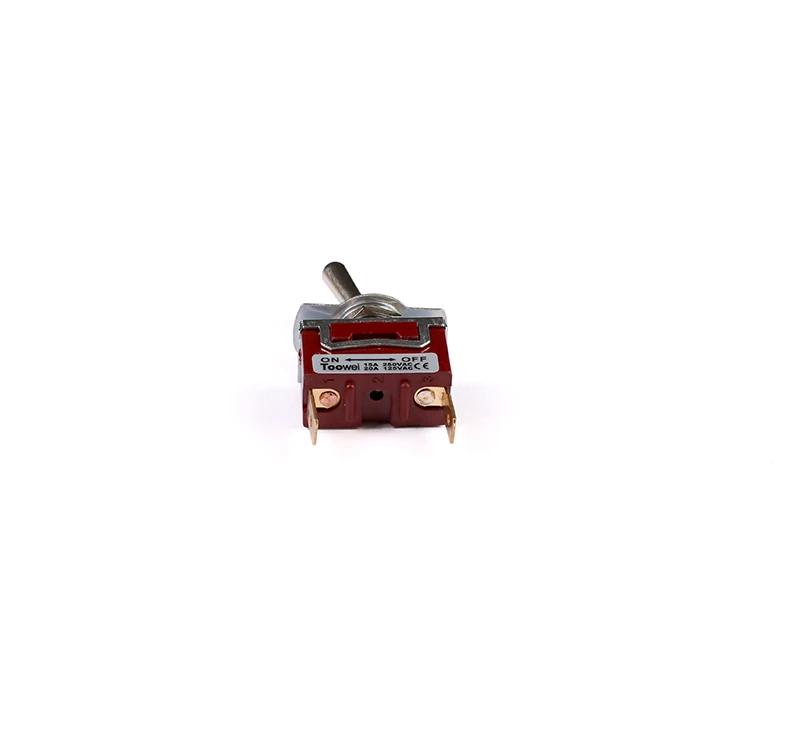

TOOWEI T701A SPST toggle switch high quality
- Category: >>>
- Supplier: Yueqing Toowei Electronic Switch Manufacturer
Share on (60362364386):
Product Overview
Description
Rating value | 15A 250VAC 20A 125VAC |
Mechanical life | ≥50,000 times |
Electrical life | ≥20,000 times |
Contact resistance | <50MΩ |
Insulation resistance | ≥100MΩ |
Withstand Voltage | 1000V 50/60Hz last for 1min |
Ambient temperature | -25°c~+80°c |
Vibration | 10~55Hz 1.5mm Double Amplitude |
Operating force | ≤24N |
Dimensions | Diameter:Φ12.0mm+0.2 |
Installation | Bushing mount |
Waterproof grade | need with waterproof cap |
