Product Overview

Description

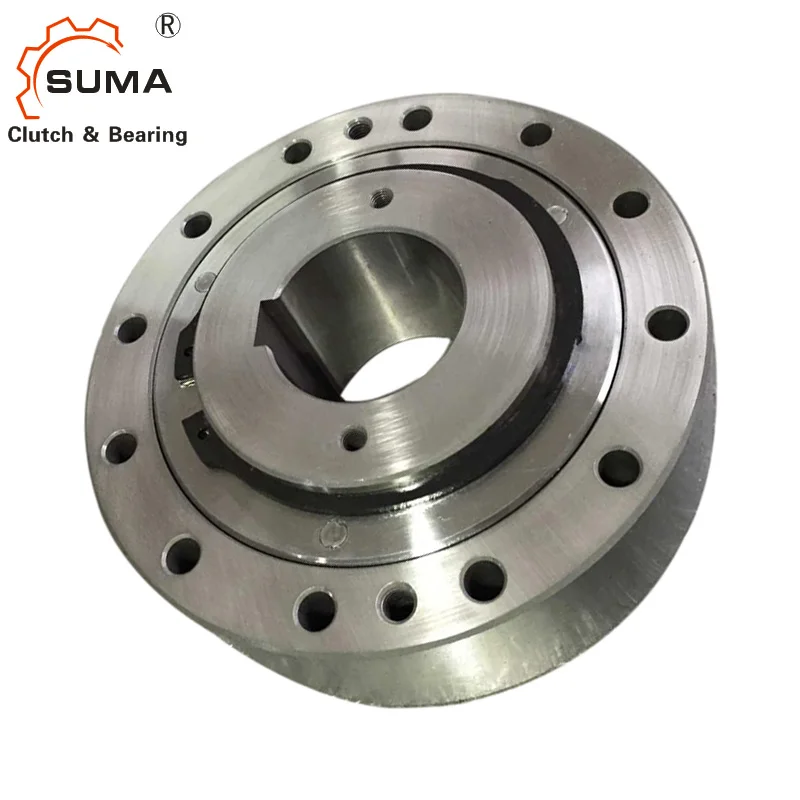

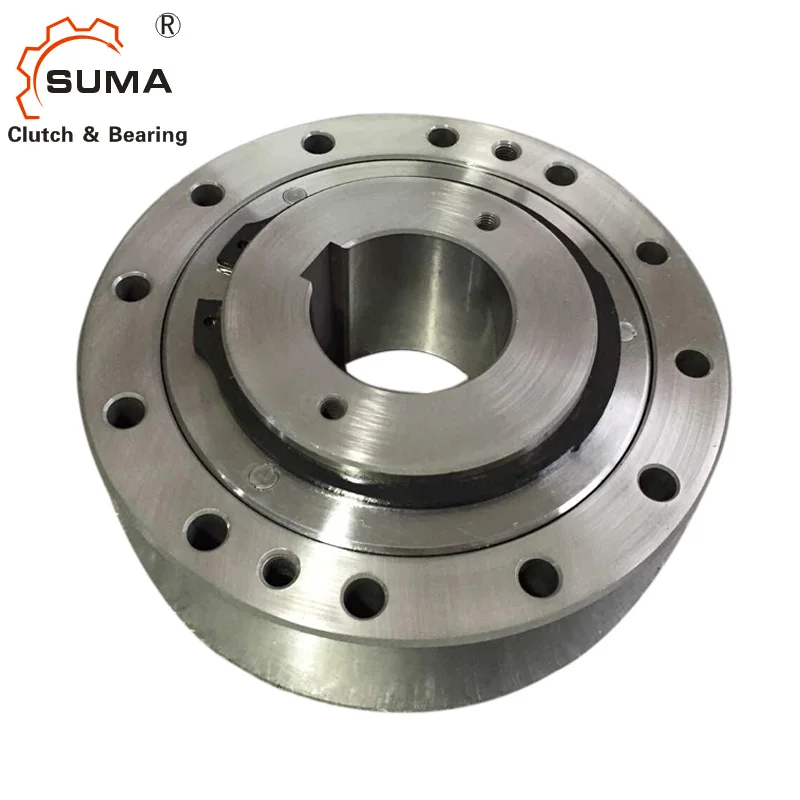

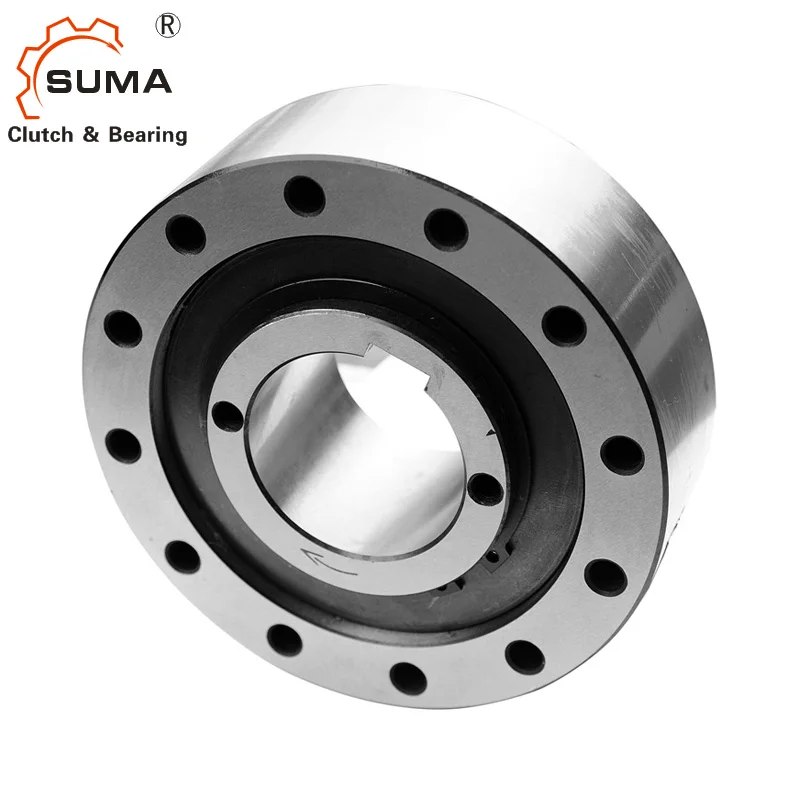

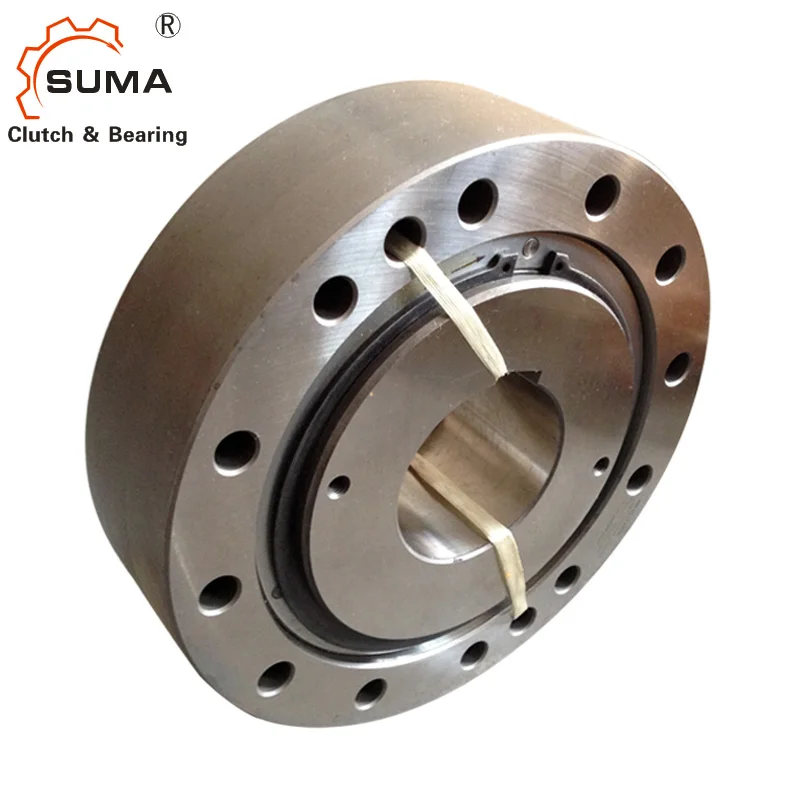

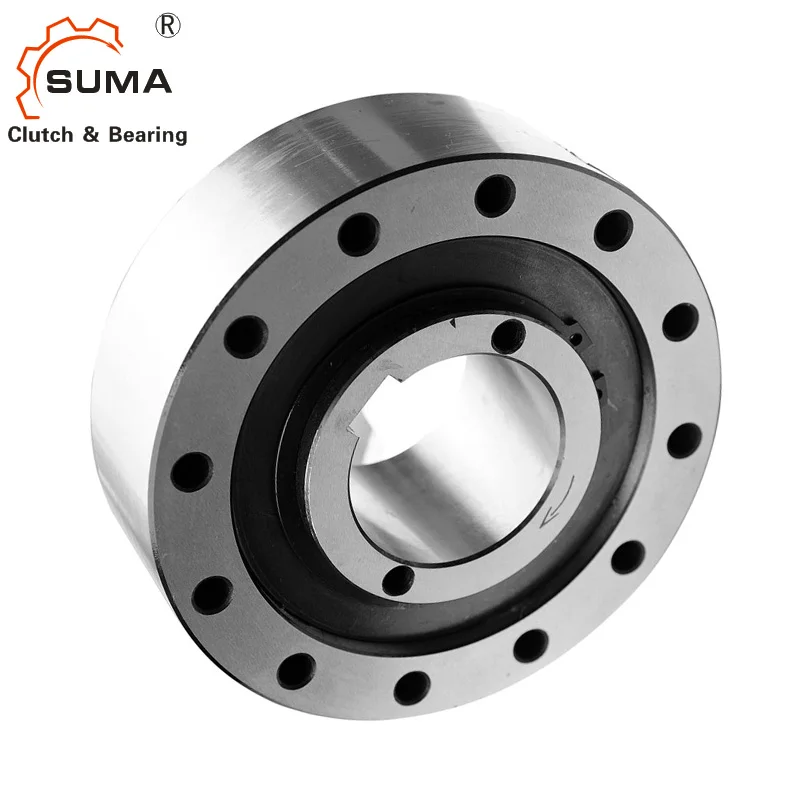

 Reducer Bearing One Way Cam Clutch Backstop FXM86-25DX/H40



Product Description



Features of FXM reducer bearing

Structure: FXM is a integrated sprag freewheels. It is equipped with sprag lift off X. The lift off X is used for backstop and overrunning clutches.

Lubrication: no special lubrication is required.

Product name

FXM backstop

Model

FXM86-25

Material

GCr15

Height

40mm

Torque

31000Nm

Outer diameter

150mm

Inner diameter

40-65mm

Weight

4.2kg

Package

Carton Box / Wooden box, pulley, etc

Payment terms

TT. L/C, D/A,D/P,Western Union

Delivery time

10-15 Days



Catalogue of fxm reducer bearingfor your choice

fxm-1



  Bore d A B D E F G J L P T U V W Z** Weight
Type    mm mm mm mm mm mm mm mm mm mm mm mm   mm mm mm mm mm mm mm kg
FXM  31 -17 20*           20* 17 25 85 41 55 M6 31 24 1,0 70 15 6 21 6 0,8
FXM  38 -17 25*           25* 17 25 90 48 62 M6 38 24 1,0 75 15 6 21 6 0,9
FXM  46 -25 25           30 25 35 95 56 70 M6 46 35 1,0 82 15 6 21 6 1,3
FXM  51 -25 25 30 35       36 25 35 105 62 75 M6 51 35 1,0 90 15 6 21 6 1,7
FXM  56 -25 35           40 25 35 110 66 80 M6 56 35 1,0 96 15 6 21 8 1,8
FXM  61 -19 30 35 40       45* 19 27 120 74 85 M8 61 25 1,0 105 15 6 21 6 1,8
FXM  66 -25 35 40 45       48* 25 35 132 82 90 M8 66 35 1,0 115 15 8 23 8 2,8
FXM  76 -25 45 55         60* 25 35 140 92 100 M8 76 35 1,0 125 15 8 23 8 3,1
FXM  86 -25 40 45 50 60 65   70* 25 40 150 102 110 M8 86 40 1,0 132 15 8 23 8 4,2
FXM  101 -25 55 70         80* 25 50 175 117 125 M10 101 50 1,0 155 20 8 28 8 6,9
FXM  85 -40 45 50 60 65     65 40 50 175 102 125 M10 85 60 1,0 155 20 8 28 8 7,4
FXM  100 -40 45 50 55 60 70 75 80* 40 50 190 130 140 M10 100 60 1,5 165 25 10 35 12 8,8
FXM  120 -50 60 65 70 75 80 95 95 50 60 210 150 160 M10 120 70 1,5 185 25 10 35 12 12,7
FXM  140 -50 65 90 100 110     110 50 70 245 170 180 M12 140 70 2,0 218 25 12 35 12 19,8
FXM  170 -63 70 85 90 100 120   130 63 80 290 200 210 M16 170 80 2,0 258 28 12 38 12 33,0
FXM  200 -63 130           155 63 80 310 230 240 M16 200 80 2,0 278 32 12 42 12 32,0
FXM 240 - 63             185 63 80 400 280 310 M20 240 90 2,0 360 48 15 60 12 60,0
FXM 240 - 96             185 96 125 420 280 310 M24 240 120 2,0 370 48 18 60 16 95,0
FXM 260 - 63             205 63 80 430 300 330 M20 260 105 2,0 380 48 18 60 16 75,0
FXM 290 - 70             230 70 80 460 330 360 M20 290 105 2,0 410 48 18 60 16 90,0
FXM 290 - 96             230 96 110 460 330 360 M20 290 120 2,0 410 48 18 60 16 91,0
FXM 310 - 70             240 70 125 497 360 380 M20 310 110 3,0 450 48 18 60 24 135,0
FXM 310 - 96             240 96 125 497 360 380 M20 310 120 3,0 450 48 18 60 24 145,0
FXM 320 - 70             250 70 80 490 360 390 M24 320 105 3,0 440 55 20 68 16 105,0
FXM 360 - 100             280 100 120 540 400 430 M24 360 125 3,0 500 55 20 68 24 170,0
FXM 410 - 100             320 100 120 630 460 480 M24 410 125 3,0 560 55 20 68 24 245,0
FXM 2410 - 100             320 200 220 630 460 480 M30 410 220 3,0 560 55 20 68 24 440,0
