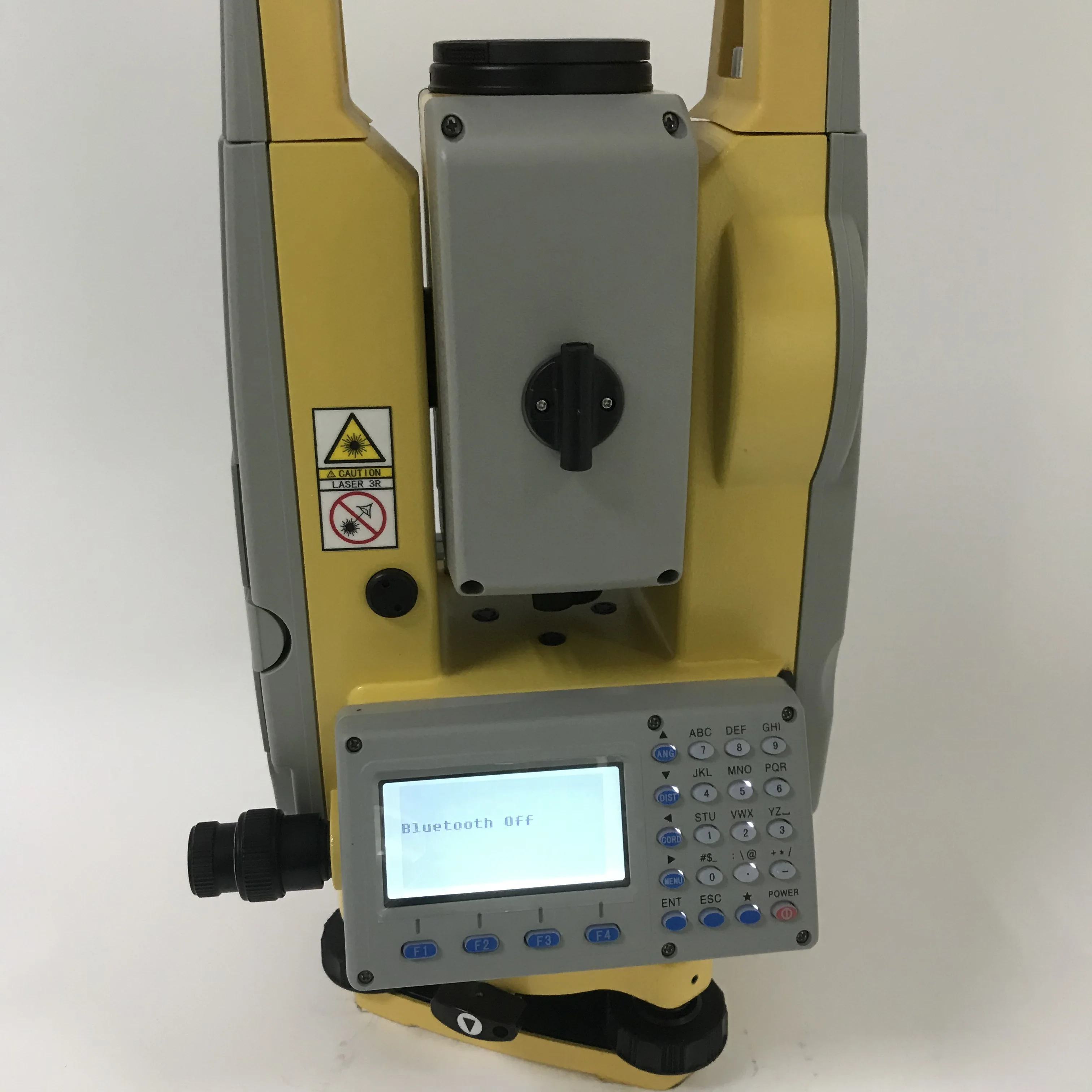

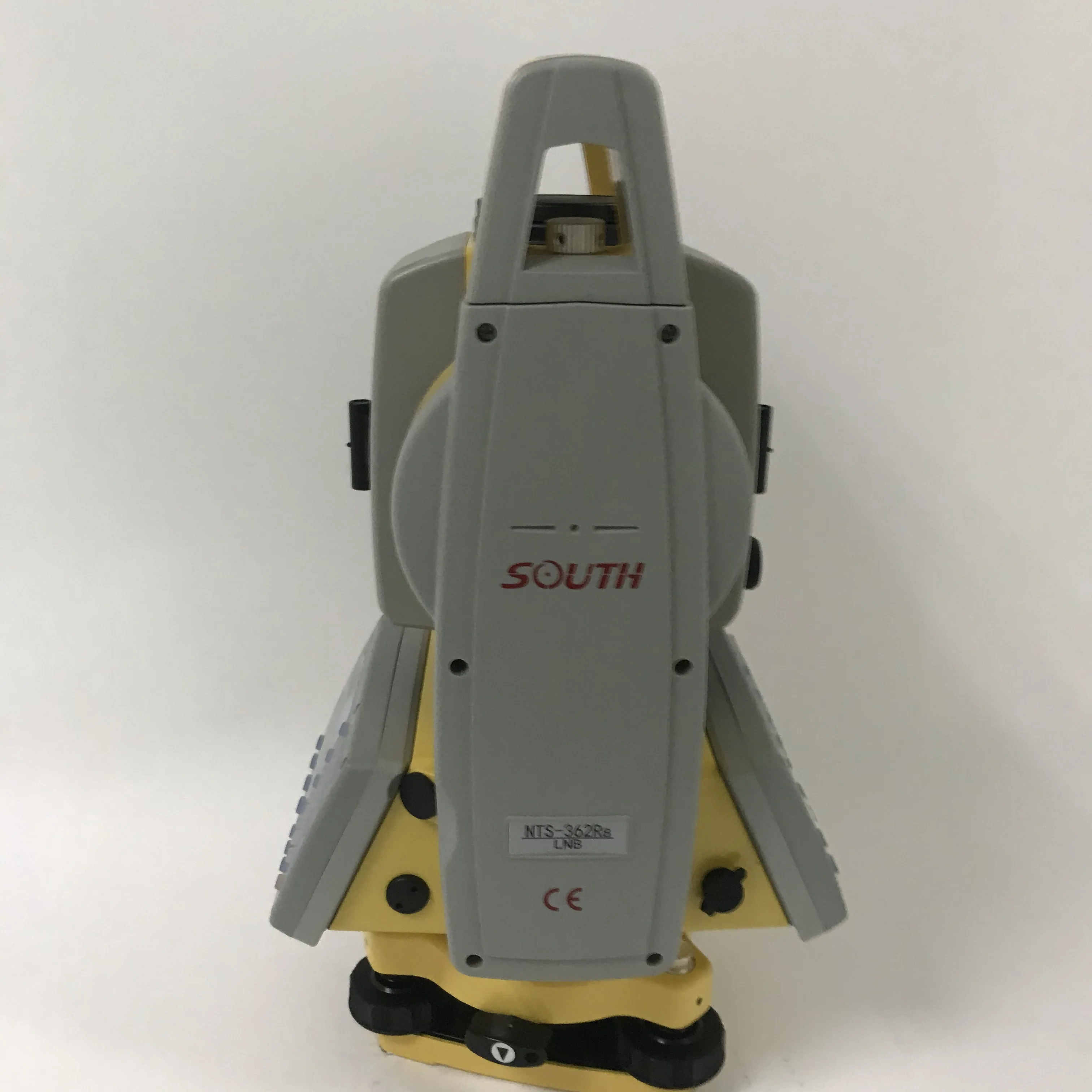

          2020 latest model South total station  NTS362R10LNB

Improved EDM System

·Up to 1000m reflectorless range and 5.0km single prism range.
·New Optical Light-path Change, fully isolate the emitting and reflect signal.
·Optimized Algorithm, measurement speed less than 0.3s.
·New Circuit Design, 150MHZ ultra high measure frequency, which also improve the accuracy of measure tape

Better Angle Measurement

·2”/5” accuracy for option
·Absolute encoding disk
·Azimuth angle will be saved automatically even if N6 is shut down incidentally when you operation

Reasonable Industrial Design

·Integrated Straight-through Horizontal Axis
·Dense Steel-ball Vertical Axis
·Embed Laser Plummet
·TP Sensor with automatic correction
·Dual-axis Compensator

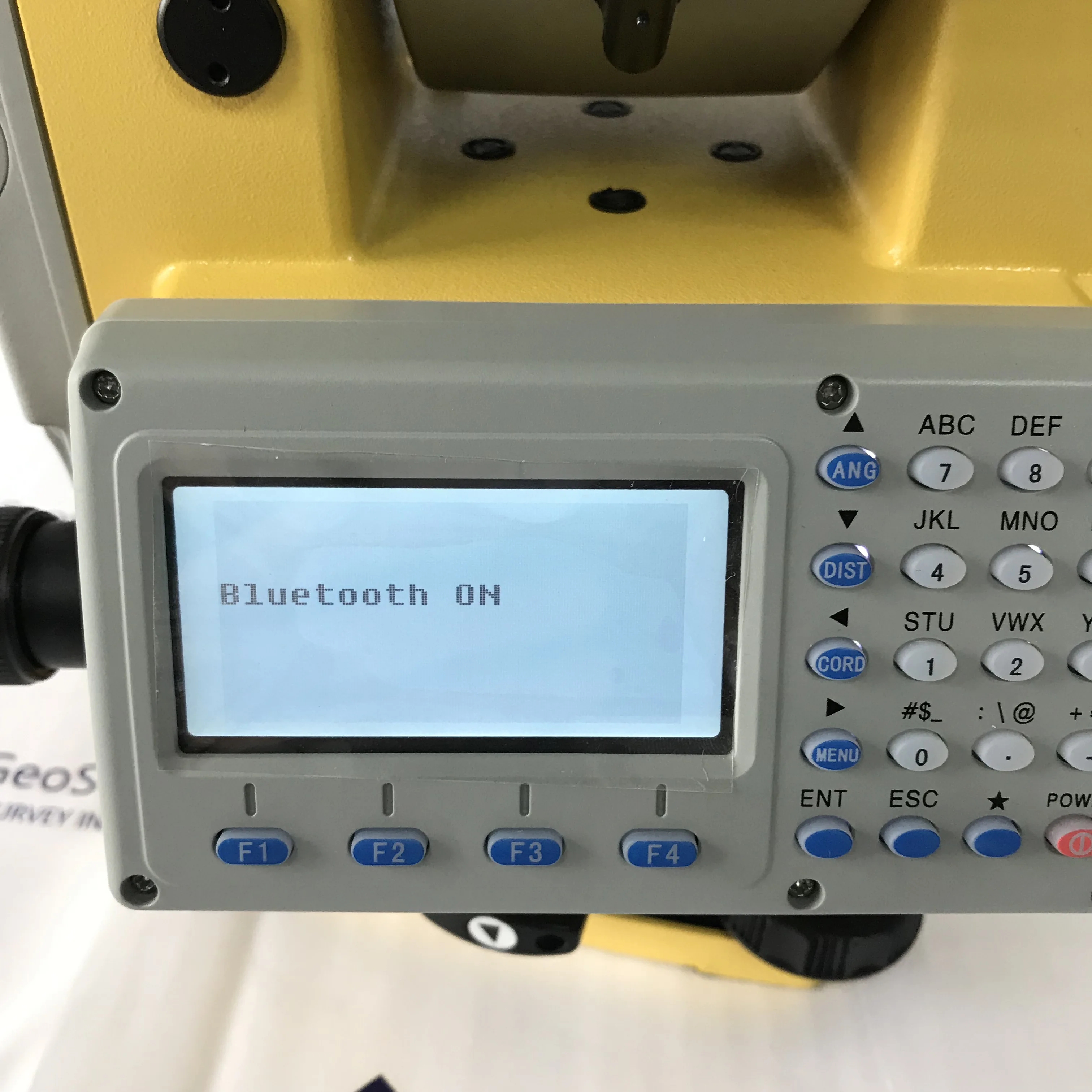

 Bluetooth enable

Model NTS362R10LNB
Distance Measurement
Max.Range Reflectorless 1000m
Single prism 5.0km
3 prism 8.0km
Accuracy Reflectorless Fine 5+2ppm
Tracking 10+2ppm
Reflector Fine 2+2ppm
Tracking 5+2ppm
IR-sheet 5+2ppm
Reading Max:99999999.9999 m Min:0.1 mm
Measuring Time Reflectorless Fine mode: <1.2s ; Tracking mode:0.5s
Reflector Fine mode: <1.2s ; Tracking mode:<0.5s IR sheet mode:<1.2s
Atmospheric Correction Manual input, Auto correction
Prism Constant Manual input, Auto correction
    ANGLE MEASUREMENT
Measuring method Absolute continuous
Diameter of Raster Disk 79mm
Minimum reading 1″/ 5″Selectable
Accuracy 2"
Detection method Horizontal:Dual /Vertical:Dual
TELESCOPE
Image Erect
Tube length 154mm
Effective aperture 45mm,(EDM:50mm)
Magnification 30×
Field of view 1°30′
Minimum Focusing Distance 1m
Resolving Power 3″
AUTO COMPENSATOR
System Dual axis Liquid-electric
Working range ±3′
Accuracy 1″
VIAL
Plate vial 30″/2mm
Circular vial 8′/2mm
OPTICAL PLUMMET
Image Erect
Magnification 3×
Focussing range 0.5m~∞
Field of view 5°
ON-BOARD BATTERY
Type Rechargeable Ni-H battery
Voltage DC 6v
Continuous operation time 8 hrs
OTHERS
IP stand IP 66
Display LCD,6 lines,digital
Data storage Internal memory 2M,ready for 17,000 data blocks
External memory SD card 2GB, ready for approx,17,000,000 data blocks
Temperature -20°~+50℃
Dimension and Weight 160×150×330mm, 5.2kg
Other hot sell Total  Station,click the picture  to view
FOIF RTS-102R
2Foif RTS-102R.JPG
GOWIN TKS-202N
2Gowin TKS-202N.JPG
KOLIDA KTS-442R10LCN
2Kolida KTS-442R10LCN.JPG
SOKKIA IM-52
2Sokkia IM-52.JPG
TRIMBLE C5
2Trimble C5.JPG

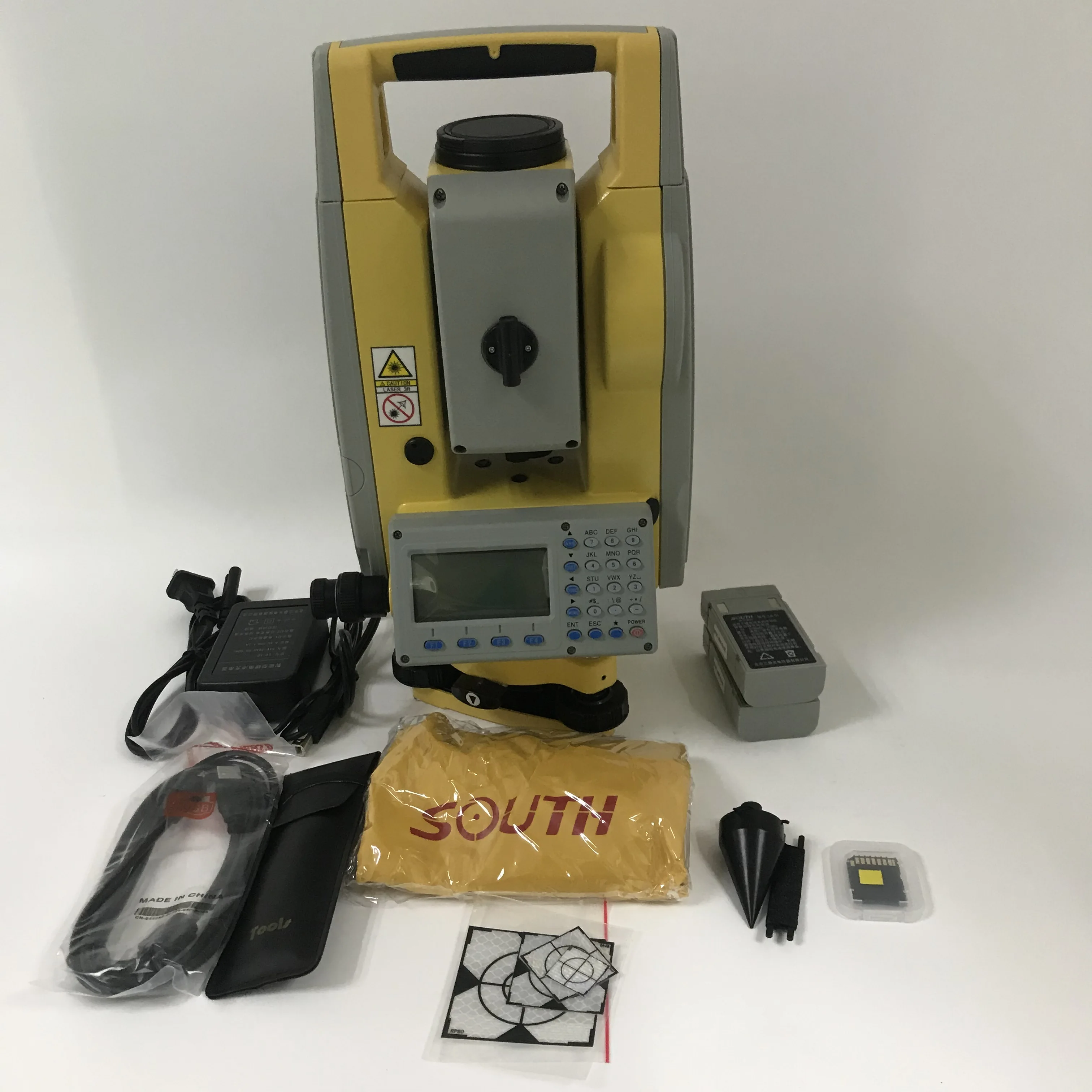

Packaging & Shipping
Packaging: Engineer case +paper carton

 Delivery date: 3 days upon payment confirmed

Our Services

  We offer qualify superior pre-sale service to help you choose the right goods, high-class after service to ravel out your concerns,and  life-long technical support.

Our warranty policy:

1. For instruments (total station,theodolite,GNSS,auto level), we offer 1 year warranty,for accesories(Prism,pole,tripod ,levelling staff).we offer 6 months warranty,from the day you get the product.

2.For product within the warranty period,please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair.We will be responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts direct to us.

 3.For problem out of the warranty period or warranty liability,we will judge the probelm and quoted for you.You need to pay double-run freight and the maintenace cost.

4.For all instrument we provide life-long technical support.

Remark:Improper use of   the instrument and man-made damage of the instrument is not coverd in warranty liablity.Warranty  only aimed at the problem caused by the product quality.
