parallel port DDR3 2GB 15 inch industrial touch panel pc with mini PCI slot industrial computer
- Category: >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (60362848322):
Product Overview
Description
Parallel port DDR3 2GB15 inch industrial touch panel pc with mini PCI slot
Product Description
Main Features:
• 15’’ industrial panel pc with N2800 Duo core 1.86GHz
• SSD 32GB, DDR3 2G memory, Max up to 4Gb (Optional)
• Al-alloy front panel and Fanless design
• 5wire resistive touch screen (Optional)
Introduction:
• IPPC-1528T is an industrial panel PC with 15’’ high brightness LED, the latest low-power motherboard,32G
SSD. It comes with , 2*LAN,4*USB2.0, 4*COM,1*VGA,1*HDMI,1*Audio, 1xDVI; 1XLPT ,Smart fanless-design.
• It has Installation methods: panel type, wall-mounted, VESA standard etc. and The product structure is very
compact and robust with better vibration and resistance.
• IPPC-1528T is a cost-effective industrial grade panel PC, can be widely used in the communication, control
terminal of the electric power, manufacturing, finance, traffic monitoring etc.
IP rate: water proof IP65 front panel (Optional).
Specifications:
Front panel uses high-strength Al-alloy with stand blasting oxidation and anti-scratch treatment
CPU | Onboard Intel N2800 duo core 1.86GHz | |
Chipset | Intel NM10 | |
LCD | 15.0" Diagonal color TFT; Brightness:300nits;1000nits(Option) | |
Resolution:1024 x 768; Aspect ratio: 4:3; Contract ratio:450:1; | ||
Dots: 2400(H) x (RGB) x 600(V) = 1,440,000 (dots) | ||
Memory | DDRIII 2GB, Max up to 4GB. | |
HDD/SSD | HDD:500GB; SSD: 32G/64G( Optional) | |
Audio interface | Built-in Realtek ALC 662 | |
Network interface | 2 x 10/100/1000Mbps Ethernet controller | |
I/O | 4COM RS232 Ports, 5USB ports; 1XLPT | |
2 LAN port, 1 Audio Jacks, 1VGA port, 1HDMI; 1xDVI | ||
Video | Built-in GMA950 | |
Extensional slot | 1xmini PCI express;1x parallel port | |
Power Supply | DC12V 5A power adapter | |
Fanless | Fanless design | |
Dimension | Panel PC: 375mm(L) x 285mm(W) x 51mm(H) Package: 490mm(L) x 390mm(W) x 163mm(H) | |
Installation | Panel type, wall- mount, table, bracket etc | |
Net Weight | Abt 5KG | |
Gross Weight | Abt 6.5KG | |
Operating temp | -10℃~60℃ | |
Humidity | -20℃~70℃ | |
Ordering information:
IPPC-1528 | 15″Industrial Panel PC, W/CPU: Intel N2800 Duo Core 1.86GHz W/RAM:2Gb, W/SSD:32G,W/12V 5A power adapter |
IPPC-1528T | 15″Industrial Panel PC, W/CPU: Intel N2800 Duo Core 1.86GHz.W/RAM:2G, W/SSD:32G, W/12V 5A power adapter, W/5 wires touch screen. |

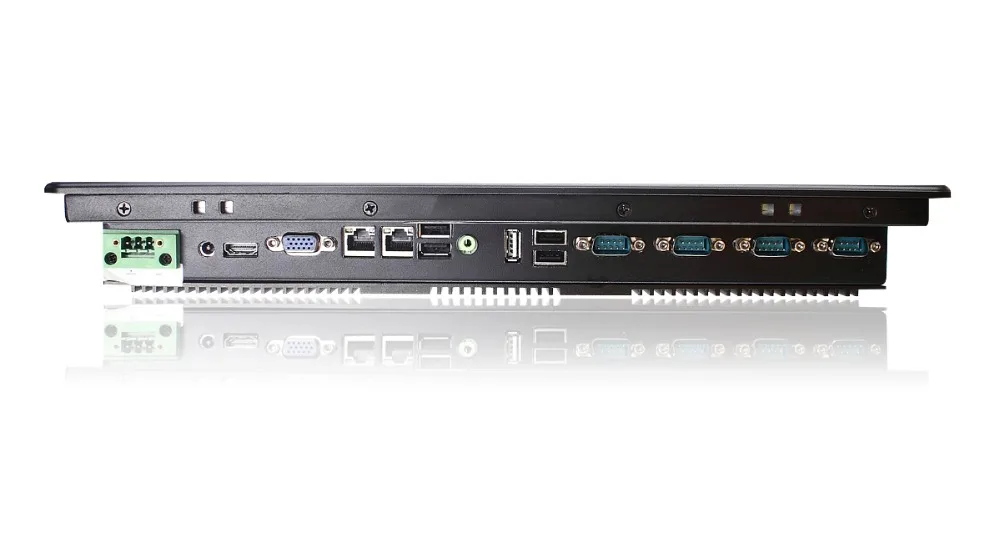

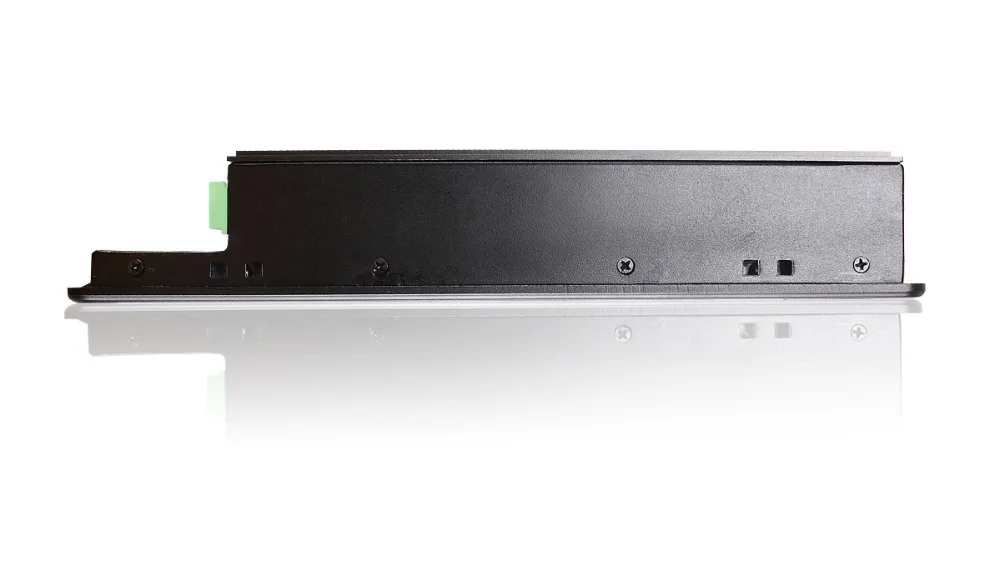

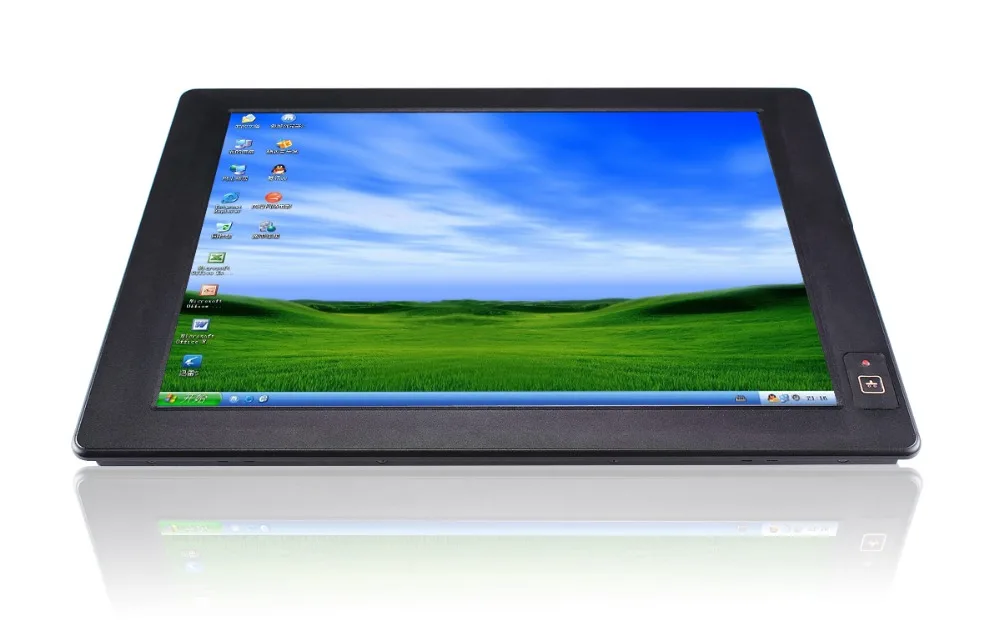

Product pictures:
