BOPS/PVC/PET/PS Full Automatic Plastic Container with Lid Thermoforming Machine
Product Description
Model
Unit
RJD-515*580
Forming area
mm
515*580
Form depth
mm
100
Production efficiency
cycles/min
8-20
Forming pressure
MPa
0.8
Preheated power
kw
4
Heating plate power
kw
12
Machinery size
m
2.75*1.41*2.15
Total weight
T
2.5
Advantages

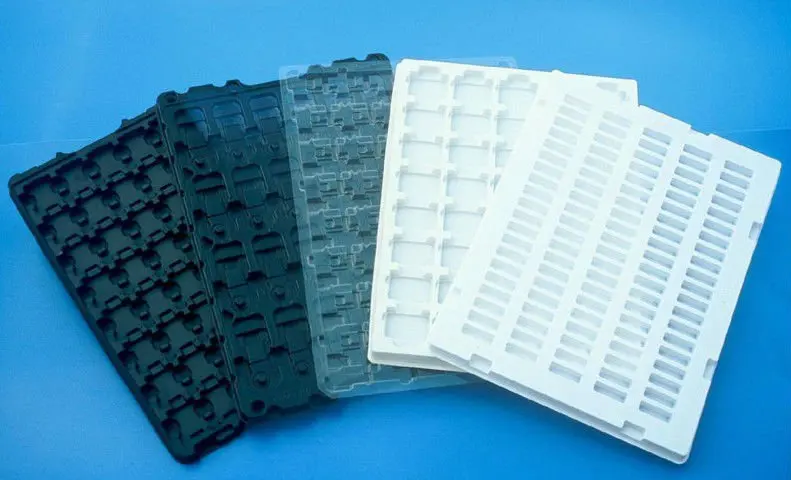

It is suitable for thermoforming BOPS, HIPS, PP, PET PVC,PS , sheet that can produce varieties of blister package and blister tray. For example: curatorial injection tray, oral liquid tray, mobile telephone tray, cookies tray, one-off tableware etc..

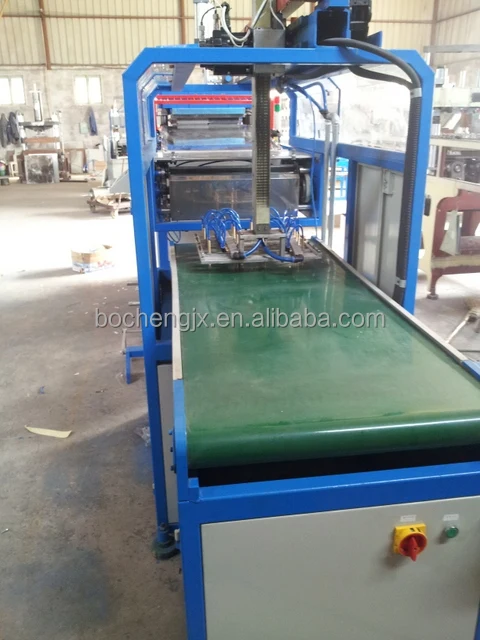

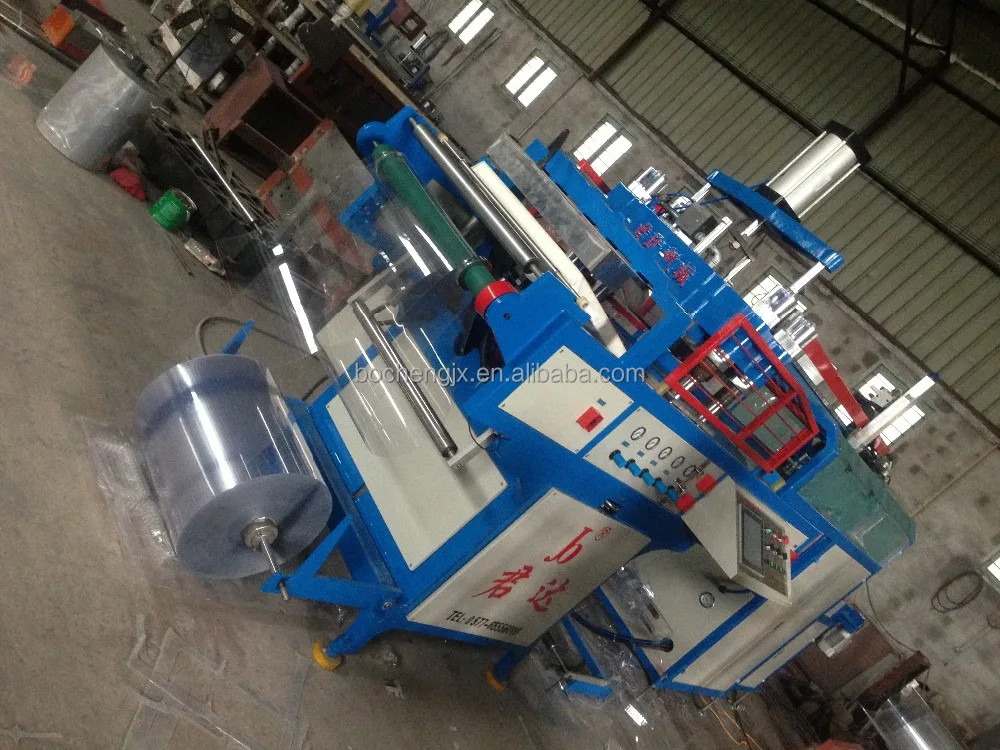

BC515*580 machine is a combination of mechanical, electric and pneumatic components, and the whole system was controlled by micro PLC ,which can be operated in man-interface .it combines the material sending ,heating forming ,shaping into one process .it has three operation models :"manual ,semi-automatic ,automatic
device makes the product wall thickness is uniform.
Company Information
Company Information
Ruian Bocheng Machinery Co., Ltd. is a manufacturer of BOPS Thermoforming Machine,Vacuum Forming Machines, Lid Machine, Cup Counting Machines, Cup Counting and Packaging Machines and so on. This full automatic ABS vacuum forming machine is our new product.With a wide range,good quality, reasonable prices and stylish designs, our products are extensively used in food, medicine, hardware, toy, sanitary fitting manufacturing and other industries.
