Module Size: 69.30(W)*44.05(H)*11.40(T) mm View Area: 65.00(W)*33.00(H) mm Display mode: Positive, Transflective Driving IC: NT7538H IC bonding: COG DOT matrix: 128x64 Backlight: White LED Connector: FPC Display type: FSTN View direction: 6 o'clock
Mechanical Datas
NO
ITEM
SPECIFICATION
UNIT
1
Dot Marrix
128(W) x 64(H)
dot
2
Module Size
69.30(W)*44.05(H)*11.40(T)
mm
3
View Area
65.00(W)*33.00(H) mm
mm
4
Active Area
61.42(W)*30.70(H)
mm
5
Dot Size
0.46(W) x 0.46(H)
mm
6
Module Thickness
11.40
mm

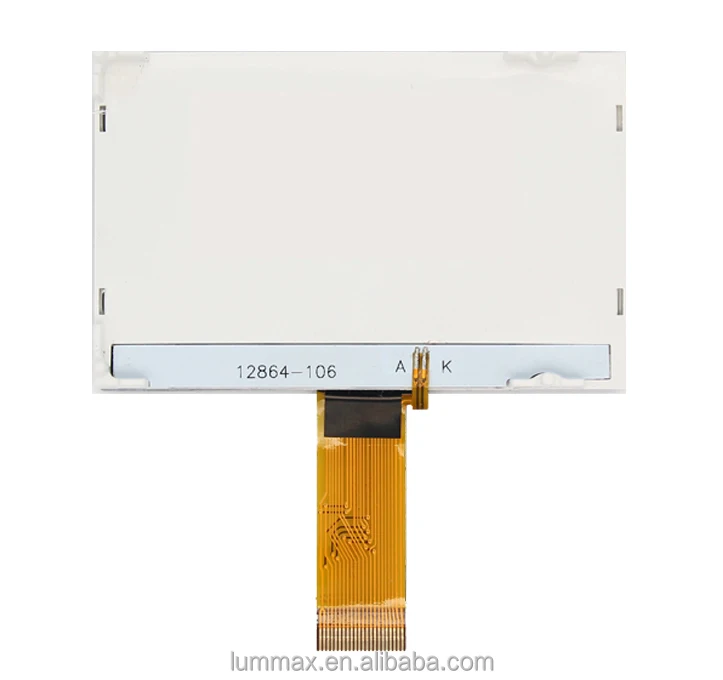

Product Photo

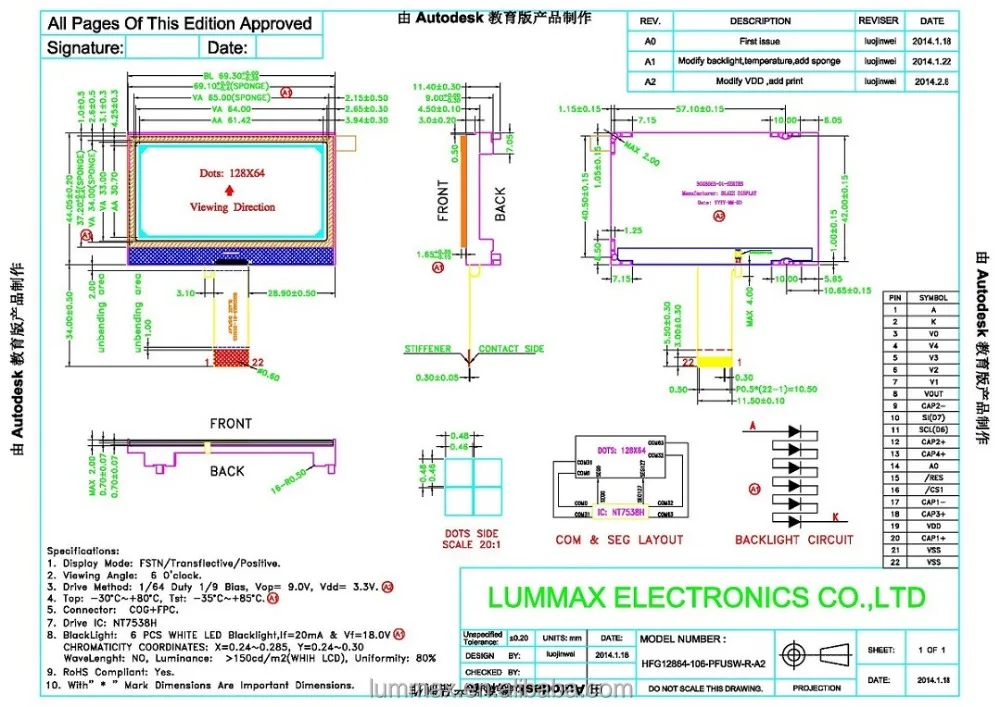

Drawing & Specs
Factory Tour
Certifications
Company Information
Lummax Electronics Co., Ltd.was establishedin May 2004. We are specialized in R&D, production and sales of LCD panel, LCD module, TFT LCD module, and resistive & capacitive touch panel products.
Lummax has 8,000 square meters of workshop and 7,000 square meters of dormitory. Its total investment is up to USD 5 million. We have 620 employees, 15 R&D staff and 40 QC personnel.
In line with quality management standardization, the company sets up quality management system in accordance with ISO9001:2008 international quality management system; In April 2013, we passed the TUV(SUD) certification and obtained ISO9001:2008 certificate.
Our major customers include: EMERSON, SIEMENS, JABIL, WKK and ASTROTECH GROUP etc. In the year of 2013, our annual turnover has exceeded 40 million US dollars.
We welcome all your LCD panel, LCD module and touch screen inquiries.
We will offer best price, fast delivery and good quality to all of our customers.
Our Services
Fast Quotation: LCD Panle 24 hours, LCD Module 48 Hours
Sample leadtime: 15 to 20 days;
Production leadtime: 30 days.
100% product tested and inspected before shipment.
