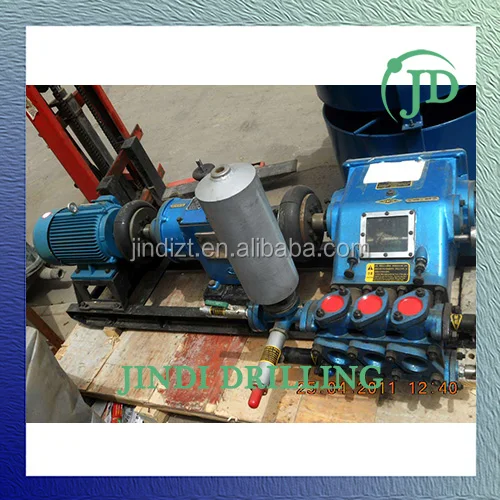

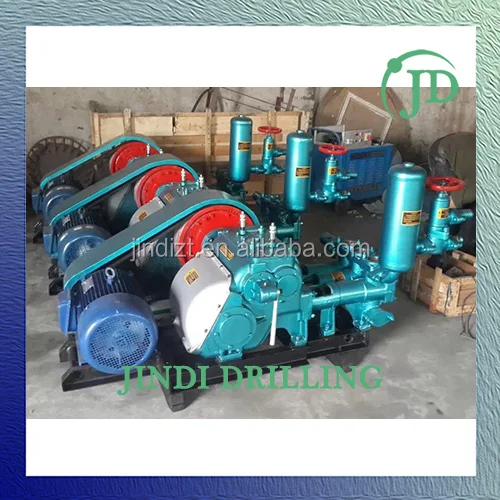

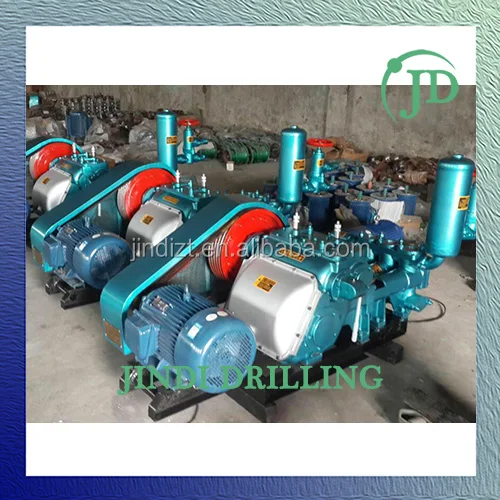

BW150mud pump/mud pump for drilling rig/drilling mud pump

Product Overview

Description



                                    BW850/20 mud pump/mud pump for drilling rig/drilling mud pump



The mud pumps are of horizontal reciprocating dual cylinder, double acting piston type. It is used for pressing washing liquid(mud or water)into the drilling well when the geological drilling performs and is adaptable to the 200-600m water well drilling rig.

It is characterized by bigger displacement, high pressure, long working life of wearing parts, easy maintenance.

In drilling fields, it is used to raise drilling efficiency, reduce drilling costs. The pumps have been highly appreciated by users. It is an ideal and economic equipment for drilling.



Type	Horizontal three-cylinder reciprocating single acting piston pump
Cylinder diameter(mm)	70
Stroke(mm)	80
Pump speed(S.P.M)	57,86,130,222,47,71,107,183
Flow(L/min)	38,58,90,150,32,47,72,125
Pressure(Mpa)	7,4.8,3.2,1.8,7,6,4,2.3
volumetric efficiency	85%
Power(Kw)	7.5
Suction pipe diameter(mm)	51
Drain pipe diameter(mm)	32
Size	1925*795*1150(diesel motor) 1840*795*995(electric motor)
Weight	560kg(electric)       630kg(diesel)
