Rubber Full Automatic Waste Tyre Powder Recycling Production Line

Product Overview

Description

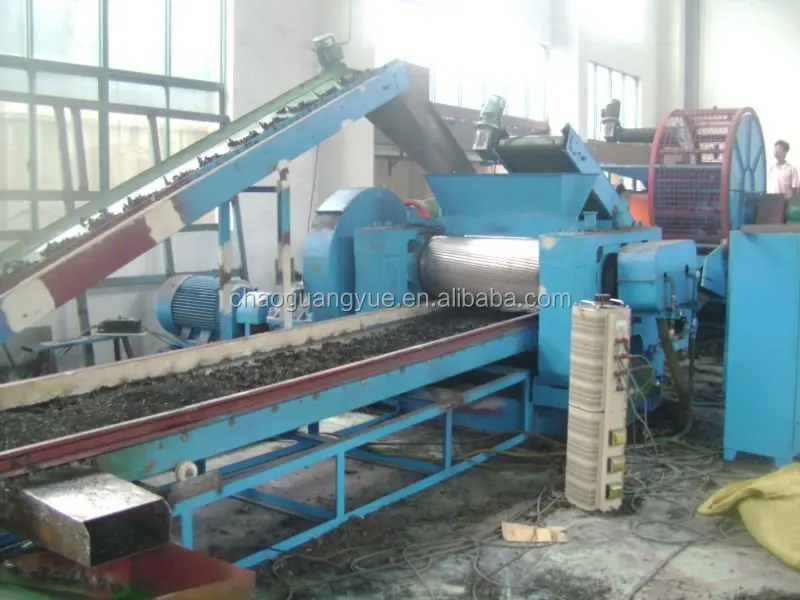

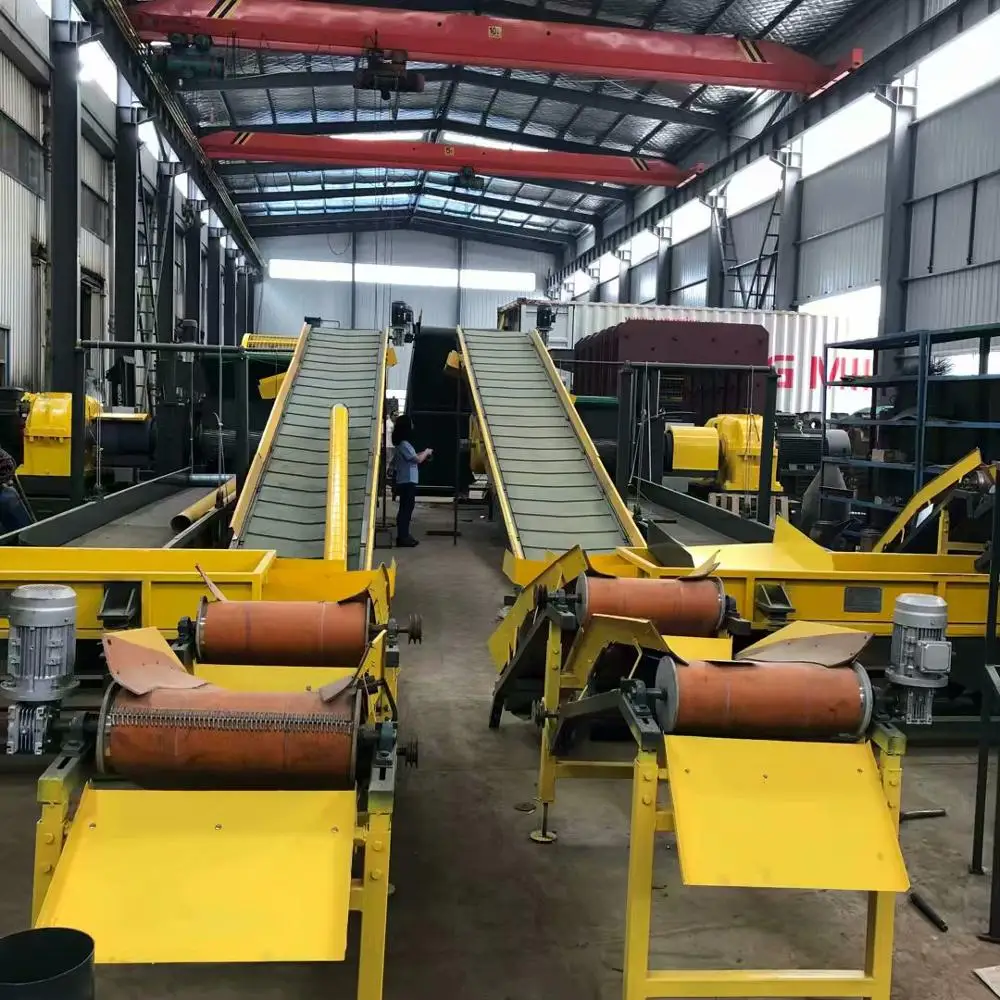

 Rubber Full Automatic Waste Tyre Powder Recycling Production Line

full automatic waste tyre recycling machine,used to manufacture all various of size of rubber powder(crumb)

the inout capacity : 8000 tons per year

the output capacity: 5000-7000 tons  per year for 10-30 mesh rubber powder.

worker : 3- 5

floor area: 1200 SQ.M

power:272.8KW

suitable for both radial tyres and  nylon/fiber tyres.


Production capacity and energy consumption:

Working Process:

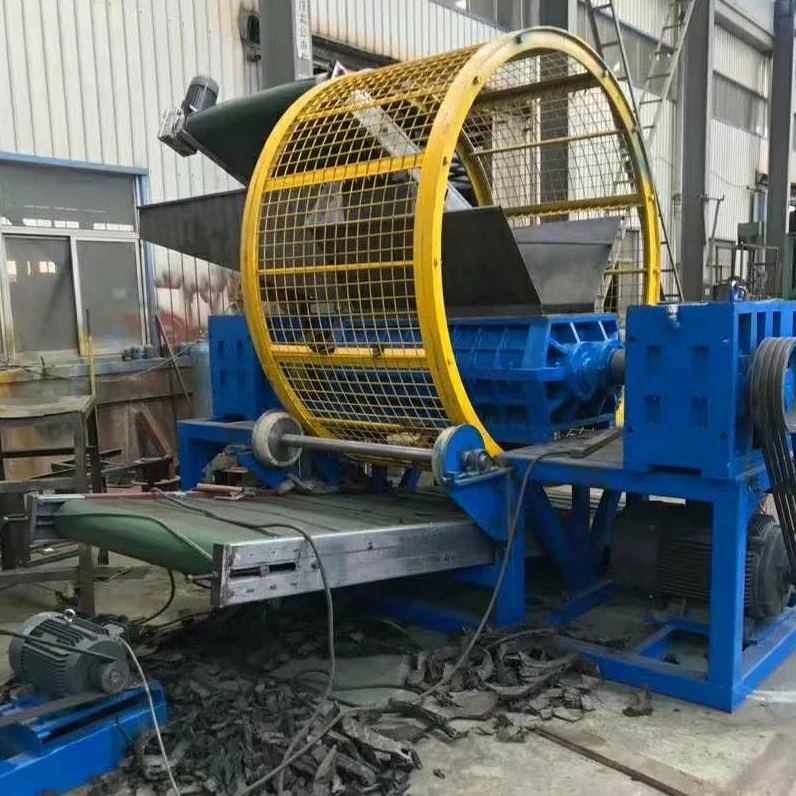

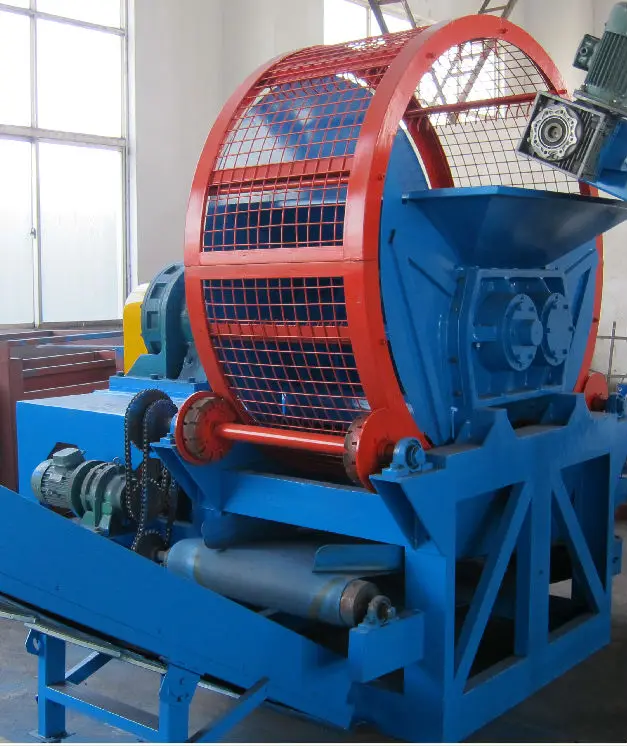

Draw steel wire from the tire ring by Tire wire drawing machine-if the diameter of tire is bigger than 825mm, can choose to use tire cutting machine to cut the tire to several pieces--- put the small tires or pieces into tire shredder to make tire blocks-put the tire blocks to the tire crusher to make rubber powder-finished rubber powder.





Flow Chart:



Waste tire---whole tire de-beader---whole tire cutting---whole tire shredding---Rubber crushing--- magnetic separating(Nylon fiber separator if recycle nylon tires) ---Rubber powder

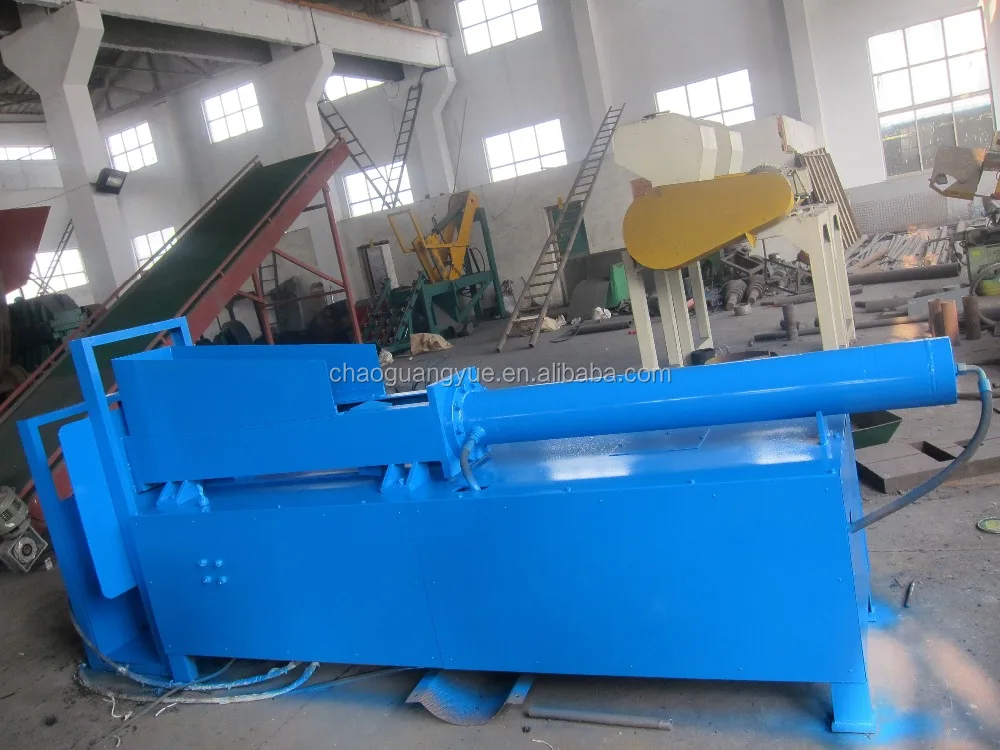

1, Whole tire de-beader-

whole tire wire drawing machine( Draw out the steel wires from the tire bead. )

Model No.	TD-1200
Feed size of tire(mm)	≤φ1200
Capacity(tires/h)	80-100
Power(KW)	7.5
Overall dimensions(m)	4.7*0.9*1.7
Equipment weight (T)	2.8









2, Whole tire cutter

Functions:

   Whole tire cutter , it is used to cut big tires into small pieces.

Model No.	TC-1200	TC-1400
Feed size of tire(mm)	≤φ1200	≤φ1400
Capacity(tires/h)	30-40	30-40
Power(KW)	4	7.5
Overall dimensions(m)	2.2*0.8*1.5	2.4*1.0*2.0
Equipment weight (T)	1.2	2.5
