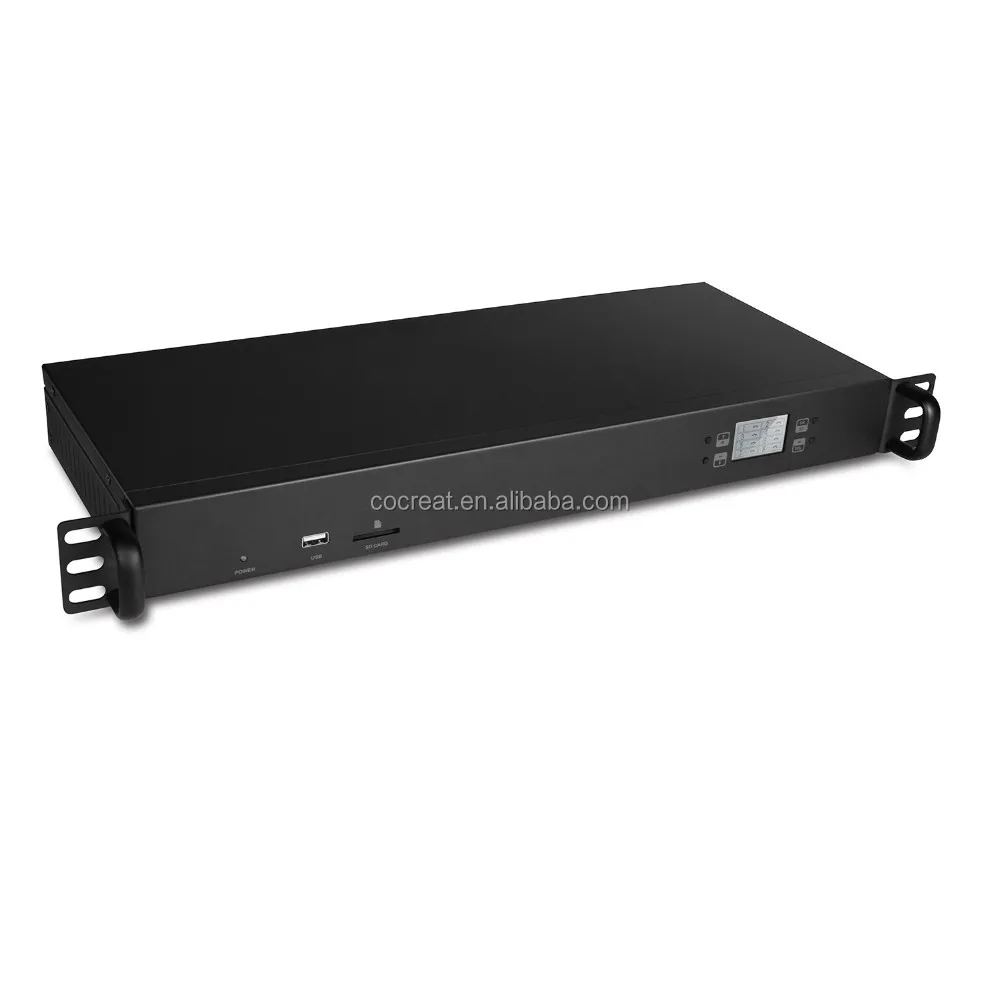

8 канальный сетевой видеорегистратор Новые АТС телефонная диктофон системы, 500 Гб 1 ТБ HDD время записи до 7,0000 часов, возможность удаленного доступа в любом месте и управления
- Category: Digital Voice Recorders >>>
- Supplier: Shenzhen Cocreat Science Technology Co. Ltd.
Share on (60363570040):
Product Overview
Description
Main introduction:
Newest coming, 100% stand-alone cheapest solution for 16channel PBX/telephone recording.
Lan/Wan connection support remote control via internet
recording announcement
Main features:
- No PC required, fully stand-alone
- Own storage inbuilt(500GB)
- Long recording time(70hours/GB)
- Real time recording & monitoring
- Multi-users management, different rights control
- Recording announcement
- Recording time/day range selection
- Remote access
- Live monitoring
- Human search option
- Caller ID pop up
- Multi level user management
- 20S startup
- Compatible with various PBX SMDR output (including Panasonic,NEC, SAMSUNG etc)
Datasheet:
Recording channel | 8 or16 |
Storage | HDD 500G |
Display | 1.8”LCD dot |
Format | ADPCM |
Compression ratio | 4KB/S |
Frequency response | 100 Hz to 3400 Hz |
Off hook voltage | 3-80V |
On hook voltage | 10-100V |
CID format | DTMF/FSK |
CID intensity | 0 dB to –32dB |
Recording trigger | Voltage, Voice, Keying |
Input impedance | AC: 100K,DC:5.1M |
S/N ratio | >60 dB |
Signal-to-crosstalk ratio | >70 dB |
Power adaptor | DC19V |
Rating operating current | 1.5A |
Max. current | 3A |
Rating power consumption | 30W |
Operating temperature | 0℃ to 40℃ |
Operating Humidity | 10% to 90 % |
Network interface | RJ-45 |
Accessories | RJ11,RS232, Power adaptor, CD- rom |
Dimension (L*W*H) | 42.8cm*17.8cm*4.7cm |
Package | 45*11.5*23CM |
Net weight | 2.53Kg |
Gross weight |
|
|
|

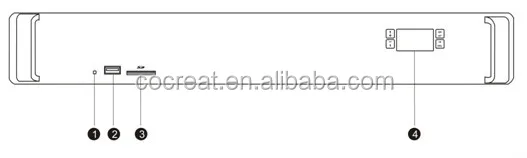

Device introdction:
1: Power LED
2. USB interface (for firmware updating, internal USB disk/hard disk for backp)
3.SD card interface
4. LCD(1.8inch 128*46) set IP, check states, LOGO, ID & hard disk capacity, along with software version

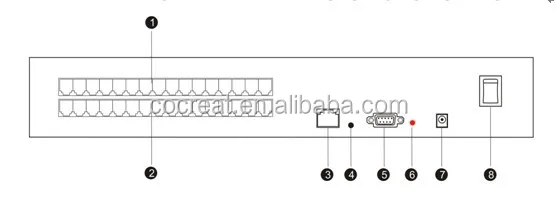

1. 8CH recording card
2. 2nd 8CH recording card(optional for 16channel recording )
3. RJ45 interface, to connect internet
4. Headset interface
5. RS232, to communicate with PBX, get the SMDR ext no. information
6. SMDR indicator LED.
7. DC power, DC19V 3A-4.7A
8. Power switch
Note: This model support to compatible with VOIP recording. if you need to recording VOIP, please contact with sales
Software:
