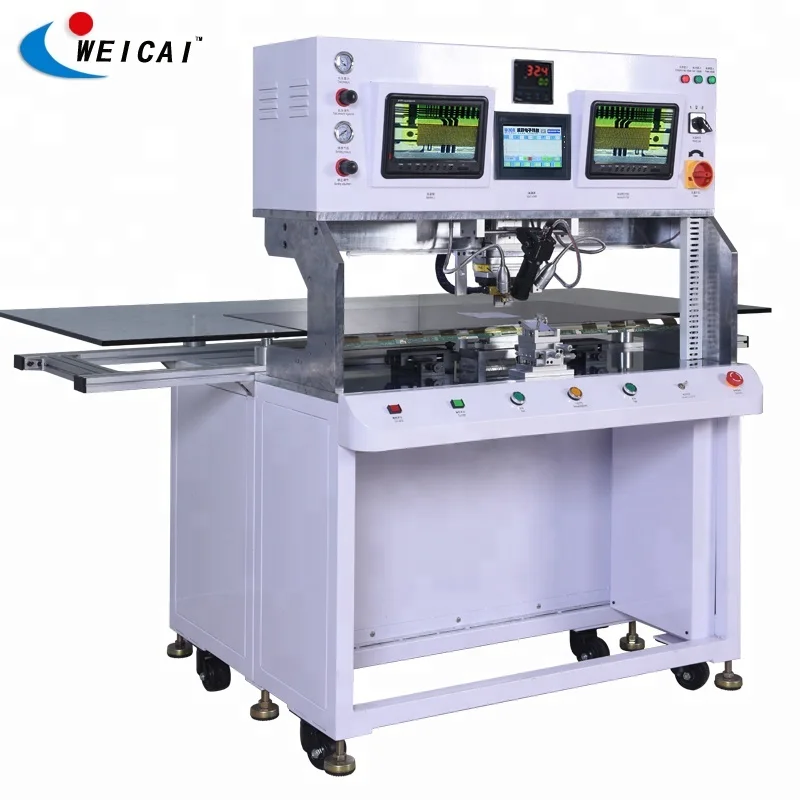

Pulse Heat Press Machine lcd bonding machine Pulse screen press for LCD Repairing
- Category: >>>
- Supplier: Guangzhou Weicai Electronics Technology Co. Ltd.
Share on (60363598229):
Product Overview
Description
Product Overview
Hot Press Machine
Cylinder structure uses special buffer to eliminate dead weight and high output precision; pressure dual-channel control,convenient to meet different pressure requirements of 2 processes; easy adjustment of pressure head, independent adjustment in a single direction, fast and convenient; design bonding area LCD vacuum adsorption function to ensure binding The product is firmly
adsorbed. The aerial plug connector is used for connection, which is safe and convenient; the PCB bonding area adopts a front-mounted alignment camera system to clearly observe and judge the alignment image between the COF end and the PCB, which is flexible and easy, improve work efficiency.
adsorbed. The aerial plug connector is used for connection, which is safe and convenient; the PCB bonding area adopts a front-mounted alignment camera system to clearly observe and judge the alignment image between the COF end and the PCB, which is flexible and easy, improve work efficiency.
Use
This product is used in a variety of FPC, COF, TAB and LCD Panel and PCB combination bonding, is reflected in a variety of sizes
LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and
white, vertical half display,horizontal half breakdown maintenance.
LCD vertical, horizontal, vertical band, horizontal belt, black belt, black, colored thread, ribbon , multi-line, black, black and
white, vertical half display,horizontal half breakdown maintenance.

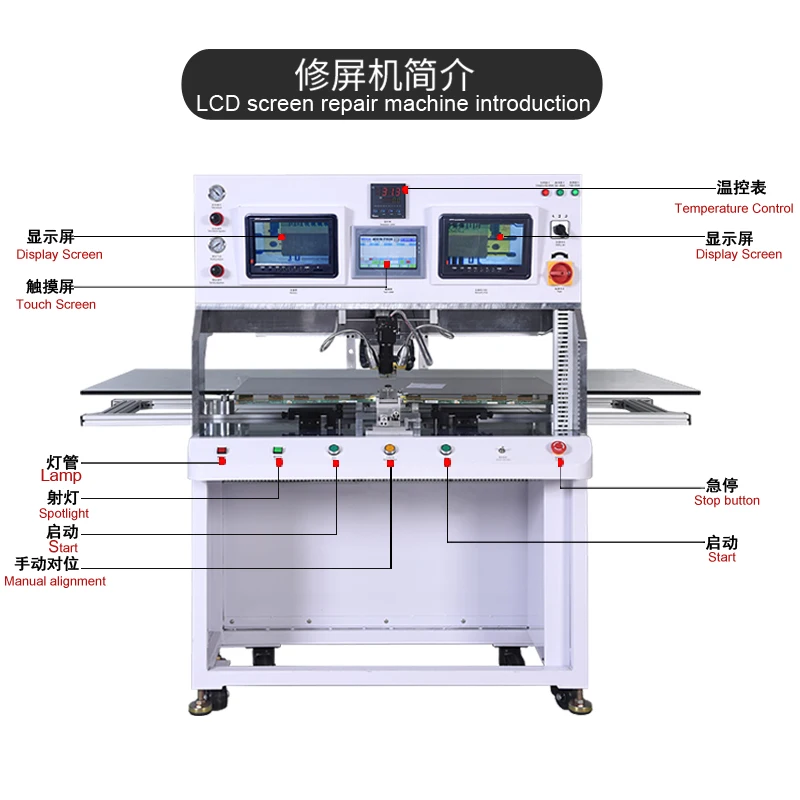

FEATURES AT A GLANCE

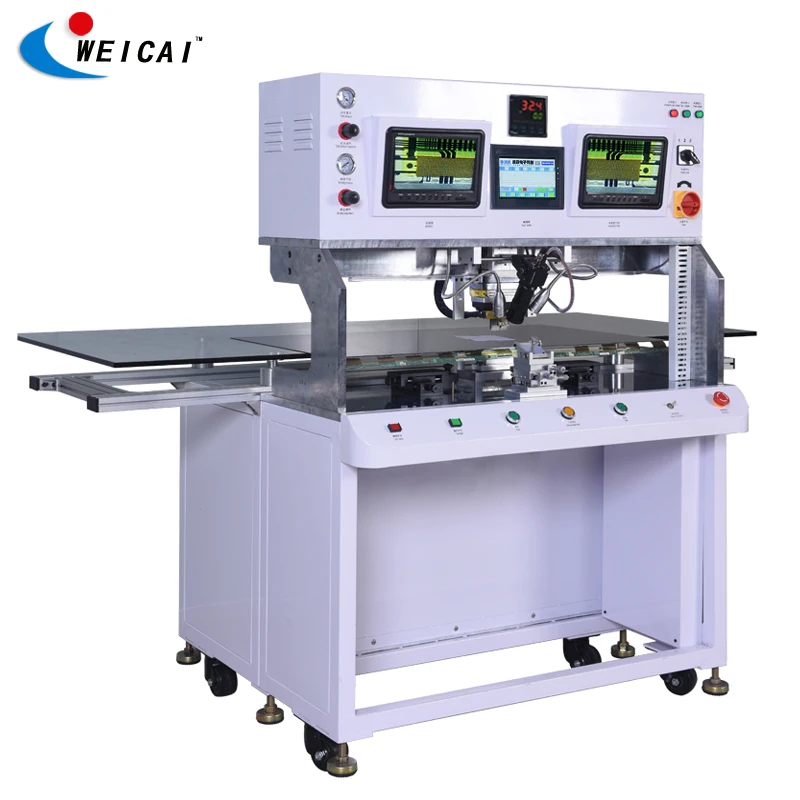

Left elevation

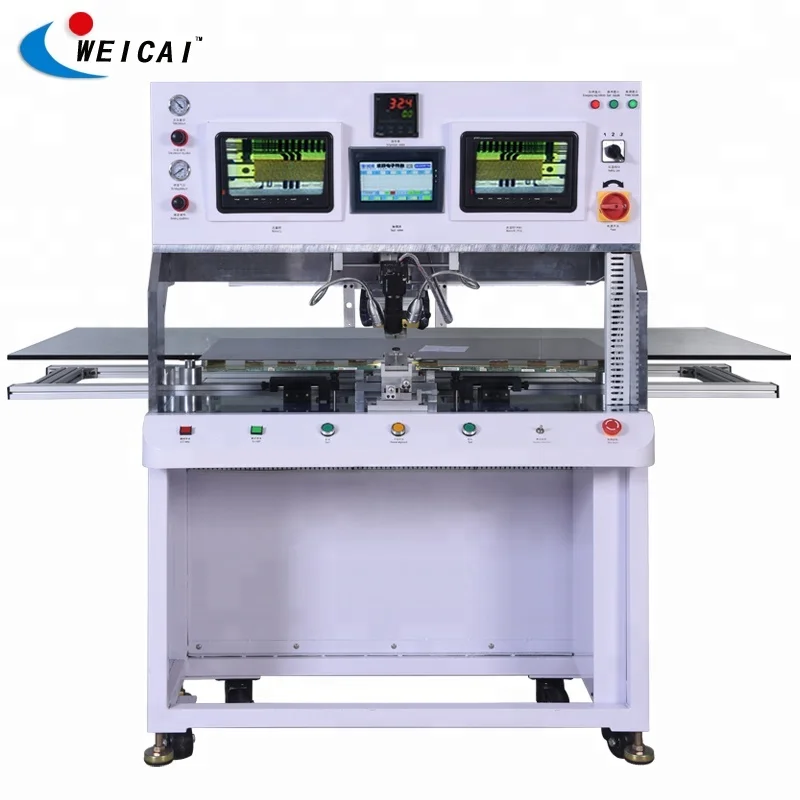

Front elevation
Right elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Rated voltage | AC 180-220V |
2 | Peak power | 400-1100W (support 68X1.4X10 wide bonding head) |
3 | Equipment process time | TFT，3.8S/chip |
4 | Production beat | TAB，100pcs/H |
5 | Bonding accuracy | ±1.5µm (support 4K) |
6 | Supply pressure | 0.1~0.7Mpa Dry air source |
7 | Power supply | AC 220V±10%，50HZ，3500W |
8 | Panel type | TFT |
About us
We are from Weicai Electronics Technology Co.Ltd which locate in Guangzhou,china.we are direct manufacturer.
We are specialize in laser machine and bonding machine for repair TV LCD screen,light bar and acf tape and accessories more than 8 years.
We own R&D Department and professional engineer too.Support free training and Video factory audit.
SALES AND SERVICE NETWORK
Packing
We are packing by wooden
Customizable
Supporting the custom packing
Global shipping
We are accept EXW price and shipping global
Certification
SIMILAR PRODUCTS
FAQ
Q1：Are you an agent or a manufacturer？
A1：We are directly manufaturer and our own R＆D team.
Q2：How to deal with after-sales problem？
A2：We are support the free training and online video guidance.
...
More question feel free to contact.
