AC120V 220V Низкий уровень шума Тангенциальное вентилятор, кондиционер, Лифт пластиковые перекрестного течения лезвие Тангенциальное вентилятор
- Category: Cross Flow Fans >>>
- Supplier: Shenzhen Topfan Technology Development Co. Ltd.
Share on (60364137350):
Product Overview
Description

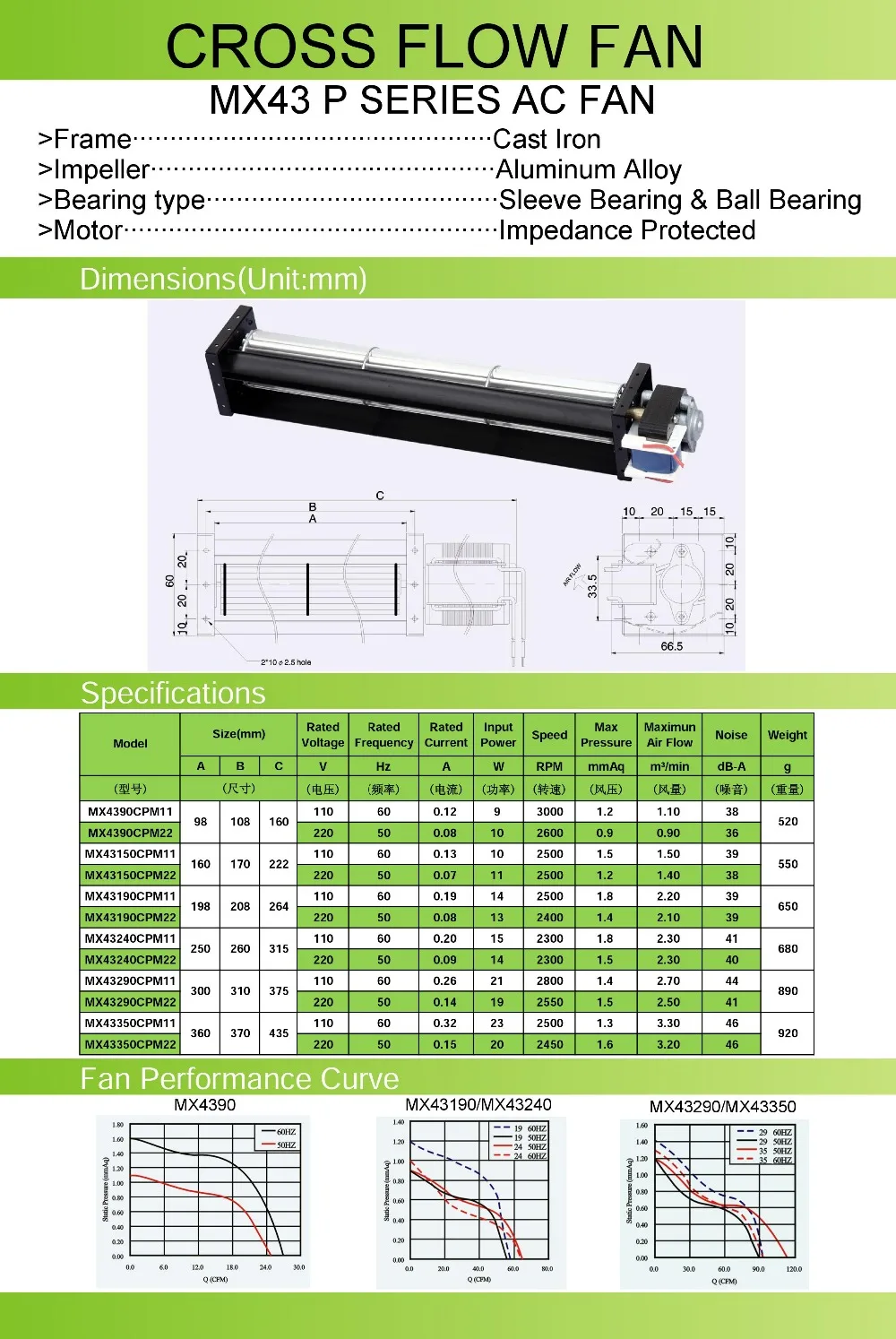

AC 220V Cross Flow Tangential Fan
Product Description
1. Purpose:
It is applied in air cleaner,elevator,humidifier , laboratory,workshop,dehumidifier,projector and copy machine, etc..
2. Expeceed Life:
Ball Bearing 50,000 hours
Sleeve Bearing 30,000hours
3. ELECTRICAL CHARACTERISTICS:
ALL MEASUREMENTS PERFORMED AT25~30℃ ROOM TEMPERATURE
& 50~80%R.H.UNLESS OTHERWISE SECIFIED.
1 | RATED VOLTAGE | VOLTS | V | 220 VAC |
|
2 | OPERATION VOLTAGE | VOLTS | V | 160-242 |
|
3 | FREQUENCY | Hz | Hz | 50 |
|
4 | NPUT CURRENT | AMP | A | 0.14A±10% | AT RATED VOLTAGE |
5 | INPUT POWER | WATTS | W | 19W ±10% | AT RATED VOLTAGE |
6 | ROTATION SPEED | RPM | RPM | 2550±10% |
|
7 | ACOUSTICAL NOISE(AVG) | dB(A) | dB(A) | ≤41 | DETAILS SEE ATTACHED PAGE. |
8 | MAX .AIR-FLOW | m³ /mim | Q | 2.5 | TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE. |
9 | MAX . AIR-PRESSURE | mmH2O | P | 1.1 | TWO-CHAMBER METHODS DEAILS SEE ATTACHED PAGE. |
10 | INSULATION RESISTANCE | MEG. OHM | MΩ | >20 MΩ | BETWEEN FRAME AND TERMINAL |
11 | DIELECTRIC STRENGTH |
|
| 1800V,3S,1MA | BETWEEN FRAME AND TERMINAL. |
12 | ROTARY DIRECTION |
|
| CC W |
|
13 | INSULATION CLASS |
|
| CLASS E |
|
14 | LIFE EXPECTANC |
|
| 15000 Hours at 25℃/65%RH |
|
4. ENVIRONMENTAL:
4-1.OPERATING TEMPERATURE----------------------- -20 TO+50℃(CLASS E)
4-2.STORAGE TEMPERATURE ------------------------- -30 TO+75℃
4-3.OPERATING HOMIDITY-----------------------------------RH20%-80%
