The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight The weight of full panel is only 10KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
4. Convenient and Fast Installation We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
Technical Specification:
Items
Parameter
Pixel Pitch
PH3.75mm
PH4mm
PH4.615mm
PH5mm
PH6mm
Module Resolution(W*H)
128(W)*128(H)
120(W)*120(H)
104(W)*104(H)
96(W)*96(H)
80(W)*80(H)
Pixel Configuration
1R1G1B(in 3 n 1)
LED Encapsulation
Black SMD 2121
Black SMD 2724
Black SMD 2724
Black SMD 3528
Black SMD 3528
Pixel Density
71111/ Pixel m2
62500 Pixel /m2
46944/ Pixel m2
40000/ Pixel m2
27778/ Pixel m2
Driving Method
1/16 Scan
1/15 Scan
1/13 Scan
1/12 Scan
1/10 Scan
Refresh Frequency
≥2880Hz
≥2880Hz
≥2880Hz
≥2880Hz
≥2880Hz
Driver IC
Special constant current IC with high refresh rate & high grey scale
Grey Scale
14Bit(depending on the system and IC configuration)
Cabinet Size
480*480mm
White balance Brightness
≥900cd/ m2
≥900cd/ m2
≥900cd/ m2
≥1500cd/ m2
≥1500cd/ m2
Color Temperature
8000K±500 (adjustable)
Viewing Angle
Horizontal 140°Vetical 120°
Optimal Viewing Distance
>4m
>4m
>5m
>5m
>6m
Working Voltage
AC 220V/110V ±10%
Module voltage
DC4.2V
Max Power Consumption
100W/PCS
100W/PCS
110W/PCS
100W/PCS
80W/PCS
Avg.Power Consumption
60W/PCS
60W/PCS
60W/PCS
50W/PCS
40W/PCS
Lifetime
50000hours
Operating Temperature
–10℃~ 65℃
Net weight
8.5Kg/pcs
8.5Kg/pcs
8.5Kg/pcs
8.5Kg/pcs
8.5Kg/pcs

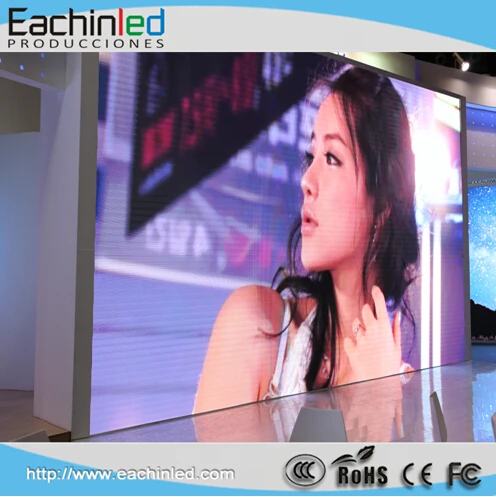

[Photos of Indoor LED Screen P3 P4 P5]
