TEC 6550 X ray baggage scanner used in airport & metro station

Product Overview

Description

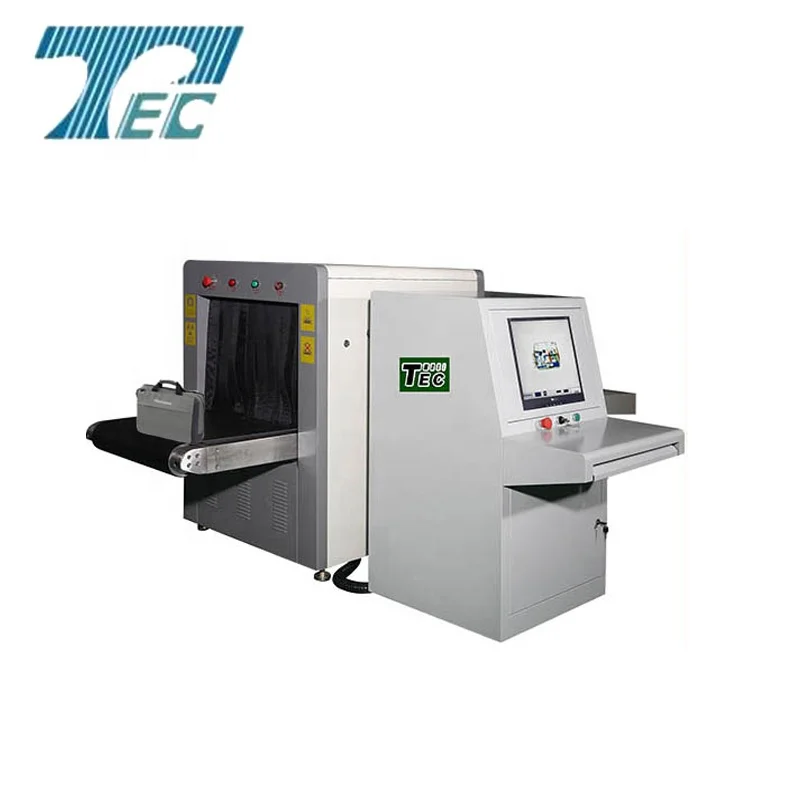

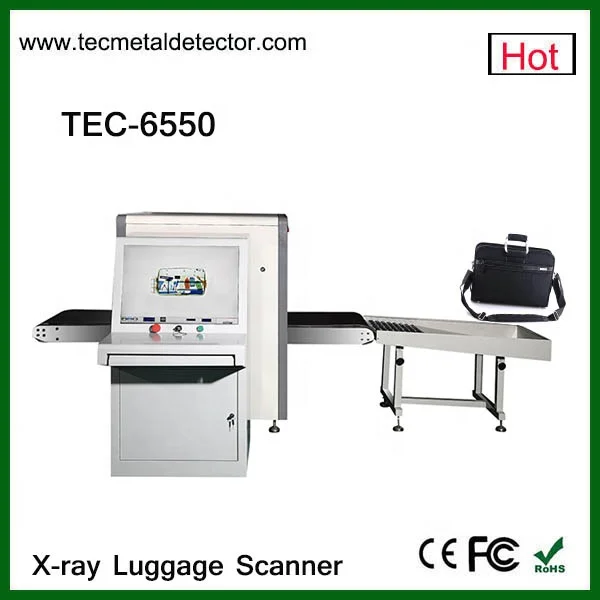

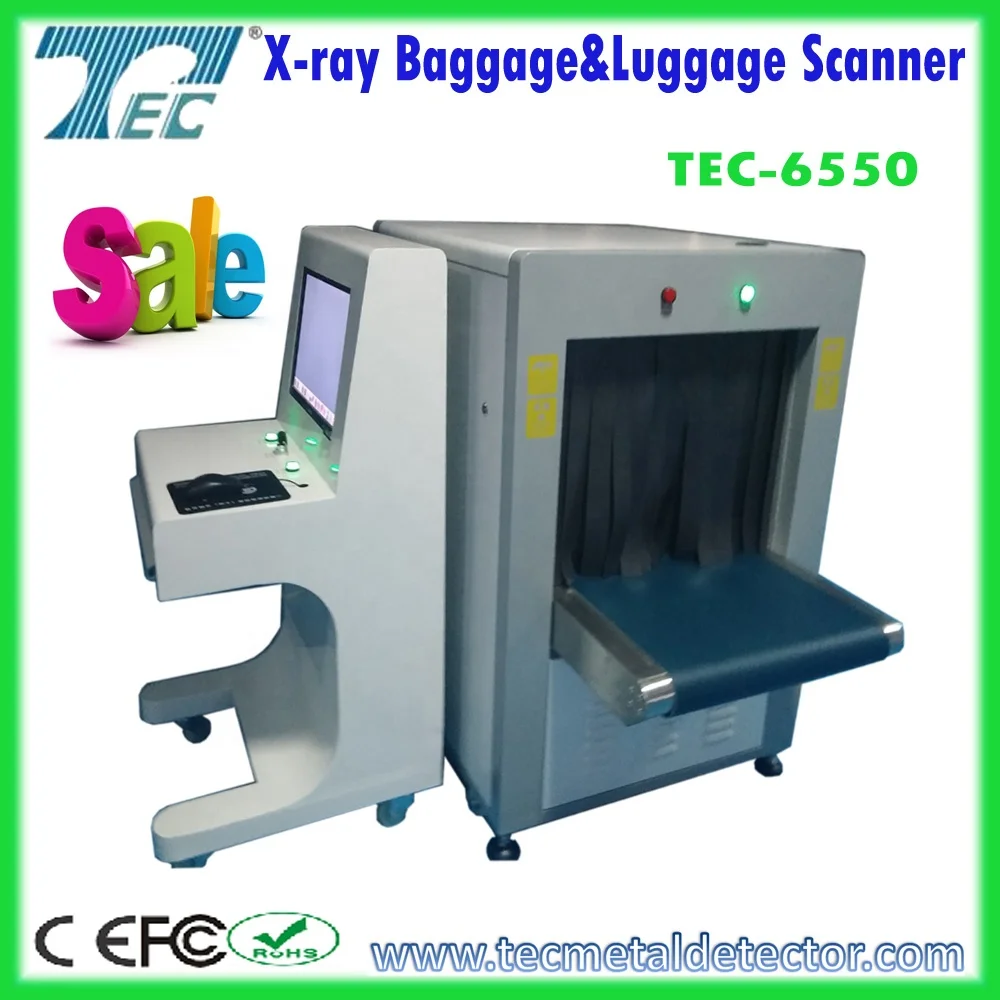

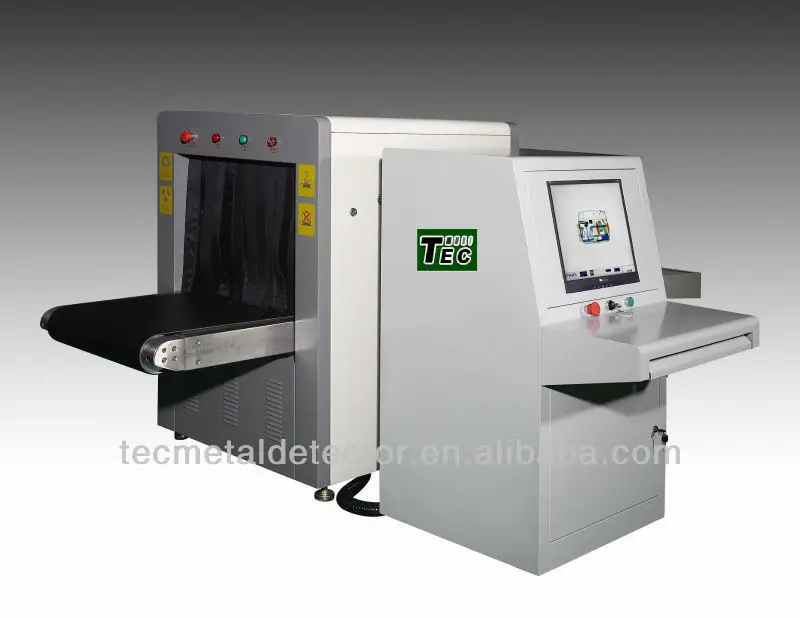

TEC-6550 X-ray baggage scanner used in airport & metro station



Technical Specifications

Tunnel Size:650(W)*500(H)mm

Power Requirement::220VAC(±10%)50±3Hz

Power Consumption:1.0 KW (max)

Noise: <55db

Conveyor Speed:0.22m/s

Conveyor Max Load:100kg

Sensitivity:  42WG Typical, 40WG Guaranteed

Spatial Resolution: 1.0mm Horizontal and Vertical

Penetration resolution: dia 0.254mm

Penetration: 34mm Steel Typical, 32mm Guaranteed

Dose per Inspection: < 1.4μGy/h

X-ray Leakage:0.0μGy/h (at a distance of 5cm From external housing)

Film Safety: Guarantee ISO1600 Film



X-ray Generator Specifications

Voltage: 100KV to 160kv

Tube Current: 0.4mA to 1.2mA

Cooling: Sealed Di-Electric Oil Bath with Forced Air.

Duty Cycle: Rated for 100% Duty Cycle

Beam Direction: Upward

Beam anger:80 degree

Detector: 1024 Channels in an L-Shaped Array



Image Display

Single 17’’ High Resolution, low Radiation, Ergonomic LCD Color Monitor

Display Resolution: 1280*1024; 24 bit/pixel Color

Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level

Image storage:60000 pictures in real time

Zones & Zoom:1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Processing: Edge enhancement, image strengthening, image lightening, reducing darkening,image returning, image retrieval.

Multi-Energy (M) color material identification: Organic objects in orange, inorganic objects in blue, mixture in green



Environmental Specifications

Operating Temperature: 0°C-45°C

Storage Temperature:-20°C-60°C

Humidity: Up to 95% Non-Condensing



Computer Specifications

Processor: Intel(R)Dual CPU 2.0

Memory: 1GB RAM

Storage: 160GB HDD

Video Card: 256 Video Card (digital Display)

Platform: Windows XP Pro



Standard Features

Auto Image Archiving

Baggage Counter

Color and Black/ White Imaging

Density Alert

Edge-Enhancement Imaging

High Penetration

Image Annotation

Image review

Manual Archive (bitmap)

Suspect Image Archive

Operation Training Program

Picture Perfect

Print Image

Programmable Penetration

Programmable Contrast

Pseudo Color

Reverse Monochrome

Real-Time Image Manipulation

User Defined Access

Zoom 2X to 64X

High-energy/low energy: Switch from high energy to low energy

Assist to detect drug and explosive powder

Sound and light alarm;

l  Protective cover on lead curtain to avoid lead pollution;

l  Real time continuous self diagnostics



Physical Specifications

Tunnel Opening: 650mm W* 500mm H’



l6550 Dimensions:

1980mm L *880mm W *1280mm H (Main machine, exclude monitor)

630mm L * 900mm W *1220mm H(Operation counter)

1000mm L * 655mm W * 650mm H (Extension Exit Roller table)

6550 Crate Dims:

2010mm L *910mm W *1310mm H (Main machine, exclude monitor)

660mm L * 930mm W *1250mm H(Operation counter)

1030mm L * 685mm W * 680mm H (Extension Exit Roller table)

Gross weight: 700kgs







Best wooden package for long distance transportion





Shipping methods







1.By Worldwide Express:DHL,Fedex,EMS,UPS,TNT,etc



2.By air or by sea,if the goods weight over 45kg,then by these two ways are economical.
