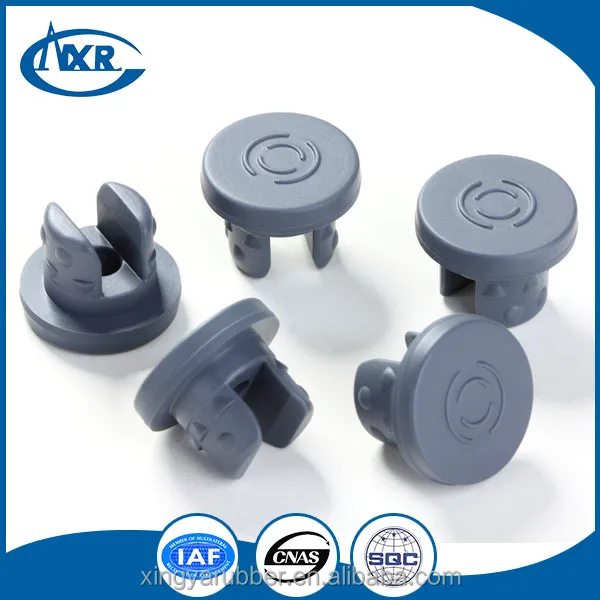

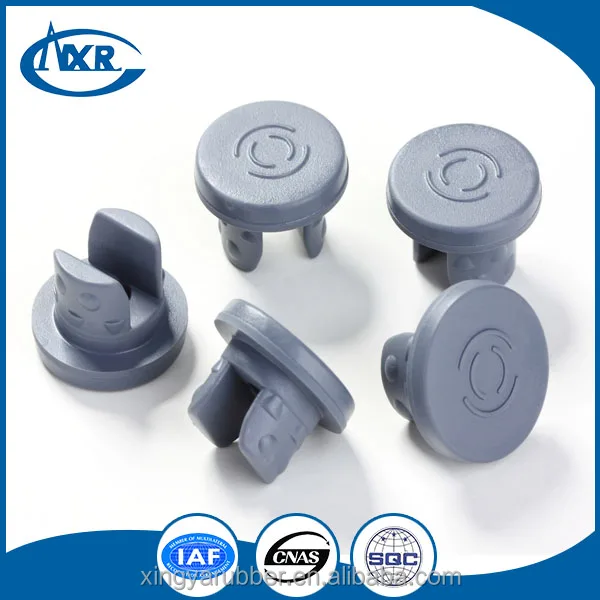

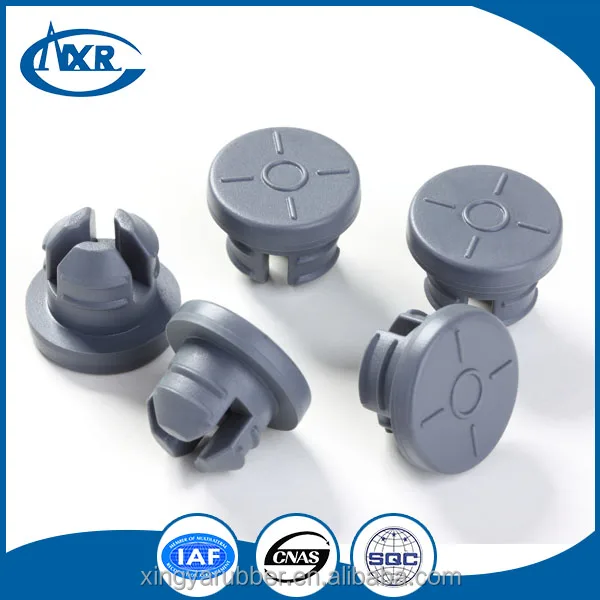

pharmaceutical butyl rubber stopper lyophilization

Product Overview

Description





Application: Suitable for the seals of antibiotics and other powder crude drugs

Packing: Inner double sterile plastic bag, outer corrugated carton

Executive Standard: Q/HXY01-2013



Butyl rubber frozen dry series	Specification	Main Size(mm)
		Diameter of the top part	Thickness of the top part	Diameter of the plug stem	Total height
	13-D1	12.5±0.2	2.0±0.2	7.5±0.1	10.0±0.3
	13-D2	12.5±0.2	2.0±0.2	7.5±0.1	10.0±0.3
	13-D4	12.5±0.2	2.0±0.2	7.5±0.1	12.0±0.3
	20-D2	18.8±0.2	3.3±0.2	13.2±0.1	12.8±0.3
	20-D3	18.8±0.2	3.3±0.2	13.1±0.1	13.8±0.3
	20-D4	18.8±0.2	3.6±0.2	13.2±0.1	14.6±0.3
