Desorption Electrolysis System , Gold Ore Electrowinning Machine

Gold electrowinning machine —introduction

Desorption electrolysis system obtains gold mud from carbon by desorption and electrowinning

Gold electrowinning machine—advantages

In the high temperature (150℃) and pressure (0.5MPa), the desorption rate reaches 98%
Since desorption and electrolysis does not require different temperatures, it is not necessary to change temperature. The quickness and efficiency of machine dramatically diminishes gross electricity consumption by 1/2-1/4.
Desorption does not require sodium cyanide, which reduces cost and averts pollution.

Gold electrowinning machine —structure

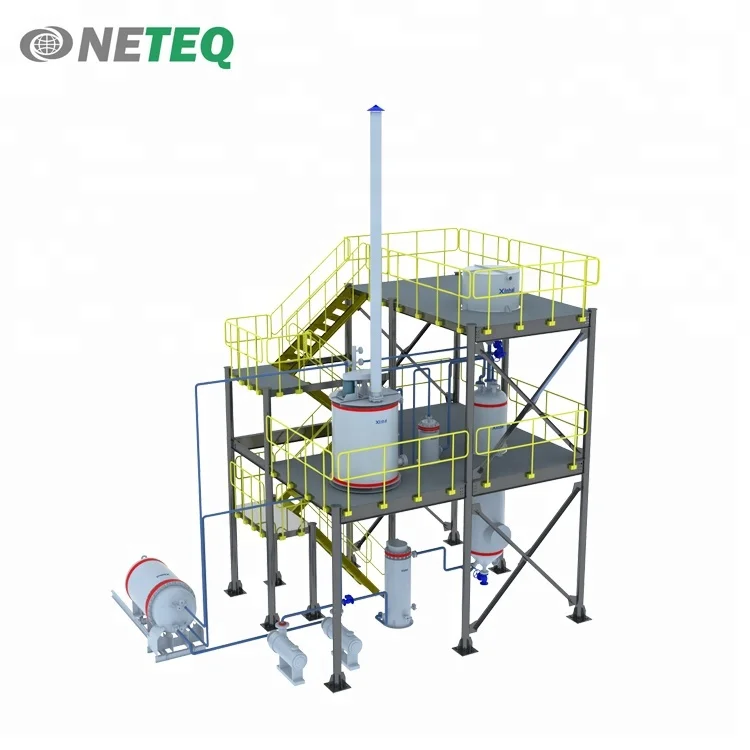

Desorption electrolysis system consists of electrolysis equipment including desorption column and the electrodeposition tank

Gold electrowinning machine —working principle

In gold electrowinning process,when the electrolysis equipment is added with anions which are more easily absorbed by activated carbons, Au(CN)2is replaced by anion and the gold desorption is achieved. After the carbons loaded with gold are desorbed, pregnant solution is process via ionization. At last, solid gold is attained.
Desorption Electrolysis System,copper electrowinning  :

Relative Equipment:

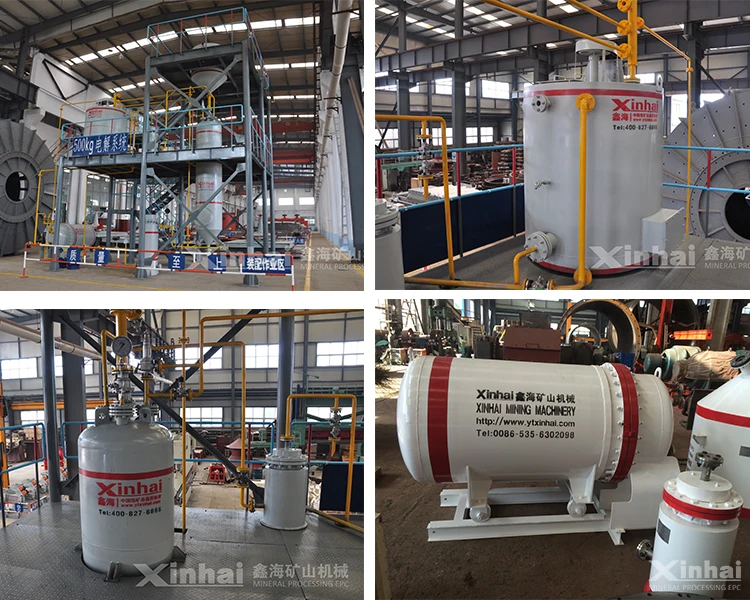

The analytical column, electrolytic tank, filter, heater, analytical solution agitation tank, control electric wheel, DC power supply, measuring instrument

Gold electrowinning machine —technical parameters

Laboratory:Strive for the best recovery for you with rigorous test, accurate data and detailed report

Institute:Certified grade A of mineral design institute, high quality drawing, simulate mineral plant with CAD and 3D, guarantee the construction period

Factory:We have three production factories, hundreds of suppliers.Some products reach the international leading level with own characteristic.
