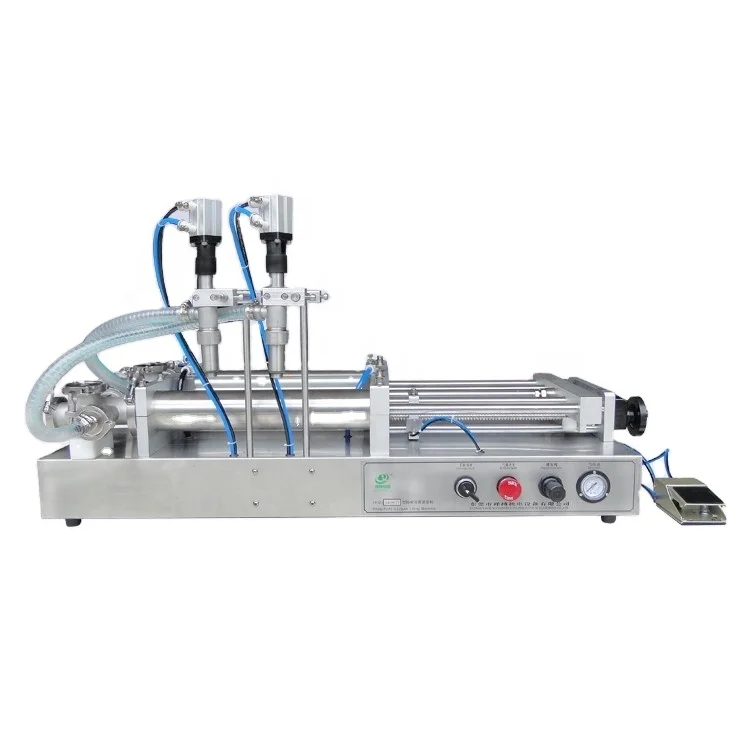

Semi automatic pneumatic honey jar filling machine/liquid filling machine semi automatic manufacture
- Category: >>>
- Supplier: Dongguan Xiangbo Electromechanical Equipment Co. Ltd.
Share on (60364391797):
Product Overview
Description
Company Display
Product Description
Functional description
1. The machine adopts compressed air control drive, so it is especially suitable for use in the environment with explosion-proof requirements and humidity, with high safety;

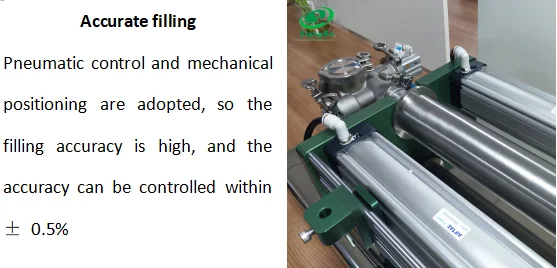

2. As pneumatic control and mechanical positioning are adopted, the filling precision is high, which can be controlled within ±0.5%;

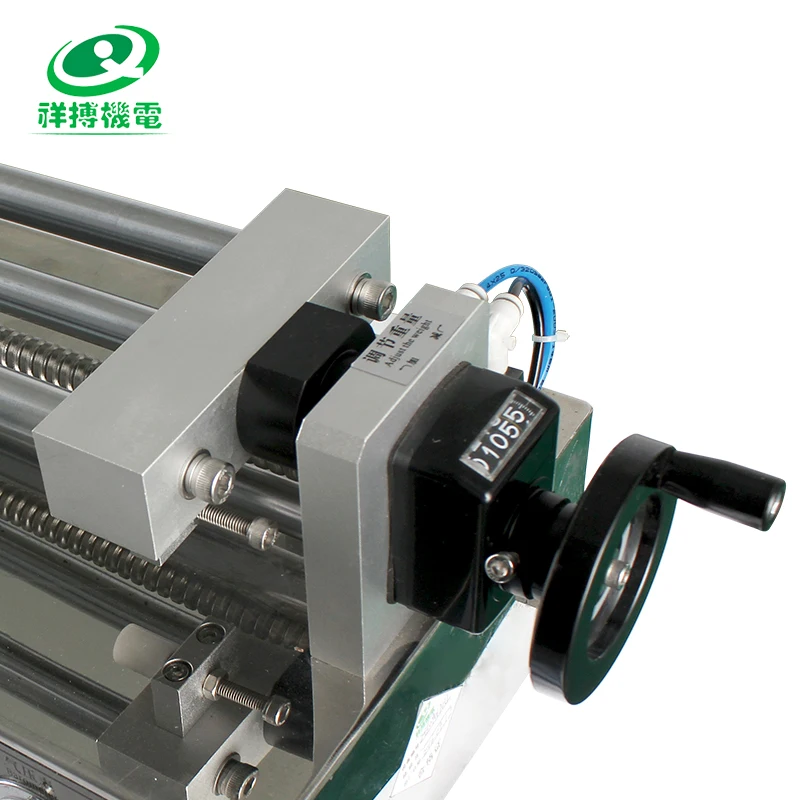

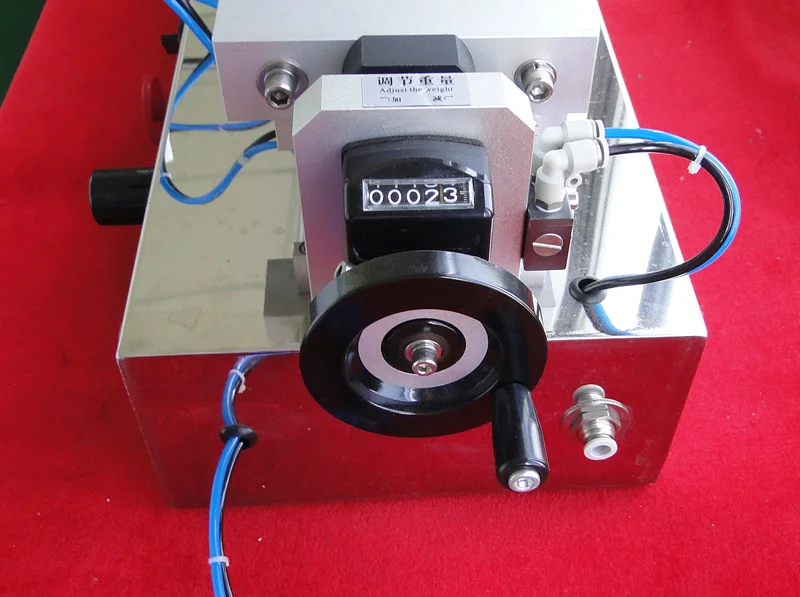

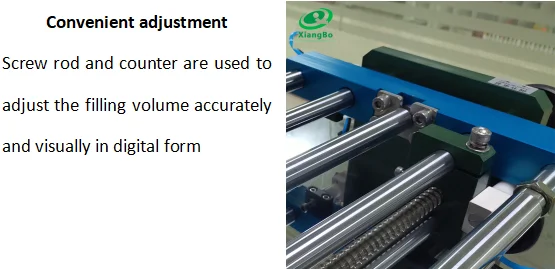

3. Screw rod and counter are adopted to adjust the filling volume accurately, which can be directly reflected in digital form;

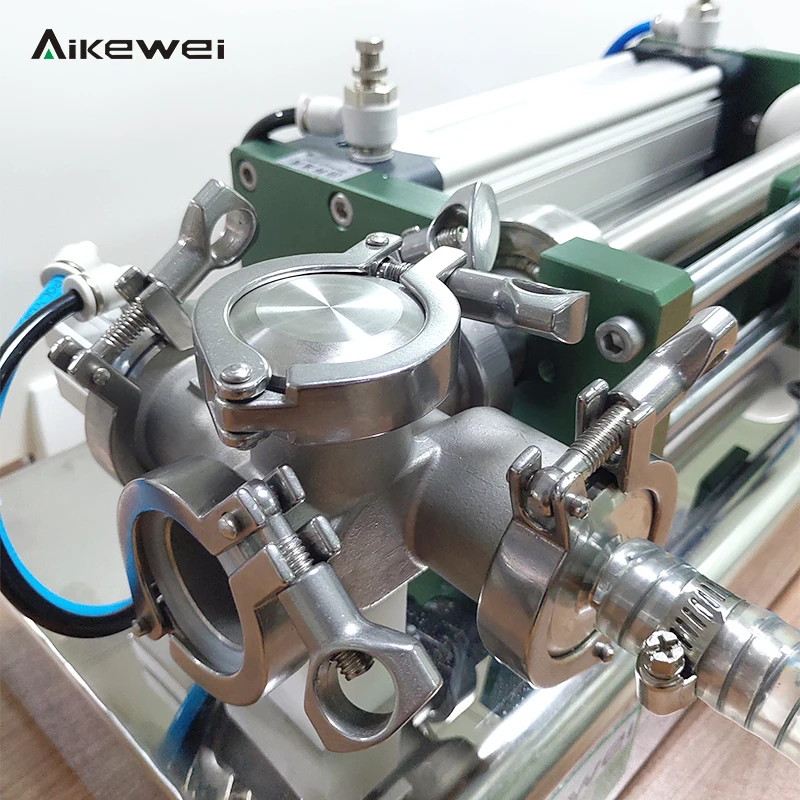

4. The five-way valve can be used for both paste and liquid, and is made of SS 304 stainless steel, with no dead Angle inside the five-way valve and easy to clean;
5. The whole machine is 304 stainless steel, the contact part of materials are made of 304/316 stainless steel, in line with GMP requirements;

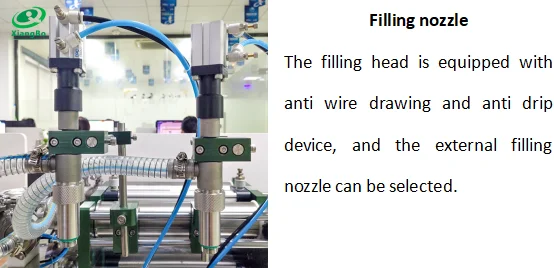

6.The filling head is equipped with anti-drawing and anti-drip device. The external filling mouth is optional;
7.Fast filling speed, can fill back and forth 30 times per minute, taking 500 ml water as an example, the filling accuracy is ±0.5%.
2. As pneumatic control and mechanical positioning are adopted, the filling precision is high, which can be controlled within ±0.5%;
3. Screw rod and counter are adopted to adjust the filling volume accurately, which can be directly reflected in digital form;
4. The five-way valve can be used for both paste and liquid, and is made of SS 304 stainless steel, with no dead Angle inside the five-way valve and easy to clean;
5. The whole machine is 304 stainless steel, the contact part of materials are made of 304/316 stainless steel, in line with GMP requirements;
6.The filling head is equipped with anti-drawing and anti-drip device. The external filling mouth is optional;
7.Fast filling speed, can fill back and forth 30 times per minute, taking 500 ml water as an example, the filling accuracy is ±0.5%.
Application
Suitable for medicine, daily life products, food and special industries. And it is an ideal device for adhesive fluid filling.
(1) Cream, paste Products,In cosmetic industry: face cream, body cream, washing cream,vaseline etc In food industry industry:Honey,Water,juice,liquid product,honey ,sauce, ketchup, tomato paste,mayonnaise, mustard, chocolate disinfectant fluid etc In chemical industry: welding paste, ink, paint pigment etc.
(2) Liquid products shampoo, lotion, liquid soap, detergent, solution etc.
(3) Make-up products:Lipstick, lip gloss, nail polish, marscara etc.
(1) Cream, paste Products,In cosmetic industry: face cream, body cream, washing cream,vaseline etc In food industry industry:Honey,Water,juice,liquid product,honey ,sauce, ketchup, tomato paste,mayonnaise, mustard, chocolate disinfectant fluid etc In chemical industry: welding paste, ink, paint pigment etc.
(2) Liquid products shampoo, lotion, liquid soap, detergent, solution etc.
(3) Make-up products:Lipstick, lip gloss, nail polish, marscara etc.
Comparison of filling machines

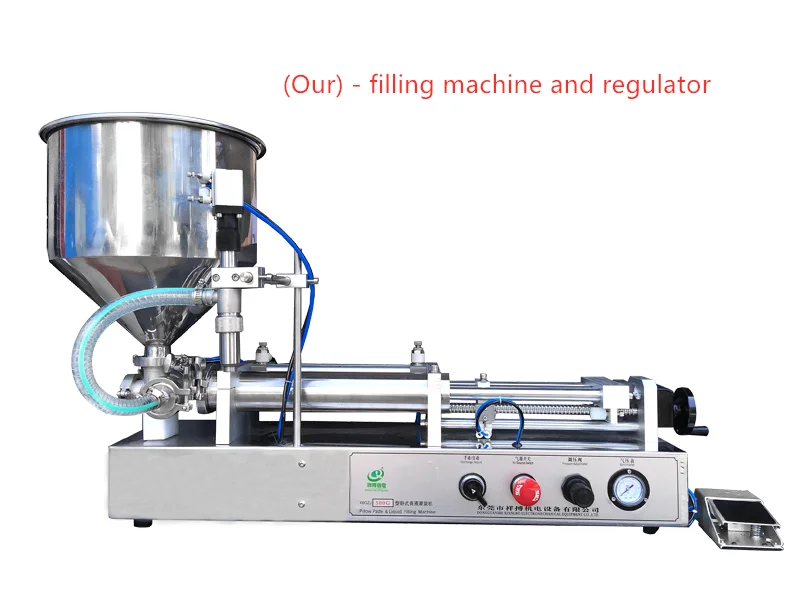

(Our) - Professional injection molded five-way valve

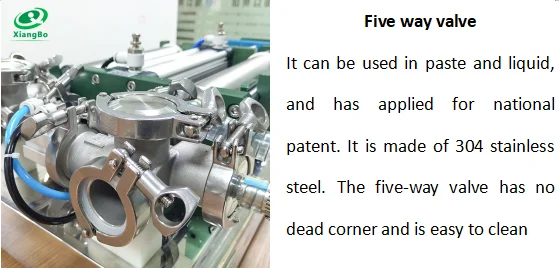

1.The five way valve can be used for both paste and liquid, which can be connected to both suction pipe and hopper
2.Patented five way valve with Xiangbo logo
3.316 stainless steel, in line with food safety inspection
4.There is no dead corner in the five-way valve, which is easy to clean

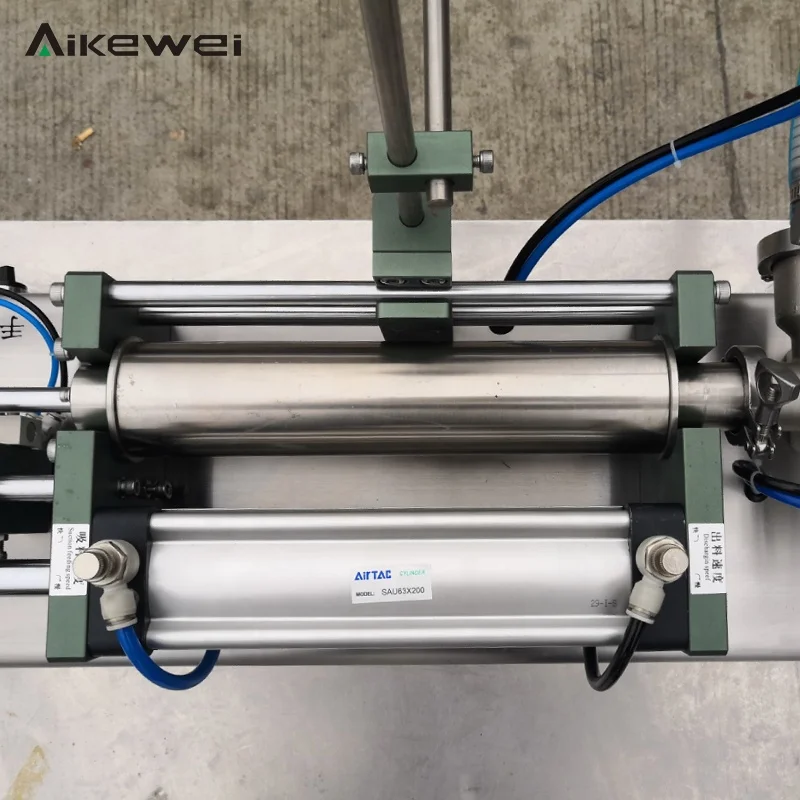

5.The cylinder controls the suction, and the filling accuracy is higher
2.Patented five way valve with Xiangbo logo
3.316 stainless steel, in line with food safety inspection
4.There is no dead corner in the five-way valve, which is easy to clean
5.The cylinder controls the suction, and the filling accuracy is higher

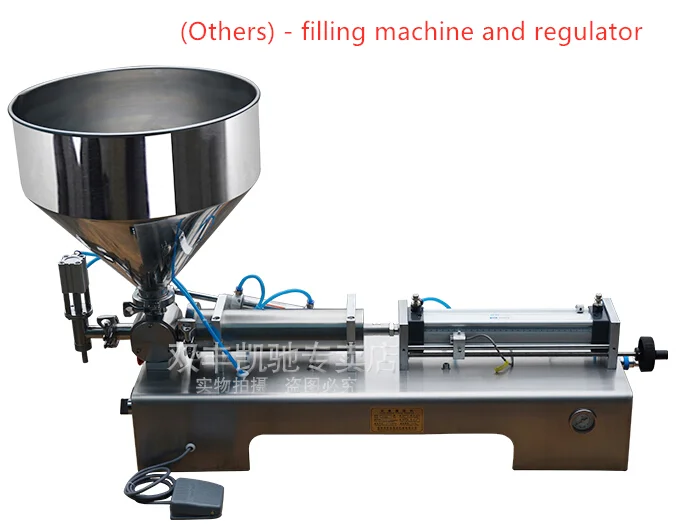

(Others) - Welded check valve
1.It can not be used for both purposes. It is either connected to the hopper or to the suction pipe
2.Market universal check valve
3.304 stainless steel
4.Residual materials, not easy to clean
2.Market universal check valve
3.304 stainless steel
4.Residual materials, not easy to clean
Specification
Model | AKWGZJ-500G | AKWGZJ-1000G | AKWGZJ-3000G | AKWGZJ-5000G | |||
Filling Speed | 10-35/min(take 500 ml water for example) | ||||||
Filling Range | 50-500ml | 100-1000ml | 300-3000ml | 500-5000ml | |||
Air Pressure | 0.4~0.6mpa | ||||||
Filling Error | ±0.5%(Calculate with the most filling volume) | ||||||
Size | 1150L*475W*320H mm | 1150L*475W*320H mm | 1150L*475W*320H mm | 1150L*475W*320H mm | |||
Weight | 21 Kg | 38 Kg | 45 Kg | 51 Kg | |||
