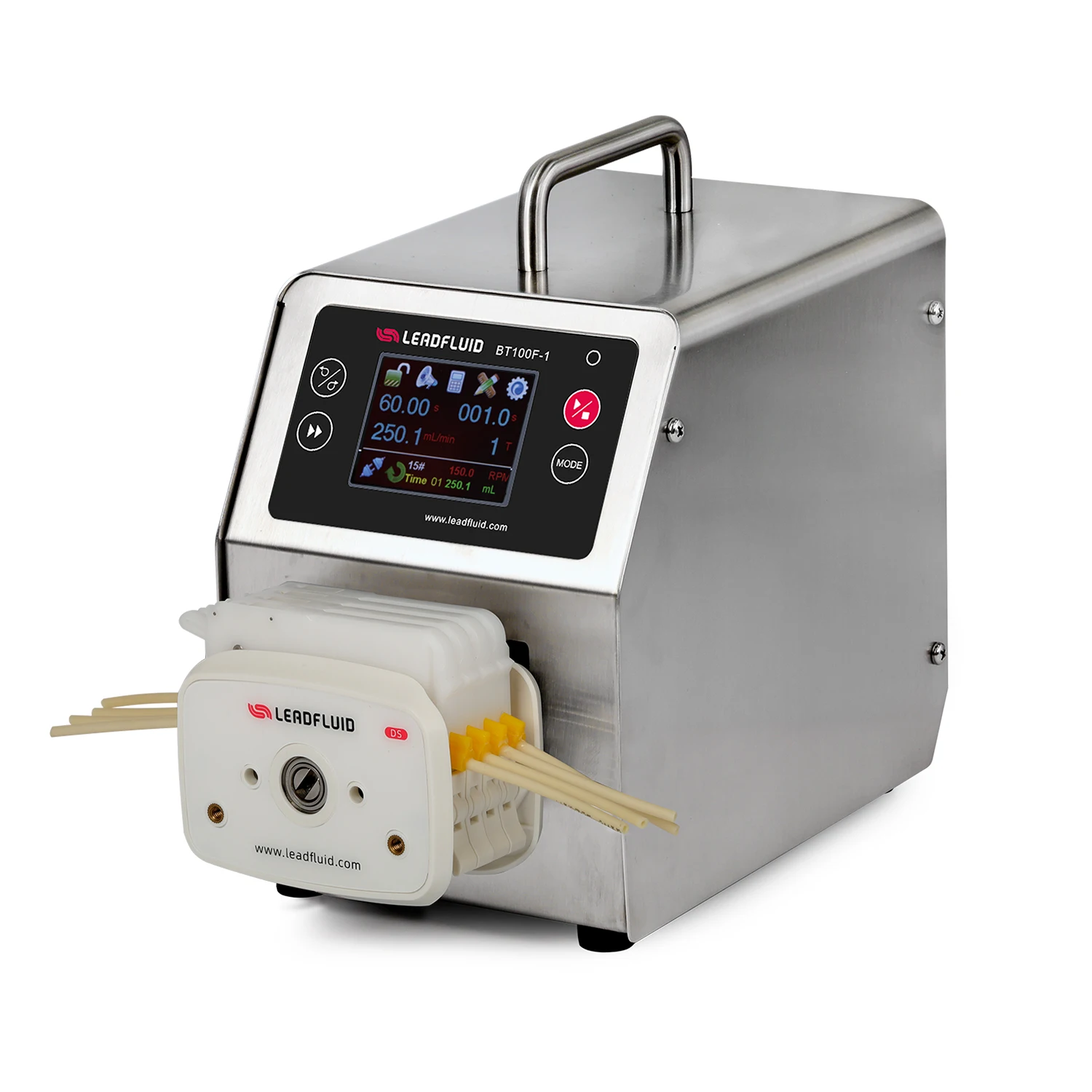

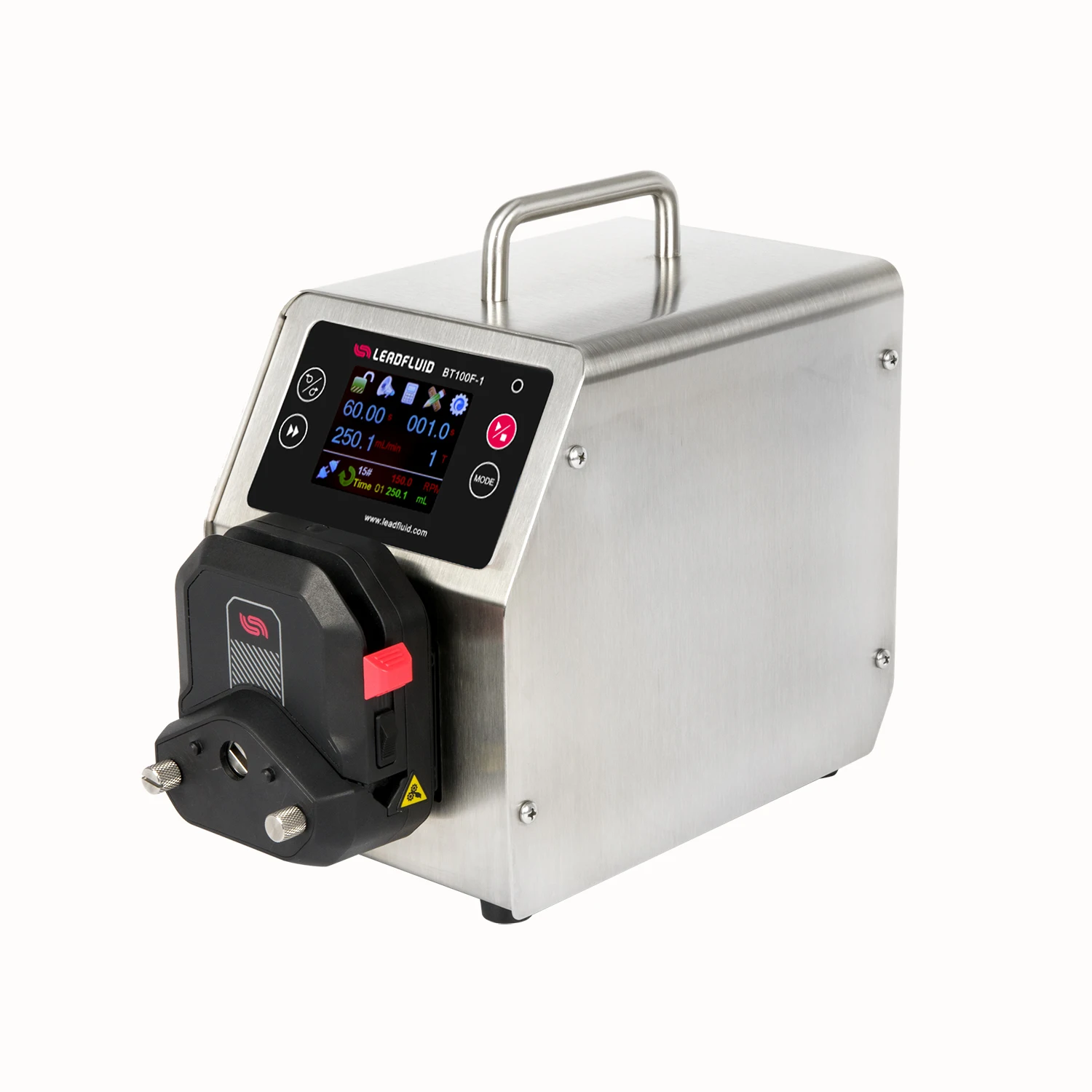

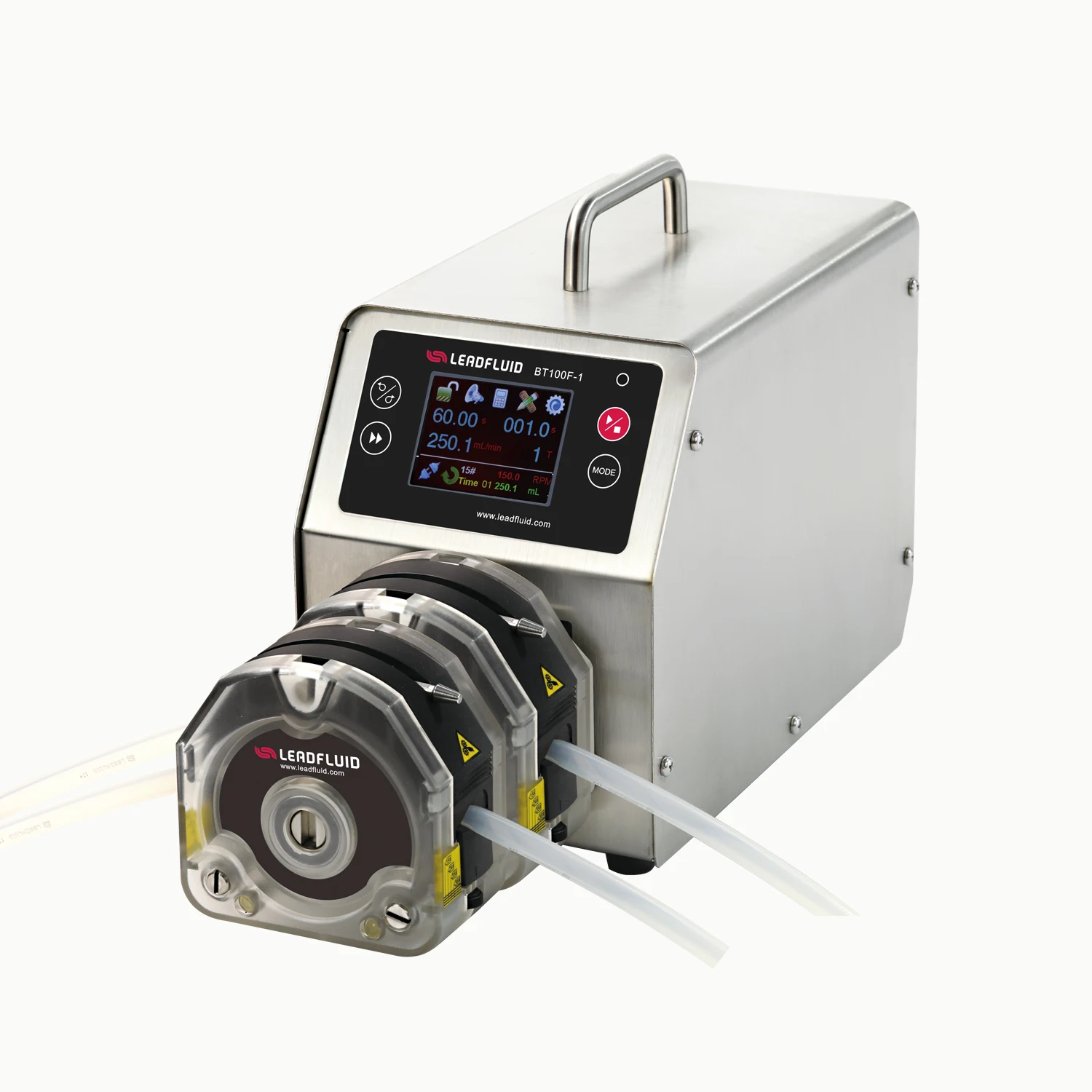

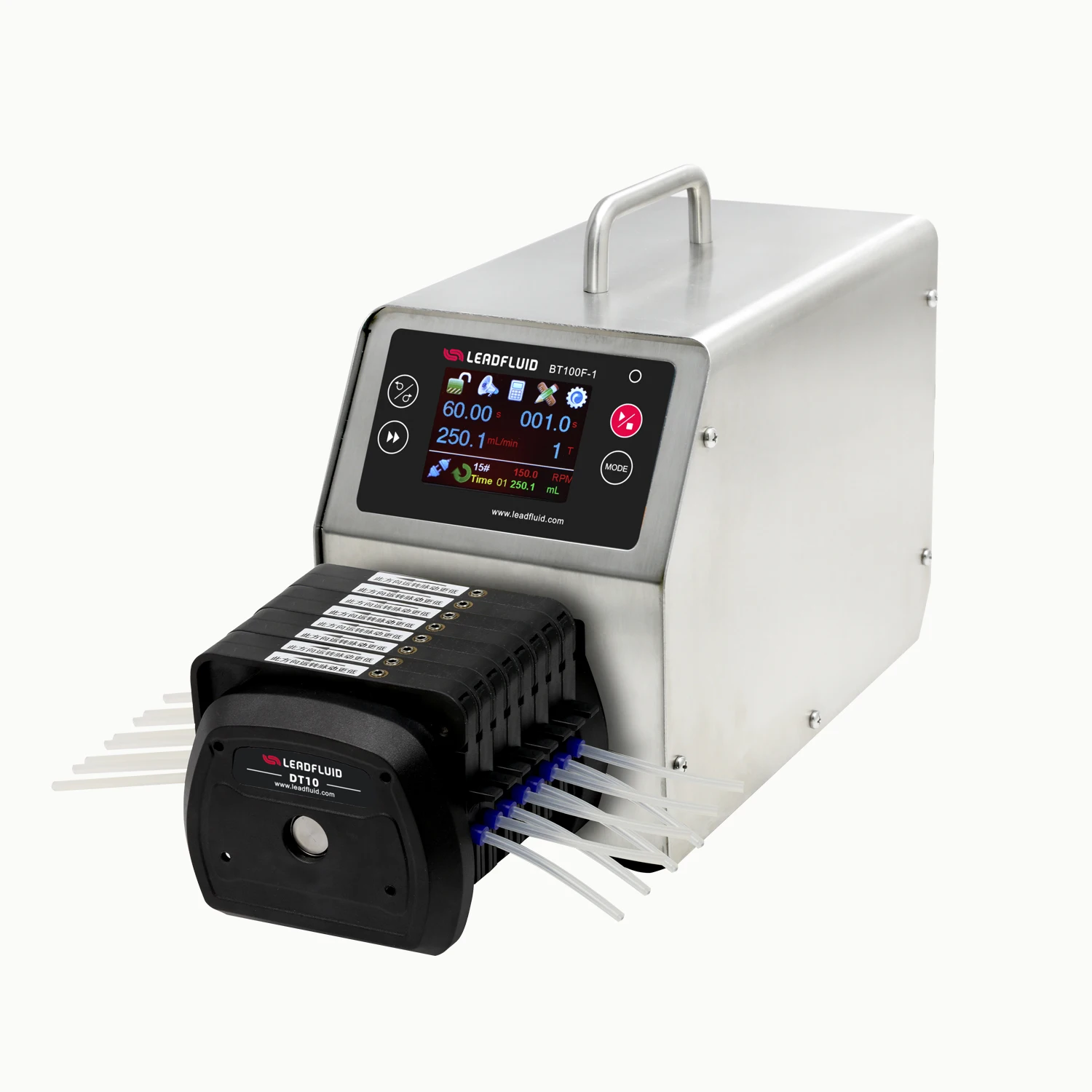

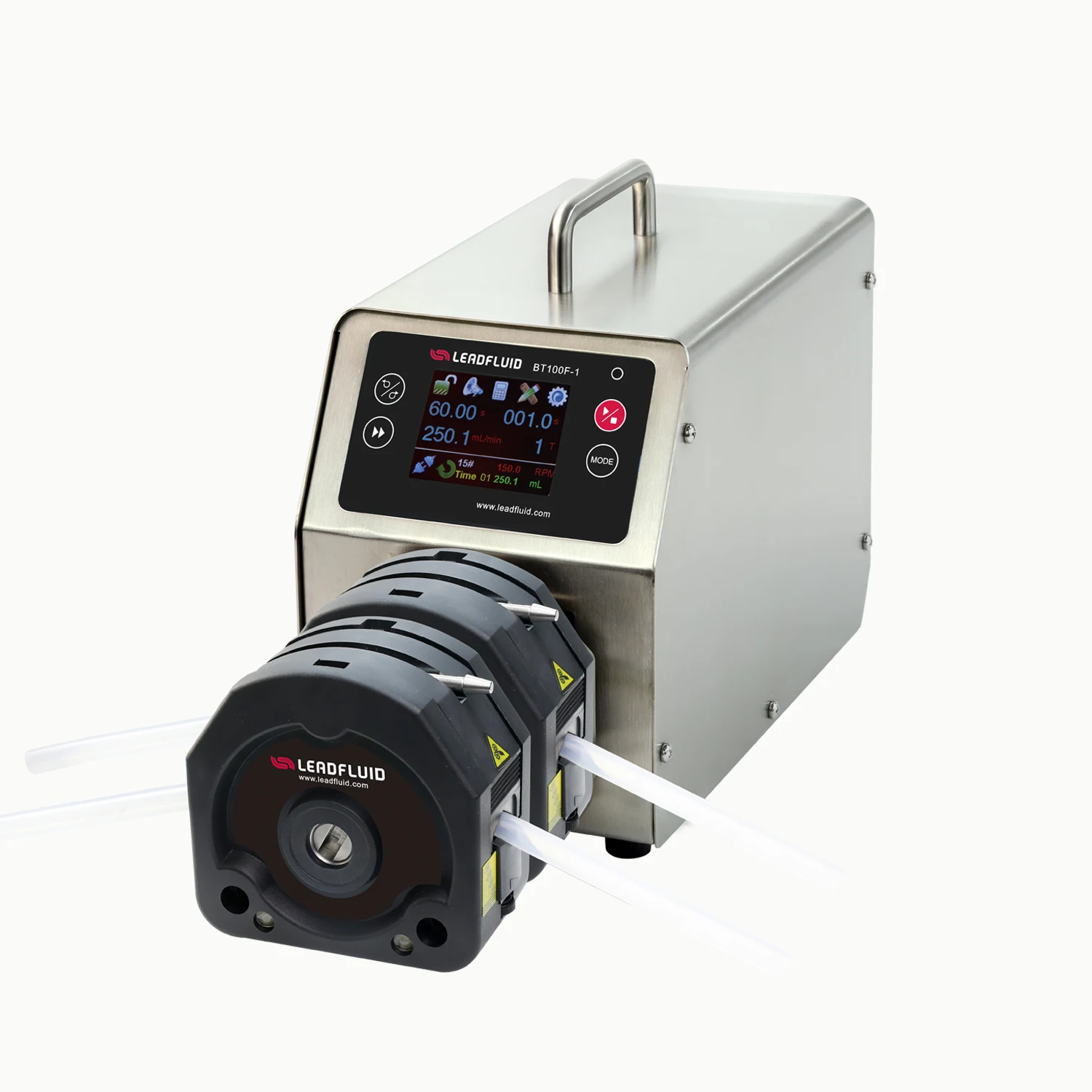

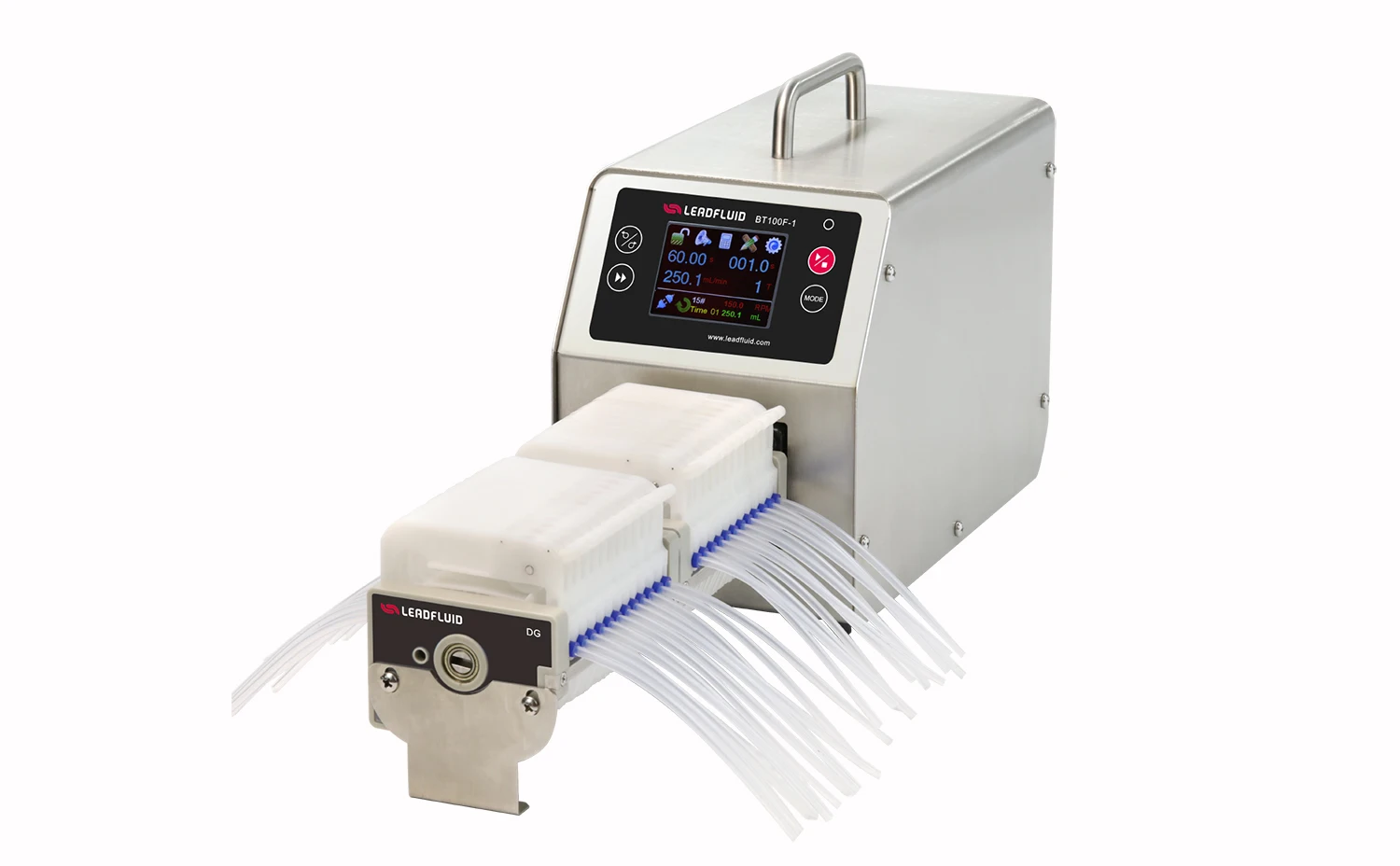

Large Torque Multi Channel Liquid Dispensing Peristaltic Pump BT100F 1
- Category: >>>
- Supplier: Baoding Lead Fluid Technology Co. Ltd.
Share on (60364631472):
Product Overview
Description
Product Description
• LF-Touch-OS software system. color LCD display, touch screen and button operation, more friendly human-computer interaction.
• Multiple working modes, each dispensing mode can store five groups of working parameters.
• Precision microstep control technology reduces the traditional time control. Dispensing mode due to factors such as slow start of the motor and other dispensing errors.
• Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).
• Large torque output, cascading multiple pump heads.
• Display and control flow rate, accumulate dispensing volume automatically.
• Wizard flow calibrating function.
• The operating expert system guides users setting parameters correctly.
• Intelligent temperature-control technology reduces working noise
• External control controls the start/stop, reversible direction and dispensing function, optically coupled isolator,external analog adjusts the rotate speed.
• RS485 communication interface, MODBUS protocol is available, easy to connect other equipments.
• Internal double-deck isolation structure, circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• 304 stainless steel shell, easy to clean, corrosion resistant.
• Can drive multi-channels and various types of pump heads.
• Connect foot switch control start-stop for dispensing fluid.
• Multiple working modes, each dispensing mode can store five groups of working parameters.
• Precision microstep control technology reduces the traditional time control. Dispensing mode due to factors such as slow start of the motor and other dispensing errors.
• Start/stop, reversible direction, full speed, adjust speed, state memory (power-down-memory).
• Large torque output, cascading multiple pump heads.
• Display and control flow rate, accumulate dispensing volume automatically.
• Wizard flow calibrating function.
• The operating expert system guides users setting parameters correctly.
• Intelligent temperature-control technology reduces working noise
• External control controls the start/stop, reversible direction and dispensing function, optically coupled isolator,external analog adjusts the rotate speed.
• RS485 communication interface, MODBUS protocol is available, easy to connect other equipments.
• Internal double-deck isolation structure, circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• 304 stainless steel shell, easy to clean, corrosion resistant.
• Can drive multi-channels and various types of pump heads.
• Connect foot switch control start-stop for dispensing fluid.
Technical Parameter
Mode | BT100F-1 |
Flow range | 0.00011～1650mL/min |
Speed range | 0.1～150rpm |
Speed resolution | 0.1rpm |
Speed accuracy | ＜±0.2% |
Dispensing volume | 0.001μL～9999L(It is recommended to have a minimum fill of 50μL.) |
Dispensing time | 1～999,“0”Infinite cycle |
Dispensing interval time | 0.1～999.9 S/Min/H, time unit adjustable |
Power supply | AC100～240V,50Hz/60Hz |
Power consumption | ＜60W |
External control | External control input level 5V, 12V (standard), 24V (optional); External control analog 0-5V(standard), 0-10V, 4-20mA (optional) |
Communication interface | RS485communication interface, Modbus protocol is available |
Working environment | Temperature 0 ～ 40℃, relative humidity＜80% |
IP grade | IP31 |
Dimension（L×W×H） | 288×150×237mm |
Weight | 5.2kg |

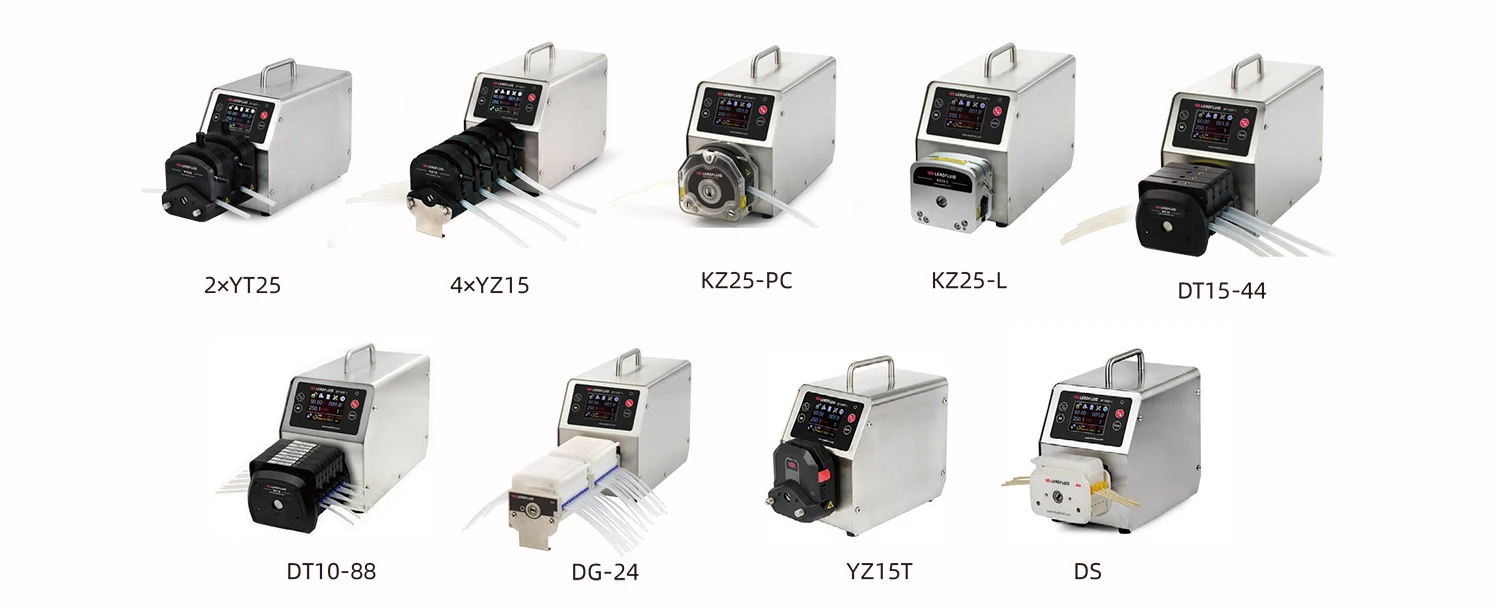

BT100F-1 Applicable Pump Head,Tube and Flow
Drive Type | Pump Head | Channel | Tube | Single Channel Flow Rate(mL/min) |
BT100F-1 | DG/DS(6 rollers) | 8,12,16,24 | Wall 0.8～1mm,ID≤3.17mm | 0.00016～49 |
DG/DS(10 rollers) | 8,12,16,24 | Wall 0.8～1mm,ID≤3.17mm | 0.00011～32 | |
DT10-88 | 8 | 13#14#，Wall 0.8～1mm,ID≤3.17mm | 0.00023～64 | |
YZ15/YZ15T | 1,2,4 | 13#14#19#16#25#17#18# | 0.005～641 | |
YT25 | 1,2,4 | 114#116#15#24#35#36# | 0.024～750 | |
DT15-44 | 4 | 19#16#25#17# | 0.067～560 | |
KZ25 | 1,2 | 15#24#35#36# | 0.31～1650 | |
KZ25-L | 1 | 15#24#35#36# | 0.31～1650 |

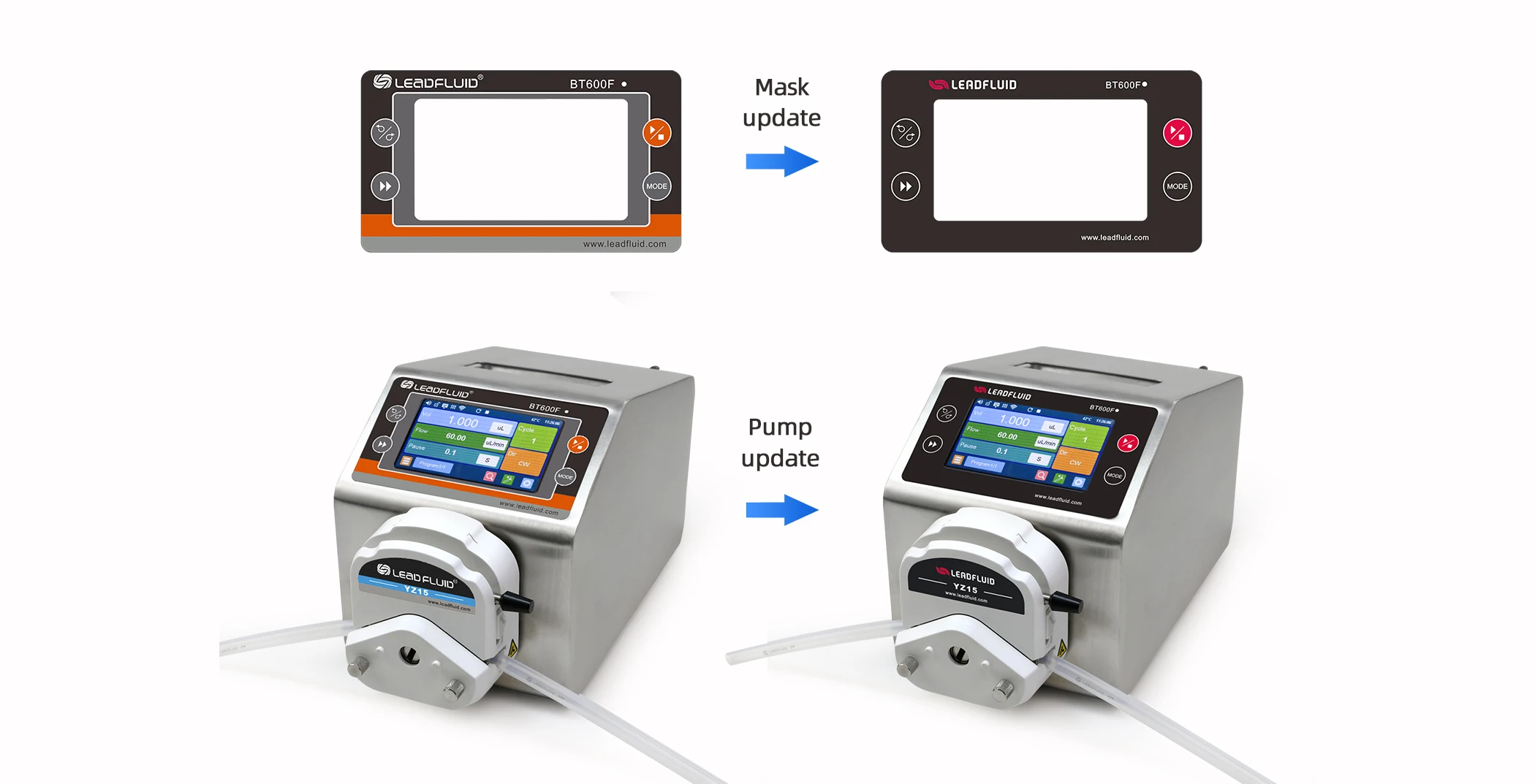

Due to the upgrade of Lead Fluid logo, we have also redesigned the pump masks. The pumps of the two different masks are both genuine Lead Fluid products, so please use them with confidence.

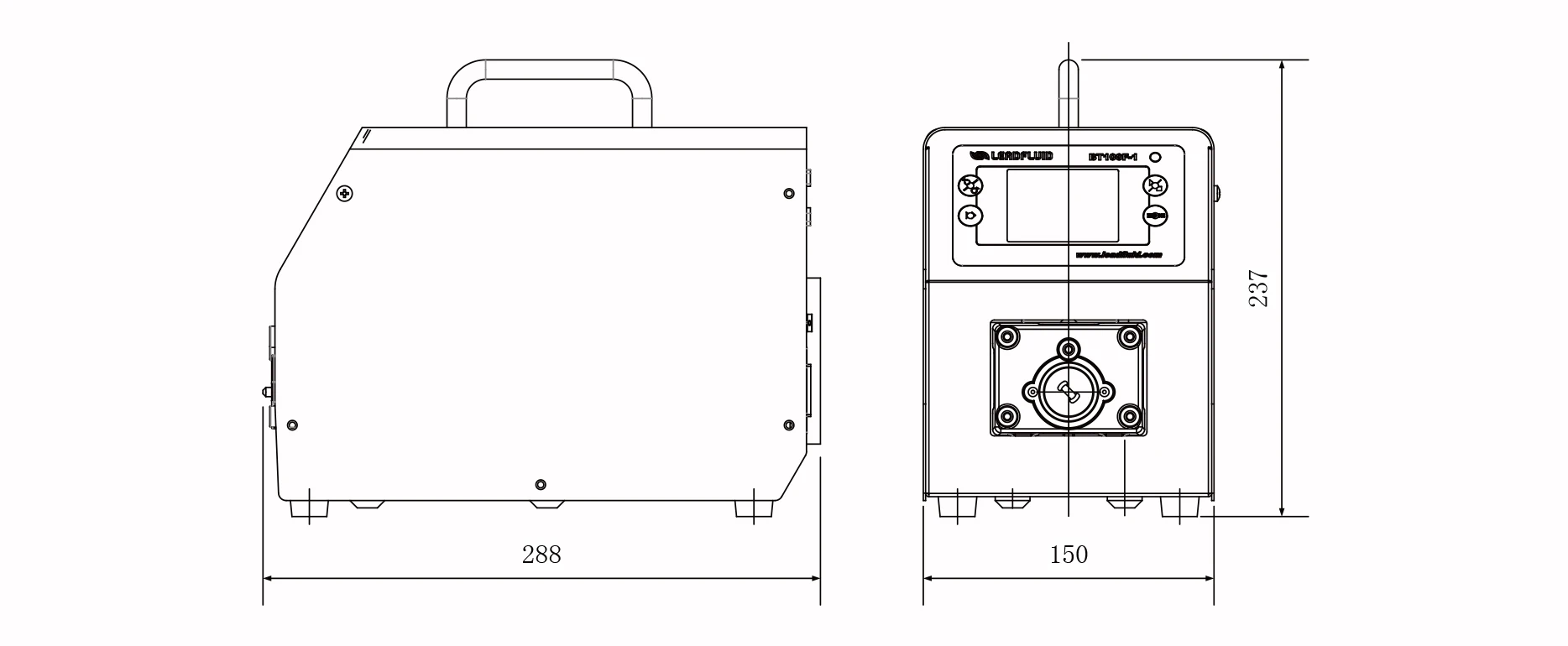

Dimension(mm)
