Product Overview
Description
used elevators for sale
wheelchair lift, home wheelchair lift, wheelchair lift for home, wheel chair lift hydraulic wheelchair lift,outdoor wheelchair lift, stair wheelchair lift

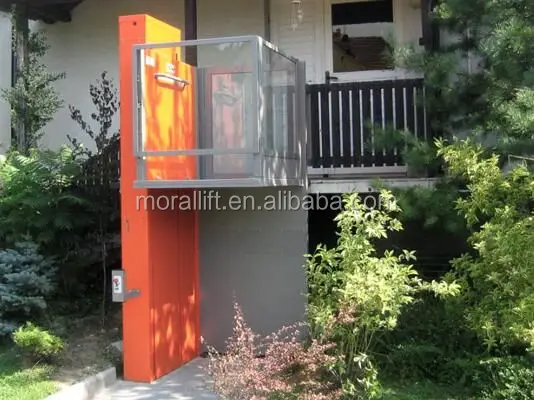

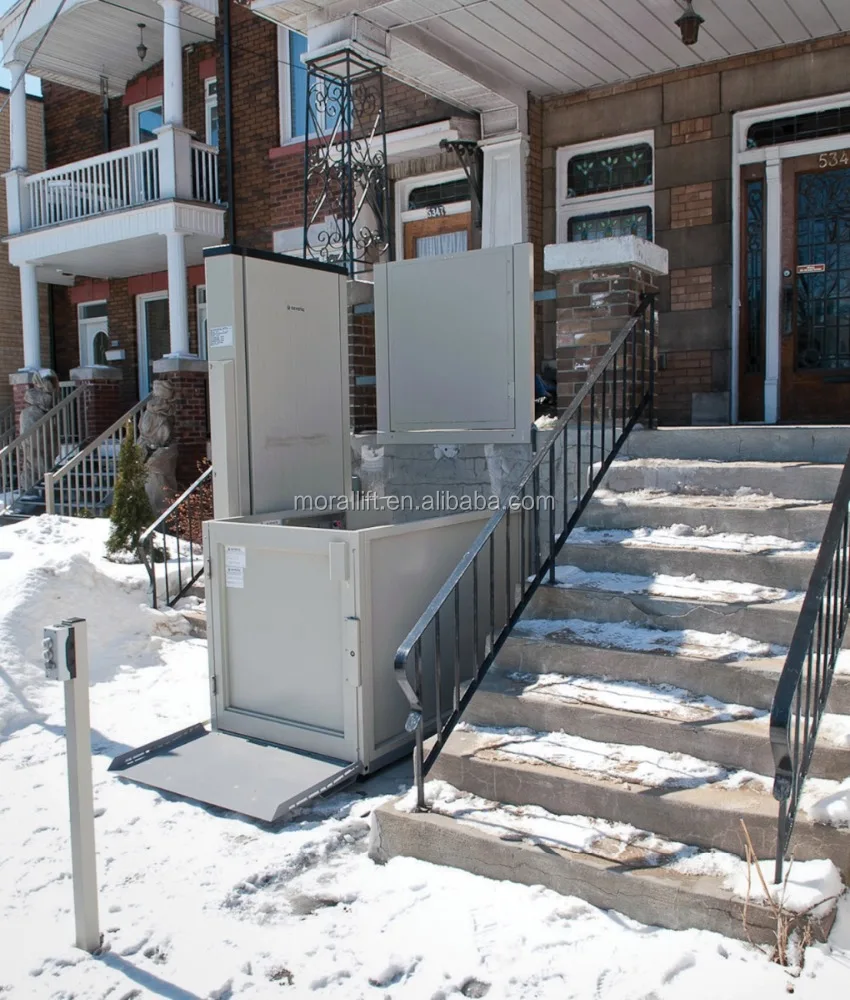

If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators.
1. vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2. It can be directly installed into the ground without architectural supporting pits and easy to operate.
3. Its hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4. Emergency Descending:When there is no power or malfunctions, manually descend the device
5. It’s suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
6.this machine max.lifting height is 8000mm
Platform size | 1200mm(L)* 900mm(W) | |
Dimension | 1200mm(L)*1400mm(W) | |
MaxPlatform Height | 8000mm | |
Min Platform height | 80mm | |
Configuration | Open through or front and side entrances | |
Speed | 70mm/s | |
Load capacity | 300KG | |
Control voltage | 24V/DC | |
Power Output | 1.5KW | |
Power Input | 220V/50HZ/ (or customized for local power supply) | |
Drive System | Hydraulic | |
Control Mode | Automatic | |
Drive Control | Self-resetting system | |
Overload | Protection Over current relay | |
Material of Platform | Checkered slip-proof aluminum alloy | |
Painting | Plastic electrostatic spraying | |
Guard panel & drivecabinet (framework) | Aluminum Alloy / 304 stainless steel
| |
Operation Panel | Polished aluminum Alloy | |
Safety Wane WorkingRange | 75° | |
Working Condition | Both indoors and outdoors | |
Working temperature | From -10°~60°C | |
Installation
| Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) | |
Control Device
| Calling box (installed on the wall nearby) and remote controller(Extra optional) | |
Emergency Stop
| The lifting and lowering process can be stopped immediately by pressing the emergency button. | |
Safety device | Safety Interlock | Lock the platform when it is out of control |
SafetySensor | The operation must be stopped immediately thesafety edge meets obstacles during operation. | |
Emergencylowering | The platform can be lowered by opening hydraulic valve manually or rolling screw rod. | |
Auto-flap | Turn up after lifting | |
Products Certificati
Our Services
1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
FAQ
1. MOQ?-1 set
2. Delievery time?-usually within 15-20 working days upon receipt of payment.
4. Trade term? ( FOB/CFR/CIF to your nearest seaport)
5. Working Height?-according to your need
6. Platform Size?-according to your need
7. load capacity?-according to your need
8. Demand power source?-electric or battery, per your need
9. OEM?-accepted
