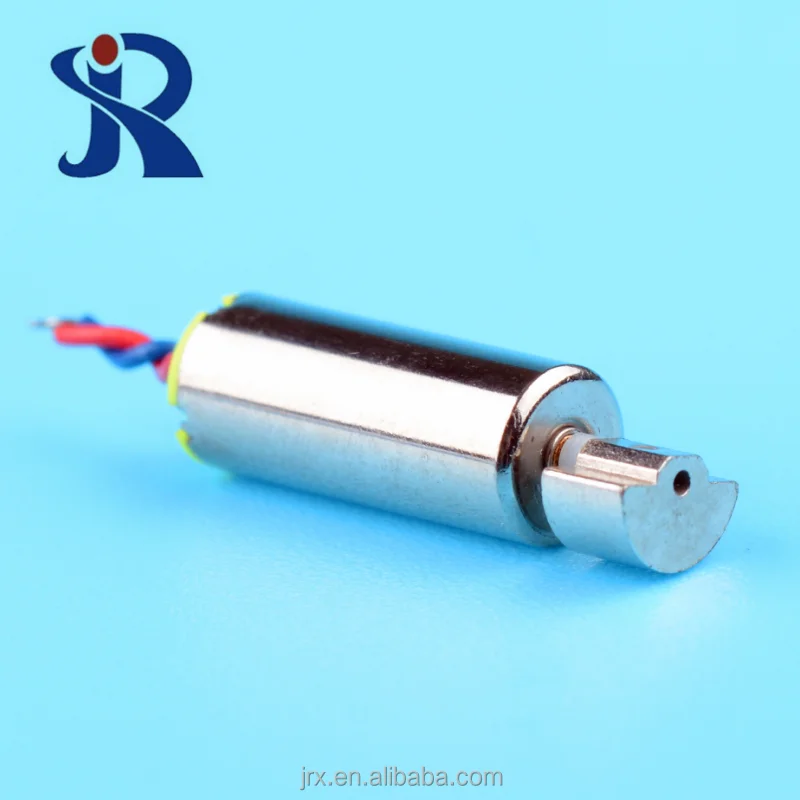

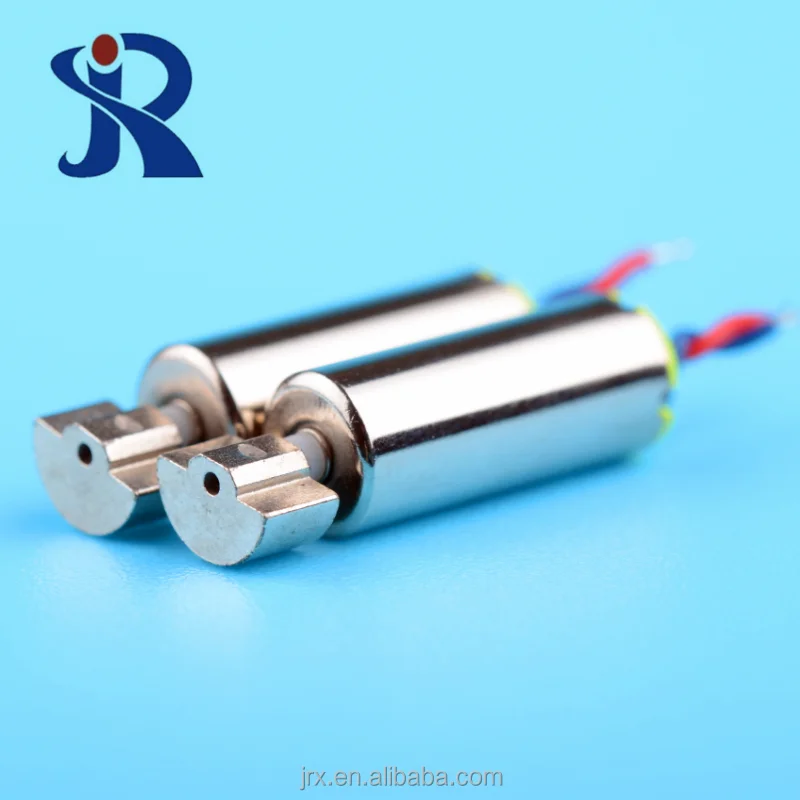

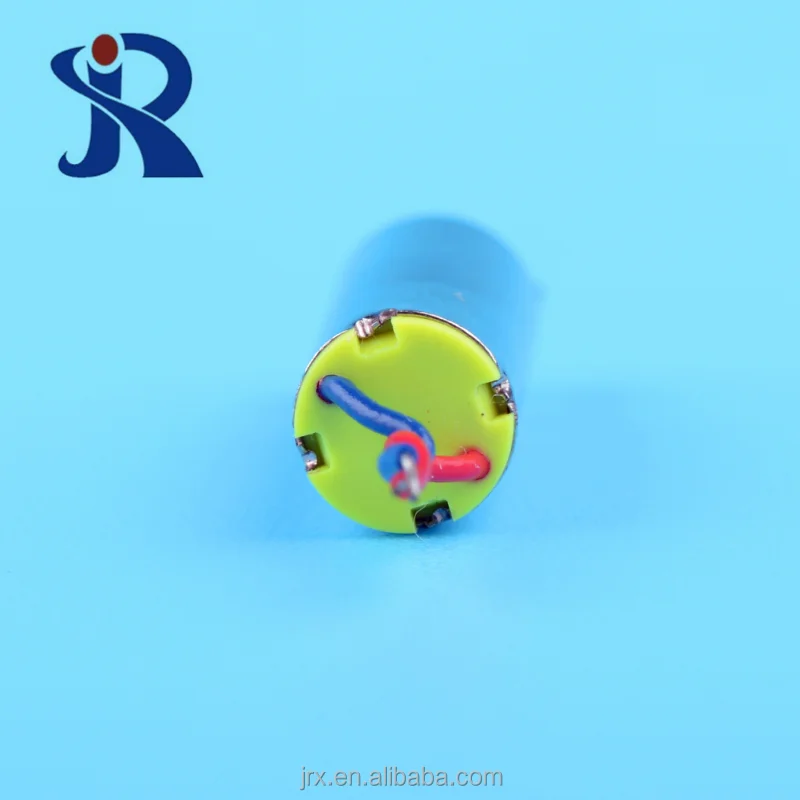

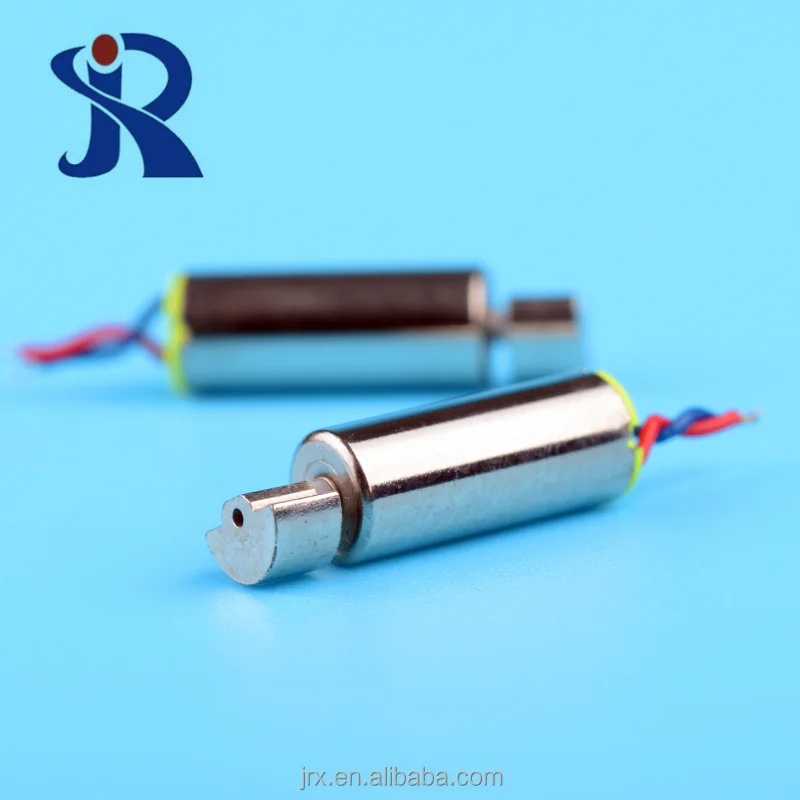

For Mobile Phone Vibration Motor Vibrator
- Category: Vibration Motor >>>
- Supplier: Yichang Flourishing Import & Export Trade Co. Ltd.
Share on (60364842558):
Product Overview
Description
For Mobile Phone Vibration Motor Vibrator
Advantages:
1) Energy-saving High energy conversion efficiency,more than 70%.
2) Reliable Operational Stability Fast response with low resistance.
3) Low Noise Starting and braking quietly, running with low noise.
4) High Speed The rpm can reach 4500~51000±10%.
5) Durable Running stably and reliably, can keep working for longtime.
Applications:
| Electric Toothbrush |
| Mobile Phone, Cell Phone, Pager |
| Adult Products, Sex Toys, Sex Machine |
| Massager, Massage Rod, Eye Massager, Body Massager |

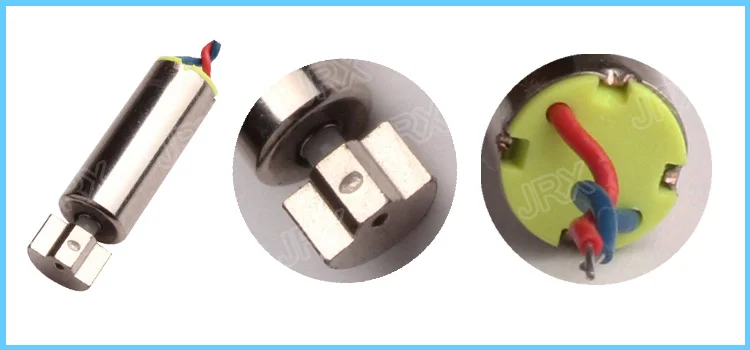

Appearance size:
Electrical Characteristic:
| Vibration Model | Size | Rated Voltage | Operating Range | Speed | Rated Current | Terminal Resistance | Starting Voltage | Stall Current |
| mm | V | V | r/min | mA | Ω | V | mA | |
| JMM-1406-55104L | Ø6x10 | 1.5 | 1.0~2.0 | 11000±10% | 55 | 9.9±5% | 0.8 | 140 Max |
| JMM-1408-04170L | Ø6x10 | 3.0 | 1.0~3.5 | 13000±10% | 55 | 31±5% | 0.8 | 100 Max |
| JMM-1409-55110L | Ø6x15 | 1.5 | 1.0~2.0 | 8200±10% | 65 | 12±5% | 0.8 | 120 Max |
| JMM-1410-32230L | Ø6x10 | 4.5 | 1.0~4.5 | 12000±10% | 45 | 67±5% | 0.8 | 65 Max |
| JMM-1414-35180L | Ø6x10 | 3.0 | 1.0~3.5 | 12500±10% | 35 | 40±5% | 1.0 | 70 Max |
| JMM-1417-05120L | Ø6x12 | 1.5 | 1.0~2.0 | 8500±10% | 35 | 17±5% | 0.8 | 90 Max |
| JMM-1420-55155L | Ø7x16 | 1.5 | 1.0~2.0 | 4500±10% | 34 | 24±5% | 0.8 | 60 Max |
| JMM-1411-55110CJ | Ø6x12 | 1.5 | 1.0~2.0 | 9000±10% | 40 | 12±5% | 0.8 | 120 Max |
| JMM-1415-55104CJ | Ø6x10 | 1.5 | 1.0~2.0 | 11000±10% | 50 | 10±5% | 0.8 | 140 Max |
| JMM-1416-55104P | Ø6x10 | 1.5 | 1.0~2.0 | 11500±10% | 50 | 10±5% | 0.8 | 140 Max |
| JMM-1419-45135LK | Ø6x12 | 3.0 | 2.0~3.5 | 12000±10% | 45 | 24±5% | 1.0 | 100 Max |

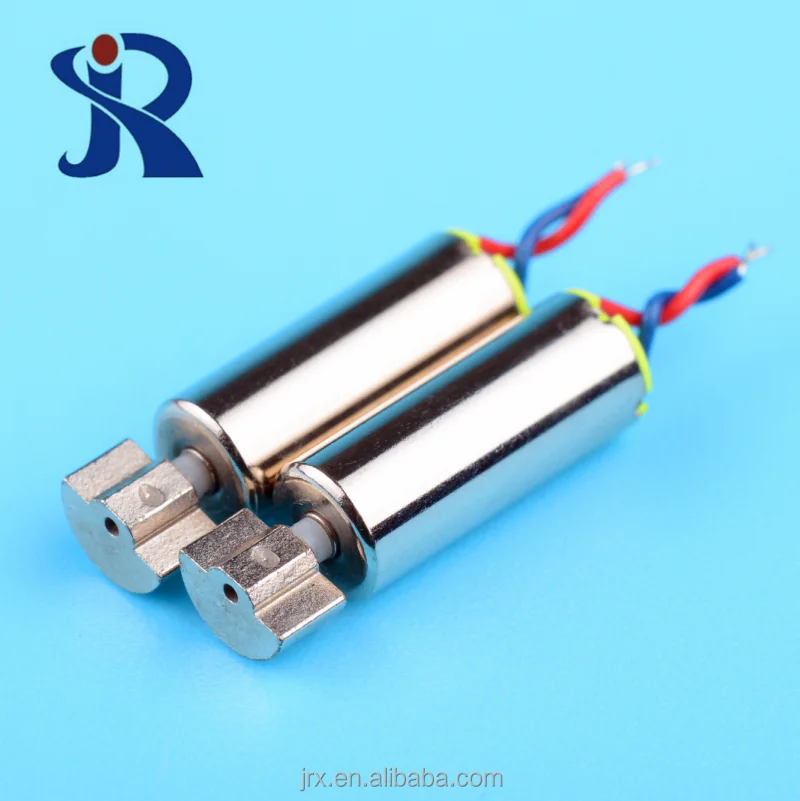

Product Show:

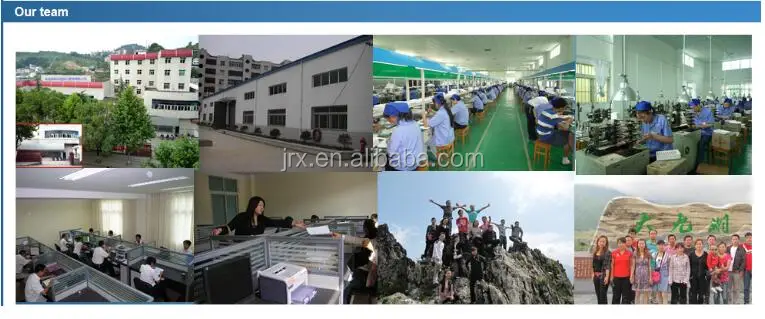

About Us:
| WHAT WE DO | |
| Designing | Testing |
Contact us for motor customisations.
| Extensive post-manufacturing testing. Customised testing available. |
| Manufacturering | After-sale Services |
We own a factory specialises in Micro Motors. Over 100 skilled workers ensure reliable product quality and fast delivery. | Solve problems in positive way. Improve our product quality with your valuable suggestions and comments. |
FAQ:
Q:What kind of motors you can provide?
A: We mainly provide permanent magnet brushed dc (vibration and driving )motors, voltage from 1v to 24v ,diameter range from 4~52mm ;
Q: What's your MOQ?
A: The MOQ is between 100~1,000pcs for different models after sample approval. But it's also okay for us to accept a few dozens, hundreds or thousands for the initial 3 orders after sample approval.
Q: Could you send me a price list?
A: All motors are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
