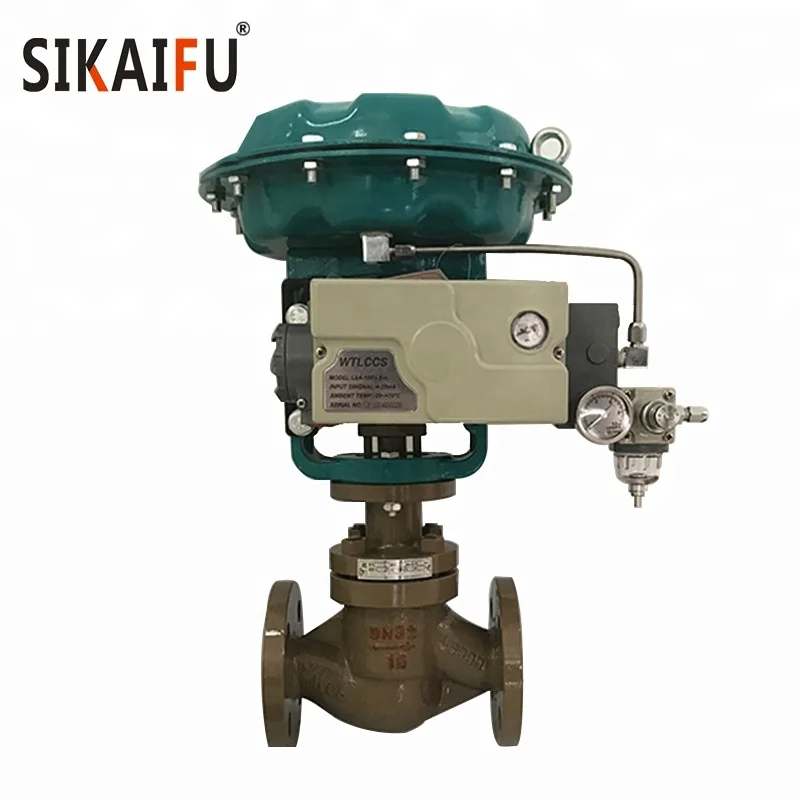

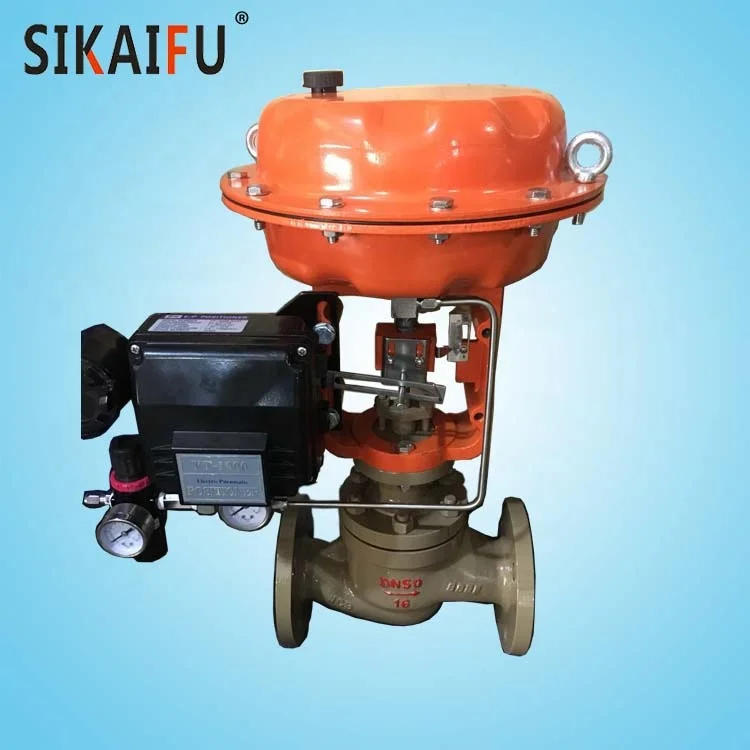

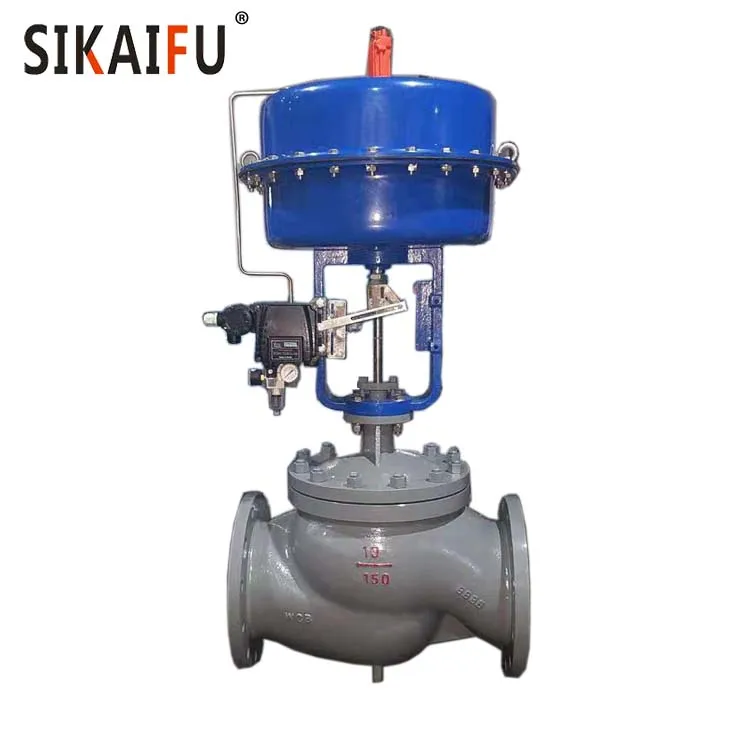

DN50 Single Seat Pneumatic Actuator Control Valve with Positioner
- Category: >>>
- Supplier: Wuxi Sikaifu Machinery Manufacturing Co. Ltd.
Share on (60365137494):
Product Overview
Description
Pneumatic actuator control valve with Positioner
Product Description
Product advantages
1. Top and bottom layer double guide double-seat regulating control valve,Good working stability,
2. Two valve core and valve seat, easy operation
3 Bellows seal type regulating valve , Shut out fluid leakage
4.Control valves with insulation jacket
5. Large adjustable range, Inherent adjustable ratio 50
technical parameters
| Nominal diameter DN(mm) 20 25 32 40 50 65 80 125 150 200 | ||||||||||||
| rated flow coficient | Linear | 12.1 | 19.4 | 30.3 | 48.3 | 75.9 | 121 | 194 | 303 | 484 | 759 | |
| Equal percentage | 11 | 17.6 | 27.5 | 44 | 69.3 | 110 | 176 | 275 | 440 | 693 | ||
| rated travel mm | 16 | 25 | 40 | 60 | ||||||||
| Membrane effective area | 280 | 400 | 600 | 1000 | ||||||||
| Nominal pressurePN Mpa | 4.0 6.4 10 | |||||||||||
| Inherent adjustable ratio | 50 | |||||||||||
| working temperate range | Heat dissipation:-40~450, normal temperate:-20~200 | |||||||||||
| Signal range(Kpa) | 20~100 40~200 20~60 60~100 80~240 | |||||||||||
| Air pressure (Mpa) | 0.14~0.4 | |||||||||||
| Allowable differential pressure | without localizer | 5.57 | 6.16 | 4.9 | 3.9 | 4.48 | 3.63 | 2.89 | 3.85 | 3.2 | 1.6 | |
| with localizer | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 3.74 | ||
| Port Thread | M16*1.5 | |||||||||||
Packaging & Shipping
1. Packing: opp bag,standard exporting carton box or wooden box or as you required,
Foam outside protecting the valves against damage
2. Usually we ship your order by sea or by express
3. Sample deliver: 2 weeks after receiving payment by express;
10~100pcs: 4 weeks by ship.
5. We accept T/T Bank transfer, Western Union, Moneygram, Paypal, Alipay
Our Services
1. Customized service. OEM/ODM accepted.
2. One-Stop Service.
3. Sample Service. We can offer samples.
4. After-sales service. We have one year warranty.
FAQ
1. Q: Is sample order acceptable?
A: Yes.
2 . Q: When will make delivery ?
A:As usual, after payment, within 15 working days.
3. After-sales Service
1 year warranty for all kinds of products;
As an experienced manufacturer, you can rest assured of the quality and after-sales service.
4.Payment
T/T, Western Union, Paypal, Alipay, Cash.
5. Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by sea.
Certifications
Our Wuxi Sikaifu Valve has been ISO,CE certified to follow the standard production, to offer high quality,environmentally-friendly products.
About SIKAIFU
Wuxi Sikaifu Machinery Manufacturing Co.,LTD specialized in various types valves and actuators, such as Angle seat valve, Ball valve, Butterfly valve, Knife Gate valve, Control Valve and Globe valve as a professional manufacturer and seller.
SIKAIFU VALVE pholds breakthrough and innovative concepts for users with complete technical support and product services. Products are widely used in petrochemical, textile, industrial, beer and beverage, environmental protection water treatment, food processing and other fields. Products are closely monitored from design until loading for export.
