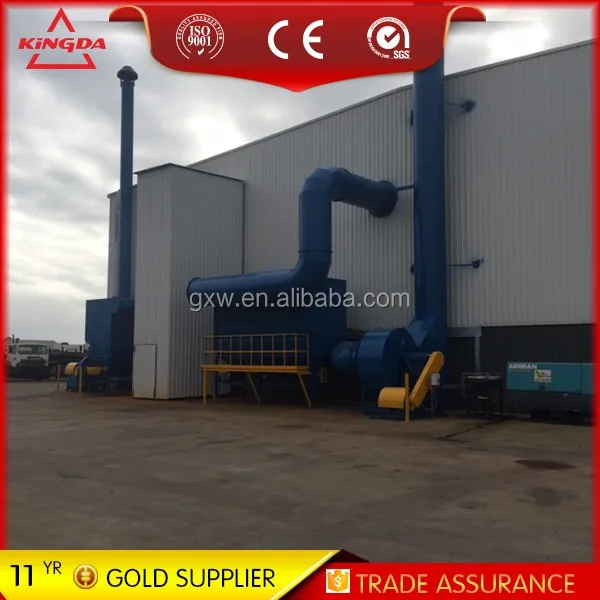

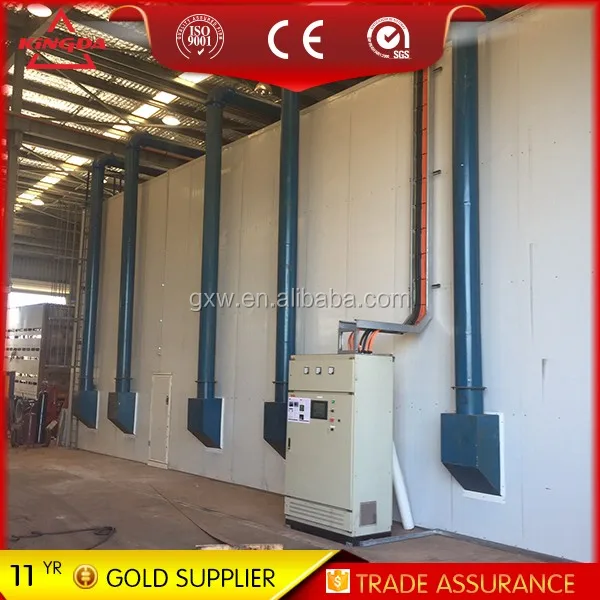

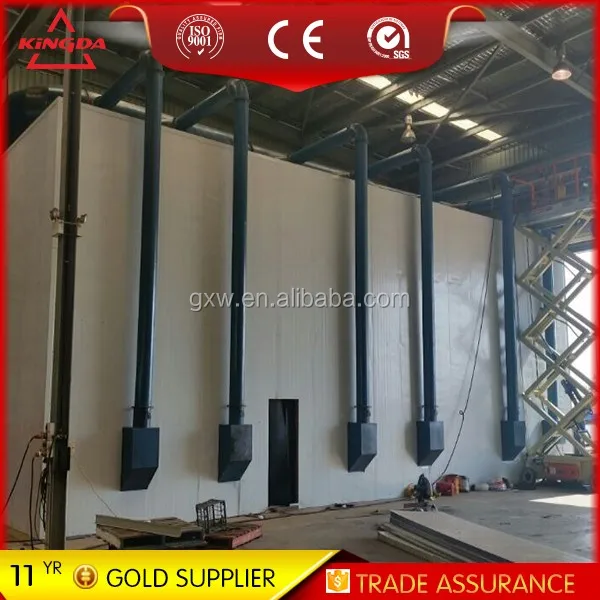

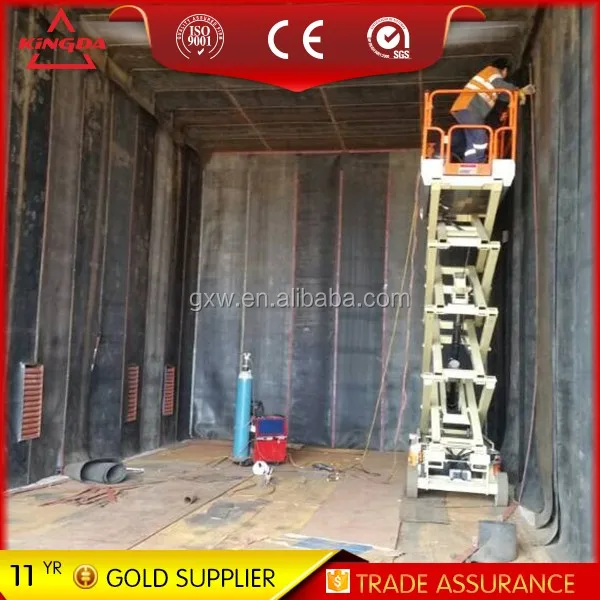

sand blasting booth room for truck body
- Category: Abrator >>>
- Supplier: Yancheng Jinda Shot Blasting Machinery Co. Ltd.
Share on (60365476663):
Product Overview
Description
blasting room
ADVANTAGE:
1.Round the clock work
2.Economy, Reasonable ,comfortable airness dust collector system
3.Up to the highest sand blasting effect
4.Advanced equipment, in full, constant and long-term operation in accordance with the overall planning of the state ,reduce the dependence of ancillary services
5.High effect recovery system

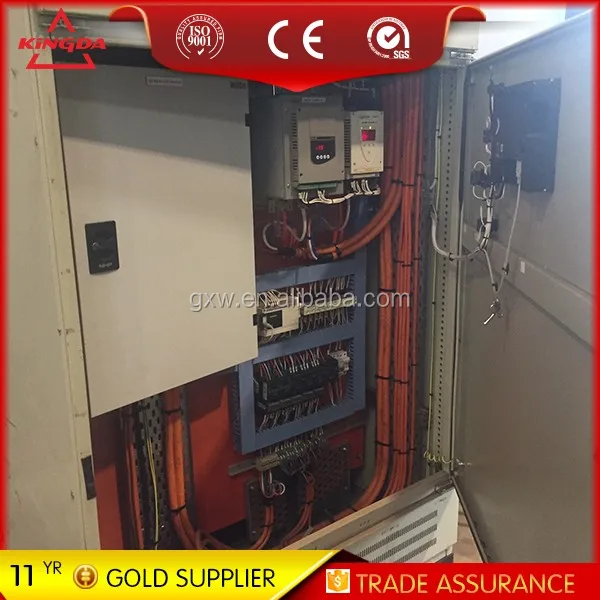

6.Advance eletrical control system
FL-20 Spec:
No | item | specifications | |
1 | Cleaning effect | GB8923-88A-B Sa2.5 | |
2 | Room size | 20000×8000×6000mm (length×width×height) | |
3 | Sander(1 set) | model | KPBSEII1990Z |
Shot blasting gun amount | Two set | ||
Working pressure of compressed air | 0.5-0.7MP | ||
sand storage | 0.8m3 | ||
Throw the pill quantity | 7200kg/h | ||
4 | Elevator | Elevating capacity :15T/H | |
power:4kw | |||
5 | Separator | Separating capacity:15T/H | |
Power:3 kw | |||
6 | Helix conveyer | Capacity :15T/H | |
power :4KW | |||
7 | Helix conveyer | Capacity :15T/H | |
power :4KW×6 | |||
8 | Working lamp(C0400Z) | 250LUX | |
Power :400W*10 | |||
9 | First pouring shot qty | 15000kg | |
10 | Dust collector for overall room | air flow:55000 m3/h | |
Power:55kw | |||
11 | Dust collector for part | air flow:10000 m3/h | |
Power:11kw | |||
| Overall Noise | ≤95dB | |
| Overall power | About 105 kw (not include air compressor) | |
