Special Synchronous Hydraulic Steering Gear:

1. Features and Application

Synchronous Hydraulic Steering Gear adopts the electric-hydraulic linking control system, which overcomes the shortcomings by use of connecting rod or electric control alone, and it also can reduce the resistance differences between both rudders and sychronise the two rudders at same pace during the whole steering operation.

Synchronous Hydraulic Steering Gear has 24V electric operation, maneuvering wheel operation and emergency maneuering wheel operation, and is also equipped with power lost, lack phase, over loading, low oil level and filter choke light and audible alarm.

Synchronous Hydraulic Steering Gear fully comply with the regulations and requirments from the world's major classification societies, such as CCS,ZY,BV,ABS,etc. It is suitable for catamaran, open-body ship and board-body ship with nominal torque ranging from 5kN.m to 500kN.m.

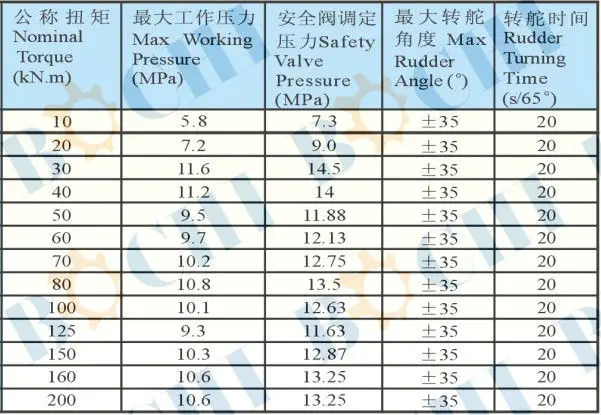

2. Technical Specification:

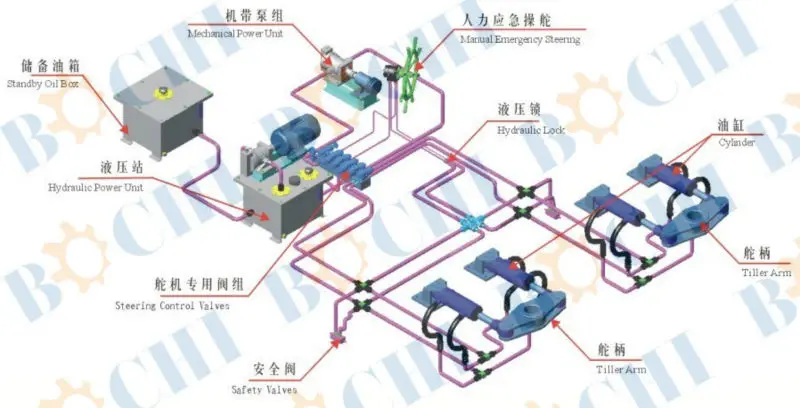

3. Hydraulic System Principle Diagram

Notes:

1) Clients shall indicate the numbers of rudder and the diameter of rudder stock during ordering;
2) The connecting rod used in the system shall be provided by clients;
3) If the ordered steering gear system requires the rudder turning time to be ≤12s or ≤28s, and the maximum rudder angle to be ±45 degree, the clients must indicate those technical parameters in the order contract;
4) We reserve the rights to revise or improve some parameters listed in this brochure without further notice.

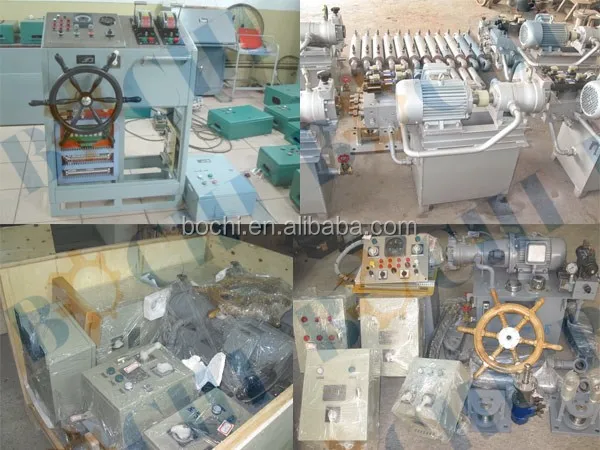

For rudder and steering gear system, we generally shipping by sea, also, if client is very urgent, we could choose by air. We have cooperated with many popular shipping Carriers and Airline, that means we have competitive price and good service ensurement on Sea and Air Cargo.

Marine rudder system and steering gear system are important equipment for marine, Bochi Corporation could disign and offer you best products with good servces: we take care of ur order!

1. Punctual delivery time:

• We put your order into our tight production schedule, keep our client informed about production process, ensure your punctual delivery time.


• Shipping notice/ insurance to you as soon as your order is shipped.

2. After sales service:

• After receive the goods, We accept ur feedback at first time.


• We could provide installation guide, if you have need, we could give you global service.


• Our Sales are 24-hours online for ur request

3. Professional sales:

• We value every inquiry sent to us, ensure quick competitive offer.


• We cooperate with customer to bid tenders. Provide all necessory docuement.


• We are a sales team, with all techinical support from engineer team.

Bochi Have many global clients, we offer professional service to them.  With the aim of "to establish a close strategic partnership and develop together with customers", we will work whole-heartedly to improve our products and service. We will also pledge to work jointly with business partners to elevate our cooperation to a higher level and share success together with our customers. We are looking forward to establishing relationships with you in the near future.

BOCHI Marine/Ship Equipment Department is a total solution provider with his head office in Bochi Corporation.we are able to provide value added services and qualified marine equipments.

Deck equipments is one of our main products.including mooring winch, windlass, capastan, steering gear, marine crane, deck fiitings, shark jaw and towing pin, stern roller, hydraulic pump station, davit, etc.

Manufacture Base:

Some of Our Workshop and Test Machine:

ISO Certificate:

Class Certificate for Marine Equipments:

Bochi Products: High Quality Assurance

• Product Range: We are specialized in all marine equipments and technique solution, that means we could offer you all marine equipments and accessories.




• Product Design: We have big strong engineer team, for all marine products, we will design drawings according to ur requirements, or check the drawings you give us, all productions must be start after drawings confirmation.




• Product Process: all product flow are finished in our manufacture bases, so the quality and delivery time could keep the same good, also avoid some details mistake.




• Product Inspection: We have ISO certificate, and general products, we will provide Mill Certificate, also, we could provide ABS, BV, CCS, DNV, GL, LR, KR, NK, RINA, RS certificate, and we accept third party inspection, such as SGS etc. our clients also could come to visit our factor.
