Viscosimeter Digital Rotary Viscometer NDJ 5S
- Category: >>>
- Supplier: Hefei Vetus Electronic Technology Co. Ltd.
Share on (60365806786):
Product Overview
Description
Products Description

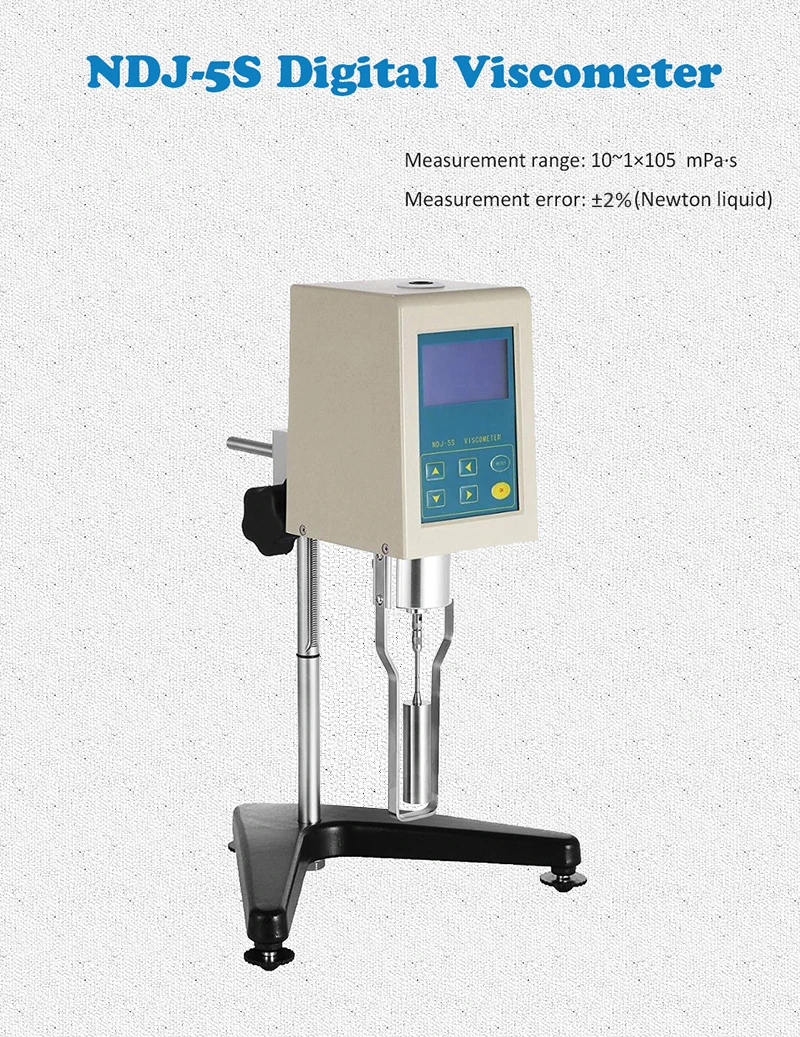

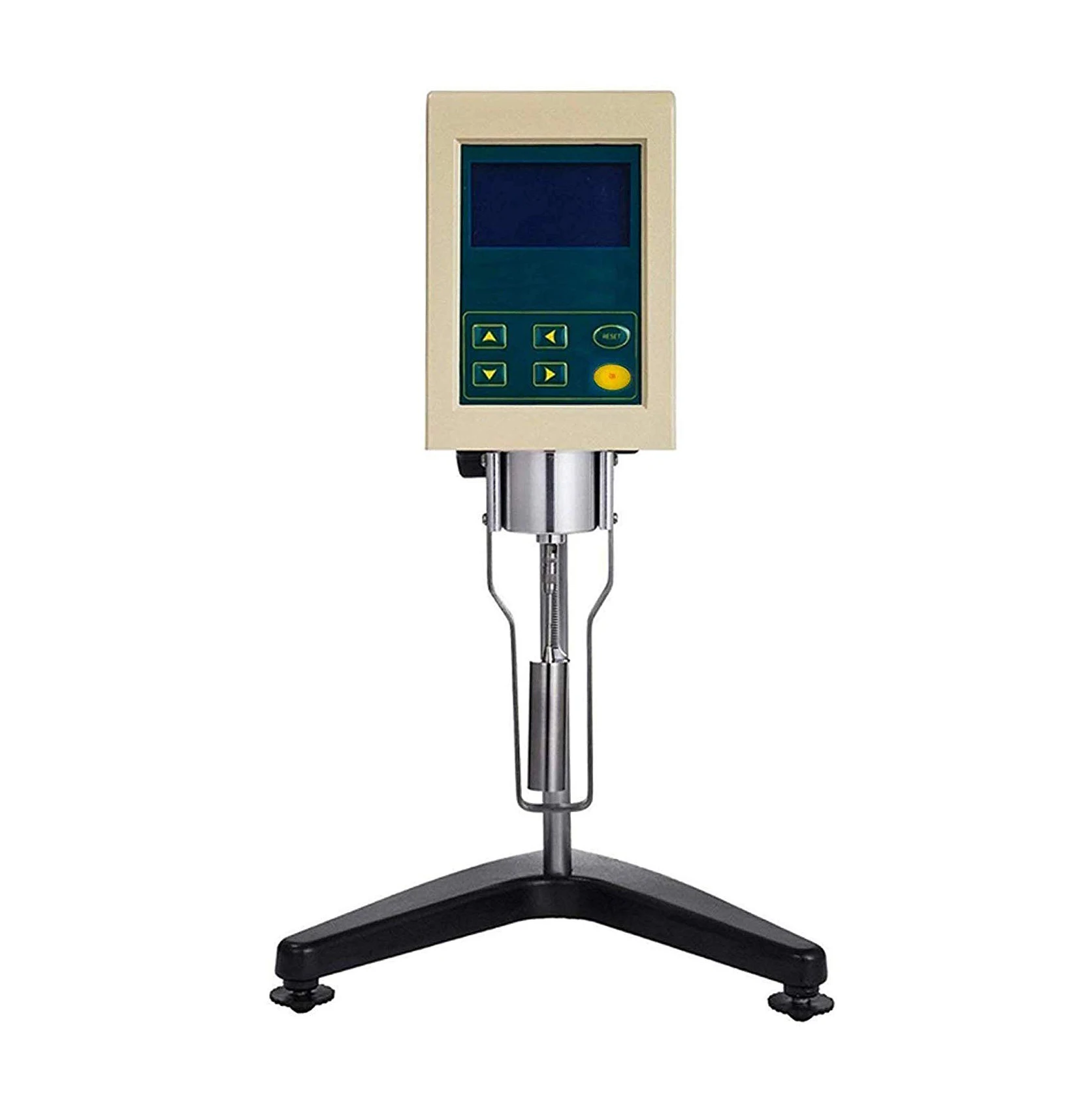

Viscosimeter Digital Rotary Viscometer NDJ-5S

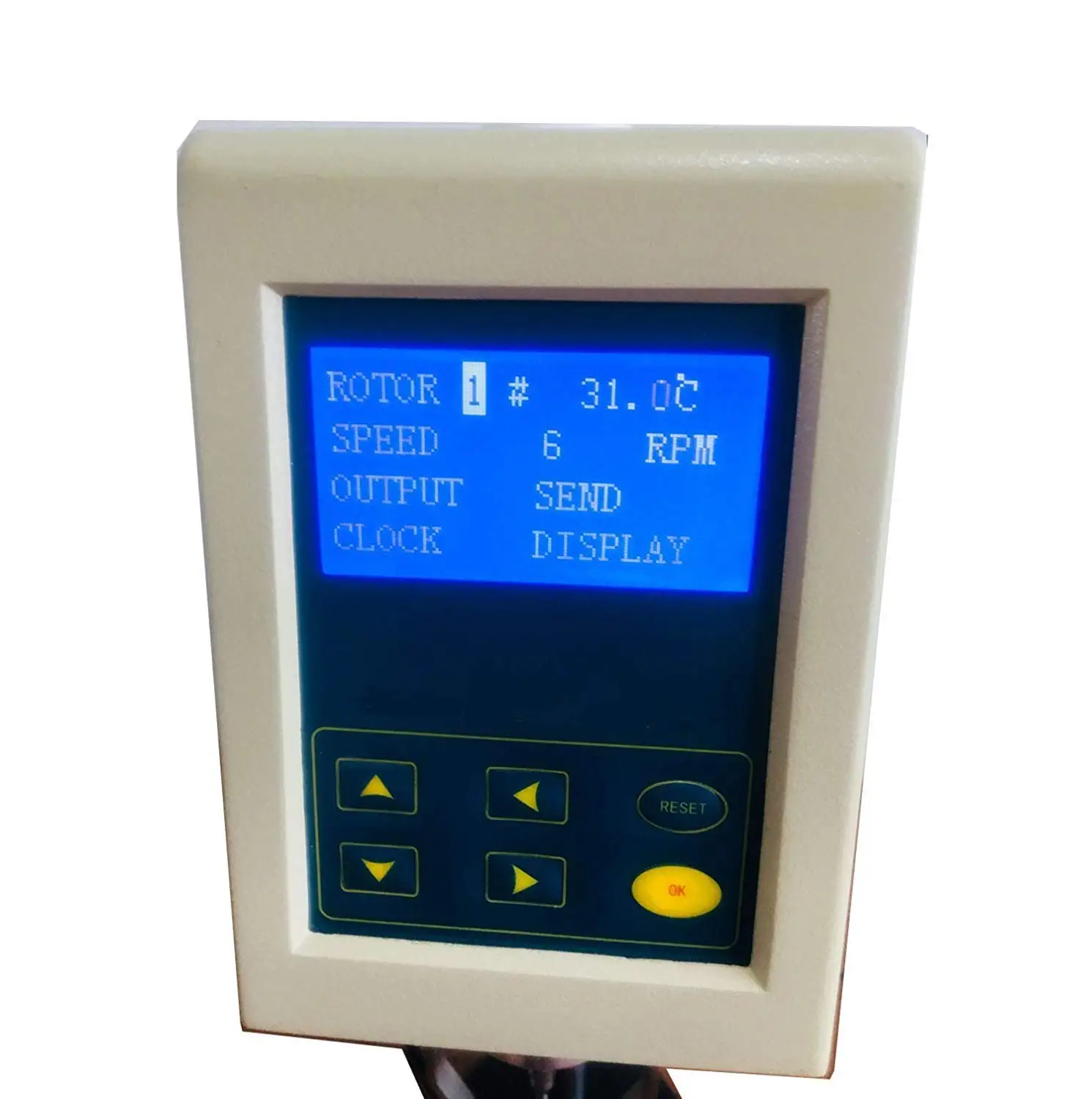

NDJ-5S is a Digital rotary viscometer which has been upgraded. This viscometer adopts advanced mechanical design technology, manufacturing process and micro computer control technology, make the data acquisition correct and the display adopts LCD with blue backlight and high brightness, make the displayed data clear.
Features
NDJ-5S Digital rotary viscometer is used for determining the liquid viscose capacity and the absolute viscosity. Comparing with other similar products, this instrument has the following features:
1.High measuring accuracy;
2.Stable in measured display;
3.Easy operation and read-out;
4.Excellent in Anti- interference.
1.High measuring accuracy;
2.Stable in measured display;
3.Easy operation and read-out;
4.Excellent in Anti- interference.
Application
NDJ-5S has been widely used to determine and measure the liquid viscosity in many applications such as grease, painting, pharmacy and adhesives.
Product Paramenters
1)Measurement range: 1~1×100000 mPa·s

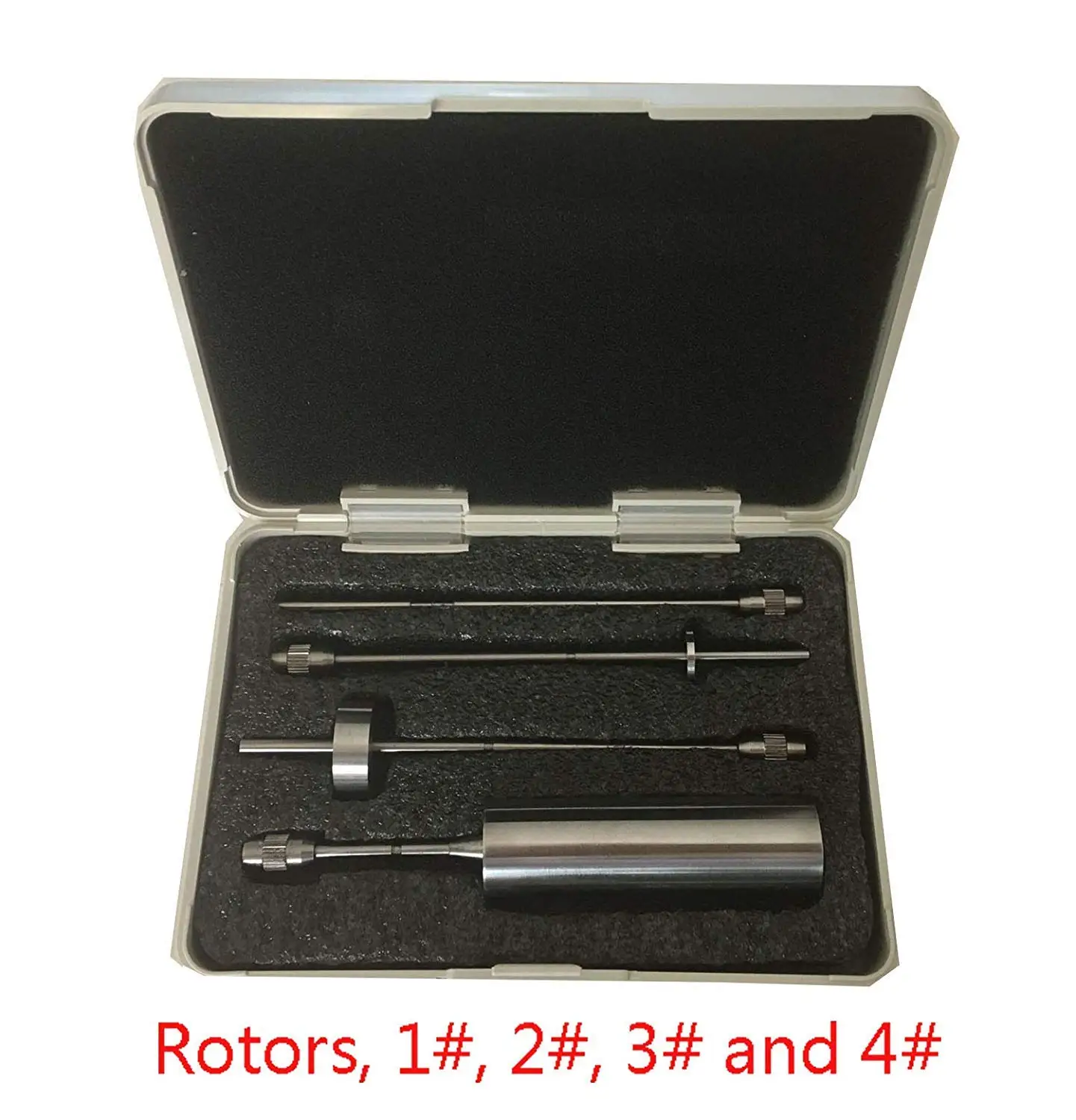

2)Rotor types: 1#, 2#, 3# and 4# rotors; (You can determine viscosity as low as 0.1mPa.s with 0# rotor.)
3)Rotor velocity: 6 rpm, 12 rpm, 30 rpm, and 60 rpm(automatic)
4)Measurement error: ±2% (Newton liquid)
5)Power supply: 110V or 220V±10% 50z±10%
6)Ambient temperature: 5°C~ 35°C;Relative humidity: ≤80%
2)Rotor types: 1#, 2#, 3# and 4# rotors; (You can determine viscosity as low as 0.1mPa.s with 0# rotor.)
3)Rotor velocity: 6 rpm, 12 rpm, 30 rpm, and 60 rpm(automatic)
4)Measurement error: ±2% (Newton liquid)
5)Power supply: 110V or 220V±10% 50z±10%
6)Ambient temperature: 5°C~ 35°C;Relative humidity: ≤80%
Range table:
velocity 60rpm
rotor 1--- range100
rotor 2--- range500
rotor 3--- range2000
rotor 4--- range10000
velocity 30rpm
rotor 1--- range300
rotor 2--- range1000
rotor 3--- range4000
rotor 4--- range20000
velocity 12rpm
rotor 1--- range500
rotor 2--- range2500
rotor 3--- range10000
rotor 4--- range50000
velocity 6rpm
rotor 1--- range1000
rotor 2--- range5000
rotor 3--- range20000
rotor 4--- range100000
velocity 60rpm
rotor 1--- range100
rotor 2--- range500
rotor 3--- range2000
rotor 4--- range10000
velocity 30rpm
rotor 1--- range300
rotor 2--- range1000
rotor 3--- range4000
rotor 4--- range20000
velocity 12rpm
rotor 1--- range500
rotor 2--- range2500
rotor 3--- range10000
rotor 4--- range50000
velocity 6rpm
rotor 1--- range1000
rotor 2--- range5000
rotor 3--- range20000
rotor 4--- range100000

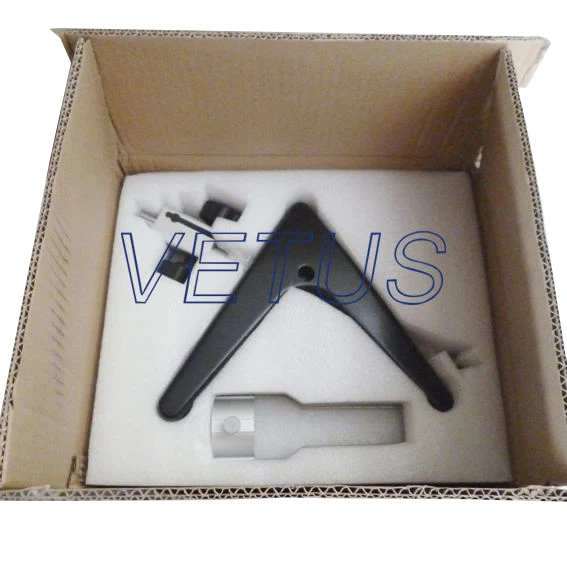

Product packaging

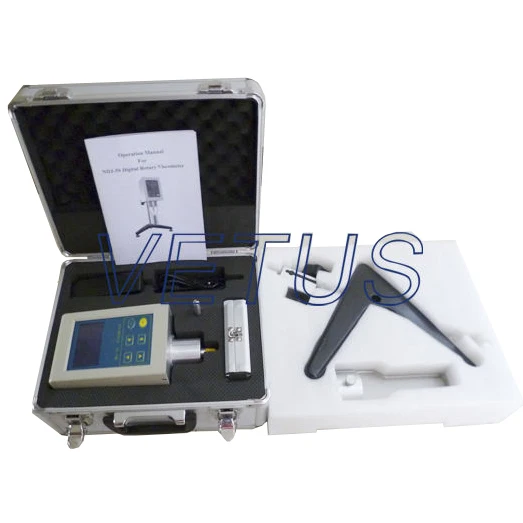

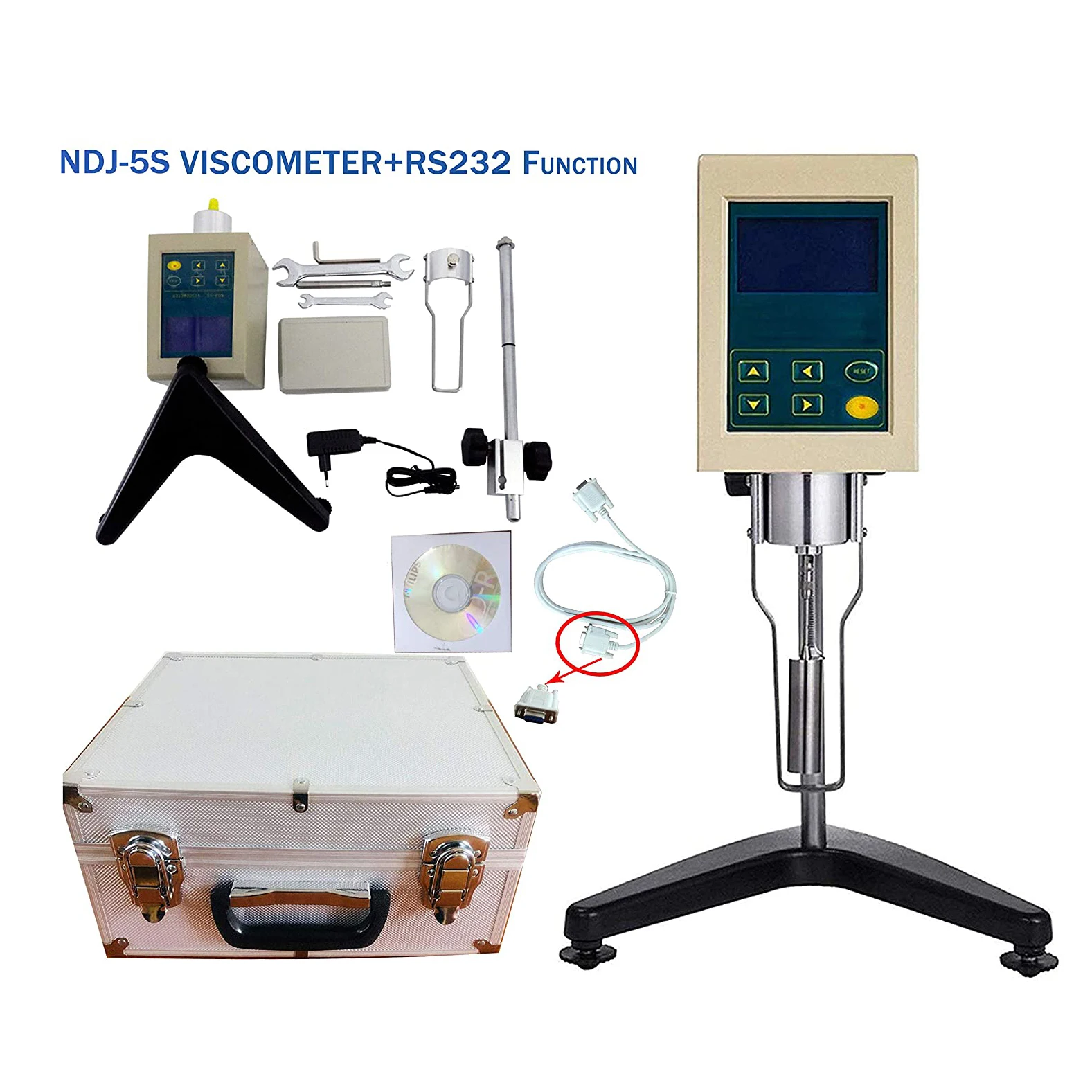

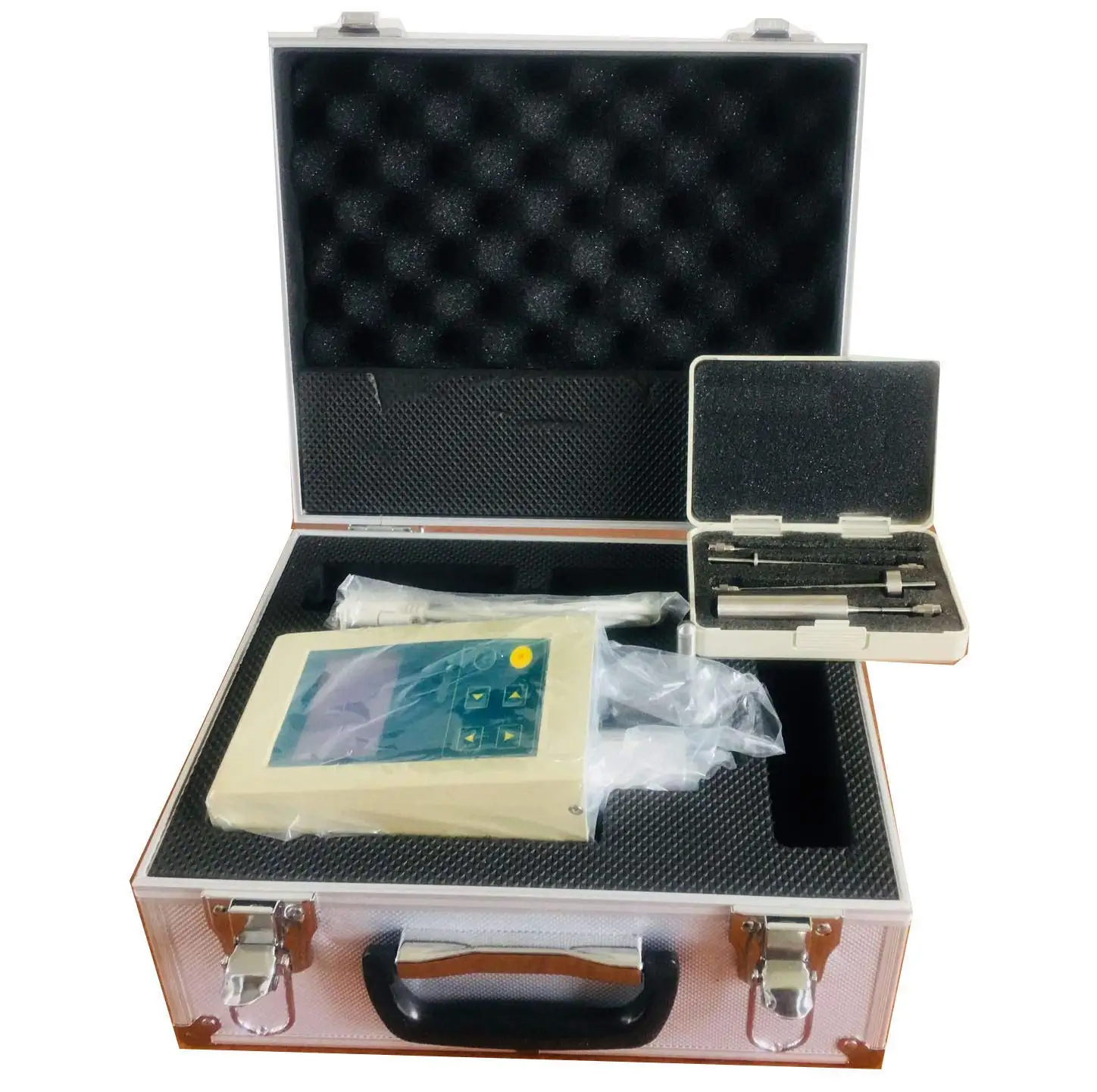

Standard configuration
Digital Rotary Viscometer：1 Qt.
Rotors, 1#, 2#, 3# and 4#：1 Qt of each
Power adapter：1 Set
Protection bracket：1 Qt.
Base：1 Qt.
Lifting assembly：1 Set
Operation manual：1 Qt.
License：1 Qt.
Quality certificate：1 Qt.
Digital Rotary Viscometer：1 Qt.
Rotors, 1#, 2#, 3# and 4#：1 Qt of each
Power adapter：1 Set
Protection bracket：1 Qt.
Base：1 Qt.
Lifting assembly：1 Set
Operation manual：1 Qt.
License：1 Qt.
Quality certificate：1 Qt.
