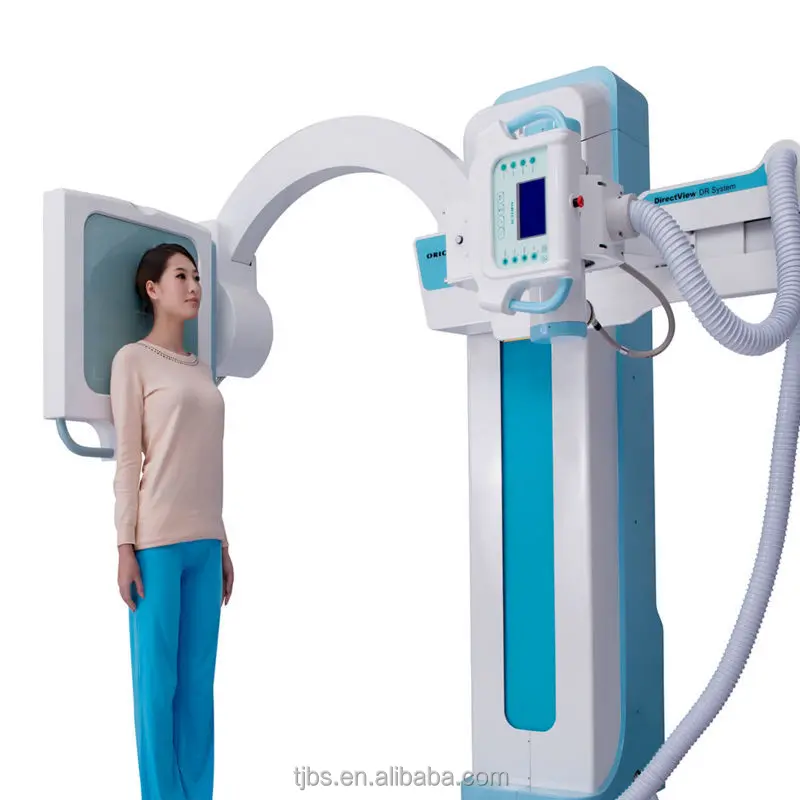

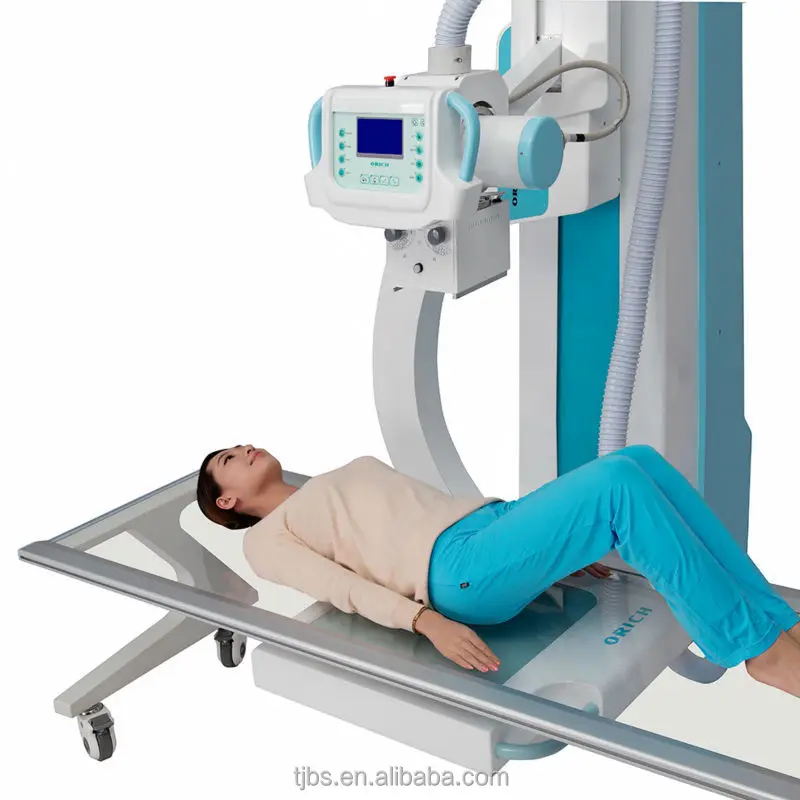

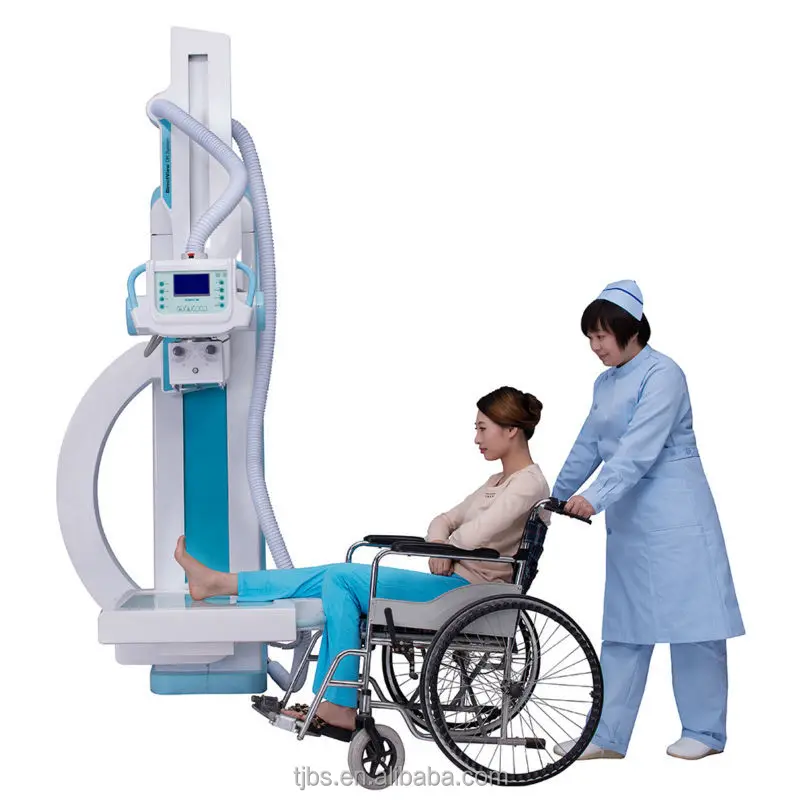

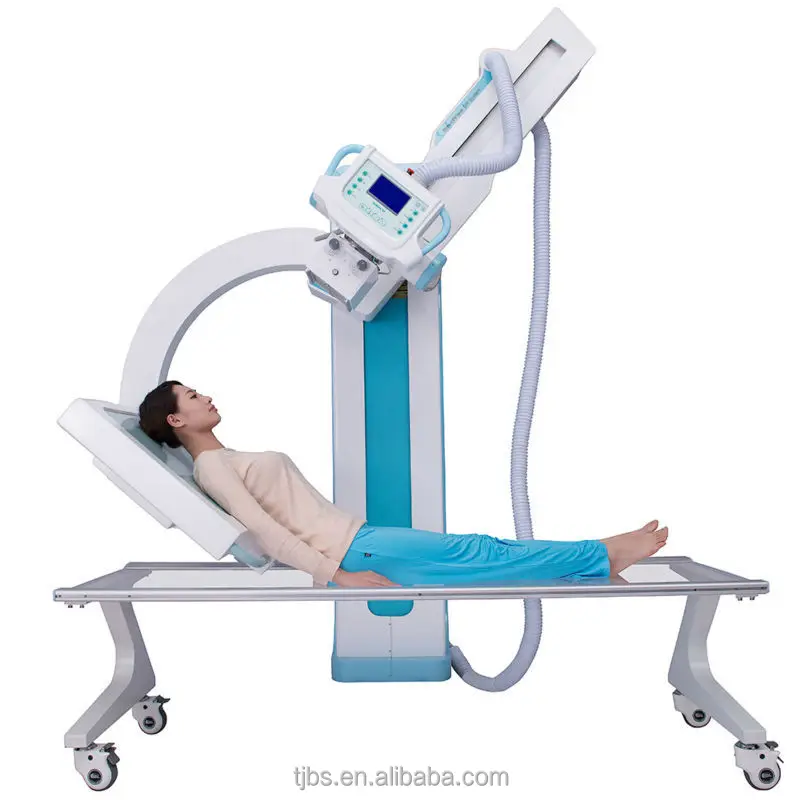

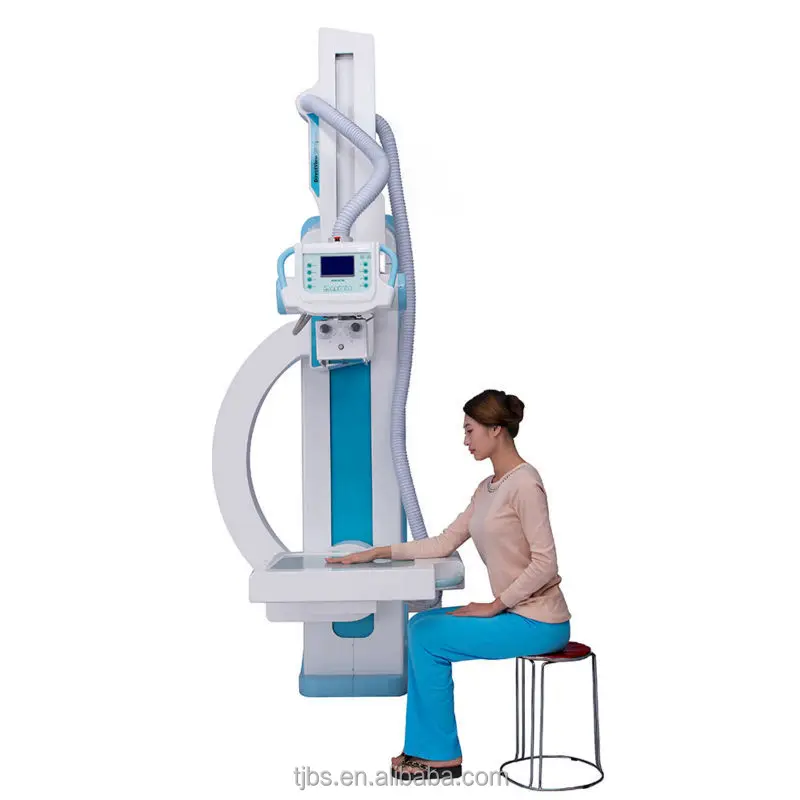

High Frequency digital X ray equipment with CE price
- Category: >>>
- Supplier: Orich Medical Equipment (Tianjin) Co. Ltd.
Share on (60365886392):
Product Overview
Description
Product Description
High Frequency digital X ray equipment with CE price
1.Product Technology Parameter:
ceiling mounted Digital x ray machine prices
| Item No: FS-500DDR-pioneer 3 | ||||
| Standard Configuration | ||||
| No | Item | Technology Parameter | ||
| 1 | Generator | Supplier: CPI | ||
| Frequency: 200kHz | ||||
| Radiography: 40-150kVp | ||||
| Radiography: 10-630mA | ||||
| Exposure time: 0.001-6.3S | ||||
| Voltage: 3 phase,380V | ||||
| Power: 50 kW | ||||
| 2 | X-ray tube | Supplier: Toshiba Item no: E7843X | ||
| Focus: 0.6/1.2mm | ||||
| Max tube voltage: 150kV | ||||
| Max tube current: 630mA | ||||
| Power:20/46kW | ||||
| Heat capacity: 150KHU | ||||
| 3 | U-C arm | Stand height:2200mm | ||
| Arm up and down moving range: 1265mm | ||||
| Distance from the center of the arm to the ground: >= 425mm | ||||
| Arm rotating range: -30°-120° | ||||
| Focus screen distance | Min: 1000mm | |||
| Max: 1800mm | ||||
| Tube moving range:800 mm | ||||
| 4 | Flat panel Detector (Toshibai, Japan) | Vision: 17’’X17’’(43cm X43cm) | ||
| Pixel matrix: 3008 X 3072 | ||||
| Pixel size: 143µm | ||||
| Gray-scale: 14 bit | ||||
| spatial resolution: 3.5LP/mm | ||||
| Imaging time: 5s | ||||
| Weight: 17kg | ||||
| 5 | Image system | Image processing | Compare adjustment, enlarged show, measure can be done with mouse easily. | |
| Automatic or manual window position and width adjustment | ||||
| Image turnover, circumgyrate, mirror image | ||||
| Image continuous enlarged and cruise | ||||
| Rich label function | ||||
| Multilevel image intensifier | ||||
| Can be shown in 2,4,9,16 image, compare image in monitor | ||||
| Image data manage | Image adopt various of Inquire way (name, time,ID etc) | |||
| Edit patient's information | ||||
| Supporting the DICOM3.0 output. | ||||
| Host computer | System: Windows XP sp3 | |||
| CPU: Intel(R)CORE (TM) 2 | ||||
| Hard disk: 500G SATA | ||||
| Monitor: 19" LCD | ||||
| Internal storage: 2 G | ||||
| VGA Card: High efficiency speedup card | ||||
| Optical driver: DVD +/-RW | ||||
| 6 | Movable table | Length: 2010mm | ||
| width: 750mm | ||||
| Inner height: 690mm | ||||
| Feet wheel: 4, with lock | ||||
| 7 | Collimator | Manual, with location light | ||
Packaging & Shipping
x-ray machine plywood 1. Diagnostic Table: 110*40*60cm;
2. Power Case: 95*60*145cm;
3. High Voltage High Frequency Generator: 86*54*83cm
Gross Weight: 260kg
Our Services
Company Information
ORICH MEDICAL EQUIPMENT(TIANJIN) CO.,LTD is founded in 2004 and between Tianjin Pharmaceutical Holdings and US Full State Group.We specializ in R&D of Medical X ray machine, our products include basix disgnostic x ray machinet, high-frequency digital photography system, mobile x ray equipment, panaramic and digital dental, mammography x ray machine.
