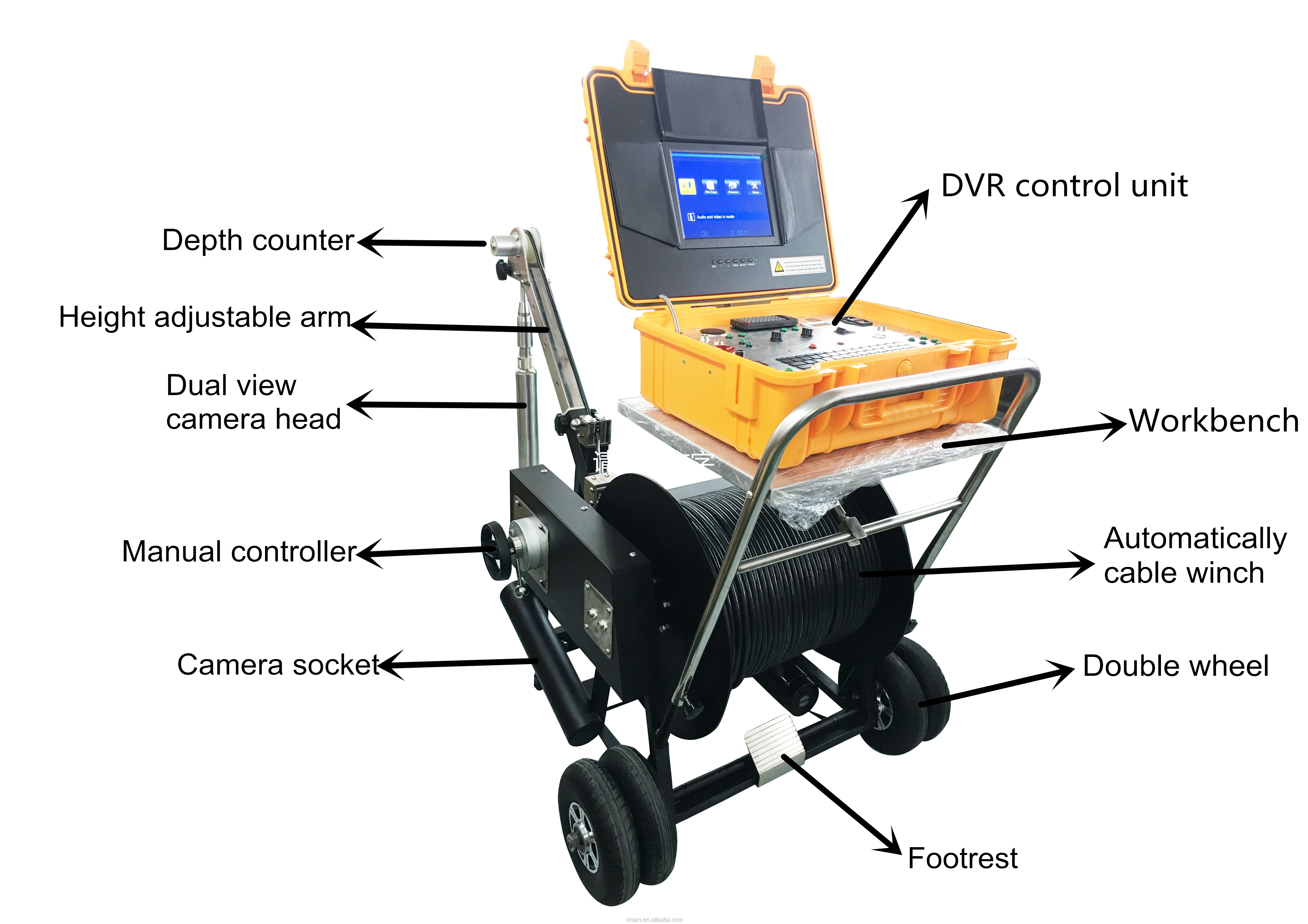

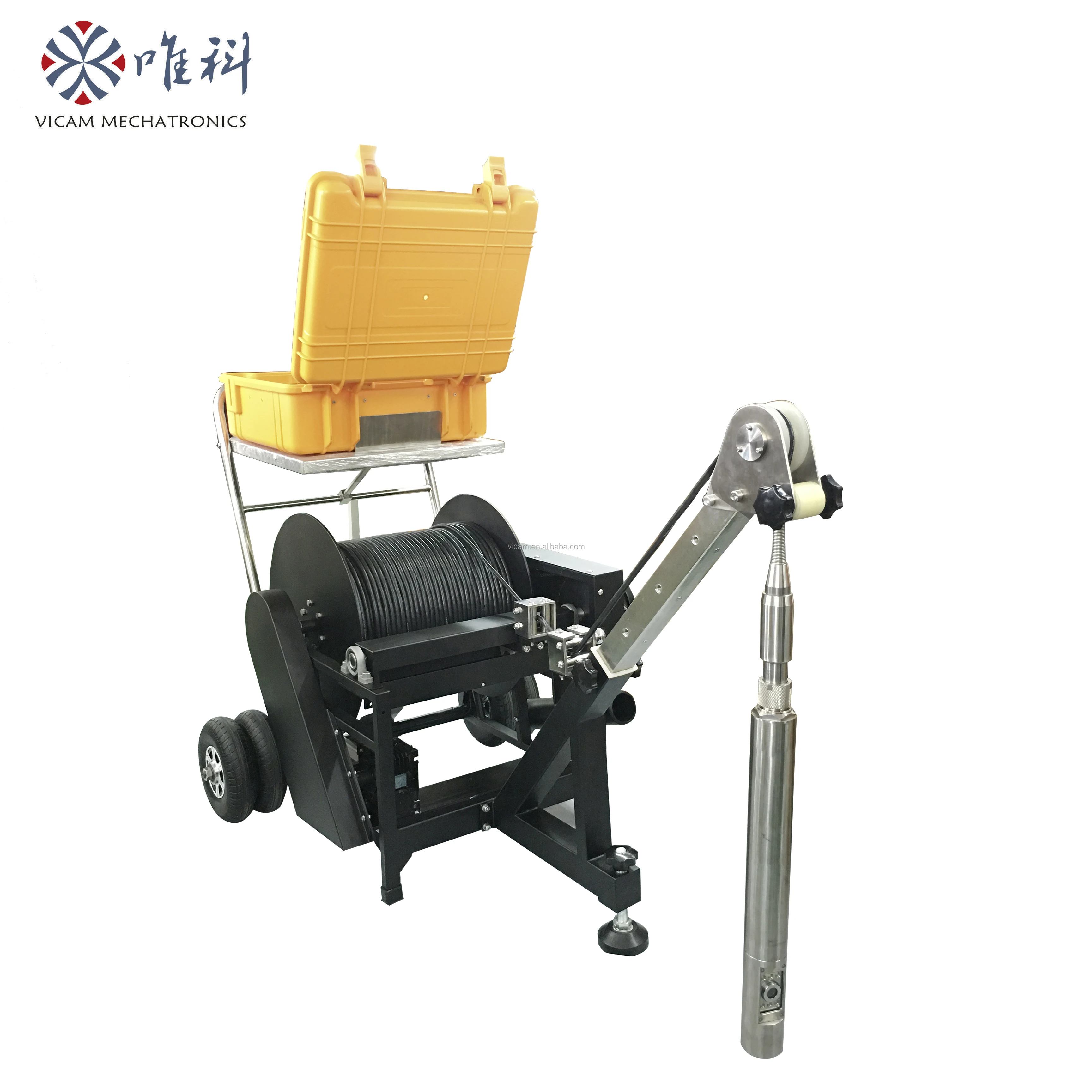

Vicam New model 360 degree rotate borehole camera with built in compass and temperature sensor V10 BCS
- Category: >>>
- Supplier: Shenzhen Vicam Mechatronics Co. Ltd.
Share on (60365904113):
Product Overview
Description
Vicam New Design Automatical cabling winch !
Dual camera rotated deep pipe borehole downhole inspection camera with 500meters cable length
Dual camera rotated deep pipe borehole downhole inspection camera with 500meters cable length
Product Description
Specification
1.Dual waterproof camera for deep well inspection
2.Dia.63mm x L610 stainless steel 700TVL camera
3.IP68 waterproof ,up to 50Bars
4.200m to 500m twisted pair cable with electrical winch
5.Electrial winch winding speed adjustable
6.HD DVR control box with Audio,video recording function
7. Built-in 128G Hard disk to storage video /Audio files
8.10 inch HD LED screen
3.IP68 waterproof ,up to 50Bars
4.200m to 500m twisted pair cable with electrical winch
5.Electrial winch winding speed adjustable
6.HD DVR control box with Audio,video recording function
7. Built-in 128G Hard disk to storage video /Audio files
8.10 inch HD LED screen

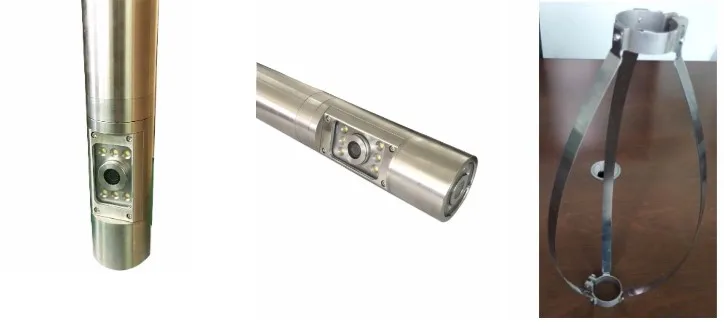

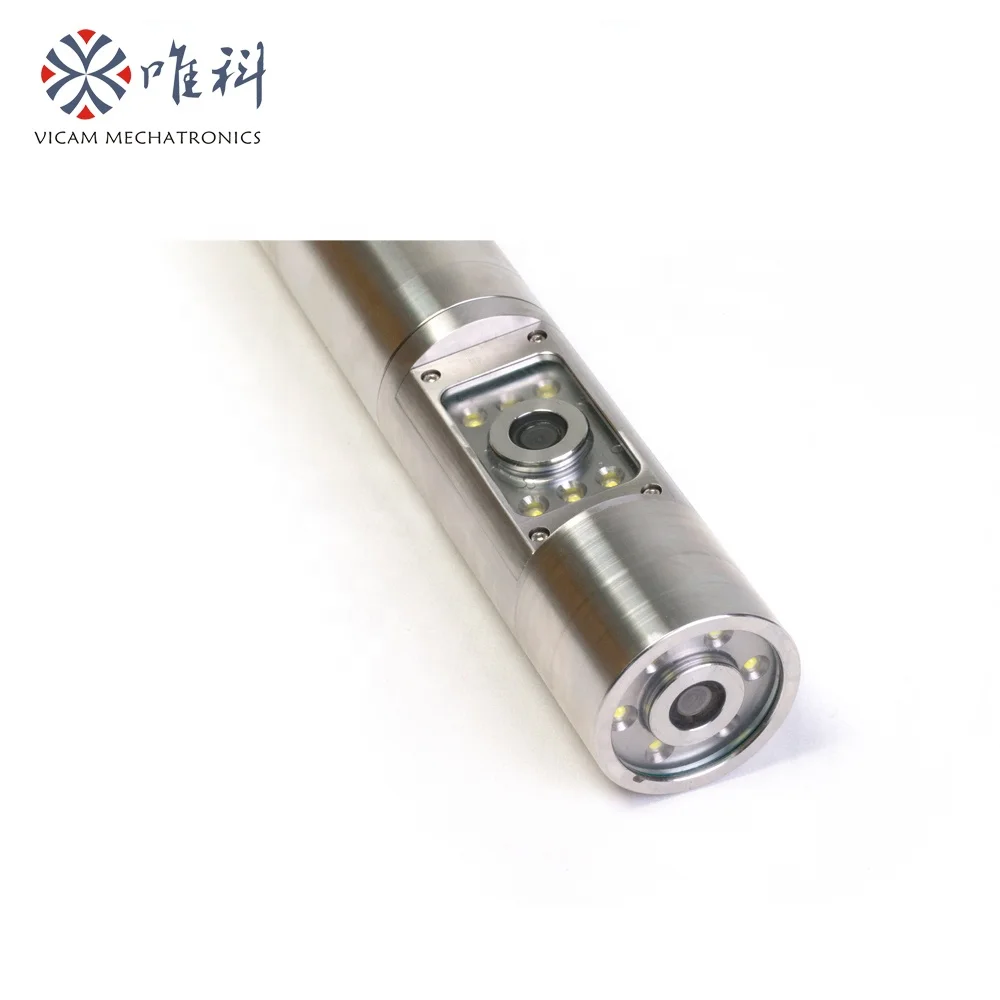

Part1: 63mm dual viewo rotation camera
Φ63mm L570mm Stainless steel casing
Waterproof IP68 Operating depth 50 bars (725 PSI)
Dual Camera Down & Side viewing Pan 360°
rotate endless View angle 120°
rotate endless View angle 120°
Sensor resolution PAL 720H×576V NTSC 720H×480V
Horizontal resolution 700 TVL
6 pcs high light LED(down view)
6pcs high light LED (side view)
Camera weight 6KG

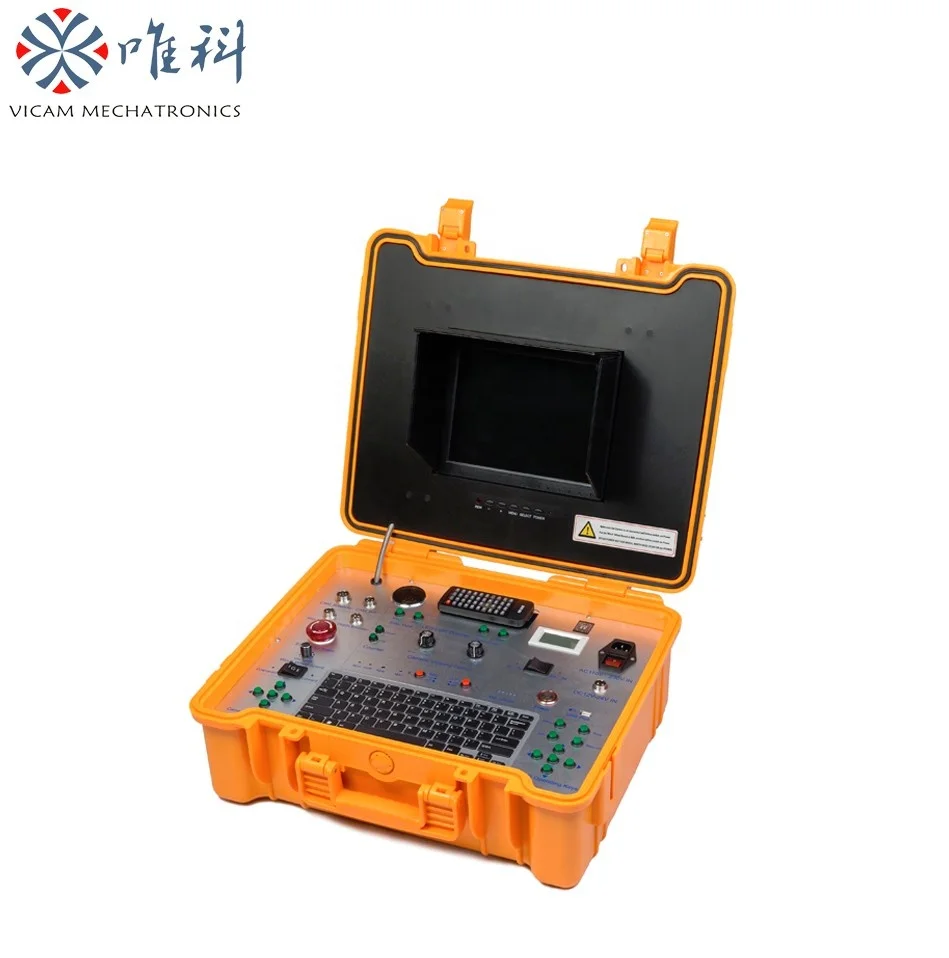

DVR control unit
Monitor
* 10" industrial color monitor
* Display model 4:3
* Resolution 1024*768
* Menu language 9 languages optional
* 10" industrial color monitor
* Display model 4:3
* Resolution 1024*768
* Menu language 9 languages optional

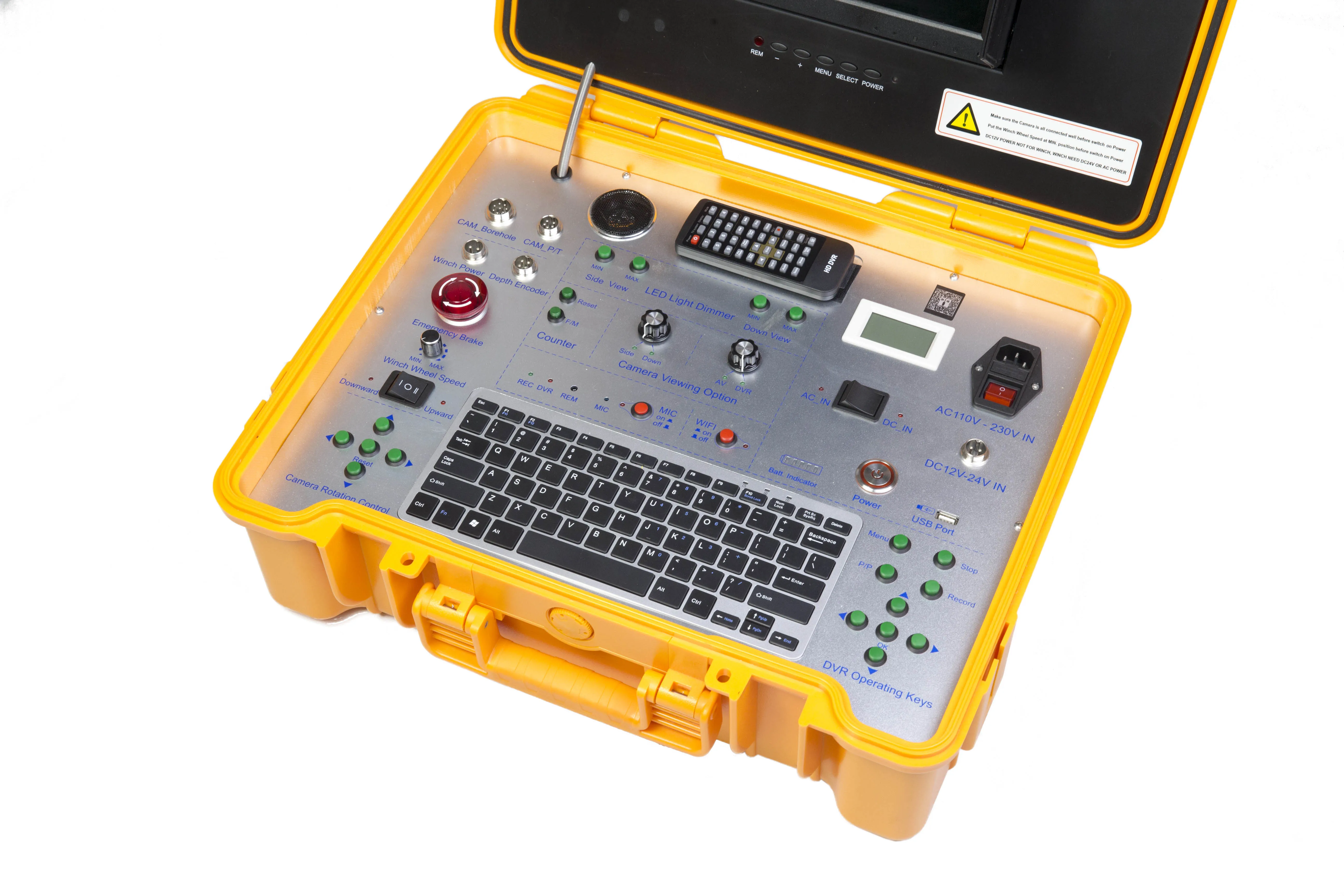

Control Panel
* Video input option: Borehole Camera or Pan & Tilt Camera
* Winch operating knob（adjusting speed, cable up and down,brake）
* Camera rotation control button (clockwise and counterclockwise)
* Down and side camera select button and LED brightness control button
* HD DVR Audio/Video recording & playback
* Video storage Medium: Built in 128GB SSD or USB device
* On-screen depth encoder, temperature and direction
* Video input option: Borehole Camera or Pan & Tilt Camera
* Winch operating knob（adjusting speed, cable up and down,brake）
* Camera rotation control button (clockwise and counterclockwise)
* Down and side camera select button and LED brightness control button
* HD DVR Audio/Video recording & playback
* Video storage Medium: Built in 128GB SSD or USB device
* On-screen depth encoder, temperature and direction

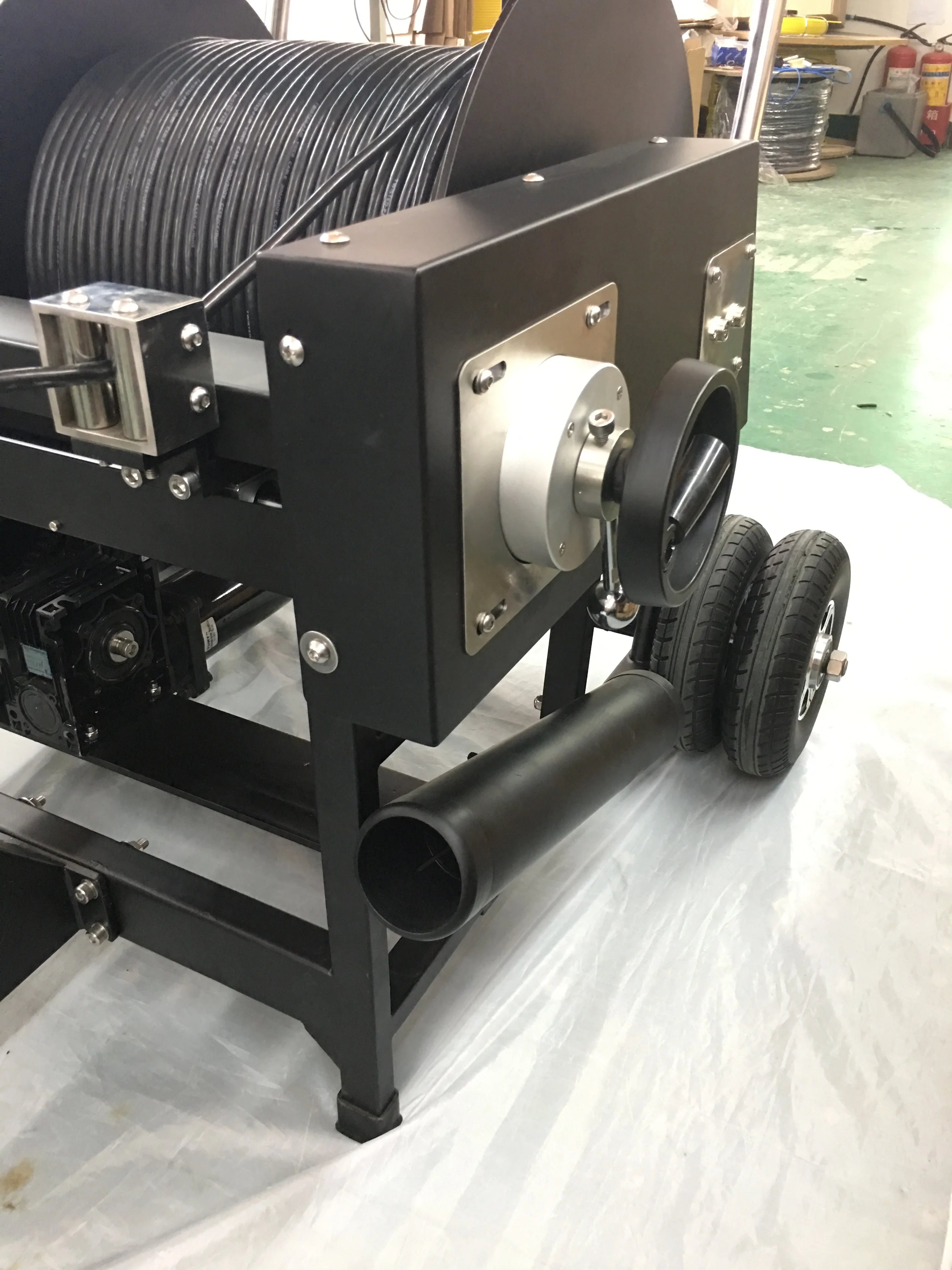

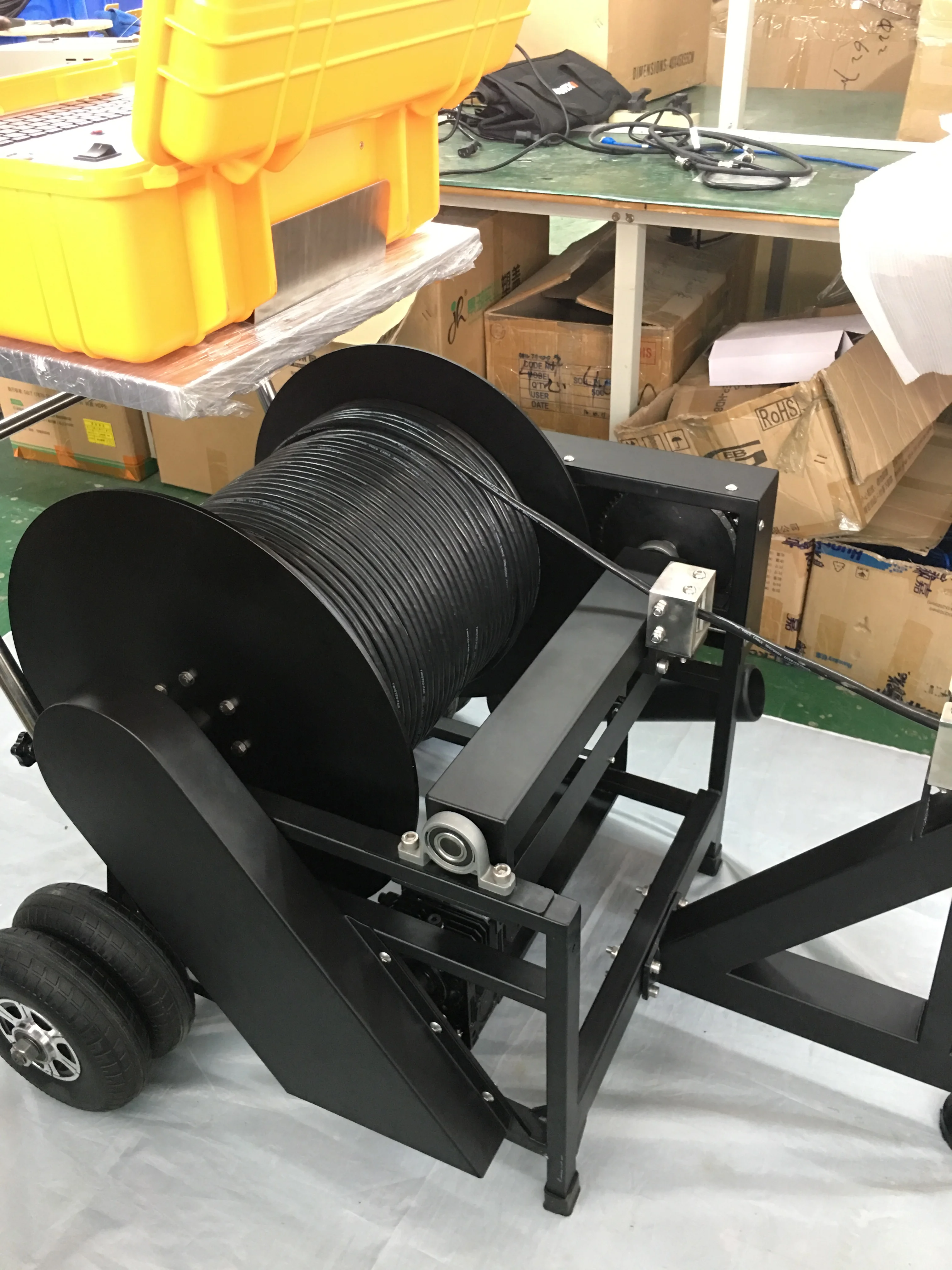

Electric Winch with automatical cabling system
Winding speed：0~20m/min
Cable speed adjustable
Φ10mm twisted pair cable (100m-500m option)
Power supply AC 110V to AC230V, DC12~24V
On screen depth encoder
Automatically push rod cable
Cable speed adjustable
Φ10mm twisted pair cable (100m-500m option)
Power supply AC 110V to AC230V, DC12~24V
On screen depth encoder
Automatically push rod cable

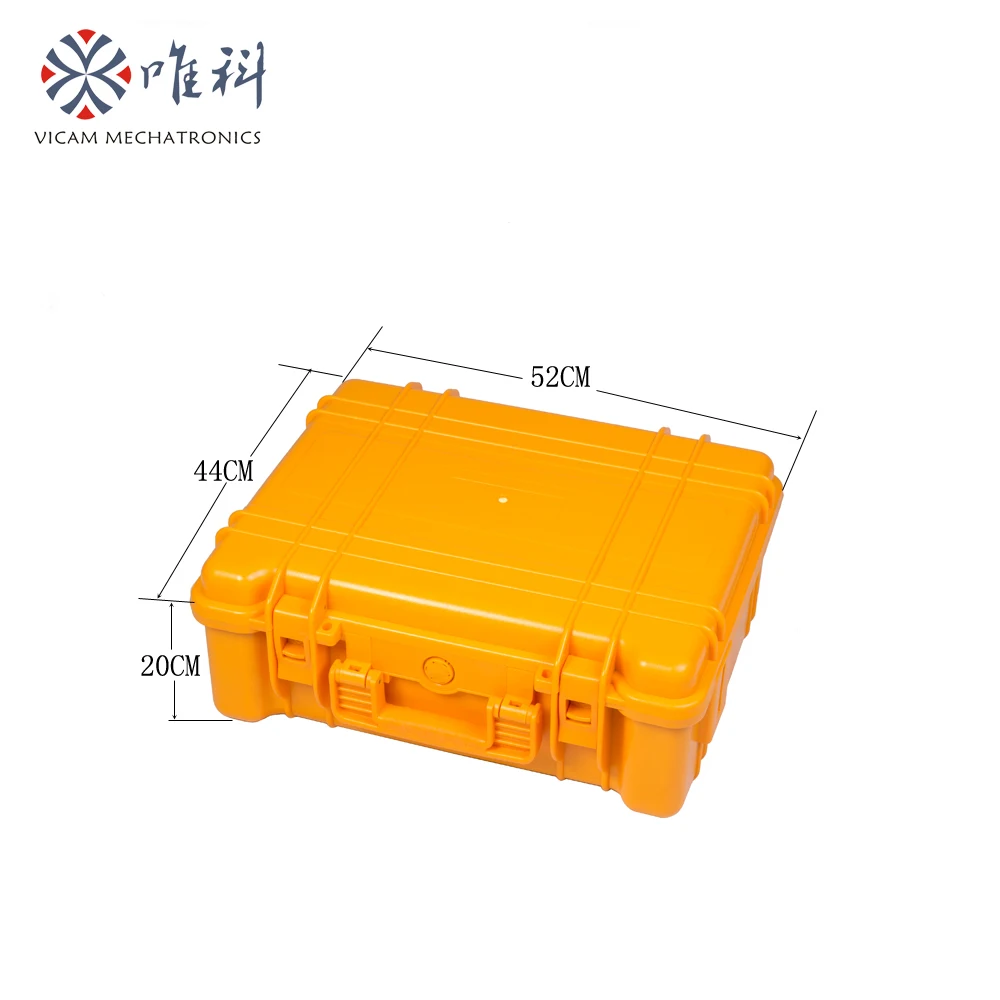

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q:Do you have 300m cable borehole camera?
A: Yes.We have . The cable length is from 200m to 500m
Q:The camera can be used underwater 300m?
A:Yes.This camera waterproof is 50bars
