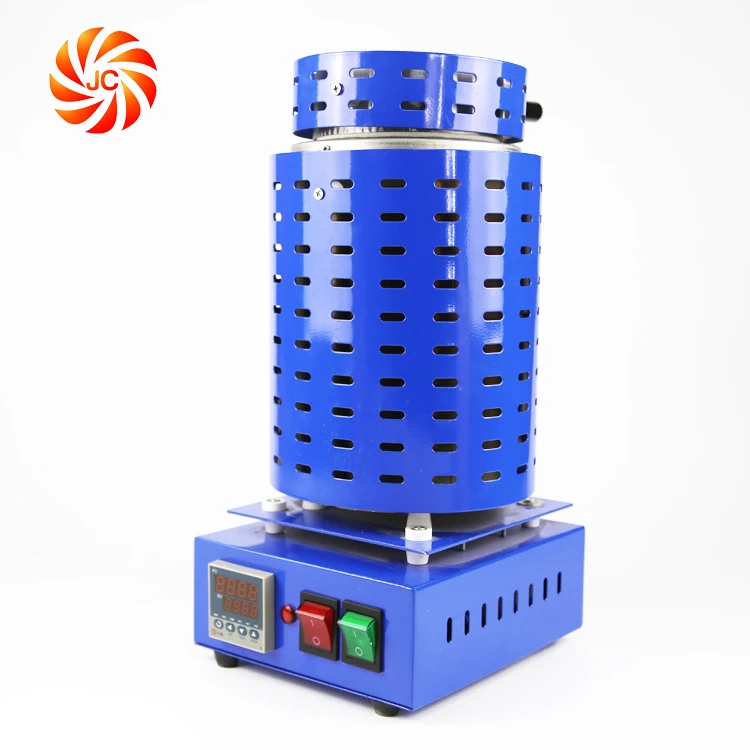

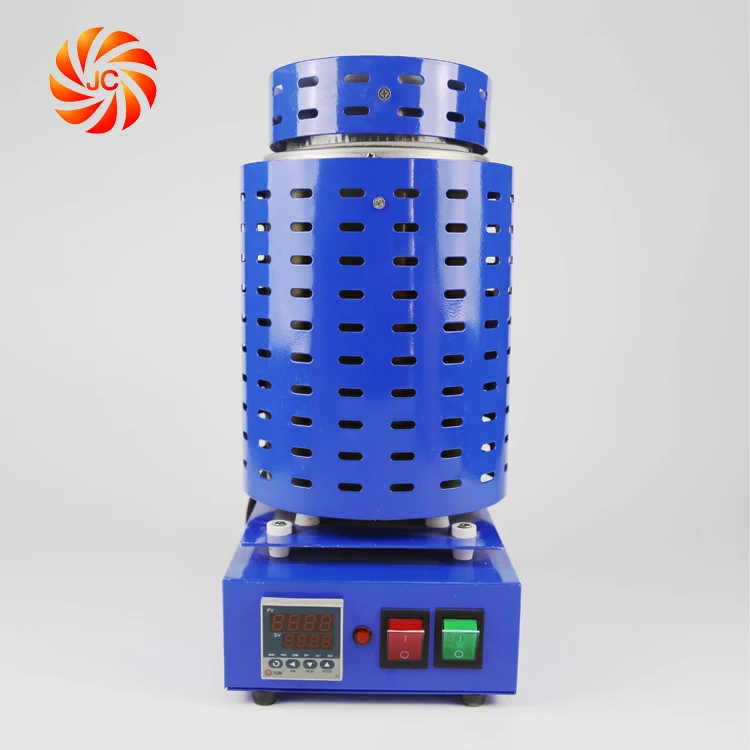

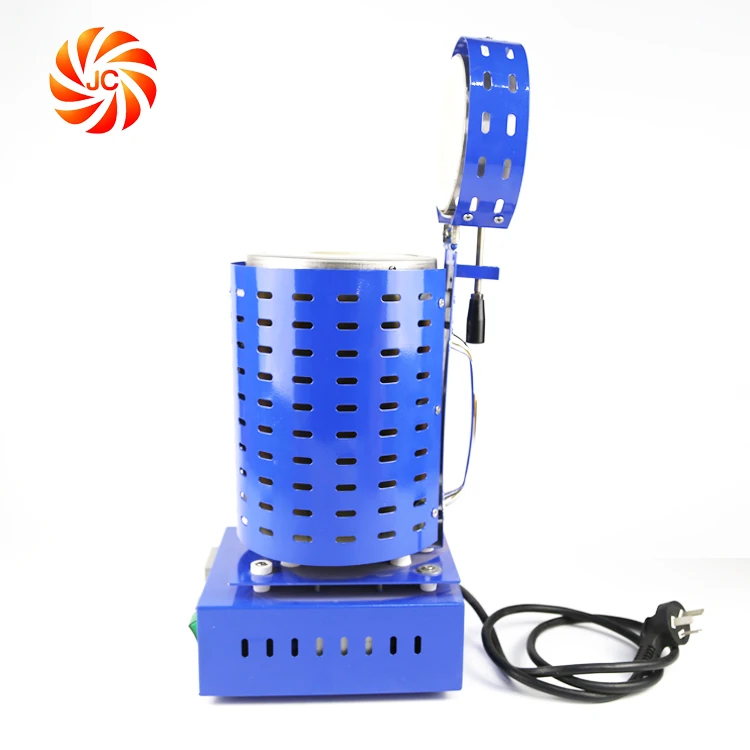

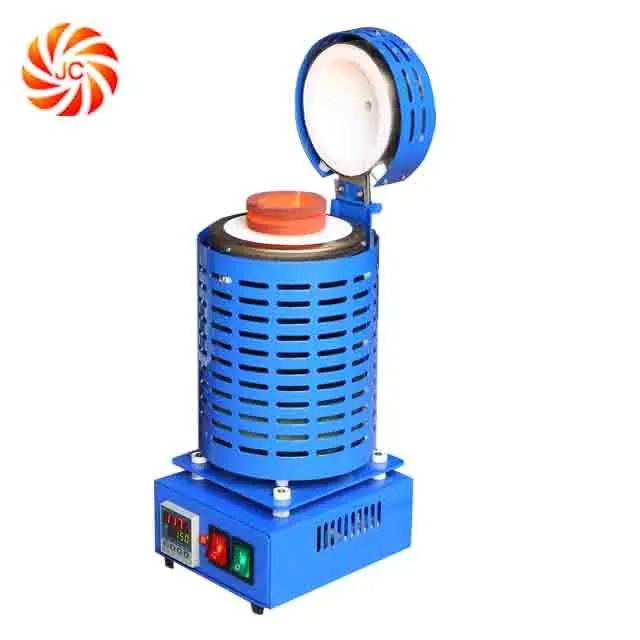

240V 4kg Electric Scrap Metal Melting Furnace for Melting Gold Silver Copper

Product Overview

Description

240V 4kg Electric Scrap Metal Melting Furnace for Melting Gold Silver Copper

Scrap Metal Melting Furnace are made for casting, reclaiming, alloying, and refining gold,

silver and other metals with similar or lesser melting temperatures. Equipped with electronic

temperature controls with digital displays, these melters can reach a maximum temperature

of 2102F (1150 C). The digital temperature control will prevent overshoot and protect the

heating element from overheating.  Tongs are provided to easily remove crucible.



New type melting furnace apply SSR controller, alloy made heater with melting temp up to 1900,

high temp proof ceramic melting Chamber, high aluminium protection.

Model	JC-K-220-2
Voltage	220AC single phase 50/60Hz
Power	1500Watts
Heating	Silicon Carbide chamber
Working temp	2102F (1150C)
Melting Speed	15-20mins
Melted Material	Aluminum, Gold, Lead, Silver, Sterling Silver,  Tin & Zinc
Capacity	2kg list for copper
Feature	1.Designed for handheld pouring directly from the crucible 2. Led display with touchpad digital read out allows precision temperature control. 3.Insulated lid holds heat in and keeps oxygen out for a cleaner melt.





* SSR relay.
* Easy to operate & maintai
* Low Maintenance Heating Element.
* Heat On/Off Indicator
* Safe & Shock Hazard free
* Transformer based (low voltage)
* Nichrome, Lanthal (DST or A1) heating coils are used for
* quality uniform heating.



One Furnace Unit delivery with:



Model JC-K-220-2(220V 1.5kw) Red,Blue ,Gray color is optional

1-2kg graphite crucible

1-crucible tongs.

1-replacement fuse.

1-insulating heat glasses.

1- gloves.



                  Click here for getting a new quotation!!!!

Gold bar melting Operating Process as follows

Step 1 Put gold bar into the crucible.

Step2 Heat up the furnace with 15 minutes

Step3. Take out the Melting crucible from the furnace,then put it on tray.

Step4.Pour slowly the gold liquid from the crucible.

Step5.Wait the liquid cooling in the mould within several seconds.

furnace for melting metal Instruction

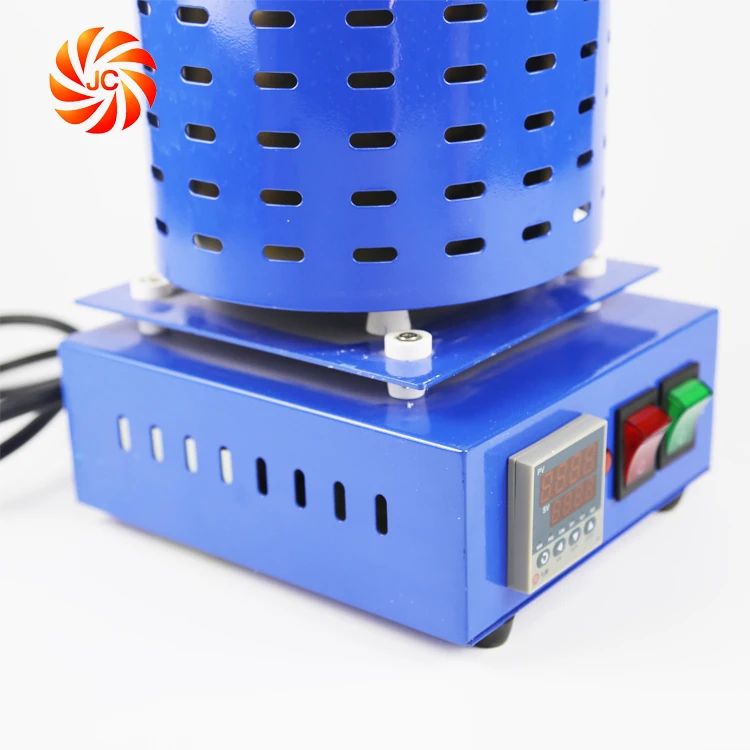

The furnace has two on/off switches: the GREEN switch turns on the temperature thermostat

allowing you to set the desired melting temperature.



The RED switch turns on the heating element to start the melting process.













The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you

enter into the furnace. The top read-out (PV) displays the actual temperature inside the

crucible during operation.

                              ISO                                                        CE

furnace for melting metal Shipping

We can accept T/T,Paypal,Western Union,Trade Assurace,the best and fast way is

Paypal.

We choose DHL/Fedex/UPS usually takes about 3-5 working days to the destination

We will send the goods within 3 working days after the full payment has been confirmed

Warranty and Return:

All the products have been tested before ship out.

All products electrical parts have 1 year warranty,including temperature controller,

relay, thermocouple,heating elements have 6 months warranty,including chamber,

heating coil etc. If there is no man-made problems,we will replace or repair for you freely.
