Alternative new energy 20KW grid tie solar generator

Product Overview

Description

Pv solar system prix panneau solaire mini solar set for industrial

Pre-packaged solar power system save your install time,your hands and money

Product Detail

Controller	Intelligent Controller
Junction Box	TUV standard
Solar system technology	IGBT or IPM
Life span	More than 25years
PV Mounting Bracketl	Flat ground or roof, or pitch roof
Mounting Structure	Hot dip galvanized steel or Aluminum
MPPT Voltage Range	300-1000V
Grid Voltage	3/N/P, 220/380V,230/400V
Output wave form	pure sine wave
Output frequency	50hz/60hz
Product Keywords	pv solar system,prix panneau solaire,mini solar set

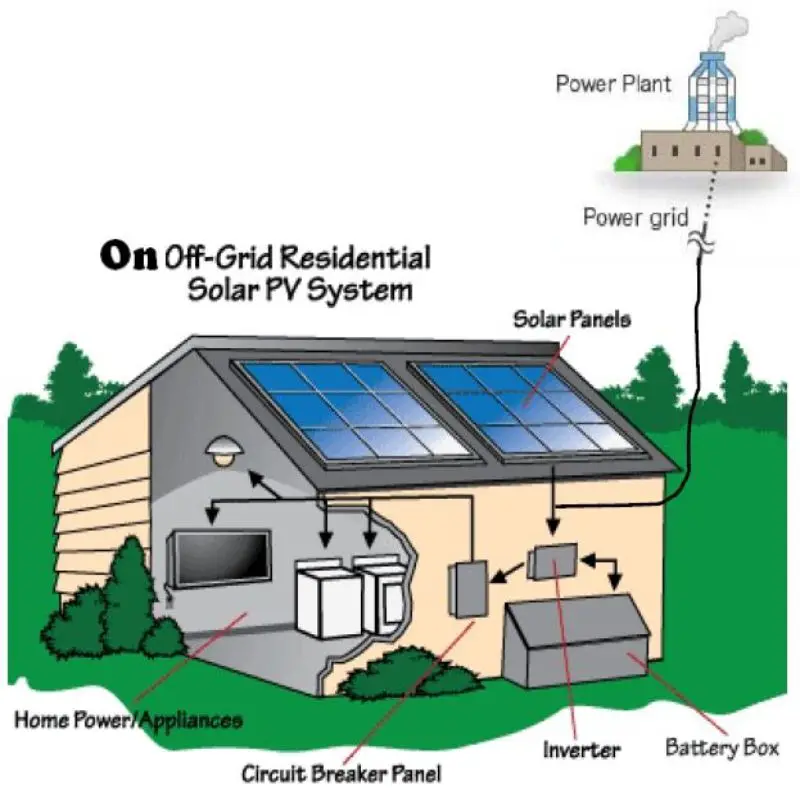

SunMaster off grid solar power system provides the power where utility power ius unavailable or unreliable. we’ve been in the of-grid business for decades, helping installers with projects around the world.

Benefits ofSunMasterOff Grid Solar Power System

Versatile:Ideal for large off-grid systems such as remote cabins Works with off-grid residential and commercial rooftop systems.

Safe:Thebreaker which acts as a DC disconnect for protection of your battery bank and charge controller.

Reliable: EL tested solar modules; no hot-spot heating guaranteed. The panels Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa).

Efficient: Excellent performance in low-light environments.

Pre-packaged: Save your install time,your hands and money.

Expandable:The system giving you more options for expansion.









Item	Description	Q'ty	Warranty
Solar panel	Mono or Poly	240pcs	20 years
Inverter	Single phase or three phase,50Hz/60Hz;  230Vac/380Vac,5kW/ SM-SH5kW	1set	3 years
Battery	Gel type, 12V/2V, deep cycle, low self-discharge rate,  free maintenance	192pcs	5 years
Solar Charger Controller	MPPT type, LCD display, full protection,  battery system voltage automatic identify	2pcs	3 years
Solar Combiner Box (optional)	Multiple PV strings inputs,Simplify wiring between PV array and controller, Wide range of DC input, thunderstorm & surge protection, IP65	4pcs	3 years
Distribution box (Optional)	Lighting Protection,Air switch, Fusegar, knife switch	1 set	3 years
Mounting system	Slant roof bracket/ Cement Ground bracket/  Soil ground bracket	1set	10 years
PV cable	DC port PV1-F 1*6mm² (optional)	300m	10 years
	AC port YJV-3*8mm² (optional)	100m	10 years

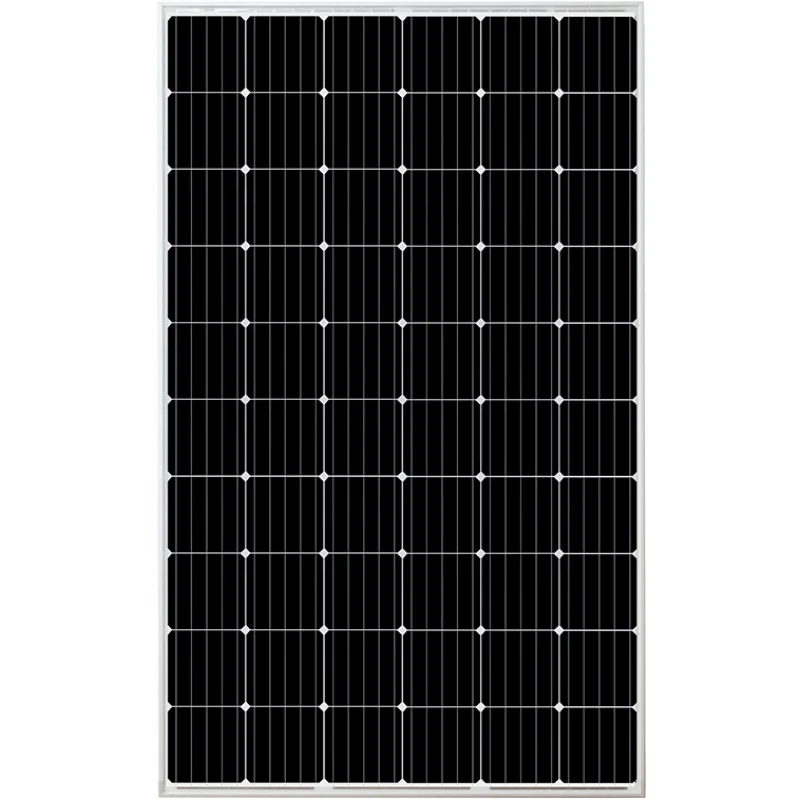

Type	MONO		POLY
Rated Power (Pmax)	300W	360W	270W	330W
Max Power Voltage (Vmp)	36.5V	36.5V	30.5V	36.4A
Max Power Current (Imp)	8.22A	9.87A	8.85A	9.07A
Open Circuit Voltage (Voc)	44.5V	44.5V	44.3A	44.1A
Short Circuit Current (Isc)	8.63A	10.33A	9.29A	9.52A
Efficiency	≥18.3%	≥18.3%	≥17.5%	≥17.8%
Dimension (mm)	1650x991x35	1956x991x40	1650x991x35	1960x991x40
Weight (kg)	18±5%	20±5%	18±5%	20±5%

SOLAR INVERTER

Ambient temperature range	-25~+60℃(>45℃ deloading)
Relative humidity	0~95%
Max operating altitude	4000m (>3000m derating)
Protection degree	IP65
Topology	Transformerless
Self power consumption (W)	<1
Cooling method	Cooling fan, natural convection
Noise emision (dB)	<25
Display	LCD
Warranty (Year)	2/3/5/10/15 Years (optional)



SOLAR CONTROLLER

Rated Charge current(A)		150A
Rated DC voltage(V)		24/48 automatic identification
Solar input  Max voltage(V)		42/84
Battery	Over charge protective voltage(V)	28.6/57.2
Battery	Over charge recover voltage(V)	27.4/54.8
Battery	Constant charge voltage(V)	27/54
Battery	Over discharge alarm voltage(V)	20/40
Environment Humidity  and temperature		0-90%  No condense,55℃
Protective Functions		Protection against anti-charge at night,battery over charge,  over discharge protection,Joint-reversed of solar modules

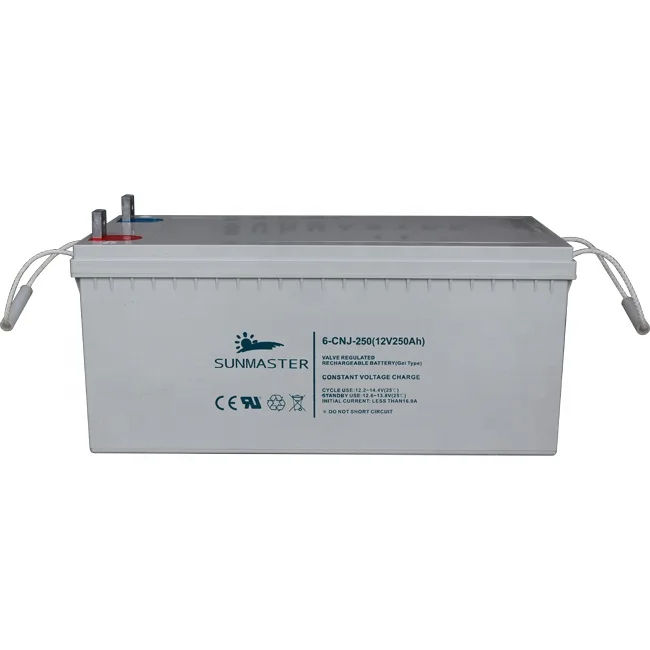

SOLAR BATTERY

Nominal Voltage	12V
Nominal Capacity	250Ah(10hr,1.80V/cell,25℃)
Approximate Weight	67.3 kg
Internal Resistance	4.5 mΩ(Lead terminal)
Terminal	Lead wire (6.0mm²×1.8m)
Maximum Charge Current	62.5 A
Ambient Temperature	-35~55 ℃
Dimension	520mm(±2 mm)
	269mm(±2 mm)
	220mm(±2 mm)
	245mm(±2 mm)
Case	ABS



SOLAR COMBINER BOX



SOLAR CABLE



Conductor	Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5
Insulation	Polyolefin Copolymer electron-beam coss-linked
Sheath Jacket	Polyolefin Copolymer electron-beam coss-linked
Nominal Voltage	Uo/U=600V/1000VAC, 1000V/1800VDC
Test  Voltage	6500V, 50Hz, 5Min
Temperature Rating	-40°C-125°C ,More than 25 Years  (TUV)
Fire Performance	IEC 60332-1
Smoke Emission	IEC61034, EN 50286-2
Low Fire Load	DIN 51 900
Certification	TUV 2PFG 1169/08 2007 PV1--F

MOUNGING SYSTEM
