DX 4060P электрического привода с плоской платформой наклейка бумага машина для трафаретной печати

Product Overview

Description

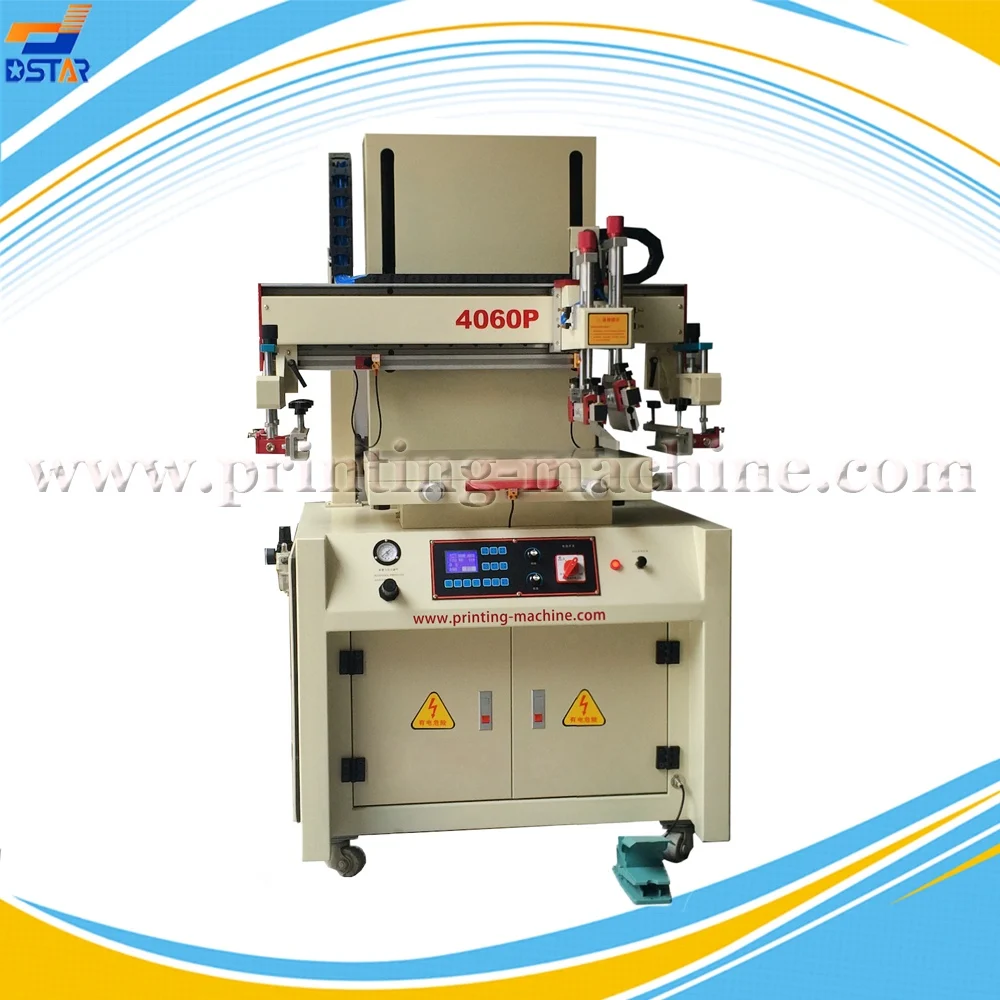

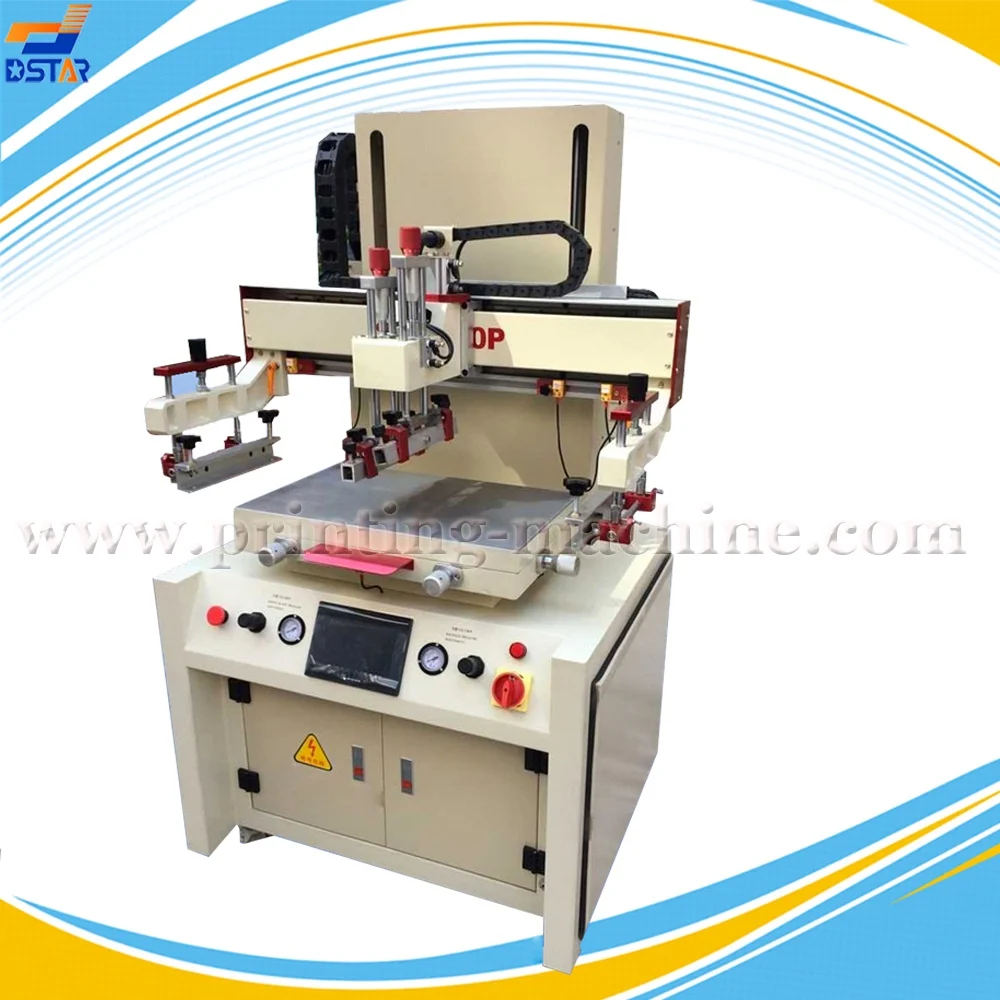

DX-4060P electric drive  flat bed decal paper screen printing machine

Model	DX-3050P	DX-4060P	DX-5070P	DX-7012P
Work table size(cm)	30*50	40*60	50*70	70*120
Valid screen print size(cm)	25*35	35*45	45*65	60*110
Max screen plate frame size (cm)	45*73	55*83	65*93	85*133
Screen printer machine size (cm)	80*92*165	80*102*165	90*120*165	110*162*165
Machine weight (KG)	380	450	520	720
Max printing speed (times/hr)	900	880	850	750
Power(KW)	2	2.5	3.5	3.5
Air consumption(Mpa )	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6

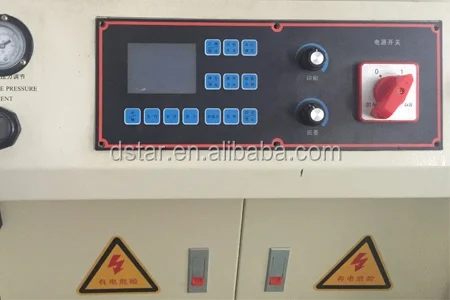

Classic model with press button control panel

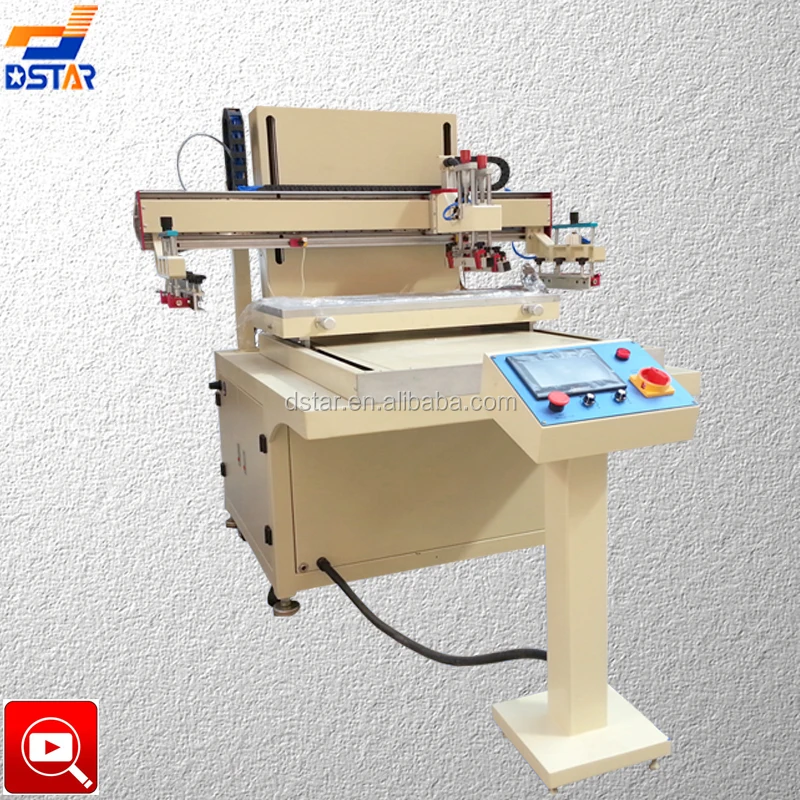

New model with touch screen control panel


Machine features:

• Vertical structure and electronic drive,PLC control system.The screen plate vertical movement and horizontal ink scrapping.


• Cast aluminum processing for machine printing beam,sliding sleeve,machine nose and lift arm


• The machine speed and stroke can be adjusted under motor drive


• There is manual test,single model and full automatic model for optional


• automatic counter for printing


• Independent machine lifting device is convenient for ink scrapping balde,ink return blade,screen plate install and unistall.


• It's equipped with sliding block and screws on right and left arm to adjust screen plate position


• The angle for ink printing and ink scraping can be adjusted.

Machine specifications
Screen printing work platform

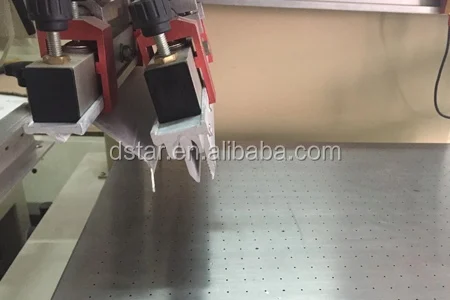

Ink scraping and ink return blade assembly

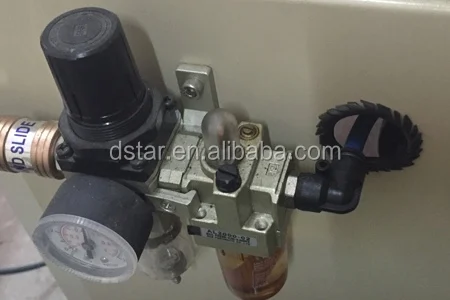

Pnuematic device

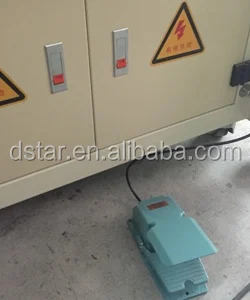

Enlarge foot pedal

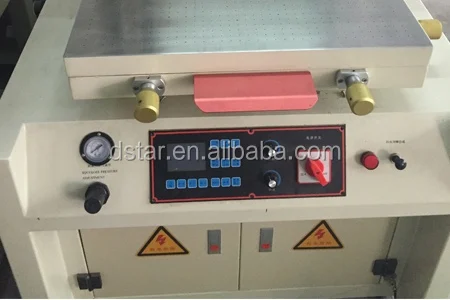

System control


Optional function:

• modify from electronic drive to servo motor drive


• automatic feeding or unloading device


• vacuum work table


• touch screen control panel

1.how to place order with your company?

    please send online inquiry with buying details to us via alibaba or via our official website.   Then our sales will reply offer to you. If customer agree with offers,companies will sign sales contract. Next,the buyer shall fulfill payment obiligation,dstar machine will start order production.

2.can you print samples for checking quality?

    Yes,we can

3. is there operation training?

    Yes,we provide free training

4. how long warranty of the machine?

    1 year+lifelong technical supports

5. which payment item do you accept?

    T/T(30%deposit+70% balance before delivery)

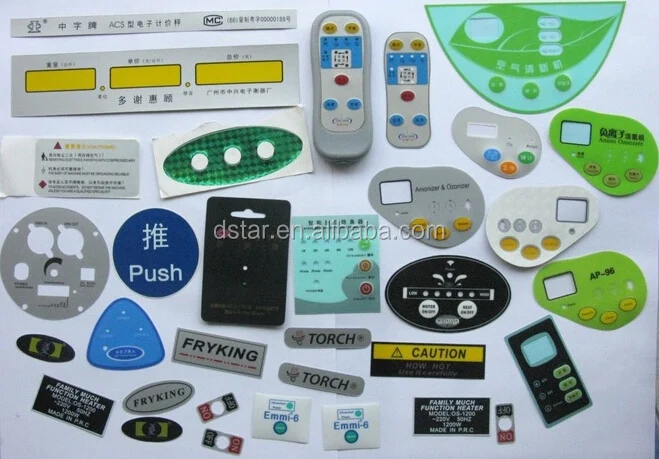

Screen printing samples
