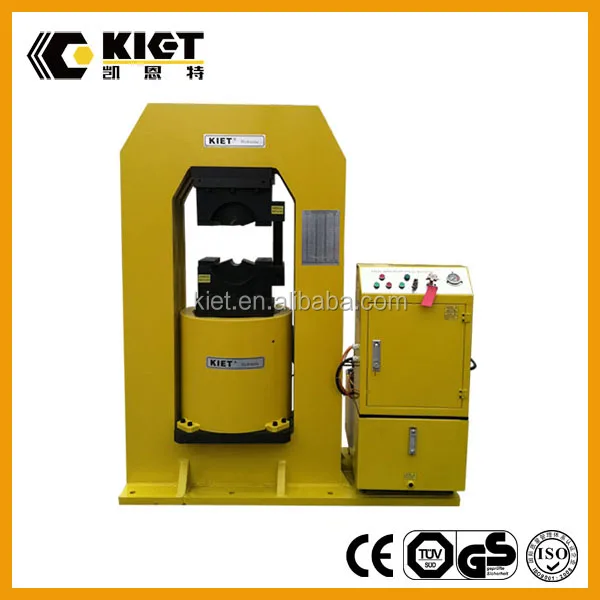

High pressure steel wire rope hydraulic press machine

Share on (60366286938):


Price:$6,000.00

Quantity:


Product Overview

Description

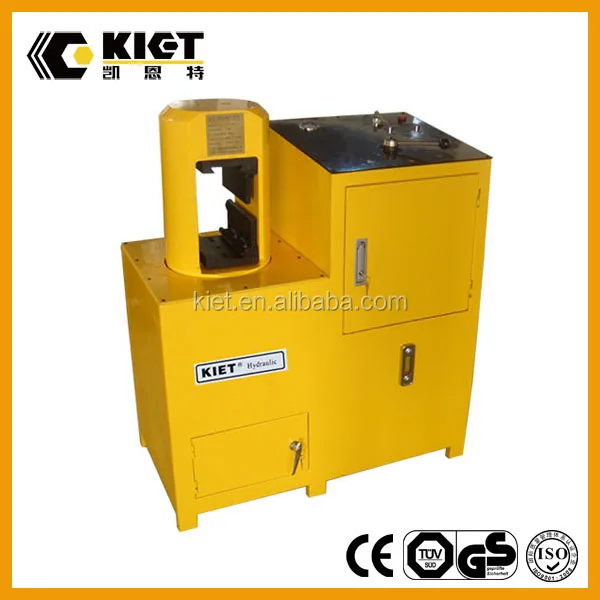

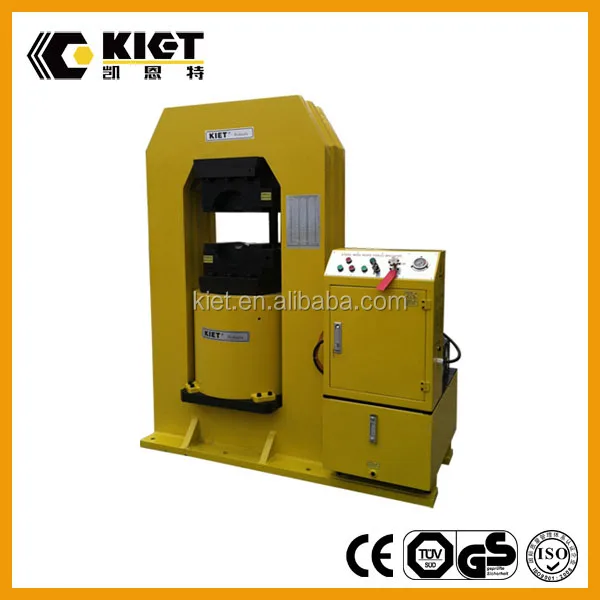

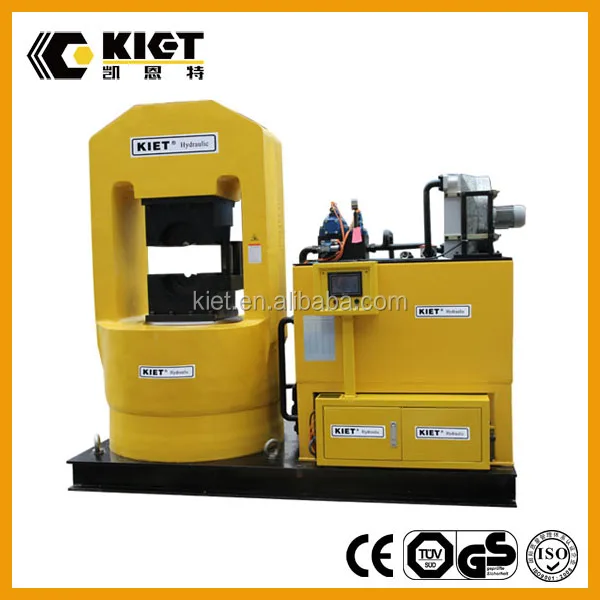

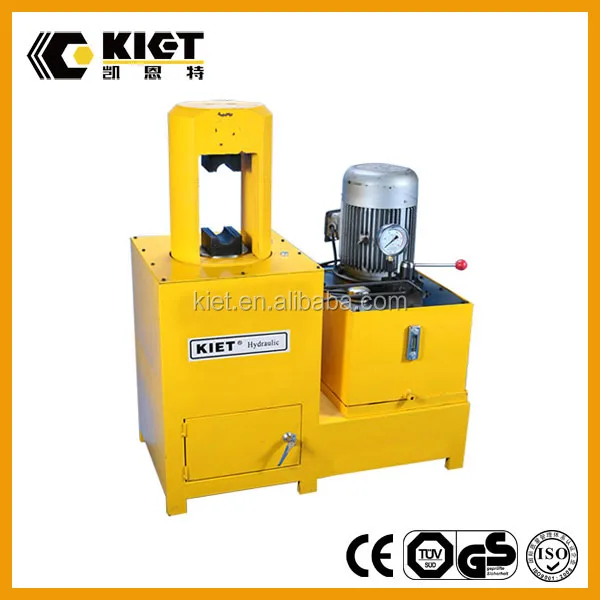

High pressure steel wire rope hydraulic press machine











Product Description


Hydraulic steel wire rope press machine, developed independently by KIET, is an aesthetic aircraft design and advanced technology manufacturing.


The main component of the body is made of high-quality alloy steel which makes it durable.


The machine is operated with hydraulic power.


It is of compact structure, stable operation, low noise, high efficiency.


It is processed in non-cutting shape technology, without destroying the strength of the wire, making the premise of soft metal in the mold cavity full flow, tighten the steel wires to achieve the purpose of forming.

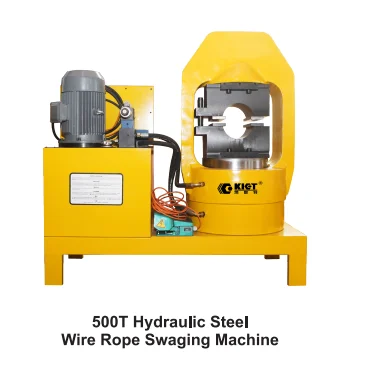

At present, we have 100 T, 200 T, 500 T, 800 T, 1000 T, 1500 T, 2000 T, 3000 T, 5000 T, ect.


Features


 1. High junction strength and large working load limited


 2. Perfect pressed shape


 3. Excellent cauterization resistance


 4. Saving wire rope cost


 5. Ensure the exact length


 6. Advanced procession and efficiency


 7. Good solution to rigging works with limited working space


 8. Widely used in steel, transportation and building industry


 9. Easy to operate





Parameters































































































Model

Capacity


(T)



Wire Rope Diameter


(mm)



Working Pressure


(MPa)



Motor Power


(Kw)



Voltage


(V)



Current Frequency


(Hz)



Weight


(Kg)


KET-YTJ-100 100 6-14 70 0.75 380 50 200
KET-YTJ-150 150 6-20 70 0.75 380 50 375
KET-YTJ-350 350 6-32 70 2.2 380 50 420
KET-YTJ-500 500 6-40 28 7.5 380 50 2040
KET-YTJ-800 800 10-48 30 15 380 50 4010
KET-YTJ-1000 1000 10-56 63 5.5 380 50 4508
KET-YTJ-1500 1500 10-65 70 5.5 380 50 10000
KET-YTJ-2000 2000 10-78 28 30 380 50 21453

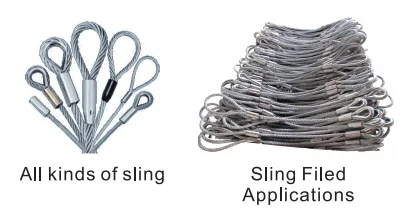

Applications











Accessories
















































































































































































































Packaging & Shipping





Special electric hydraulic pump for engineering hydraulic cylinder


Special electric hydraulic pump for engineering hydraulic cylinder







Company Information



Jiangsu Canete Machinery Manufacturing Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 10-1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.





We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2015 consecutively.





Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.





We are a manufacturer in hydraulic tools, such as:


• Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;


• Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);


• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton);


• Hydraulic pumps, manual and electric type (max up to 3000bar);


• Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting);


• Hydraulic nut and couplings. (M50-Tr1000);





Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.




Factory Show






Our Markets:Special electric hydraulic pump for engineering hydraulic cylinder


Cooperation Terms


1) Our warranty: We guarantee our product for 1 year.


2) Delivery time: 7-20 days after deposit received and all details have been confirmed.


3) Payment Terms: 30% T/T, balance tp pay before shipment.


4) MOQ: 1 pcs.





Certificates





FAQ


Q1: How to contact sales?


A1: Please call or email us.





Q2: How can I buy Kiet products in my country?


A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.





Q3: How long does it take to get the product if I place an order?


A3: It depends on products' production time, not more than 25 days.





Q4: How to make payment?


A4: Both of proforma invoice and sales contract at Alibaba are acceptable.





Contact


Eileen Qi



Sales Manager

Jiangsu Canete Machinery Manufacturing Co., Ltd.

No.199, Jinger Road, Economic Development Park, Taizhou, Jiangsu, China

Tel & WhatsApp& Imo: +86-18018290911

Wechat: JS-Kiet-Sales8


www.kaientehydraulic.com
