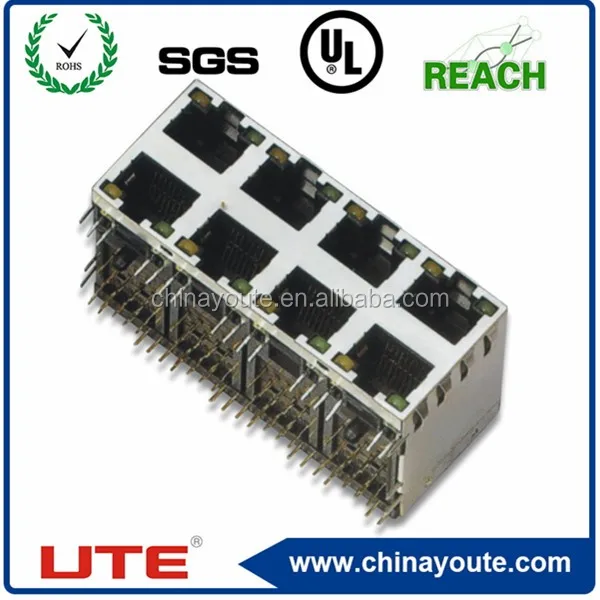

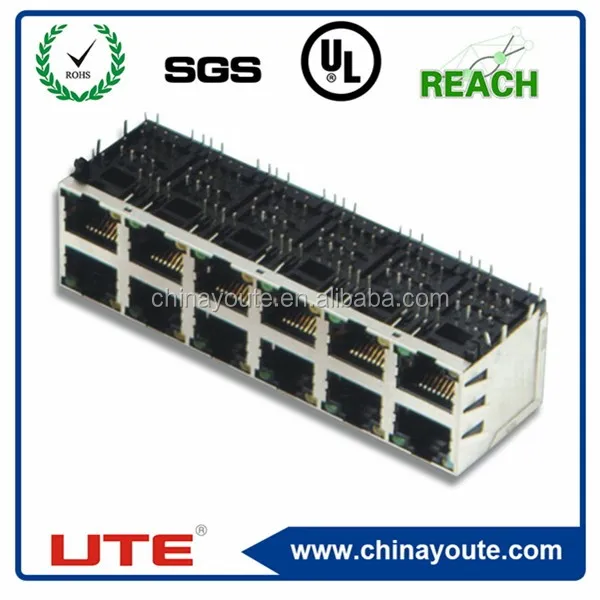

electrical machine RJ45 Connector

Specification Characteristic:

1, Port: 2*4

2, Position Number: 8 Positions

3, Contact Number: 8 Contacts

4, Peg: None/1 Peg/2 Peg/3 Peg

5, Shielding:  Shielded/Shielded with EMI finger/Non-shield

6, LED: LED/Without LED

Material:

1, Housing: Nylon. PBT (UL94V-0)

     Color: Black.Gray or other colors are available

2, Contact Pin:

     Round Pin: 0.46mm diameter phosphor bronze gold plating over nickel.  Plate Fu''/3u''/6u''/15u''/30u''/50u'' min.

                          Hard gold on top of 100u'' nickel plated.

3, LED: Type-3.1(W)X1.9(T)X4.1(T)P=2.54

4, Shielding: 0.2mm thickness brass with nickel plated.

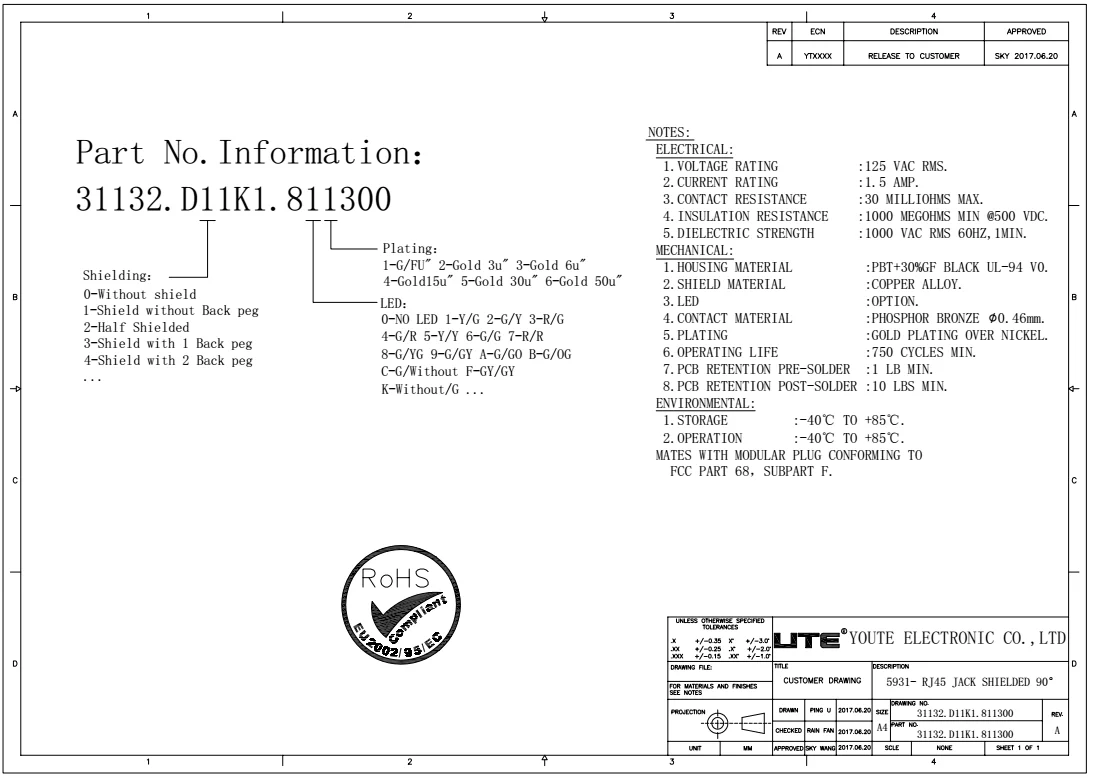

Electrical:

1,Current Rating: 1.5Amp Max. @25℃

2, Voltage Rating: 125Voits AC max

3, Insulation Resistance: 500 Megohms min

4, Contact Resistance: 30 Milliohms max

5, Dielectric Withstanding Voltage: 1000Vrms,50Hz or 60Hz 1 minute

6, Shielding: 20dB min, 10 to 200MH

Q: how long Delivery time ?

A: RJ45/RJ11 Series: 12~20 days

SFP Series: 25~30 Days USB Series: 7~15 days

Pin Header/Female Pin header

Connector: 7~15 days

SATA/HDMI Series: 7~15 days

Q: How can I get quotation?

A:It is helpful for us to recommend the right item if we know your detail requirements

(number of port, shielded or non-shielded, led or dual leds, with or without transformer etc).

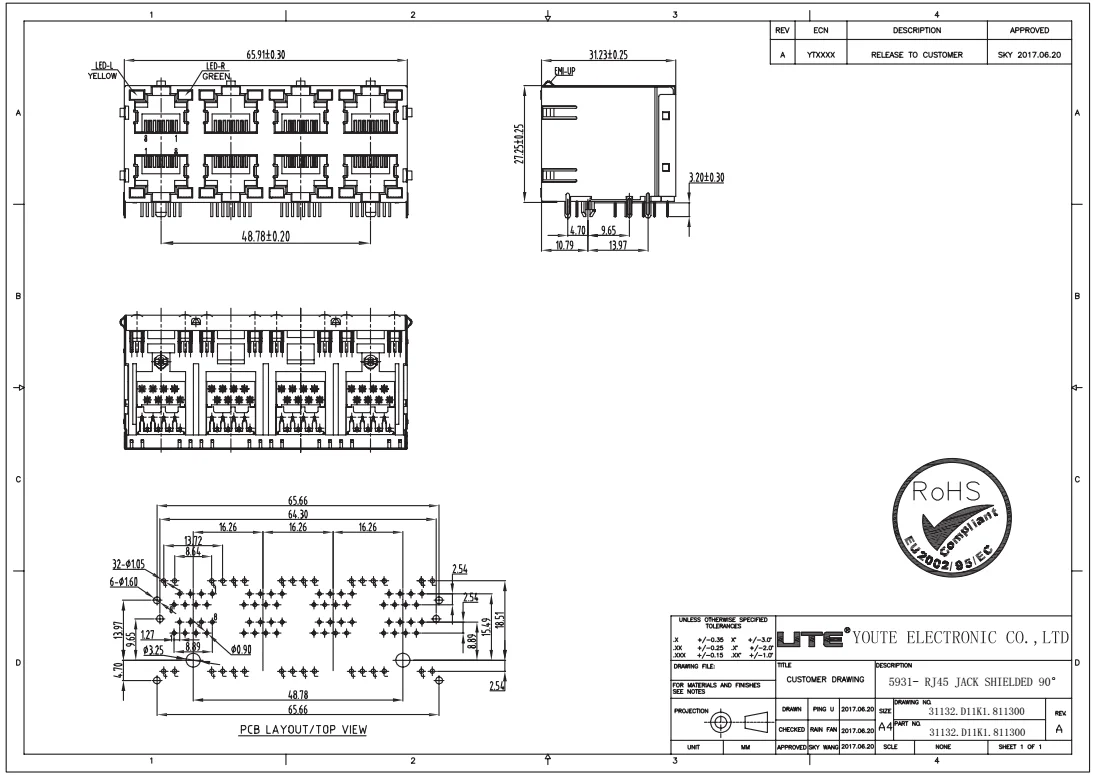

Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.

Q: Can I have samples?

A: Samples are available for evaluation.

Q: Is OEM & ODM available?

A: OEM&ODM are welcome.
