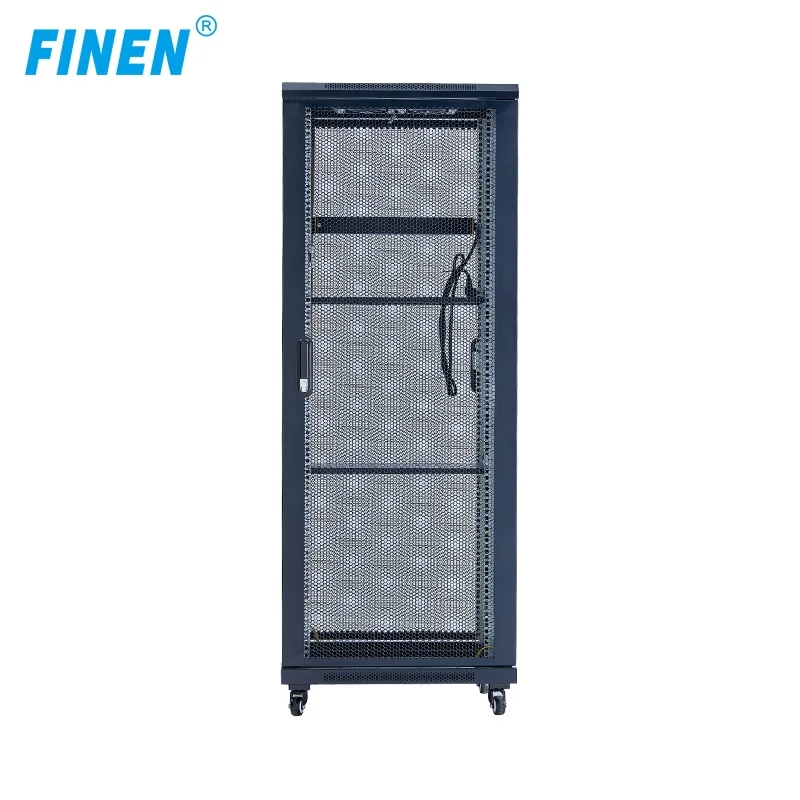

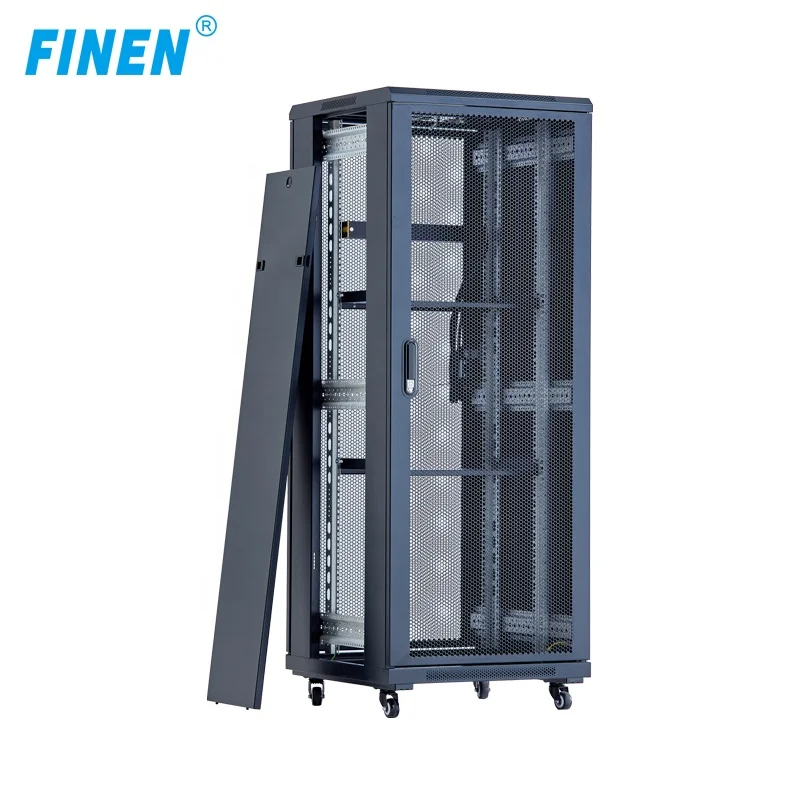

42U server racks Enclosure 19 inch network server cabinet server rack with various size CCTV racks
- Category: >>>
- Supplier: Beijing Finen Electronic Equipment Co. Ltd.
Share on (60366524836):
Product Overview
Description
Data Enclosure 19 inch network server cabinet server rack with various size
Production Information
Basic Information | |
1) Standard | Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard |
2) Material | SPCC high-quality cold rolled steel |
3) Thickness | Mounting profile 2.0mm Mounting angle 1.5mm Others 1.2mm |
4)Door | Tempered glass front door;single open mesh back door |
5) Surface Finish | Degreasing, Pickling, Phosphating, Powder coating |
6) Protection Degree | IP20 |
7) Loading Capacity | 800kgs(=1763 lbs) |
8) Color | Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032) |
Rack Features | |
1) Zinc Plated mounting profile 2) Secure,firm and reliable 3) Easy to maintain equipment 4) Two Packing Ways: Assembly packing to save labour cost, ready to resell or use Disassembly packing to save space and transport cost, easy to assemble 5) Various optional accessories: PDU, fan, shelf, bracket, cable tray, etc.. 6) Certification: ISO 9001:2000 7) OEM/ODM service available | |
Rack Structure
Rack Details
Specification
Packing Options
Who are we?
1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 400 workers
3. 35000 square meters workshop
4. Customizing services, OEM services, etc.
Why Us?
Applications of Our Cabinets
Rack cabinets for Information Technology and telecommunication appliances use:
• Small, Medium and Large Servers
• DVR, Security Equipment and Routers
• Patch Panels and Switches
• Telephone Systems and PABX
• Network and Communications Equipment
• UPS Equipment
• Other Rack Mount Equipment
server rack factory with 20 years experience
