Yushi UM-2D wholesale ultrasonic thickness gauge through coating ultrasonic thickness meter
Product Description
Through Coating Function
We are the first in China develop the ultrasonic thickness gauges which can penetrate the coating in 2006, and UM-2D offers this special function, when there is oil paint on the surface of the object, the net thickness of the material can be directly measured without necessarily remove the paint.
General thickness measurement mode measures the thickness of an object by calculating the time difference T1 of the probe sending ultrasonic pulse to the object and the probe receiving the reflection from the first bottom echo(including the coating thickness).
Through coating mode measures the thickness of an object by precisely calculating the time difference T2 between two consecutive bottom echo (excluding the coating thickness).

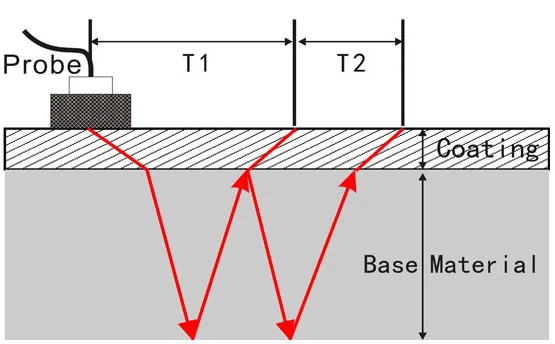

Schematic Diagram of Through Coating Function
UM series ultrasonic thickness gauge is extremely suitable for measuring the pipes about their thickness lose after corrosion.
Each instrument has been calibrated by 34 standard test blocks before delivery to ensure the accuracy of the measurement.
Optional USB Port or Serial RS232 Port.
Product Demension
Main Comparison Between Different Models
| Model | UM-1 | UM-1D | UM-2 | UM-2D |
| Operating Principle | Pulse-Echo |
Pulse-Echo Echo-Echo |
Pulse-Echo |
Pulse-Echo Echo-Echo |
| Measuring Range in Standard Mode |
0.8mm-300mm(Depend on material and probe) |
0.8mm-300mm(Depend on material and probe) | 0.8mm-300mm(Depend on material and probe) | 0.8mm-300mm(Depend on material and probe) |
| Measuring Range in Thru Coating Mode | × | 3mm-20mm | × | 3mm-20mm |
| Measuring Resolution | 0.1mm, 0.001inch | 0.1mm, 0.001inch | 0.01mm, 0.0001inch | 0.01mm, 0.0001inch |
| Probe Compensating Line | 1 built-in probe compensating line | 1 built-in probe compensating line | 7 built-in probe compensating line | 7 built-in probe compensating line |
| Data Logger | √ | √ | √ | √ |
Product Specification
| Display Type | 128 ×64 dot-matrix LCD screen with EL backlight |
| Operating Principle | E-E (echo-echo) with dual-crystal probes |
| Measuring Range | 3mm-20mm with PT-08 probe |
| Measuring Limits of Tube(Steel) |
Φ20mm × 3.0mm (PT-08 probe) Φ15mm × 2.0mm (PT-06 probe) The measuring error is up to ± 0.1mm
|
| Measuring Error |
Low limit to 10mm: ±0.05mm 10mm to high limit: ± ± (0.5%H+0.01) mm Note: H is the actual thickness of the testing material |
| Repeatability | 0.05mm |
| Display Resolution | 0.01mm, 0.001inch |
| Units | Inch or Millimeter |
| Calibration Method | Zero calibration, Two-point calibration |
| V-Path Correction | Automatic |
| Update Rate | 4Hz |
| Material Velocity Range | 1000~9999m/s (0.0394 to 0.3937in/μs) |
| Memory Function | 5 arrays are divided to store 500 thickness values |
| Minimum Value Checking | Move the probe along the surface of the testing material, the gauge is able find the thinnest point automatically. |
| Warning Function | If the measured value exceeds the pre-set thickness limit, the warning tone will start. |
| Velocity Storage | Velocities of 5 different materials can be stored totally |
| Languages | English and Chinese |
| Communication Port | USB port or Serial RS 232 port (Optional) |

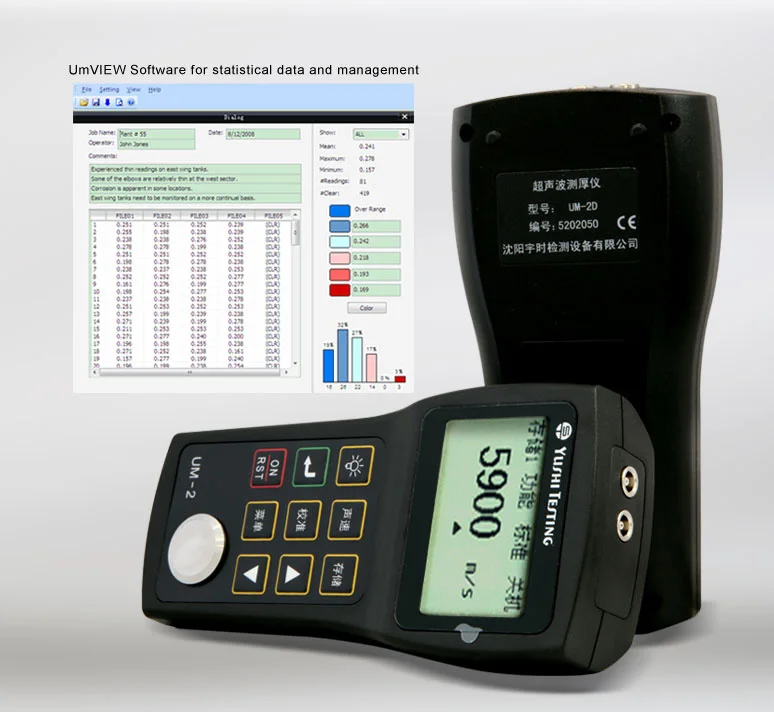

| Application Software | UmView Software for transmission,storage,analysis and documents editing (Optional) |
| Power Requirements | Two 1.5V AA alkaline batteries (Warning with low battery voltage) |
| Operating Time | Up to 200 hours with alkaline batteries (without backlight) |
| Instrument Shut-off | AUTO OFF after 5 minutes of inactivity |
| Operating Temperature | -10 °C to +50 °C , -20 °C in special requirements |
| Size | 149mm X 73mm X 32mm(H X W X D) |
| Weight | 210g including batteries |
Optional Accessories
| High-temperature probe | Castiron Probe | Small Tube Probe | Fingertip Probe | Proble Cable |
| Step Calibration Block | Application Software | Data Transmission Cable | Rubber Sheath | Couplant and High-temperature Couplant |
Other Optional Probes

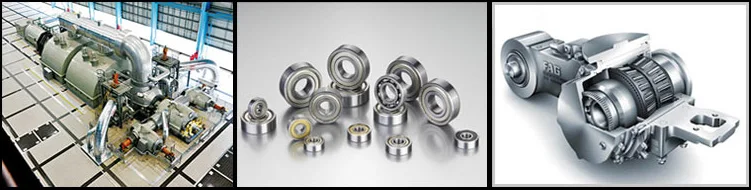

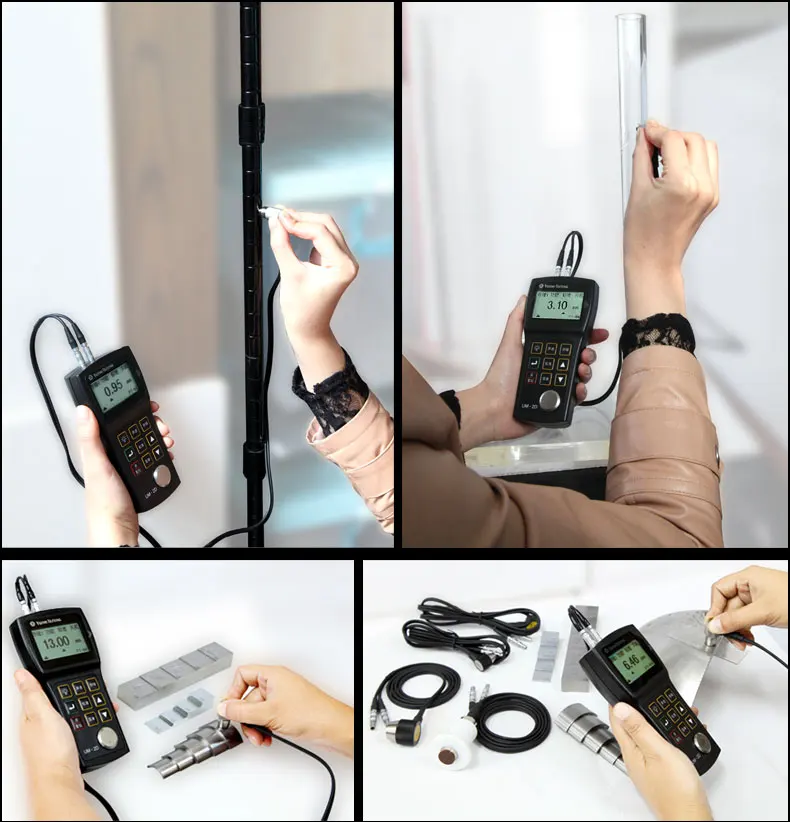

Actual Application
Packaging
Standard Delivery
| Name | Quantity |
| Main Unit | 1 |
| Probe | 1 |
| Battery | 2 |
| Couplant | 1 |
| Carrying Case | 1 |
| Operating Manual | 1 |
|
Software |
1 (Optional) |
♥Kindly Reminder♥: Without Battery and Coupant if By Air Transportation.**
Product Application
UM series ultrasonic thickness gauge made by our factory is a simple-to-use, highly accurate and hand-held ultrasonic thickness gauge with the ultrasonic measuring principle. This instrument can be widely used in the fields such as manufacturing, metal processing, chemistry and business inspecting for measuring the thickness of all sorts of materials where ultrasonic wave can spread through with a constant speed and get the reflection from the back side. Apart from making accurate measurement on various kinds of plates and processing components, it can also make detection on various kinds of pipes and pressure containers of the manufacturing facilities about their thickness loss after corrosion. It’s the necessary specialized instrument for material protection.
