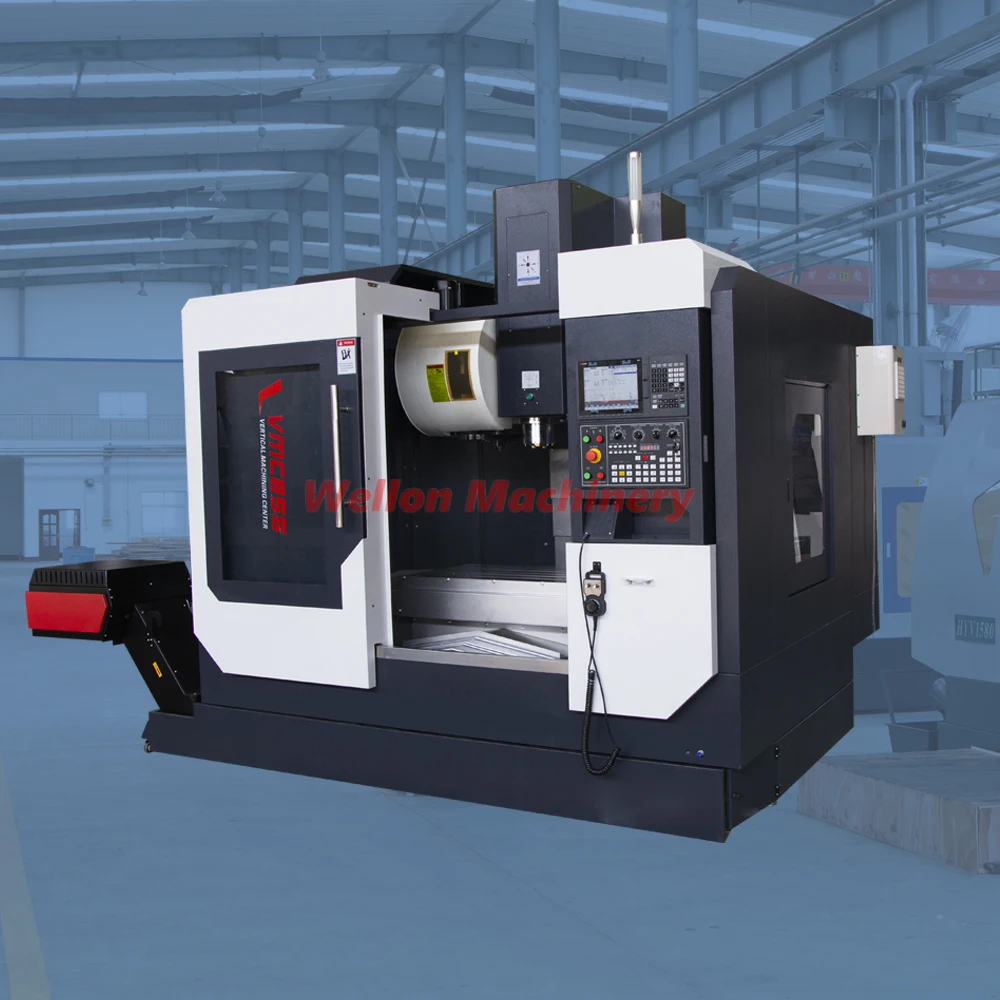

Vertical Machine Center /CNC Milling Machine VMC850 VMC855
- Category: >>>
- Supplier: Tengzhou Wellon Machinery Co. Ltd.
Share on (60366644057):
Product Overview
Description
Product Details
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;

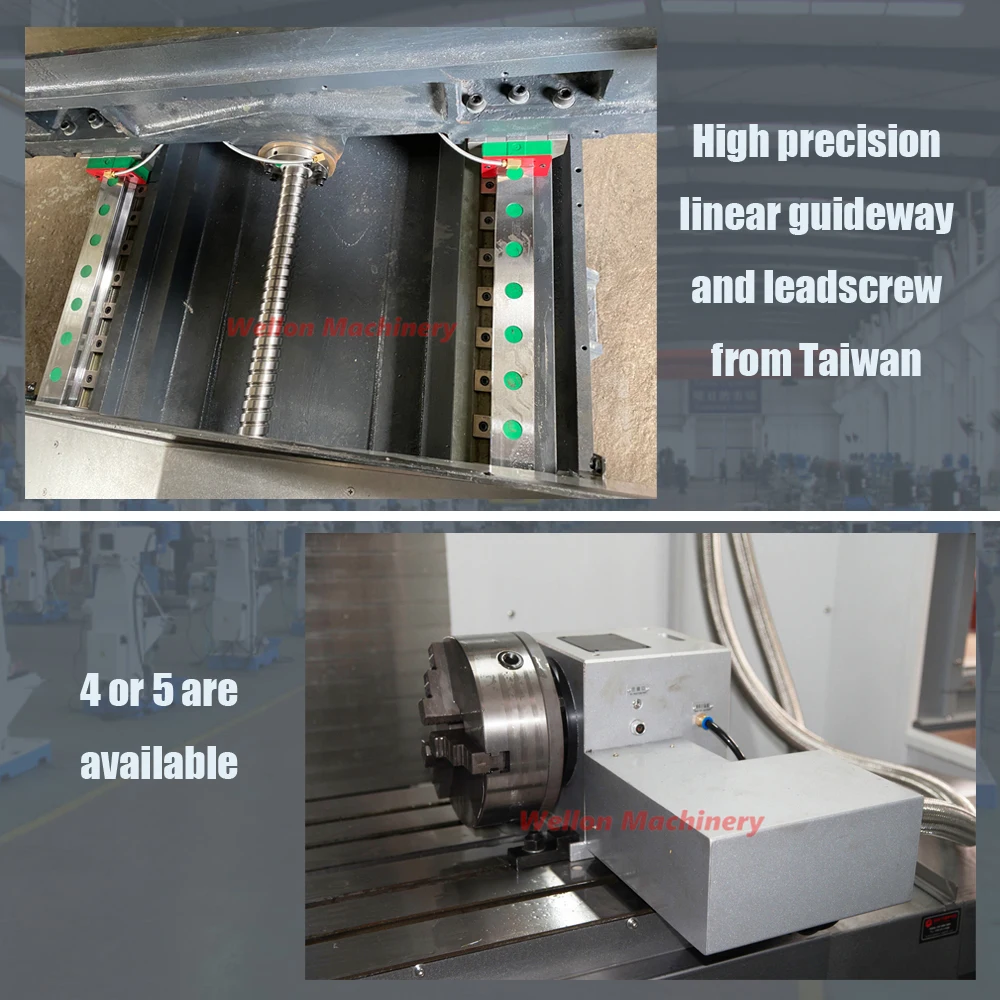

4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan

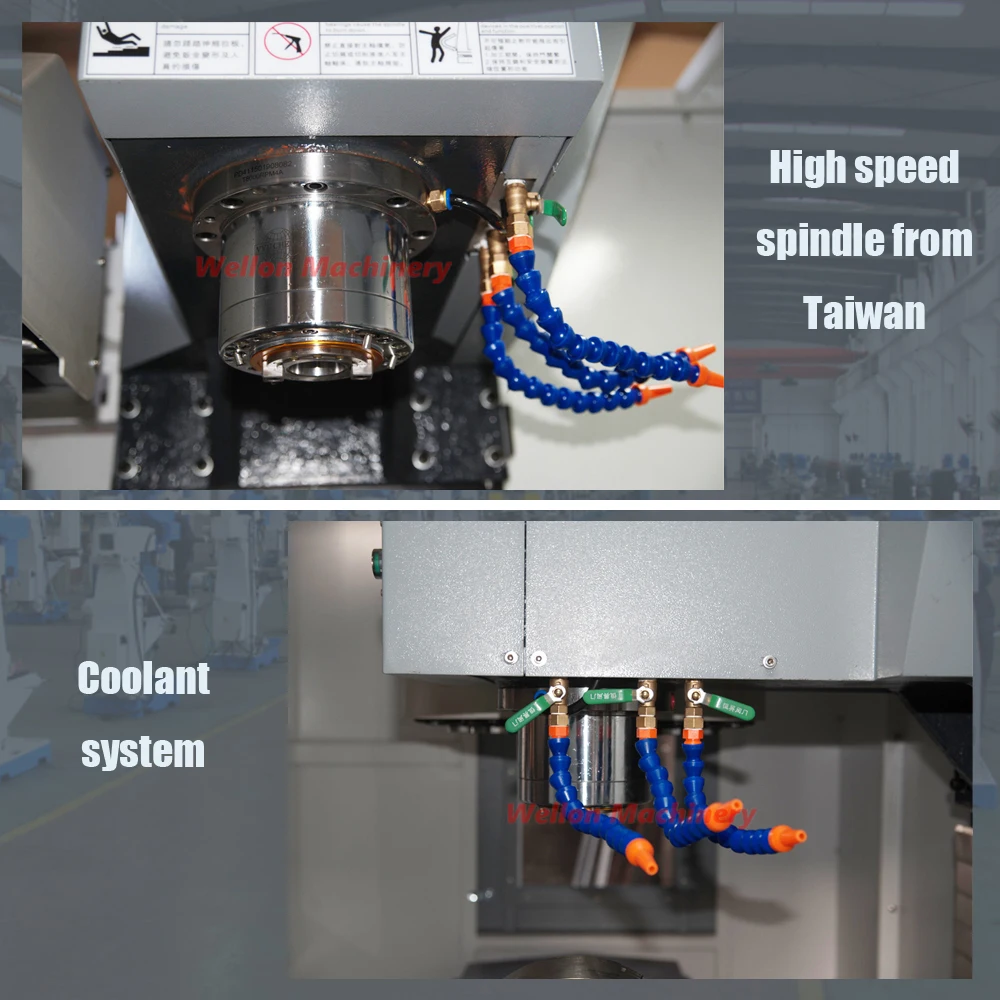

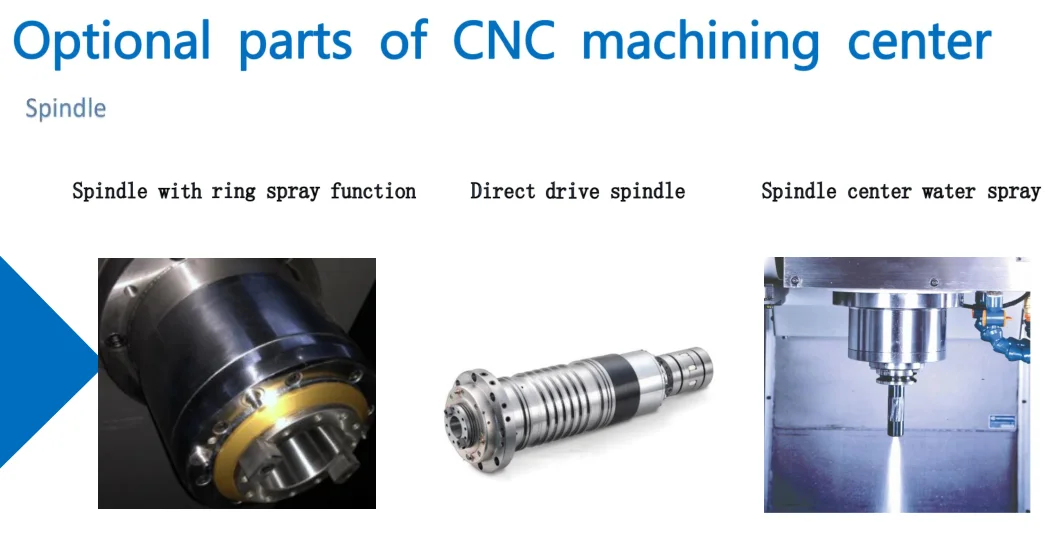

6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;

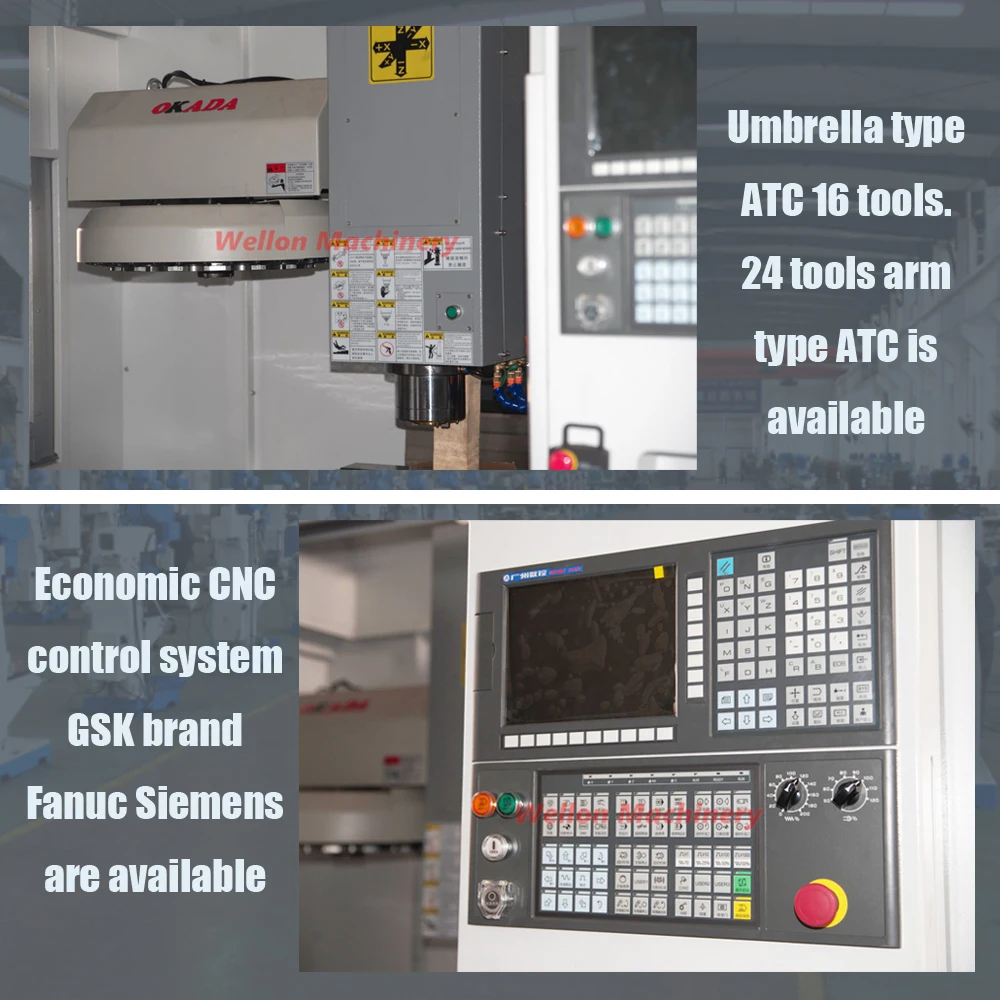

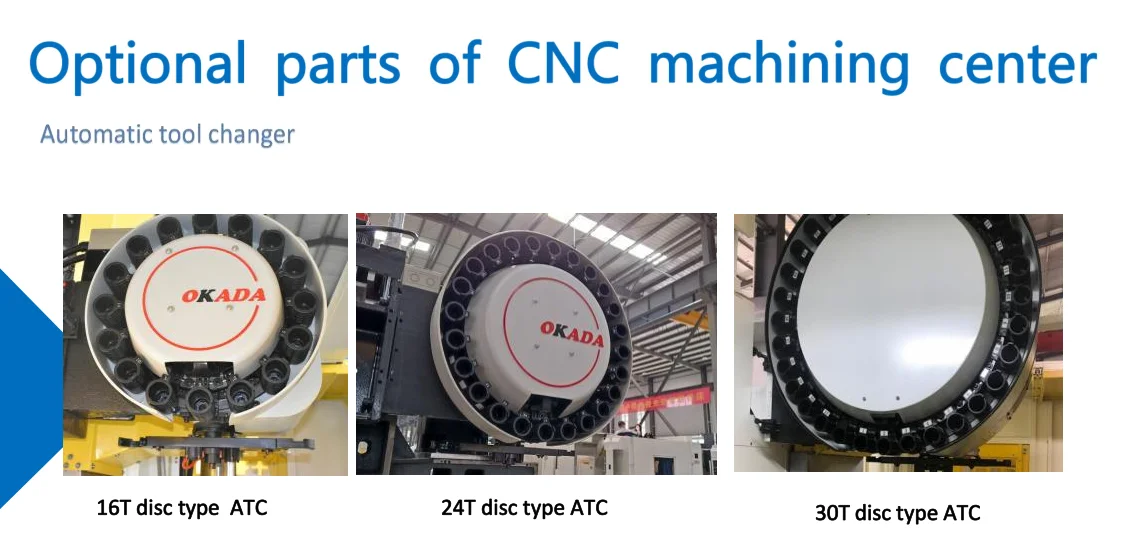

8. Taiwan ATC, umbrella type and disc type both are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as optional;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB interface;
18. Manual pulse generator (MPG);

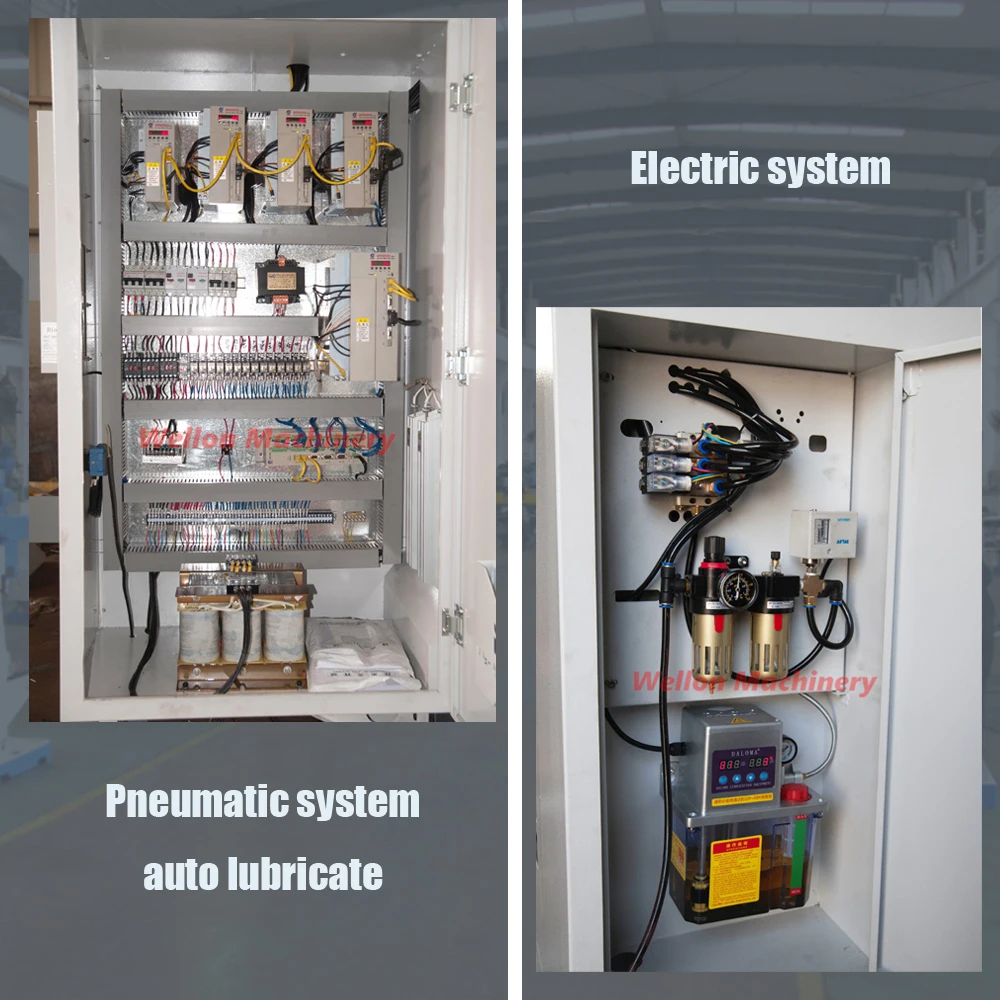

19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Air gun+Water gun;

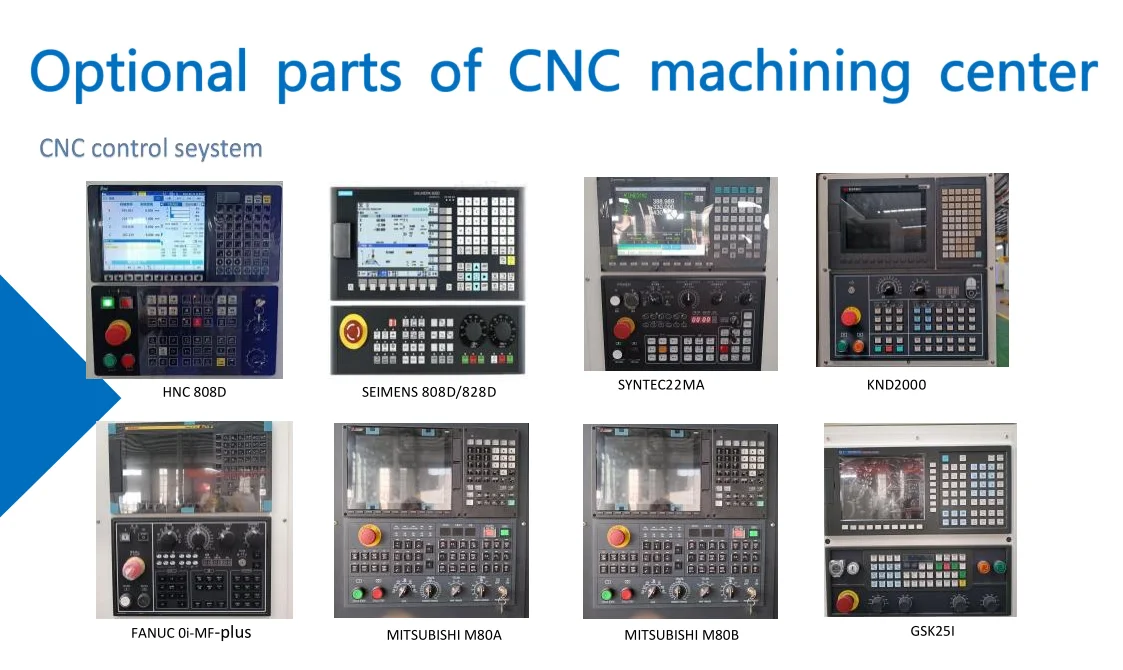

24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Item | Unit | VMC850 | VMC855 |
X axis travel | mm | 800 | 800 |
Y axis travel | mm | 500 | 550 |
Z axis travel | mm | 500 | 550 |
Spindle nose to worktable | mm | 150-650 | 150-650 |
Spindle center to column | mm | 550 | 550 |
Leadscrew diameter X,Y,Z | mm | Φ40 | Φ40 |
Linear guideway width X,Y,Z | mm | 35/35/35(Roller) | 35/45/45(Roller) |
Worktable Length | mm | 1000 | 1000 |
Worktable width | mm | 500 | 550 |
Max loading capacity | kg | 500 | 600 |
| 5*18*90 | 5*18*90 | |
Spindle taper |
| BT40-150 | BT40-150 |
Spindle speed | rpm | 8000 | 8000 |
Main motor power | kw | 7.5/11 | 7.5/11 |
Fast moving speed (X/Y/Z) | m/min | 36/36/30 | 36/36/30 |
Cutting speed | mm/min | 1-10000 | 1-10000 |
Feed motor torque | N/M | 12/12/22 | 12/12/22 |
Feed motor power | kw | 2.0/2.0/3.0 | 2.0/2.0/3.0 |
Capacity | pcs | Arm type 24 | Arm type 24 |
Max tool diameter | mm | 120 | 120 |
Max tool weight | kg | 8 | 8 |
Max tool length | mm | 300 | 300 |
Positioning accuracy | mm | 0.008 | 0.008 |
Repeat accuracy | mm | 0.005 | 0.005 |
Length | mm | 3000 | 3000 |
Width | mm | 2300 | 2300 |
Height | mm | 2900 | 2900 |
Weight | kg | 4500 | 5400 |
