5MP 500X Optional 1000X 2000X Long Focus Lenses Infrared UV LED Light Handheld USB Digital Video Microscope With Z008 Stand

Share on (60366755264):


Price:RUB 11,960.36

Quantity:


Product Overview

Description

5MP 500X Optional 1000X 2000X Long Focus Lenses Infrared UV LED Light Handheld USB Digital Video Microscope With Z008 Stand

Product Description

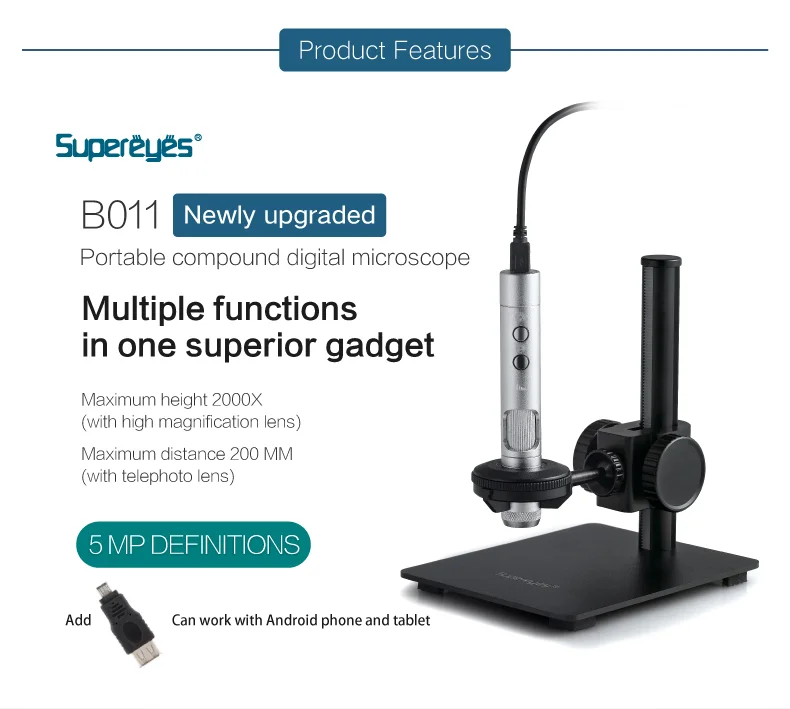

   Supereyes B011 is an innovative USB microscope with interchangeable lens and light source to satisfy your various demands.It has 5MP image sensor to provide vivid high definition image quality and maximum 2000X magnification with lens L2000.

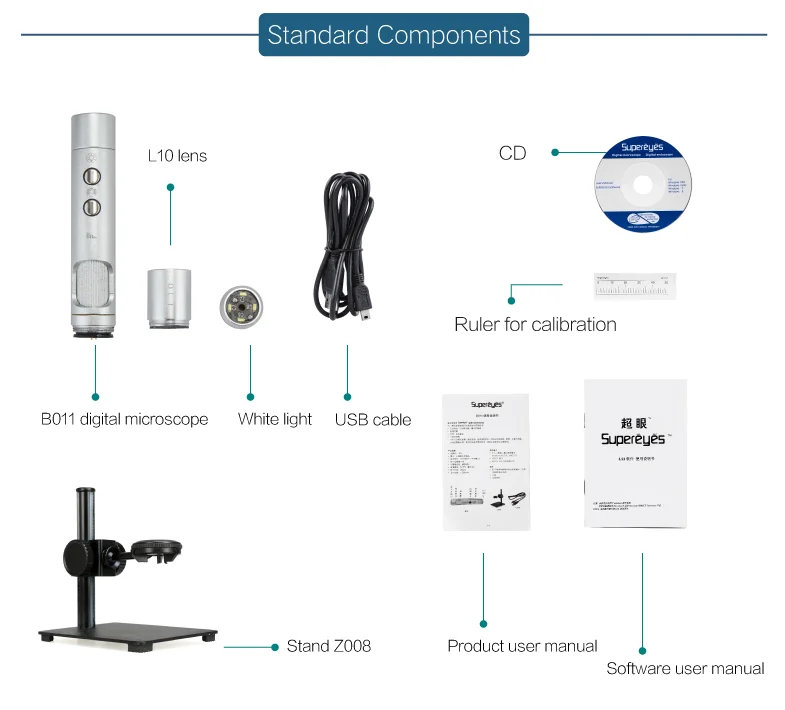

  Standard set includes

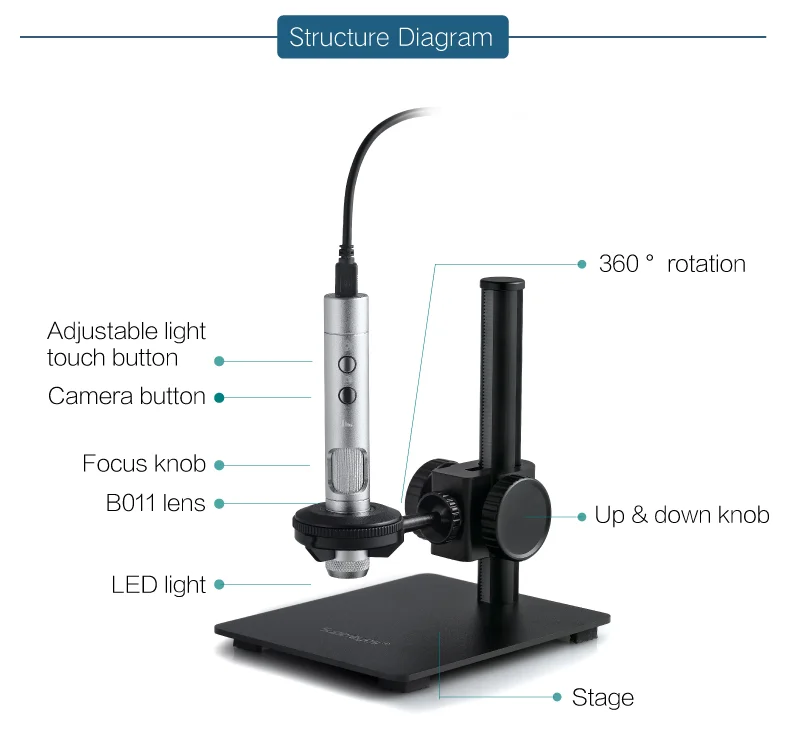

  • A microscope body with light adjustment and photo buttons.
  • A precision adjustable stand, which can go up and down. The microscope can be adjusted any angle freely.
  • A lens L10 (500X) for most general observation purposes.
  • A white LED light source.

Supereyes B011 has 4 optional lens for different purposes

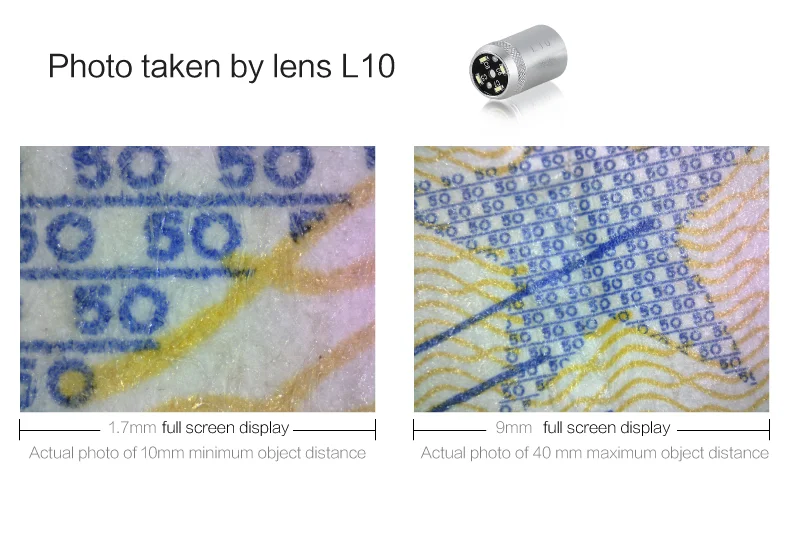

  • L10, included in this standard package. 10X ~ 500X magnification. Object distant, 10 ~ 40 mm.

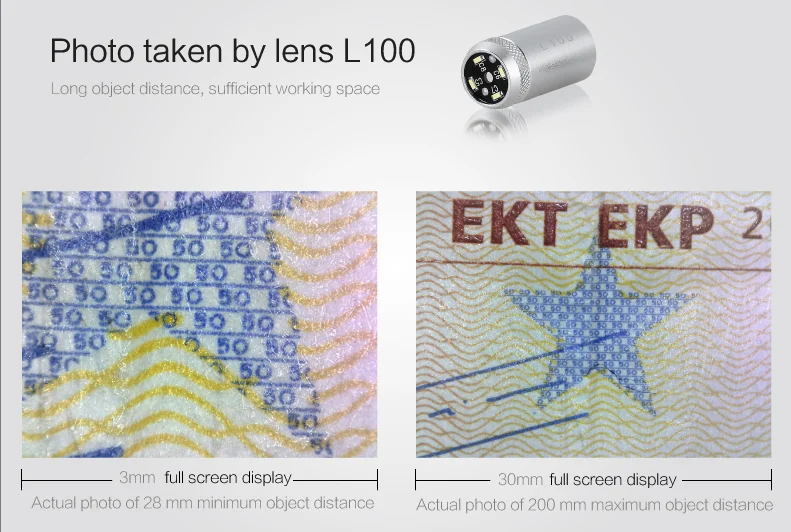

  • L100, purchase separately. 30X ~ 500X magnification. Object distance, 30 ~ 200 mm.
  • L1000, purchase separately. 500X ~ 1000X magnification. Object distance, 8 ~ 9 mm.
  • L2000, purchase separately. 1000X ~ 2000X magnification. Object distance, 1.5 ~ 2 mm.

Supereyes B011 has 5 types of light sources for different requirements

  • Model DR01, Universal Spotlight, only compatible with lens L10 and L100.
  • Model DB03, Infrared light, only compatible with lens L10 and L100.
  • Model DB02, UV light, only compatible with lens L10 and L100.
  • Model DA01, dark field light, only compatible with lens L10 and L100. For observing the outline of a subject.
  • Model DP01, Polarizer, compatible with lens L10 and L100, L1000 and L2000. For isotropic substances such as fibers, liquid crystals and crystals.



Notice, all the light sources listed above are optional, and needs to be purchased separately.

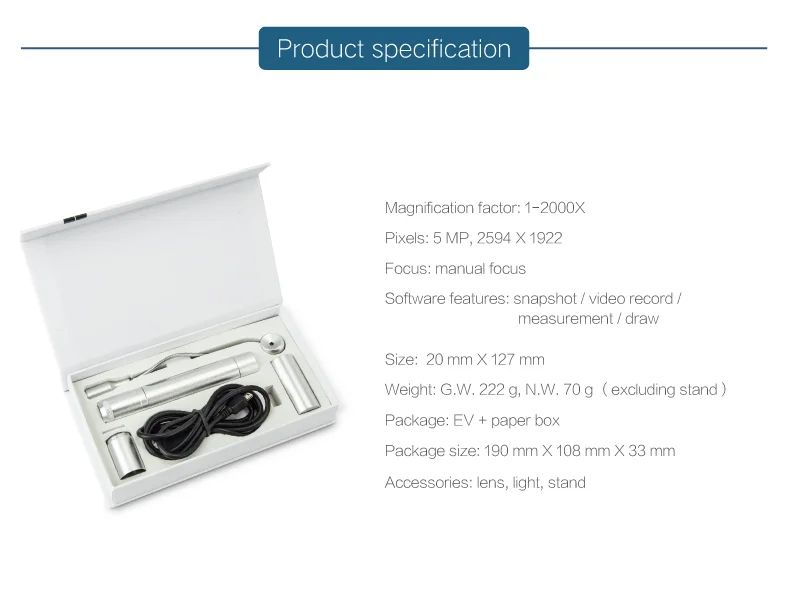

Product parameters:

Model B011 Series
Focus Manual Focus
Magnification 1 — 2000X (continuous zoom)
Sensor 5.0 MP
Object Distance 0.5 mm — 300mm
Pixels 2592 * 1944, 2048 *1536, 1600 * 1200, 640 * 480
Video Resolution Max 1600 * 1200
Photo Format JPEG, BMP
Light Source Adjustable LED lights
Video Format WMV, DZC
Material Aluminium Alloy
Product Size 17 mm * 126 mm
Package Size 19 cm * 13 cm * 7 cm
Port USB 2.0
Gross Weight 370 g
N.W. 100 g
Warranty 1 year
OEM/ODM Acceptable
Small quantity order Acceptable

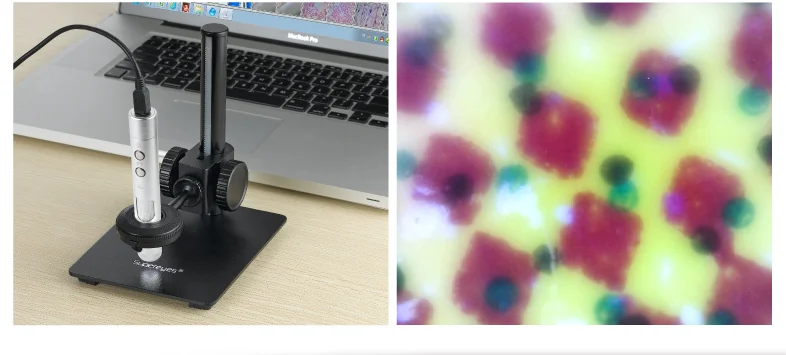

Product shows


Precautions:

  1.  Please do not touch lens and other optics, otherwise, product performance may be  influenced;
  2.  Please do not disassemble product to avoid danger and product damage;
  3.  Please use and store it under this environment, temperature: O°C ~ 40°C; humidity: 45% ~  85%;
  4.  In case of dropping tiny object or liquid into microscope,  please disconnect the USB cable  immediately and send product to  maintenance center for quality inspection and repair
