1) Microprocessor Control system,LCD crean,friendly menu interface,multiple units interaction control.
2)The pressure valve, with a most reliable valve to insure the required pressure by oil circulation in the compression system and to stop the gas from flowing backwards.
3)Air exhaust over top,Cooling air in haied from the low lateral part of the unit and the hot air is discharged from the top of the unit with the heat was take off fast away,furthermore the hot air is discharged from the top the unit to allow convenient recycle and reuse of heat.
Specification:
Model
WJF-10A
WJF-15A
WJF-20A
WJF-25A
WJF-30A
WJF-40A
WJF-50A
WJF-60A
WJF-75A
Capacity/Discharge Pressure (m3/min) / (Mpa)
1.2/0.7 1.1/0.8 0.9/1.0 0.7/1.2
1.6/0.7 1.5/0.8 1.3/1.0 1.1/1.2
2.5/0.7 2.3/0.8 2.1/1.0 1.9/1.2
3.2/0.7 2.9/0.8 2.6/1.0 2.2/1.2
3.8/0.7 3.6/0.8 3.2/1.0 2.8/1.2
5.2/0.7 5.0/0.8 4.5/1.0 3.8/1.2
6.8/0.7 6.2/0.8 5.6/1.0 4.9/1.2
7.3/0.7 7.0/0.8 6.0/1.0 5.6/1.2
10.0/0.7 9.1/0.8 8.5/1.0 7.6/1.2
No.of compression stage
single stage
Ambient temprerature
-5--+45℃
Cooling Model
Air --Cooling
Discharge temperature (0C)
Ambient temperature+15℃
Lubricant (L)
18
30
65
Noise Level (Db)
64±2
62±2
68±2
Drive method
Belt Driven
Electricity (V/ph/Hz)
380/3/50
Power (KW)
7.5
11
15
18.5
22
30
37
45
55
Starting method
Y-Starter
Dimension (L*W*H mm)
900×800×1100
900×800×1100
950×800×1130
1150×900×1350
1300×1000×1470
2100×1250×1700
Weight (kg)
240
440
450
620
650
950
1060
1200
1880

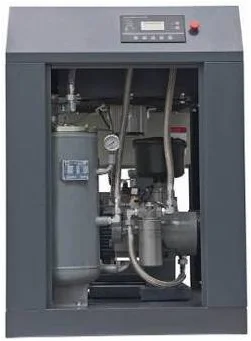

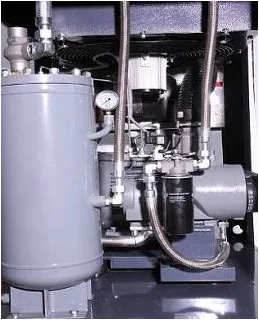

Photo:
Packaging & Shipping
Packing details: wooden case
Shipping details: 30 days
Our Services
1.15 moths warranty
2.24 hours online service
3.Oversea engineers team, can supply the professional technology support.
4.Delivery in time
