Show Available parking space number/the number of parking lot empty and full Digit LED Sign board for parking application

Product Overview

Description

Show Available parking space number/the number of parking lot empty and full Digit LED Sign board for parking application



4 digits LED Display sign board for parking management system which show parking space numbers.



1. Housing
Serial	Name	Specification	Remarks
1	Housing Size	400*165*45mm	8.8.8.8.
2	Digit number	4 digit 8,like 8.8.8.8.
3	AC Power	AC220V
4	Paint Work	black color,not easy to fade
2. Parameter
Serial	Name	Remarks
1	Pixel	9mm
2	Pixel of LED	144
3	LED	semi-outdoor LED module
4	LED Quantity	35pcs/digit,144pcs/total
5	Resolution	Static
6	LED Brightness	>800cd/m2
7	Driver for scaning	static
8	LED view angle	70°
9	LED View Distance	about 1-30m
10	Voltage	AC11OV-240V
11	Power	12v
12	Max Power	30w
13	Temperature	-35℃~ +85℃
14	Humidity	≤90~95%
15	Weight	2.0kgs
16	LED PCB size	36*12.2cm
17	display size	32*12cm

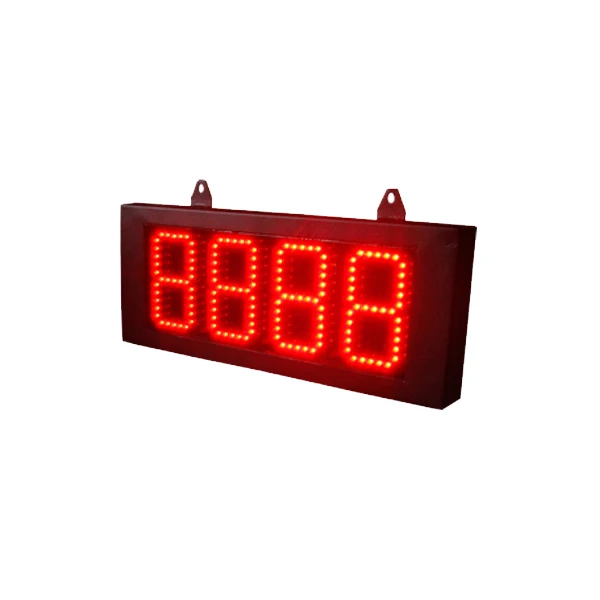

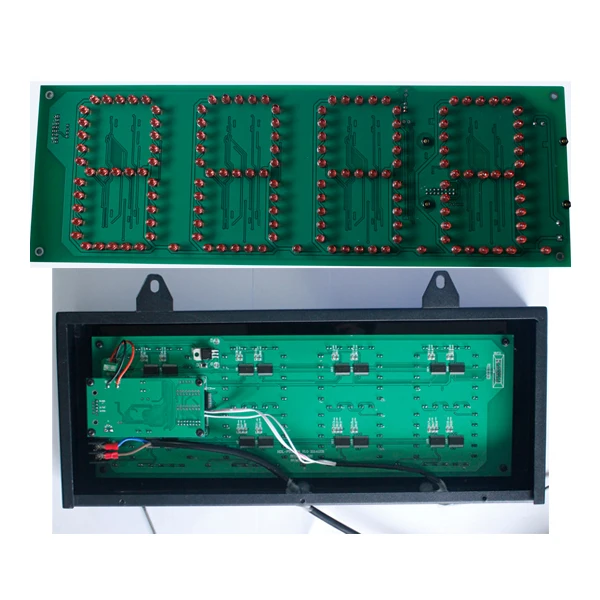

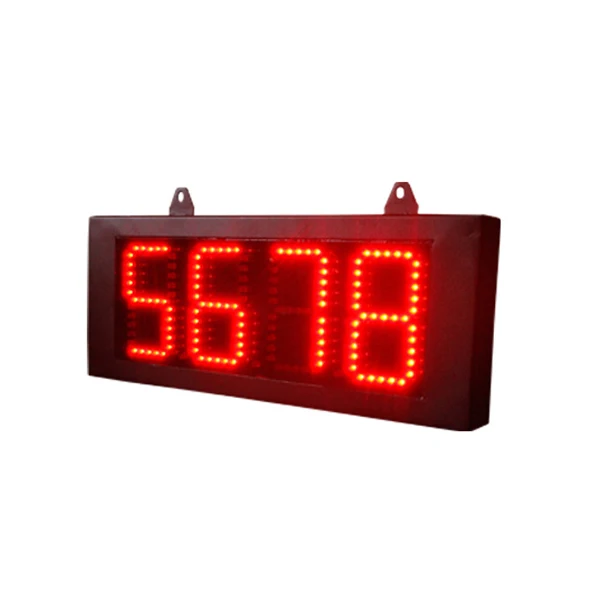

Pictures for reference
