14 inch Intel i3/i5/i7 series industrial downward portable computer all in one rugged laptop
- Category: >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (60367006830):
Product Overview
Description
14” Upward Portable Industrial Computer
Product Description
Main feature:
•14” Upward Portable Industrial Computer
•Aluminum-Magnesium Alloy Chassis
•14”TFT LED, with 1366 x 768 resolution
•Integrated with 88keys keyboard,Touchpad
•Support 2.5” HDD,SSD driver
•WIFI/Touch Optional
Introduction:
PIP614 is a Upward industrial portable computer, which offers at most 2 expansion slots and integrates with high brightness LED, Aluminum Magnesium Alloy chassis. It can adapt to any complicated environment and it also offers cost-effectiveness, permanent, multi-functional standard platform for portable computers.
Specifications:
Material | Industrial dual Al-alloy | |
Motherboard | Supports MINI-ITX Motherboard Installation Space left(Optional) | |
CPU | Supports CPU ATOM D2550/N2800 or Socket LGA1155/1150/G2 988 Intel Core i7/i5/i3 Series(Optional) | |
Chipset | Supports Intel NM10/Q67/Q77/Q87 Chipset (Optional) | |
Display | 14″ TFT LED ,300nits(Optional) | |
Resolution | 1366(W) x 768(H)(Optional) | |
Memory | Supports 2GB/4GB/8GB(Optional) | |
Storage | SATA SSD/HDD(Optional) | |
Speaker | 2*speaker, 2W(Optional) | |
Expansion slot | Supports 2 x PCI/PCIE expansion slot(Optional) | |
Fan | 2* Fan | |
DVD±RW | Supported (Optional) | |
IO | 2 x LAN | |
1 x RS232(2~4 RS232/485 Optional) | ||
1 x DVI,1 x HDMI | ||
4 x USB | ||
1 x Audio | ||
Hard/Disc driver | 1*2.5”HDD Driver | |
Keyboard | Ultrathin 88keys | |
Touch pad | Supported | |
Touch | Supported (Optional) | |
Battery | Internal Smart Lithium Polymer battery,6000mAH (Optional) | |
In Front Control | 1 x Power button,1 x Lock button | |
Operating System | WES7-WS7P,Win7 pro, Win 8, Linux etc | |
Mechanical Shock | 10G@11ms 30G@11ms | |
Vibration | 0.4Grms(10~500Hz) 1.12Grms(10~500Hz) | |
Power Supply | DC12V or DC19~24V Power input | |
Dimension | 382mm x 273mm x 79mm | |
Net Weight | 5.5Kg | |
Gross Weight | 8.5Kg | |
Operating temp | -10°C ~+60°C | |
Storage temp | -20°C ~+70°C | |
Humidity | 10~90% condensing 5~95% non- condensing | |
Certifications | CE,FCC | |

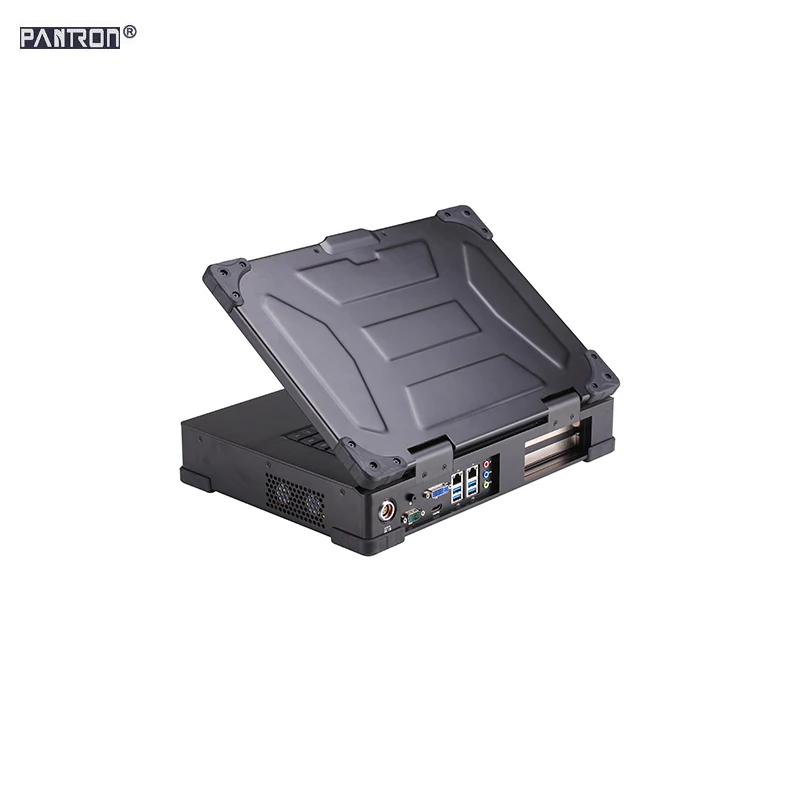

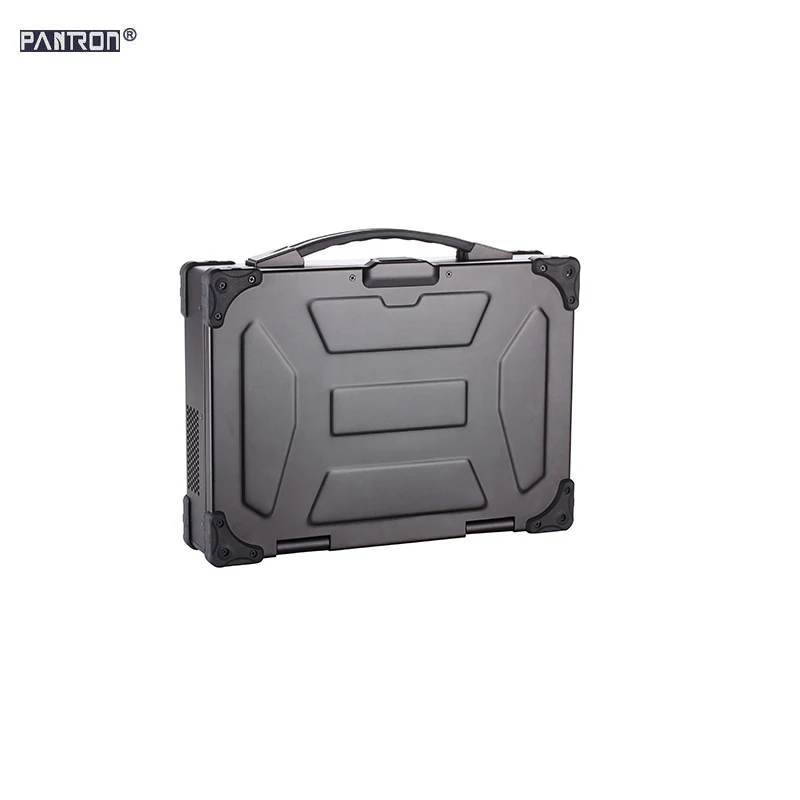

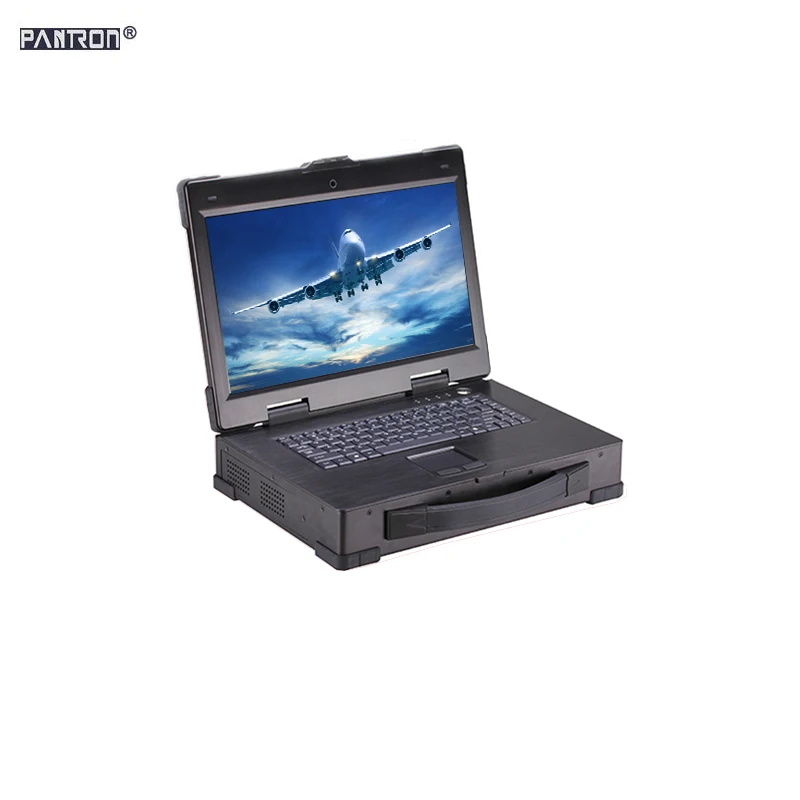

Product pictures:
Odering information:
PIP- 614 | 14" Industrial Upward portable Computer, W/14” TFT LED/Keyboard/Touch pad/DC19V 90W/MINI ITX Motherboard/CPU I5 2.5GHz/Memory 4GB/500GB HDD |
Company Information
Shenzhen Pontron Technology Ltd we have dedicated in Industrial panel pc,Industrial LCD monitor,KVM, Industrial BOX pc,workstation,Mini pc in the worldwide market for 10 years. our products has the CE/EMC/FCC/ROHS certificate and the customers are all over the world.especially in USA, Europe, Australia and Asia.
Our dedicated team of engineers, production specialists, and administrative staff provide the best quality products available on the market.
We pride ourselves on our expertise in producing customized products. Through ODM/OEM production, you are assured of designs which will meet your exact specifications. Our innovative ideas in manufacturing which will make your products a leading seller on the market. this results in short period of develpoment time for projects.
In PONTRON, we have a qualified working team which includes senior level mechanical and electronic R&D engineers, OEM product/sales manager, ISO 9001 trained manufacturing personel, and an efficient logistics department. we have an average age of 30 years old, and the average working experience in the industrial computer field is more than 7 years.
PONTRON, is committed in prooviding quality, innovative products and technical support to our customers in a very cost effective manner. we like to grow with our customers.we believe customer satisfaction is the key to our growth and success. we work for your needs and your satisfaction is guaranteed.
