BOPP/PE/PET/PVC Film Roto Gravure Printing Machine
- Category: Rotogravure Printing Machines >>>
- Supplier: Ruian Jinshi Machine Co. Ltd.
Share on (60367074108):
Product Overview
Description

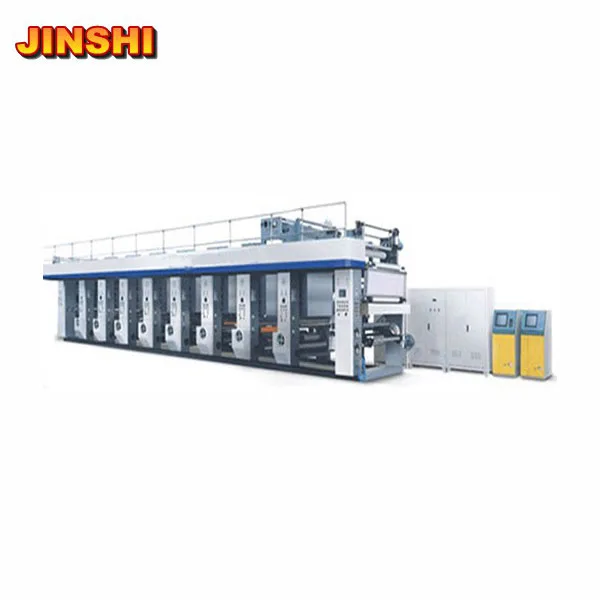

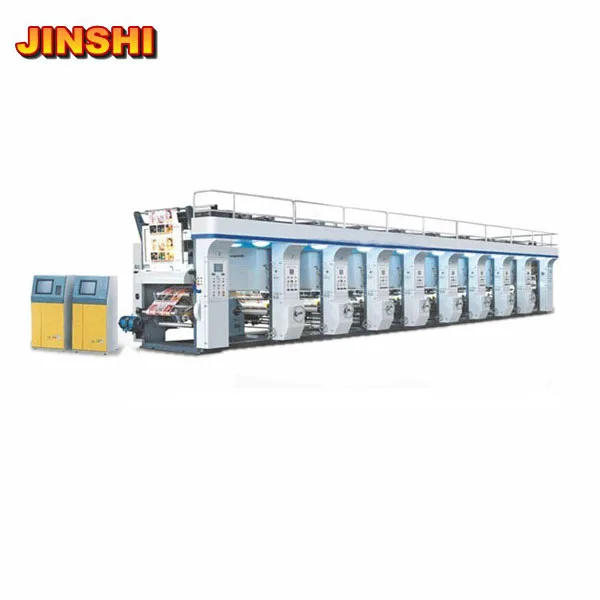

Rotogravure Printing Machine 5 Color600mm (Jinshi Machine)
Product Description
Printing material
PVDC | 35-60micron | PET | 12-60micron |
OPP | 20-60micron | BOPP | 15-60micron |
PE | 30-100micron | Nylon | 12-50micron |
CPP | 25-60micron | Composite film | 15-60micron |
Cellophane | 20-30micron | PVC | 30-60micron |
Paper | 30-80gsm |
| |
Main parameter | |
Direction | From unwind to rewind |
Printing colour | 4 |
Max printing width | 800mm |
Max machinery speed | 100m/min |
Max printing speed | 10-80m/min |
Diameter of printing cylinder | Φ120mm-Φ300mm |
Precision of register | Vertical ±0.12mm(Auto ) Horizontal ±0.15mm(Manual) |
Max.Dia.of unwinding&rewinding | ø650mm |
Air Supply | 0.8Mpa |
Tension Range | 5-30Kg |
Tension Precision | ±0.3Kg |
Machine Overall Dimensions | 15500x3200x3000mm |
Machine Weight | About 7.2Ton |
Electrics | CHNT brand |
Motors | Gongtai brand in Shanghai |
Pneumatic Element | From Kaogeer Element Co. |
Inverter | Huichuan brand from Shenzhen |
Machine Structure & support plate | Alloy casting of high strength and low stress |
Detailed Images
Packaging
After-Sales Service
1- We provide 24 hours call service-- 0086-18815155383
2- We can provide you skillfull knowlege on the machines.
3- Our engineers are available to install and test your machines at any time if requested by the customers.
4- All machines will be examined and tested before shipment.
5- All of our machines are with CE certification.
6- We have already exported to Vietnam, India,Indonesia,Kenya,Egypt,Russia,Turkey etc.
7- Guarantee: 1 year, long life service.
