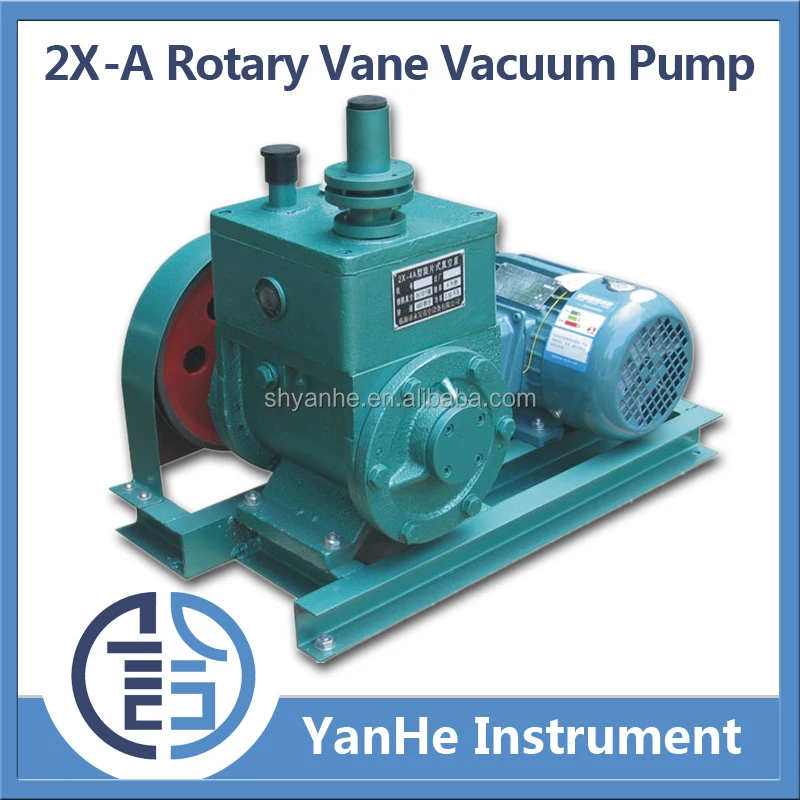

2X 4A High pressure rotary vane silent vacuum pump for Neon lights
2X-4A High pressure rotary vane silent vacuum pump for Neon lights
2X-4A High pressure rotary vane silent vacuum pump for Neon lights

2X 4A High pressure rotary vane silent vacuum pump for Neon lights

Share on (60367130416):


Price:

Quantity:


Product Overview

Description


2X-4A High pressure rotary vane silent vacuum pump for Neon lights

Product Description



tile

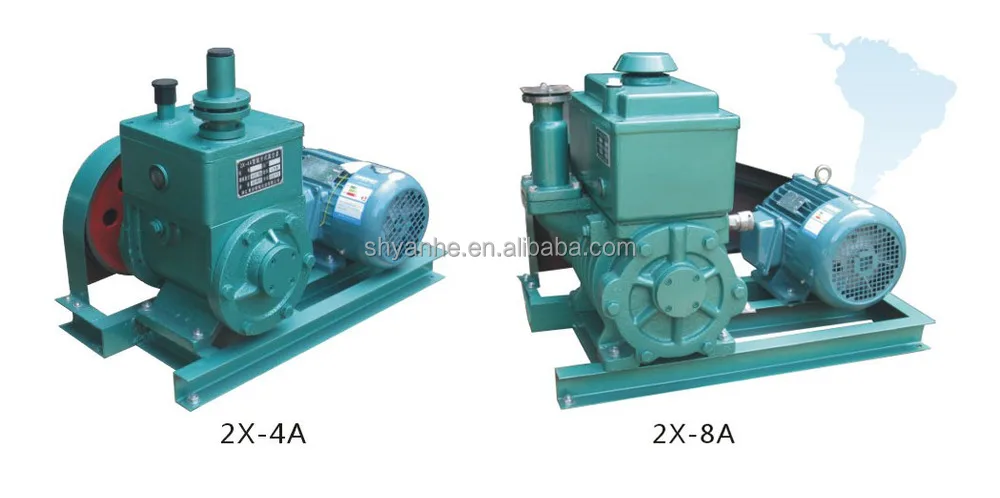

value vacuum pump oil,silent vacuum pump.jpg



2X-A series rotary-vane vacuum pump

This series of pump can be directly from the air start pumping, it can be used alone, can also be used as booster pumps, roots pumps, gas circulation cooled roots vacuum pump, oil diffusion pump, molecular pump, maintain the pump, titanium pump vacuum pump. For vacuum coating, vacuum heat treatment, vacuum metallurgy, electron tube, bulb, chemical, packaging, plastic forming, photovoltaic, industrial and mining enterprises of the distillation, drying, freezing, filtering, and vacuum operation.







1,features

A, this pump can be in the range 5-40 DEG C and an air inlet pressure < 1.33× 103Pa conditions, allowing continuous operation;





B, a gas valve, can be drawn in addition to a small amount of water vapor, prolong the pump oil using time ( except 2X-4A );

C, neon manufacturing special vacuum pump, single crystal, polycrystalline furnace furnace, vacuum laminating machine supporting the operation.

D, can be separately used as low vacuum pump, also in combination with other high vacuum pumps as backing pumps.



Parameters/Model

2X-4A

2X-8A

2X-15A

2X-30A

2X-70A

2X-100A

Pumping speed (L/s)

4

8

15

30

70

100

Ultimate pressure(Pa)

Partial pressure

≤6×10-2

≤6×10-2

≤6×10-2

≤6×10-2

≤6×10-2

≤6×10-2

Total

pressure

≤1

≤1

≤1

≤1

≤1

≤1

Moter power(kw)

0.55

1.1

2.2

3

5.5

7.5

rotary speed(r/min)

450

320

320

450

420

360

Temperature(ºC)

≤40ºC

Noise level(dBA)

≤75

≤78

≤80

≤82

≤86

≤90

Inlet  diameter(mm)

25

40

40

65

80

90

Oil capacity(L)

1

1.5

2

3

4.2

5

Dimendions(mm)

540×335×380

790×430×540

790×530×

540

780×500×560

910×650×

700

113×740×690

Electro-vacuum differential pressure valve

DDC-JQ25

DDC-JQ40

DDC-JQ40

DDC-JQ65

DDC-JQ80

DDC-JQ100

Cooling speed(L/mm)

-

-

-

71

72

72

Weight(Kg)

64/60

158/148

202/190

230/206

338/320

400/370



                         vacuum pump kitchen,manual hand vacuum pump.jpg







Application



Neon lights


Blister molding                    Bulbs


Laminating machine

.jpg

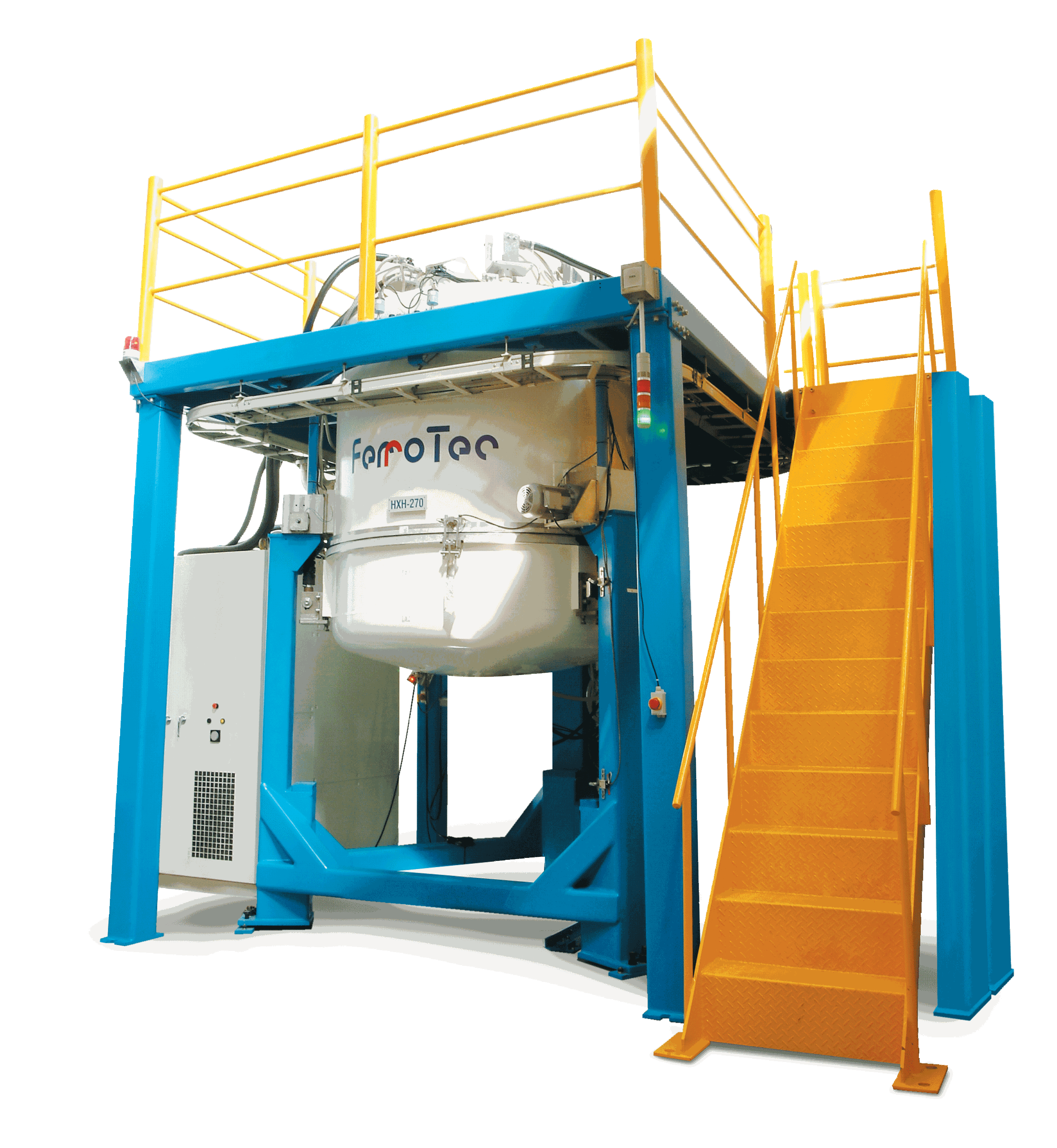

Single crystal furnace

.jpg

Polycrystalline furnace

.gif

Vacuum coating                                Vacuum coating
