2017 Centrifugal Counter clockwise Clear Water Hydraulic Water Pump with Hydraulic Motor
- Category: >>>
- Supplier: Veritas Tech (Ningbo) Co. Ltd.
Share on (60367185877):
Product Overview
Description
——————Kingdom of water truck parts
COMPANY PROFILES
Veritas Tech, registered in Texas, USA, set up its operational center in Ningbo Free Trade Zone (in Beilun Seaport, the second largest seaport in China) in year 2002.
Veritas Tech is the largest manufacturer for water truck parts in China, it designs and manufactures a full range of water truck parts, such as water pump, valves, spray heads, hose reel, control systems, water cannons, water tank and other fittings.Veritas Tech is ISO9001:2008 certificated.

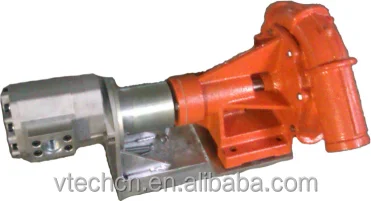

Centrifugal Counter-clockwise Clear Water Hydraulic Water Pump with Hydraulic Motor
Features:
Material: aluminum material specifically so that the water pump is light weighted and easy to manufacture
Parts: the shaft is made of stainless steel; the impeller is manufactured within the tolerance of 0.001”; the bearing and mechanical seal are of the first-class quality
Fine Property: every part within the pump is carefully designed so that they can work together well and guarantee fine property
Quiet: the water pump makes low noise during work because of our thoughtful design.
| Color | Up to the customer |
| Material | Matel |
Parameter: water pump
WP-CW ( Clockwise Direction )
Rotate Speed: 1450rpm-3000rpm
Flow Rate: ≤3000l/min / 800 gl/min
HEAD: ≤50m / 175 feet
Pressure: ≤0.5Mpa / 75psi
Inlet/Outlet Connection Type: Grooved Suction and Discharge (clamping system)
Inlet: 4.00 inches
Outlet: 3.00 inches
Outlet Angle Adjustable: (30° 45° 60° 90° 120° 180° 270° etc.)
Max. Operating Temp: 60°C (140°F)
Impeller Diameter: 230mm (9 inches)
Shaft Diameter: 31.7mm (1-1/4 inches)
Applications: Flooded Suction, Irrigation, Fire, Marine
Dimension (length x width x height) :595mm * 495mm * 48mm
Net Weight/Gross Weight: 19kg/33kg

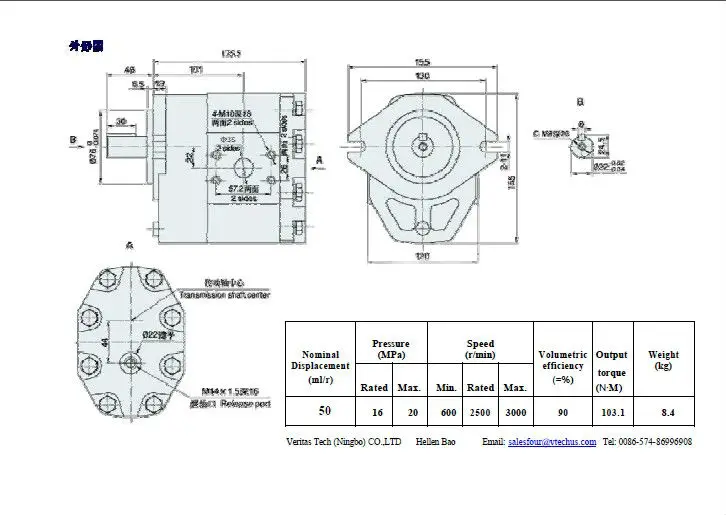

hydraulic motor parameter:
1. Nominal Displacement (ml/r) : 50
2. Pressure(MPa): rated-16; Max-20
3.Speed: Min-600; Rated-2500; Max-3000
4.Volumetric efficiency: at least 90%
5. Output torque (nm): 103.1
6.Weight (KG):8.4
SHIPPING TERMS&CONDITIONS
1.Fast Shipping from our Ningbo Factory!
2.Items shipped in 20-40 working days after payment is received depends on the quantity of the order.
3.Items(samples) shipped by UPS,FedEx,DHL,TNT and others, depending on size and weight of total order.
4.Items shipped by SEA most of time.
5.Items only shipped to address listed on the invoice; Not responsible for shipping to wrong address. Tracking number will be sent to you as soon as we ship the goods.
CONTACT US·
Website: www.watertruckfittings.com
Attn: Mark Lee
Phone: +86-574-86995053 Fex: +86-574-86995067 Mob: +86-15728006338
Address: 167-16 Lushan West Road, Free Trade Zone, Ningbo, Zhejiang,315806,China
Thank you for your interest in our company. Veritas Tech is committed to serving you.
Certification
About us
FAQ
Q:Why chose us?
A:We have many advantages, for example: 1.strong engineering sevice 2.quality assurance 3.competitive price 4.on-time delivery.
Q:What is your payment term?
A:50%T/T or wire transfer in advance to confirm the order, the balance should be paid before exit factory.
Q:What is your main market?
A: North America ; Oceania; Southeast Asia ; Eastern Asia ; Western Europe ; Eastern Europe ; South America.
Q:How about your capacity?
A:As you know, we have professional staffs and machines, and five person in charge of quality inspection. So please believe us we can deliver products as you order.
Q:Can you give me a discount?
A:As you know, we are manufactory, so please believe us our price is competitive. If the quantity is big, we can consider give you a discount.
Q:Can I get free samples from your factory?
A:Yes, samples can be free, however, you should pay freight.
Q:If products have some quality problem,how would you deal with?
A:We will responsible for all the quality problems
