hot die casting machine for making zinc alloy key ring

Product Overview

Description

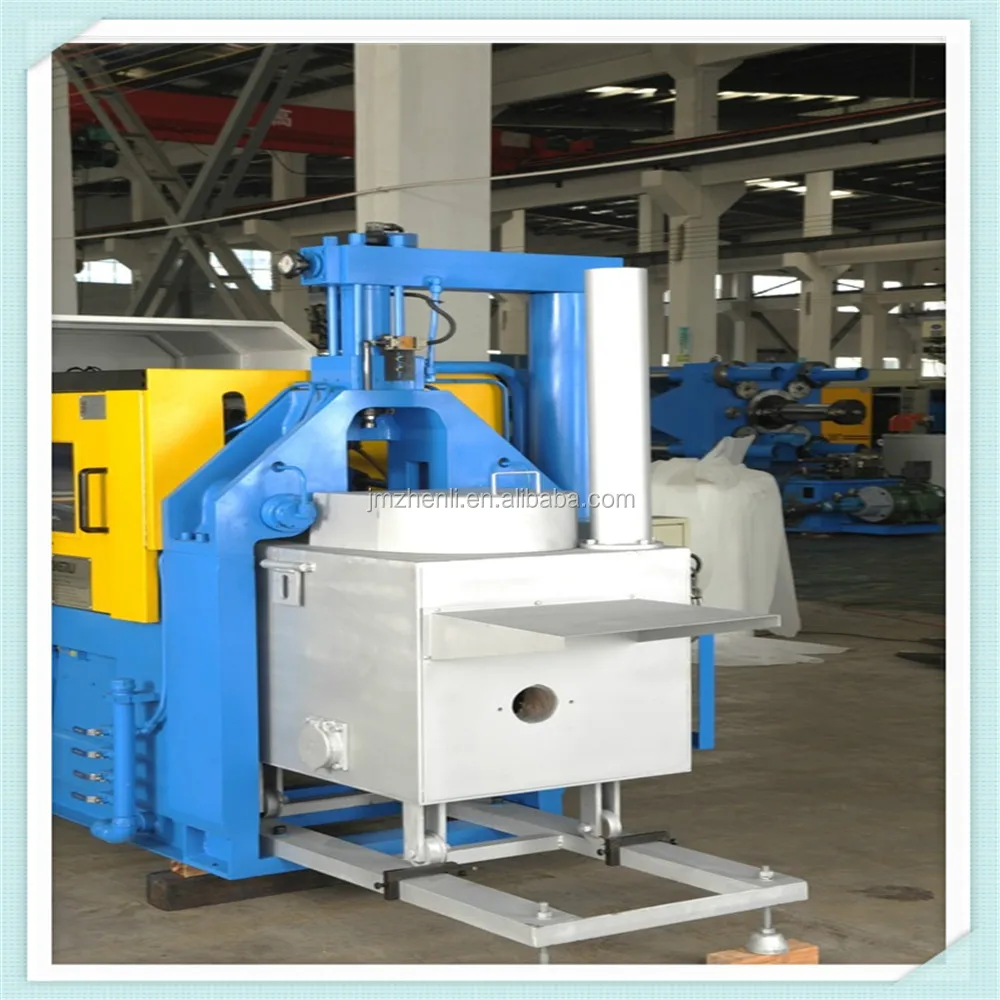

1.Nozzle,gooseneck and melting pot are specially durable since they are

   made of hot-work iron or steel .

2.Nozzle and goose neck are heated by electric heater ,safety and durable.





It keep temperature steady and avoid jamming of nozzle resulting defective products .


















the automatic Central lubrication system can directly set the

 cycle number of machine hinge for lubrication.

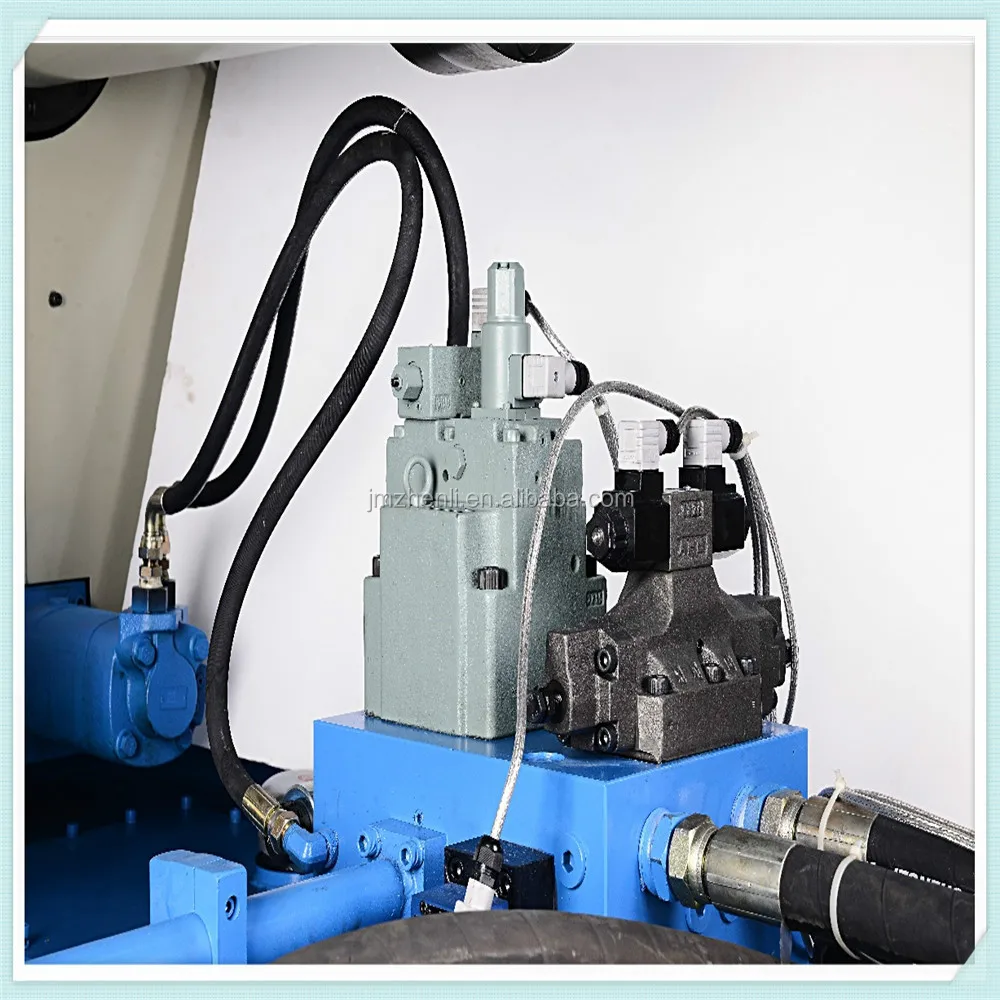

Using hydraulic part are imported from the famous manufactory around the world.It's reliable and assuring long working life.

























Specially double proportional control system.Using special 2sets proportional control of flux and pressure rsulting open and local clamping speed,also adjust arbitrarily .








































Made in Japan fully automatic pressure jet oil burner for light oil pressurized and low pressure firing with automatic safety device .




























Water-cooling type oil cooler with high cooling efficiency can maintain stable oil temperature.














LOCK CLAMPING UNIT:



1.Moving characteristic of double toggle,high S.G Iron mould platens and CNC precious process.It's firm and durable.

2.Chrome tie-bars with high tensile force,it's reeliable and durable.

3.Protection mould process with low pressure ensures the safety of moulds.

4.Uses high precision elctronic measure checking clamping to control it exactly.

5.Extra large space inside four tie-bars and mould open stoke can contain big moulds and deep cavity moulds.

6.The large clamping capability to realize thickness adjusting automatically

7.Hydraulic lift claping unit can be adjusted for injection at centre or offset positon

8.Computer hydraulic system to realize lock clalmping in 4 parts ,and make sure have protective function in low pressure lock clamping.




INJECTION UNIT

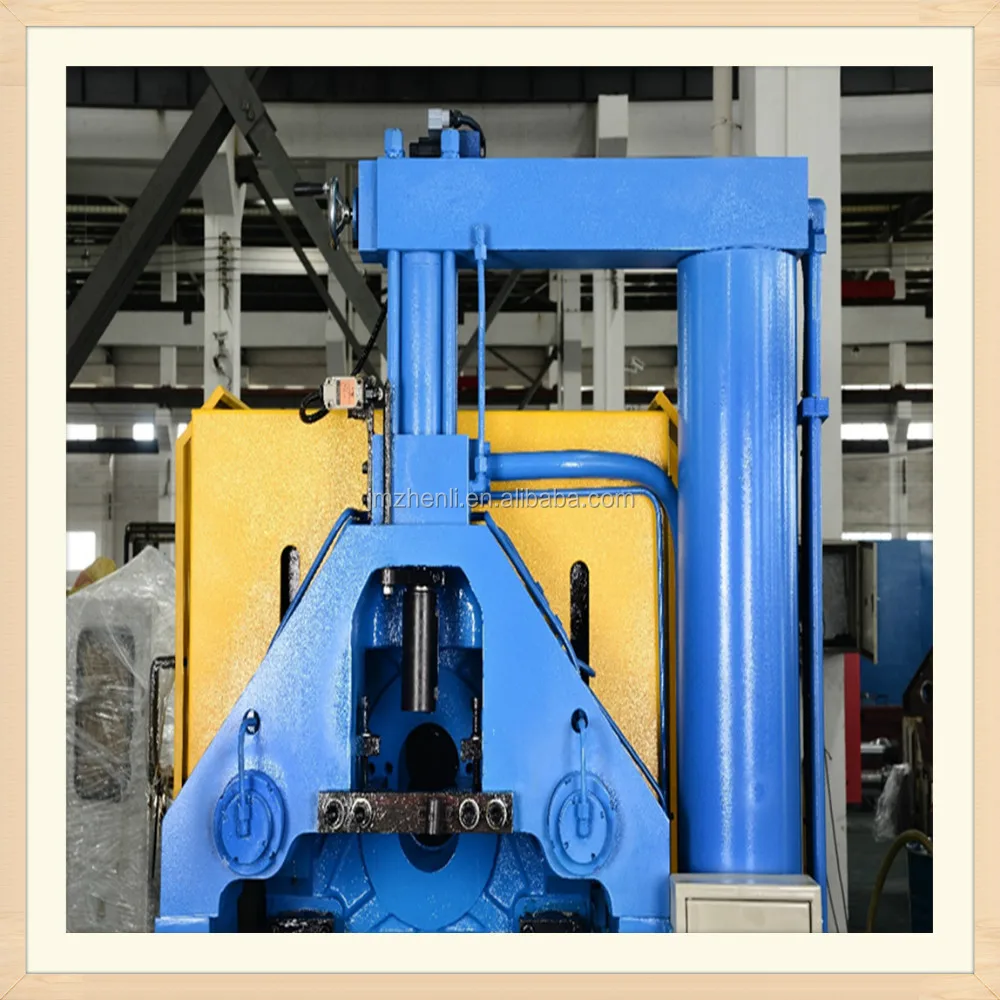

1.Piston type accumulator with a horizontal connection unit ensures lower pressure wastage and fast reaction.It realize fill speed and long life time,using steadily and convenient amendment.
2.Special new idea for two stages injection ,and scale control the slowly injection.It uses digital control speed to fit high quality casting production.



MOULD ADJUSTING DEVICE



1.The two way mould adjusting devices are machine control link and hydraulic control gear .
2.Intelligentized and automatic adjusting program to account clamping position exactly.It's convenient to change tooling and rise the efficiency.

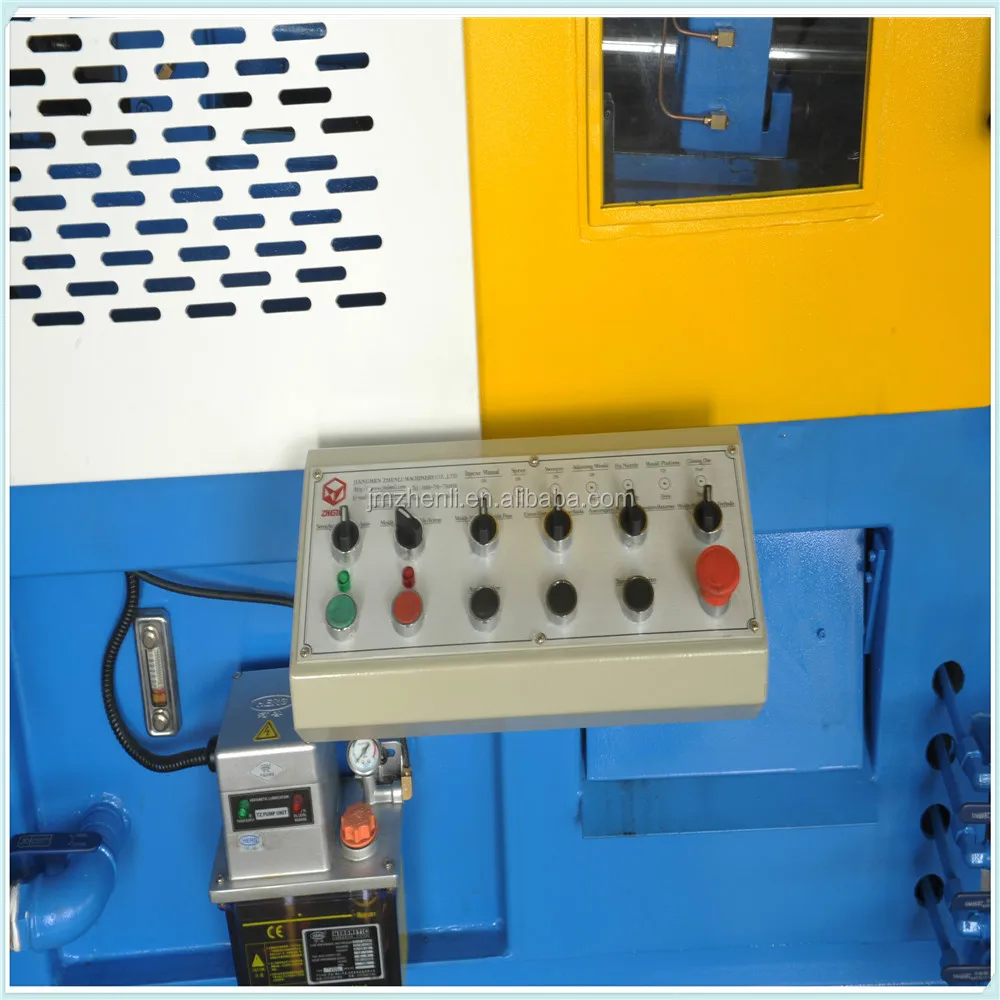

ELECTRONIC CONTROL PARTS





1.Independent electric box and holistic electric box for choosing and ensure easy arrangement from customers .

2.False intelligentized computer control to remember all the act data for convenient operationg and checking .

3.Using high resolution and clear LCD screen which can show Chinese and English,also the display language can convert freely between English and Chinese as to the user requirements .

4.Enlarged memory can store 120 sets mould information ,like time ,counting number ,speed ,pressure,travel stroke,mould thickness and choice conditon .

5.With the function of computer hardware checking itself to ring if it's fault.It's convenient for checking the machines's problem.

6.Imput and output checking function,also with LCD indicator.

7.Uses high precision electronic memasure checking clamping,the position control catually to 0.1mm.

8.Record production time,prodcution quantity and finished quantity automatically,also stop automatically.




Hot type automatic fetch machine


STANDARD FEATURES :
1.Two-stage injection adjustment
2.High speed clamping
3.Low pressure clamping device
4.Automatic mould thickness adjustment
5.Computer-controlled lubrication system
6.Hydraulic moving clamping unit
7.Hydraulic multiple ejector
8.Nozzle heater ,gooseneck heater
9.Inclined claping umnit.
10.Fuel-injection furnace
11. Siemens 200 control system with LCD monitor





Technological Date of  ZL-60





ITEM		Unit	ZL-60
Locking Fore		KN	600
Die Stroke		mm	225
Ejection Force		KN	50
Ejection Stroke(Max)		mm	65
Die Thickness(Min-Max		mm	120-325
Tie Bar Diameter		mm	50
Space Between Tie Bars(W×H)		mm	309X309
Shot Position		mm	0, -50
Plunger Stoke		mm	130
Traverse Stoke		mm	200
Injection Force(Max)		KN	65
Diameter Of Plunger		mm	45	50
Max. .Shot Weight(Zn)		Kg	0.9	1.0
Hydraulic Pressure		Mpa	13.0

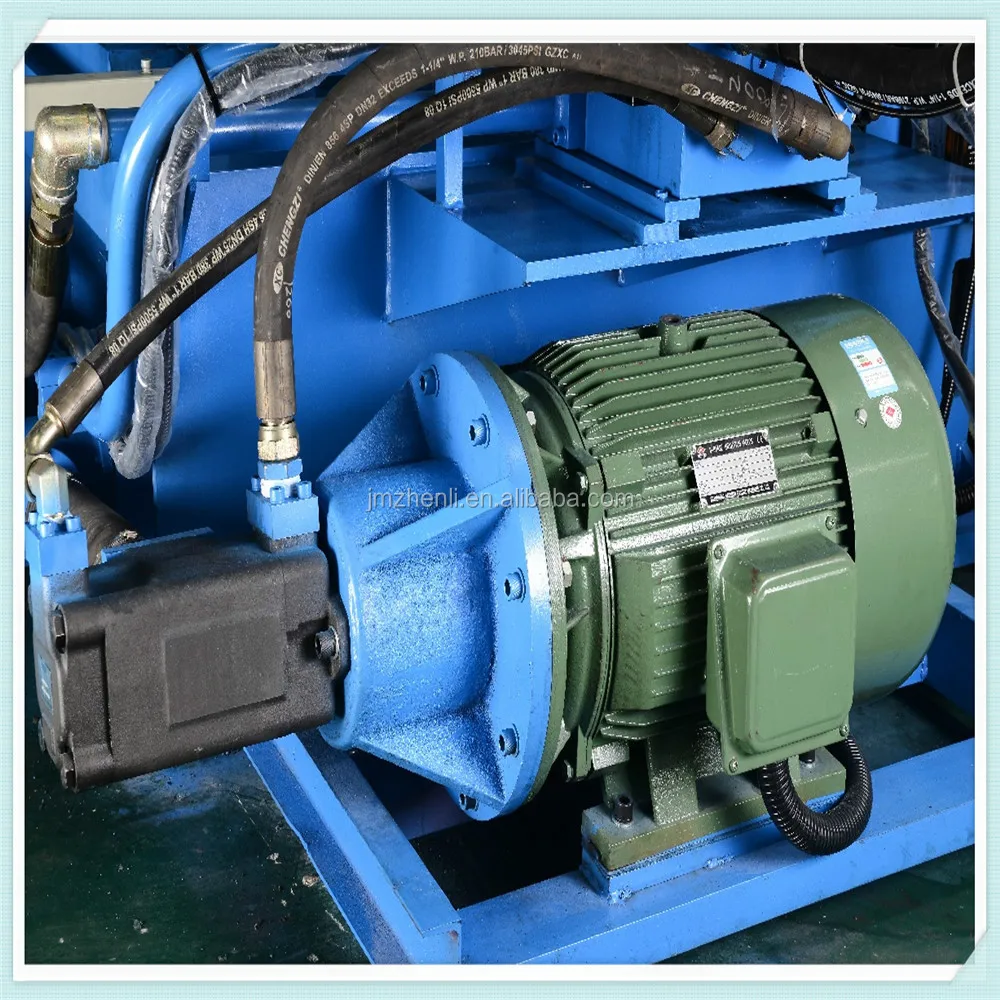

Motor Power		KW	7.5
Crucible Capacity(Zn)		Kg	320
Capacity of Accumulator		L	16
Furnace	Diesel-fired furnace	Kg/h	4.8
Energy Consumption	Electronic Furnace	KW	30
Capacity of Oil Tank		L	210
Machine Size(L×W×H)		mm	3570X1450X1880
Weight of Machine		Kg	3100
