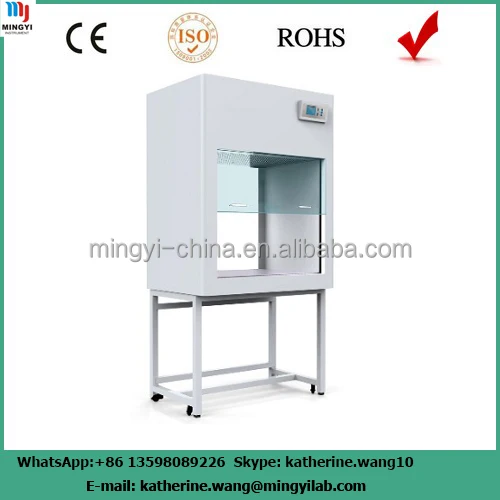

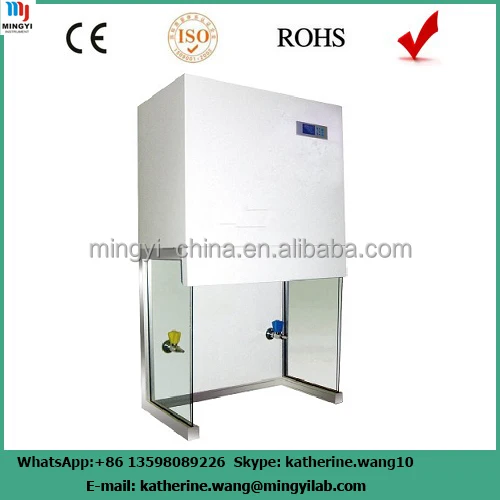

Good quality laminar airflow room
Product Description
Structural features

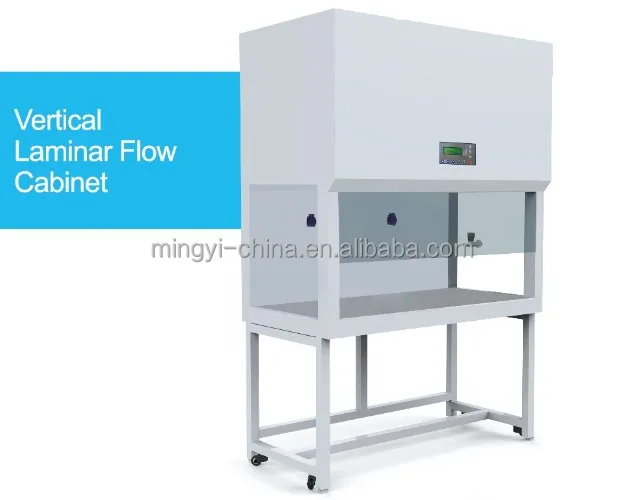

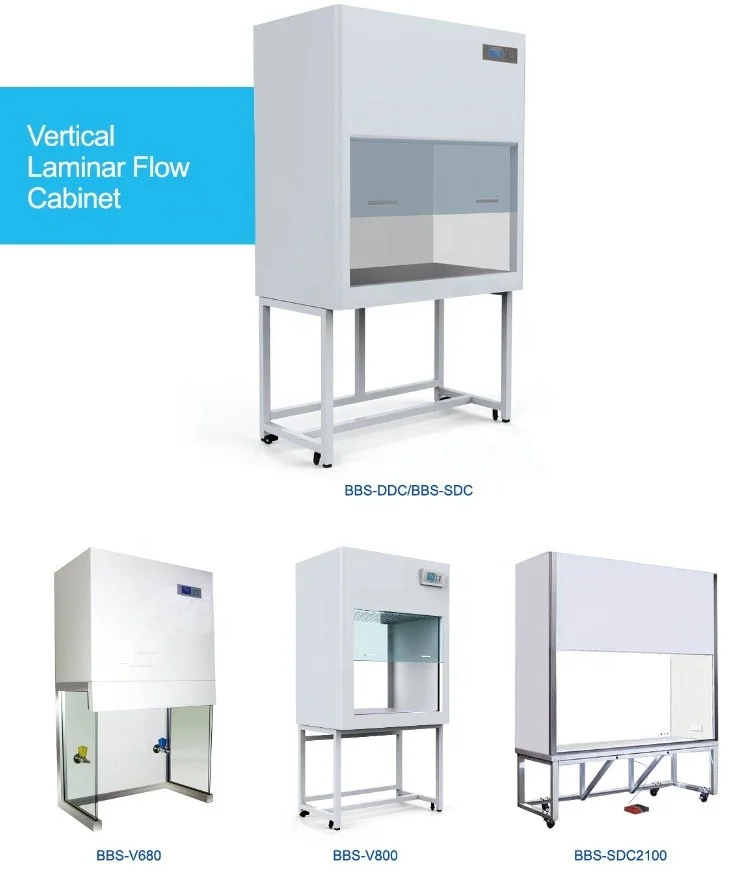

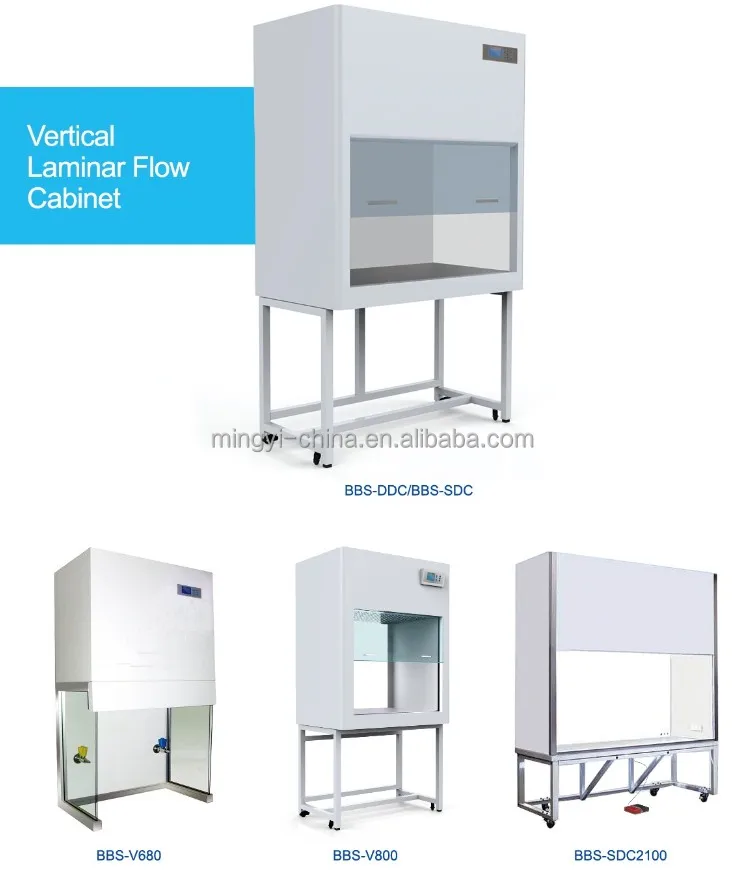

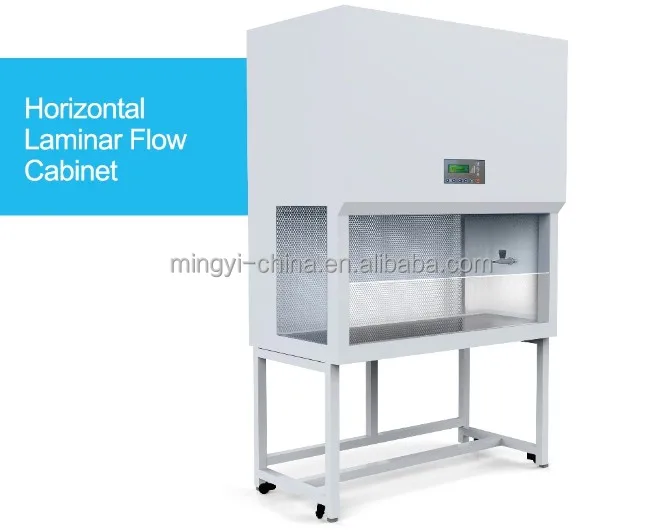

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Product Characteristics
◆ Airflow mode: 30% exhaust, 70% internal circulation.
◆ Product implementation standard: The pharmaceutical industry standard of the People's Republic of China "YY 0569-2011".
◆ The outer box body is made of cold-rolled steel plate, the three sides of the operation area are made of stainless steel integrated structure, and the cleanable parts inside are treated with large rounded corners for easy cleaning.
◆ High-efficiency filter can achieve 99.9995% interception efficiency for 0.12μm particles.
◆ LCD liquid crystal display can display system parameters such as working area temperature and air flow rate, and can adjust various parameter settings, blue screen digital indication Various parameter display values, password modification program settings, to prevent misuse.
◆ It has the function of UV appointment timing.
◆ The front window integrated sliding door can be positioned arbitrarily, and the front window glass door is made of safety tempered glass with a thickness of not less than 6mm.
◆ 10-degree inclined design, more in line with ergonomics and dynamics, making the operator more comfortable.
◆ Power supply in the cabinet: waterproof socket design, the whole machine has a power-off protection function, making the operation more flexible and convenient.
◆ Product implementation standard: The pharmaceutical industry standard of the People's Republic of China "YY 0569-2011".
◆ The outer box body is made of cold-rolled steel plate, the three sides of the operation area are made of stainless steel integrated structure, and the cleanable parts inside are treated with large rounded corners for easy cleaning.
◆ High-efficiency filter can achieve 99.9995% interception efficiency for 0.12μm particles.
◆ LCD liquid crystal display can display system parameters such as working area temperature and air flow rate, and can adjust various parameter settings, blue screen digital indication Various parameter display values, password modification program settings, to prevent misuse.
◆ It has the function of UV appointment timing.
◆ The front window integrated sliding door can be positioned arbitrarily, and the front window glass door is made of safety tempered glass with a thickness of not less than 6mm.
◆ 10-degree inclined design, more in line with ergonomics and dynamics, making the operator more comfortable.
◆ Power supply in the cabinet: waterproof socket design, the whole machine has a power-off protection function, making the operation more flexible and convenient.
Product details
Whole machine cold rolled steel plate
Regular voltage, plug and play
Universal wheel design
LCD control panel
304 stainless steel workbench
High-end electric glass door
Application field
It is suitable for some workplaces with high risks to human body, such as biopharmaceuticals, life sciences, and genetic
engineering experiments.
engineering experiments.
Biopharmaceuticals, medical and health
plant tissue culture inoculation
medical science experiment
Photon, electronics, food experiments
Sterility Microbiology Test
Sterile laboratory
Specification
Parameter/Model | BSC-600ⅡA2 |
cleanliness level | ISO class 4 |
Filter level/filter efficiency | ≥99.9995%，@0.12μm |
downwind speed | 0.33±0.025m/s |
Suction port speed | 0.53±0.025m/s |
Noise | ≤65dB |
Vibration half peak value | ≤5μm |
Power supply/maximum power consumption | AC 220V/50HZ |
Biosafety Personnel Protection | The sampling number of all impact samplers is CFU≤10, and the sampling number of slit sampler is CFU≤5 |
PRODUCT PROTECTION | The sampling number of all sampling vessels CFU≤5 |
cross-contamination protection | The sampling number of all culture dishes CFU≤2 |
Work area size | 600*500*520 mm |
Device Dimensions | 740*650*1850mm |
light intensity | ≥900LX |
weight | 110kg |
Applicable number of people | 1 person |
structure | Box cold-rolled steel plate powder spraying, working area: 304 stainless steel structure |

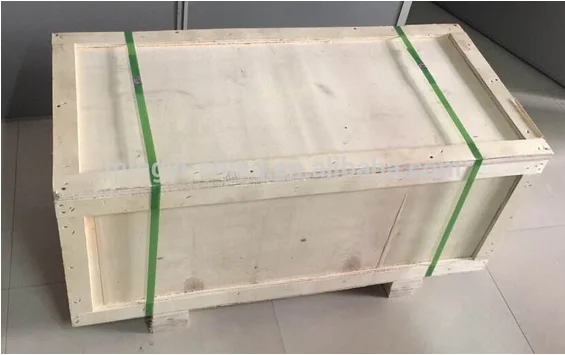

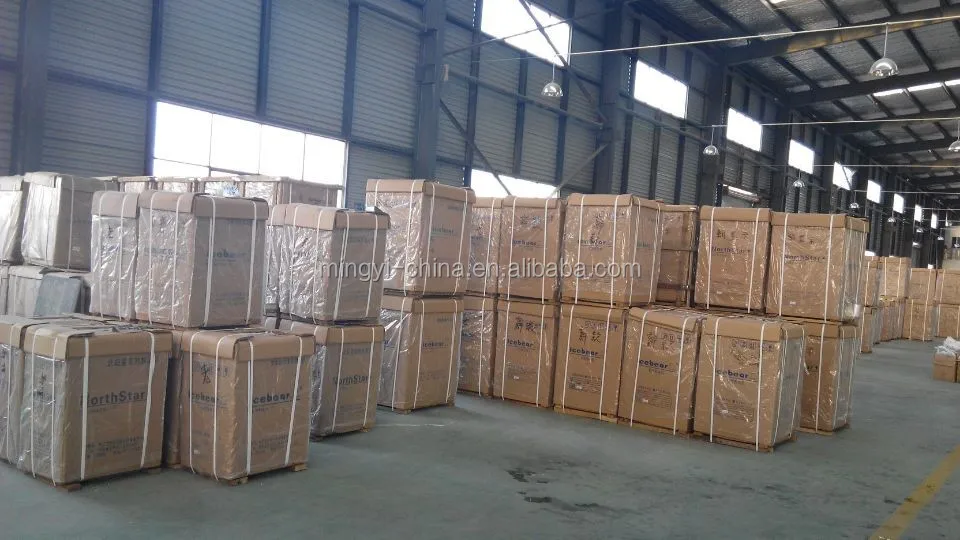

Packing & Delivery
You can choose the packaging form (such as: carton, wooden box, woven bag, etc.) according to the different goods. Different packaging forms have different packaging requirements.
1. General export packaging standard: Pack according to the common standard for trade export.
2. Special export packaging standard: export goods are packaged according to the special requirements of customers.
1. General export packaging standard: Pack according to the common standard for trade export.
2. Special export packaging standard: export goods are packaged according to the special requirements of customers.
You can choose the packaging form according to the different goods. Different packaging forms have different packaging
requirements.
requirements.
1. General export packaging standards: packaging according to the general standards for trade exports.
2. Specialexport packaging standards: export goods are packaged according to the special requirements of customers.
3. The packaging and shipping marks (transportation signs) of the goods should be carefully checked and verified to make them comply with the provisions of the letter of credit.
